Mastering Your Sub-Base: Foundations for Durability

When embarking on any outdoor surfacing project, be it a new driveway, a charming patio, or a practical footpath, the true secret to its longevity and stability lies beneath the surface. We're talking about the sub-base – an often-overlooked yet fundamentally crucial layer that dictates the success or failure of your entire construction. Without a correctly chosen and meticulously installed sub-base, even the most expensive paving materials can succumb to wear, rutting, and instability within a surprisingly short time. This foundational layer acts as the bedrock, distributing weight and ensuring your surface remains pristine for years to come. Understanding its function and the best practices for its implementation is paramount for any homeowner or contractor aiming for a durable and reliable outcome.

What is a Sub-Base and Why is it Crucial?

At its core, a sub-base is a layer of granular material laid directly onto the excavated ground before the final surface material is applied. Its primary function is elegantly simple yet incredibly effective: to spread any point load over a much larger area. Imagine a car tyre, for instance, exerting significant pressure on a small patch of ground. Without a sub-base, this concentrated force would quickly deform the underlying soil, leading to ruts, cracks, and an uneven surface. The sub-base, however, with its interlocking particles, efficiently disperses this pressure, transforming a high-intensity point load into a manageable, widely distributed weight.

This remarkable load-spreading capability is why the sub-base is indispensable for any surface intended to bear weight, from pedestrian footpaths to heavy-duty driveways. The greater the anticipated load, the more robust and deeper the sub-base needs to be. A thin layer of the right crushed aggregate, properly compacted, can dramatically enhance the ground's ability to support substantial weights without settling or distorting. It provides a stable, uniform platform for subsequent layers, preventing movement and ensuring the structural integrity of your patio, driveway, or path for the long haul. Ultimately, the durability of your finished surface is directly proportional to the quality and installation of its sub-base.

Choosing the Right Material: The Heart of Your Sub-Base

The choice of sub-base material is not a decision to be taken lightly; it is fundamental to the success and longevity of your project. The market offers various options, but selecting the right quantity, type, and functional properties of your sub-base material to support your specific project is critical. While it might be tempting to opt for the cheapest materials available to cut costs, a significant portion of any surfacing project's budget is allocated to the foundation material. However, the true 'cheapest' sub-base is not merely about the initial purchase price, but rather the one that endures and effectively supports your project for the longest period, avoiding costly repairs down the line.

While compacted concrete can be utilised as a sub-base in certain scenarios, the industry generally regards MOT sub-bases as the most cost-effective and superior materials for most applications, particularly for driveways. They offer an excellent balance of performance, availability, and affordability, making them the preferred choice for both professional landscapers and DIY enthusiasts across the UK.

Understanding MOT Sub-Base Types

The term 'MOT' refers to 'Ministry of Transport' specifications, indicating that these aggregates meet a specific standard for use in road construction and other civil engineering projects. There are three primary types of MOT sub-bases commonly used, each possessing distinct properties and benefits tailored to different project requirements and ground conditions.

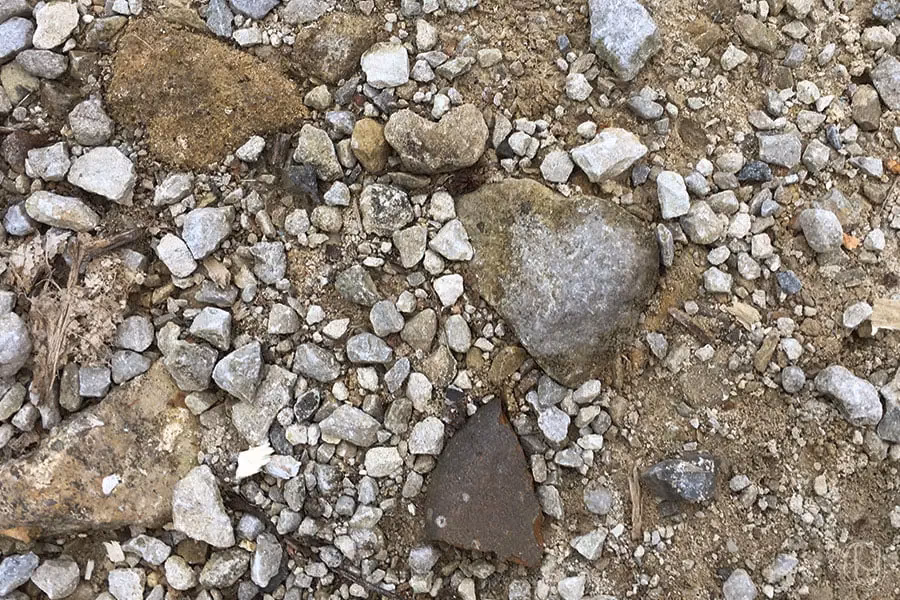

Type 1 MOT

Type 1 MOT is arguably the most common and versatile sub-base material. It consists of crushed aggregate, typically 40mm down to dust, which means it includes a good mix of particle sizes that compact together very tightly. Recycled Type 1 MOT aggregate is often more economical, being a by-product of demolition. However, it's worth noting that recycled variants may occasionally contain small remnants of wood, plastic, glass, or metal. Type 1 MOT excels in its ability to bind well, creating a very stable and dense layer. It also offers good drainage properties, making it an excellent choice for sites with fine, well-draining soil where a robust and stable base is required for surfaces like driveways and patios.

Type 2 MOT

MOT Type 2 is a slightly rougher sub-base material compared to Type 1. It typically has a larger maximum aggregate size and fewer fines, making it a more free-draining option. This characteristic makes Type 2 particularly suitable for projects where a thicker base layer is needed and where moderate drainage is a key consideration. Its rougher nature means it might not compact quite as densely as Type 1, but its enhanced drainage capabilities can be beneficial in certain ground conditions, making it a versatile choice for a wide range of surfacing projects.

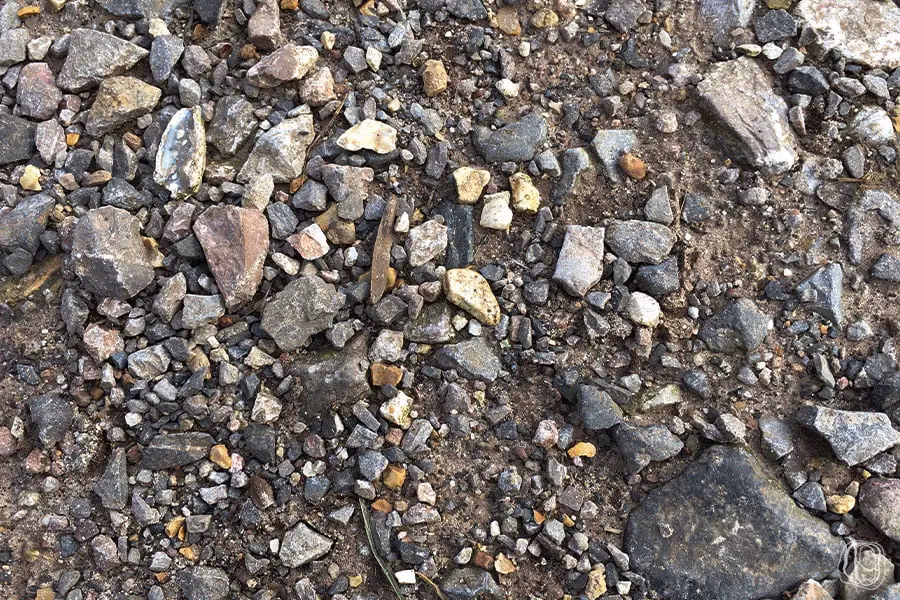

Type 3 MOT

Type 3 MOT, also known as 'open-graded' or 'permeable' sub-base, is specifically designed for superior drainage. It is typically made from pure crushed granite, limestone, or clean crushed concrete, usually in 40mm pieces, but critically, it is screened to minimise fine particles. This lack of fines creates more voids within the material, allowing water to pass through very quickly and efficiently. Type 3 is the best choice for sites with heavy, dense clay soil and poor natural drainage, or for projects where rapid water dispersal through the sub-base is paramount. It's often used in permeable paving systems to manage surface water effectively, preventing waterlogging and ensuring the stability of the overlying surface.

Comparative Table: MOT Sub-Base Types

Calculating Your Sub-Base Depth: How Much Do You Need?

Getting the depth of your sub-base right is as crucial as selecting the correct material. Insufficient depth is a primary cause of premature failure in outdoor surfaces. For pedestrian-only areas like patios and footpaths, a minimum sub-base depth of 75mm is generally recommended. However, for domestic driveways, which will experience heavier vehicular use, we strongly advise a minimum of 150mm of sub-base. We have observed numerous driveway projects fail within a year, or even just a few months, solely due to inadequate sub-base depths.

Even a 150mm sub-base, when properly installed, possesses impressive load-bearing capacity. Just a few centimetres of the correct material, meticulously compacted, can transform a weak, rut-prone surface into one capable of handling cars, delivery vans, and other vehicles without issue. This is achieved through the principle of load spreading, where the granular material effectively distributes concentrated point loads over a significantly wider area, allowing substantial weights to be supported without unwanted settling or distortion of the surface above. While specific calculators can help determine exact quantities based on area and depth, always err on the side of caution with depth, especially for vehicle-bearing surfaces.

Step-by-Step Installation Guide for Your Sub-Base

Laying a sub-base is a precise process that requires attention to detail at each stage. Following these steps will ensure a robust and lasting foundation for your outdoor surface.

1. Sourcing Materials

Before any digging begins, ensure you have sourced the correct type and quantity of sub-base material. As discussed, MOT Type 1 is often ideal for driveways due to its excellent compaction properties. Calculate your required volume by multiplying the area (length x width) by the desired depth. Always order a little extra to account for compaction and minor adjustments.

2. Marking Out and Excavation

Begin by meticulously marking out the boundaries of your new driveway, patio, or footpath. Using a string line stretched between pegs is highly recommended to ensure your edges are straight and consistent with your measurements. Once marked, you can commence excavation. For larger projects, hiring a mini digger can significantly aid and speed up this process, saving considerable manual labour. It's vital to excavate to the correct depth, allowing for your sub-base, any subsequent layers (like sand blinding), and the final surface material. The bottom of your excavation must be as level as possible and completely free of any debris, roots, or large lumps. A clean, level base is crucial for uniform compaction and stability later on.

3. Laying MOT Sub-Base & Compaction

This stage is arguably the most critical. Before introducing your sub-base material, it is best practice to line the excavated ground with a permeable geotextile membrane. This fabric acts as a separation layer, ensuring that your sub-base material does not migrate downwards into the underlying soil, which could compromise its stability over time. Crucially, it also allows water to pass through unimpeded, maintaining the drainage function of your sub-base. Laying any type of sub-base directly onto soil is not recommended, as the natural movement and moisture content of the ground can undermine the sub-base's stability and, consequently, the entire surface.

Once the geotextile is in place, you can begin adding your sub-base material. The key here is to add the material in layers, rather than one large dump. For patios and footpaths (minimum 75mm depth), add your material in layers of approximately 25mm at a time. For driveways (minimum 150mm depth), layers of 50mm are more appropriate. This layering approach is essential for achieving proper compaction.

Before compacting each layer, you should wet the sub-base material. The right moisture level is vital to aid compaction and help the material bind together effectively. An ideal moisture content is typically around 8-13%. Too little water, and the material won't bind; too much, and it will become overly sticky and difficult to compact properly. While few people will measure moisture content with a probe, the best way to gauge this is visually: if it looks as dry as it did when it came out of the bag, add more water. If it's excessively sticky and clumping, you'll need to allow it to dry out slightly before proceeding.

With each layer sufficiently moistened, compaction is performed using a compactor or 'wacker plate'. Pass the compactor across the entire surface of each layer in multiple directions (e.g., lengthways, then widthways) to ensure uniform density. Repeat this process for every layer until you reach your desired sub-base depth.

For optimal drainage, particularly for patios and driveways, ensure there is a slight fall or gradient away from your property or towards a suitable drain. This ensures that any surface water will clear quickly. A fall of approximately 1.5% (or 15mm in every 1m) is generally recommended.

4. Sand Blinding the Sub-Base

The final step in preparing your sub-base, particularly important for solid surfacing (like block paving) and gravel grid installations, is applying a layer of sand blinding. This process ensures the surface is perfectly levelled and ready for the next stage. The standard advice is to lay compacted sharp sand to a depth of approximately 10mm over the top of your thoroughly compacted sub-base.

A long, flat screeding pole or even a straight-edged piece of timber can be used to achieve a perfectly level sand layer. This precise levelling is crucial for the uniform installation of your final surfacing material or membrane, such as those used in permeable gravel grid systems. This layer provides a smooth, unyielding bed that prevents the final surfacing from settling unevenly or moving over time, contributing significantly to the overall stability and appearance of your finished project.

Frequently Asked Questions (FAQs)

Q: Can I use concrete as a sub-base for my driveway?

A: While compacted concrete can technically be used as a sub-base, MOT sub-bases (especially Type 1) are generally considered the most cost-effective and excellent choice for driveways. They offer superior drainage and ease of installation compared to pouring and curing concrete.

Q: What happens if I don't use enough sub-base, or don't compact it properly?

A: Insufficient sub-base depth or poor compaction is a recipe for disaster. Your surface will quickly suffer from rutting, settling, cracking, and general instability. The ground beneath will not be able to support the loads, leading to premature failure of your entire patio or driveway, requiring costly repairs or even full re-installation.

Q: Why is compaction so important for a sub-base?

A: Compaction is the key to a stable and durable sub-base. It increases the density of the material, enhancing its load-bearing capacity and preventing future settlement. Proper compaction ensures the interlocking of particles, allowing the sub-base to effectively spread loads and provide a solid, unyielding foundation for your surface.

Q: Do I really need a geotextile membrane under my sub-base?

A: Yes, a permeable geotextile membrane is highly recommended. It acts as a crucial separation layer, preventing the sub-base aggregate from migrating into the softer soil beneath, which would compromise stability. It also allows water to drain through, maintaining the sub-base's permeability, and helps to stabilise the entire structure.

Q: How can I tell if my sub-base has enough water for compaction?

A: Since precise measurement is impractical, rely on visual inspection. The material should appear damp but not saturated. If it looks dry like it did when delivered, add more water. If it's overly sticky, clumping together excessively, or water is pooling, it's too wet and needs to dry out slightly before compaction.

Q: What's the ideal fall for drainage on a driveway or patio?

A: A fall of approximately 1.5% is generally recommended. This translates to a drop of 15mm for every 1 metre in length. This gentle slope is usually sufficient to ensure surface water drains away quickly and efficiently, preventing pooling and potential issues like moss growth or ice formation.

The sub-base might be out of sight, but it should never be out of mind. It is the unsung hero of any durable outdoor surface, providing the critical support structure that ensures longevity and prevents premature failure. By understanding the different types of MOT sub-bases, calculating the correct depth, and meticulously following the installation steps, you lay the groundwork for a successful and enduring project. Investing time and effort into this foundational layer will undoubtedly save you significant hassle and expense in the long run, ensuring your new driveway, patio, or footpath remains a functional and attractive asset for many years.
