Magnuson Supercharger: Maintenance & Longevity

Superchargers have become increasingly popular in the automotive world, offering a significant boost in performance and a thrilling driving experience. Among the leading names in this sector is Magnuson, renowned for its high-quality supercharger systems that utilise Eaton's proven TVS (Twin Vortices Series) Technology. These systems are designed for efficient, reliable performance and exceptional durability, making them a top choice for enthusiasts looking to enhance their late-model cars and trucks. However, like any high-performance automotive component, superchargers require proper maintenance to ensure they operate at their best and last for many years. This article delves into the specifics of maintaining your Magnuson supercharger, focusing on crucial aspects like oil changes, nose drive care, and identifying potential issues.

Understanding Magnuson Superchargers

Magnuson superchargers are celebrated for their advanced technology and robust construction. They are engineered to deliver significant power gains by forcing more air into the engine's combustion chambers, resulting in increased horsepower and torque. The integration of Eaton's TVS technology, known for its efficiency and compact design, allows Magnuson to create supercharger units that are not only powerful but also relatively easy to install and integrate into various vehicle platforms. This commitment to quality and innovation has cemented Magnuson's position as a market leader.

Supercharger Oil: The Lifeblood of Your System

One of the most critical, yet often overlooked, aspects of supercharger maintenance is the lubrication of its internal components, particularly the gears and bearings within the nose drive. The nose drive is the front section of the supercharger that houses the input shaft and the gears that spin the rotors. These components require a specialized synthetic oil to ensure smooth operation and prevent premature wear.

For example, the TRD Supercharger, often kitted by Magnuson, is advertised with a maintenance-free service life of 100,000 miles. However, Magnuson itself suggests that proactive maintenance can significantly extend this lifespan. This includes changing the oil in the nose drive. This special synthetic oil lubricates the gears and bearings supporting the input shaft. While the manufacturer might state a long interval, changing this oil sooner rather than later is always a prudent decision, especially if you are not the original owner or if the supercharger has seen considerable use.

How Much Oil and What Type?

The nose drive typically contains around four ounces of this specialized synthetic oil. Magnuson offers oil kits specifically for their supercharger models, which usually include a pre-measured bottle of this oil and a new drain plug. It is crucial to use the exact type of oil recommended by Magnuson to avoid damaging the sensitive internal components.

When to Change the Supercharger Oil

While the recommended interval might be 100,000 miles, many enthusiasts and even some manufacturers, such as those found on Grand Prix message boards, recommend changing the supercharger oil every 15,000 to 30,000 miles. A 30,000-mile interval is often considered a good balance between cost and preventative maintenance. If you've recently purchased a used vehicle with a supercharger, it's wise to perform this service as soon as possible.

The Process of Changing Supercharger Oil

The procedure for changing the oil can vary depending on the supercharger's generation and mounting orientation.

First-Generation TRD Superchargers (and similar upside-down mounted units): For earlier models or those mounted upside down relative to standard practice, the supercharger often needs to be removed from the engine to access the drain plug. This is because the drain plug might be located in a position where gravity would cause the oil to spill over critical components if the unit isn't properly positioned. The ideal time to perform this is when the supercharger is already being removed for other upgrades, such as installing larger fuel injectors.

Second-Generation Superchargers (and front-mounted drain plugs): Newer supercharger designs, like the second-generation TRD supercharger, often feature a more accessible drain plug located on the front of the nose drive, near the input shaft. In these cases, the old oil can typically be sucked out using a specialized suction machine. The new oil is then poured in, and a new drain plug is installed. This makes the process considerably simpler and potentially achievable without removing the entire supercharger from the vehicle, although care must be taken to avoid spilling oil.

Nose Drive Replacement: Preventing Catastrophic Failure

Beyond regular oil changes, Magnuson also recommends replacing the entire nose drive unit at specific mileage intervals. This is a more significant maintenance task but is crucial for preventing potential catastrophic failures.

Why Replace the Nose Drive?

Magnuson suggests replacing the nose drive approximately every 60,000 miles. The reasoning behind this recommendation is that as the supercharger accumulates mileage, the bearings within the nose drive begin to wear. This wear can lead to the shedding of microscopic metal particles into the supercharger oil. These metal particles can then circulate throughout the supercharger, potentially causing damage to the main bearings that support the supercharger's impellers. If these main bearings fail, the entire supercharger unit will likely require a costly overhaul or complete replacement.

What is an Overhauled Nose Drive?

An overhauled nose drive from Magnuson is a unit that has been rebuilt with all new internal parts, including bearings and gears. The only component typically reused is the housing itself, which is carefully inspected and prepared. These overhauled units come complete with everything needed for replacement: the rebuilt nose drive, the correct type and amount of oil, a new shaft coupler, and the necessary sealant for reassembly.

The Nose Drive Replacement Process

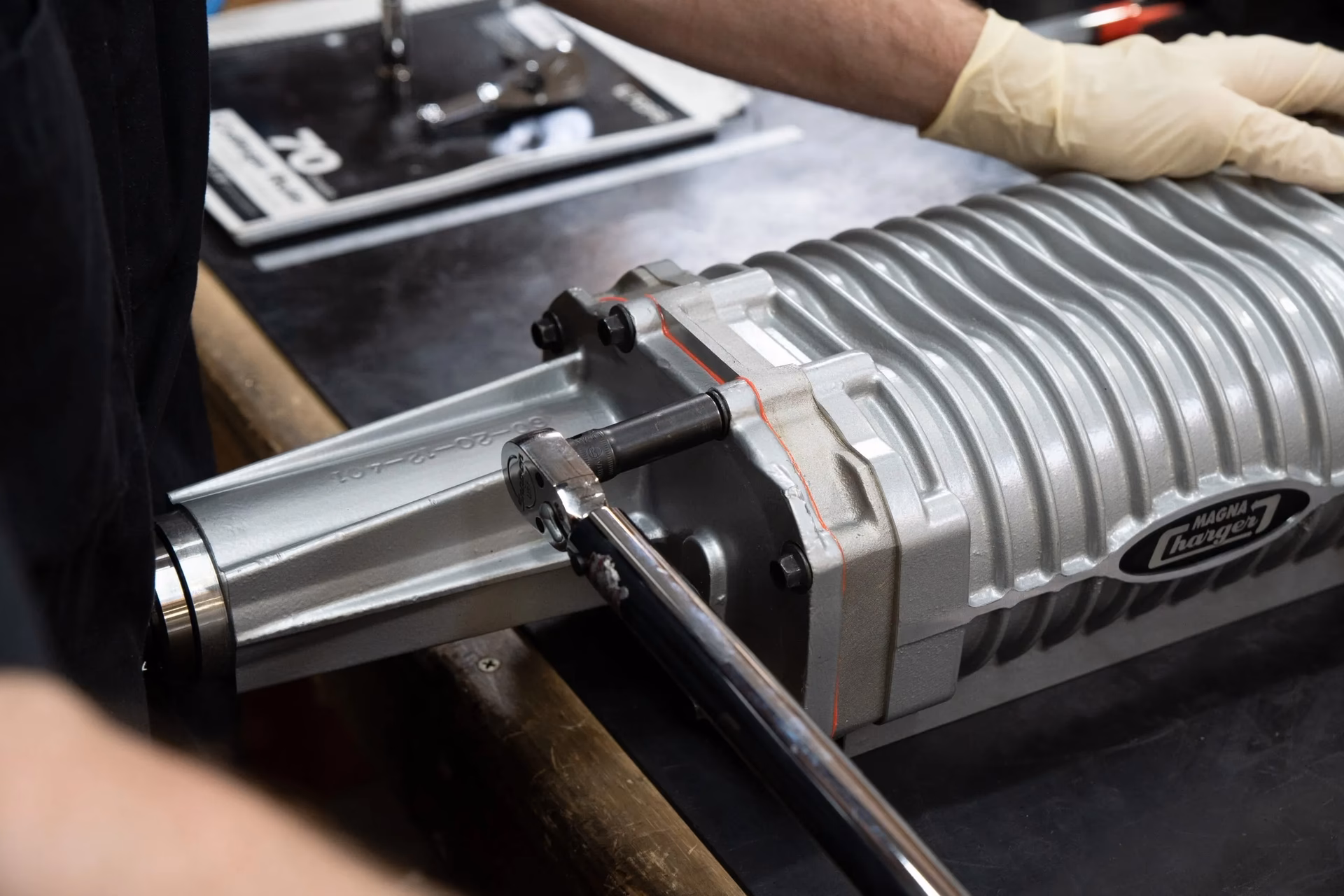

Replacing the nose drive involves splitting the supercharger casing. This process generally requires removing the supercharger from the engine to prevent oil from spilling onto the engine bay during disassembly. The bolts securing the nose drive to the main casing are removed, and the casing is carefully tapped to break the seal.

Once separated, the old nose drive is removed, and the sealing surfaces on both the housing and the new nose drive must be meticulously cleaned to ensure a proper seal with the new sealant. The sealant is then applied around the edge of the casing, and the overhauled nose drive is installed. After installing the new nose drive, the correct amount of fresh oil is added, the drain plug is fitted, and the supercharger is then reinstalled onto the engine. It's important to consult Magnuson's specific instructions for your supercharger model regarding the proper torque specifications for all bolts during reassembly.

While generally requiring supercharger removal, there are instances where some individuals with specific supercharger generations (like the second-generation TRD) have managed to replace the nose drive without fully removing the unit from the engine. This is a more advanced procedure and depends heavily on the supercharger's specific design and accessibility.

Other Important Checks and Maintenance

In addition to the oil and nose drive, several other checks should be performed regularly to ensure your Magnuson supercharger is functioning optimally:

• Oil Leaks: Regularly inspect around the input shaft seal for any signs of oil leakage. A small amount of weeping might be normal, but significant leaks indicate a problem that needs immediate attention.
• Belt Tension and Condition: Check the drive belt that powers the supercharger. Ensure it has the correct tension – not too loose (which can cause slippage) and not too tight (which can damage bearings). Also, inspect the belt for any signs of cracking, fraying, or glazing, and replace it if it shows signs of wear.
• Bypass Valve Operation: The bypass valve is a critical component that regulates boost pressure by recirculating air when the throttle is closed or at lower engine speeds. It's essential to ensure this valve is working correctly and not sticking.

Checking the Bypass Valve

A simple way to check the bypass valve is to observe its position when the engine is off. Then, start the engine; the valve should move to a different, typically opposite, position due to vacuum or boost. When the engine is shut off, the valve should return to its original resting position. If it appears sluggish, stuck, or doesn't move as expected, it may require cleaning or adjustment. Some users have found that the travel stop set screws on certain models can be misadjusted, causing the valve to over-travel and stick. Proper adjustment is key.

Input Shaft Smoothness Test

Whenever you remove the drive belt for any reason, it's a good opportunity to perform a manual check of the supercharger's internal condition. With the belt off, turn the input shaft by hand in the same direction that the engine normally turns it. The shaft should rotate smoothly without any roughness, grinding, or binding felt in the bearings. Any noticeable roughness is a strong indicator of bearing wear within the nose drive or main casing, suggesting that a replacement or overhaul might be necessary soon.

Common Signs of a Failing Supercharger

Knowing when your supercharger might be failing is crucial for preventing more extensive damage. Some common symptoms include:

• Whining or Grinding Noises: Unusual noises, especially a high-pitched whine that changes with engine RPM or a distinct grinding sound, can indicate bearing failure or gear damage.
• Loss of Power: If you notice a significant decrease in acceleration or overall power output, it could be due to a slipping belt, a malfunctioning bypass valve, or internal damage within the supercharger.
• Oil Leaks: As mentioned, oil leaking from the input shaft seal is a clear sign of a problem.
• Check Engine Light: While a check engine light can indicate numerous issues, sometimes a supercharger problem can trigger specific fault codes related to boost pressure or sensor readings.

Conclusion

A Magnuson supercharger is a fantastic upgrade for any vehicle, offering exhilarating performance. However, to enjoy these benefits for the long haul, regular and proper maintenance is non-negotiable. By adhering to recommended service intervals for oil changes, considering timely nose drive replacements, and performing regular visual and operational checks, you can ensure your supercharger continues to perform reliably and powerfully for many miles to come. Always refer to Magnuson's official documentation for your specific supercharger model for the most accurate and detailed maintenance procedures.

Frequently Asked Questions (FAQs)

Q1: How often should I change the oil in my Magnuson supercharger?

A1: While official recommendations can vary, a good practice is to change the supercharger oil every 15,000 to 30,000 miles to ensure optimal lubrication and prevent wear.

Q2: Do centrifugal superchargers use different oil than positive displacement superchargers like Magnuson's TVS units?

A2: Centrifugal superchargers often have their own lubrication systems, sometimes integrated with the engine's oil or having a separate sealed unit. Magnuson's TVS units (which are positive displacement) require specific synthetic oil for their internal nose drive gears and bearings, as detailed in this article. Always use the oil specified by the manufacturer for your specific type of supercharger.

Q3: My supercharger is making a whining noise. What could be the cause?

A3: A whining noise can be normal for some superchargers, as it's characteristic of the rotors spinning. However, if the noise is new, significantly louder, or changes in pitch or intensity unexpectedly, it could indicate bearing wear or other internal issues within the nose drive or rotors.

Q4: Is it necessary to remove the supercharger to change the nose drive?

A4: In many cases, yes, especially for older or specific mounting configurations. This is to prevent oil spillage and allow for proper access. However, some newer designs might allow for nose drive replacement without full supercharger removal, but this is less common and requires careful execution.

Q5: How do I know if my supercharger is bad?

A5: Signs of a bad supercharger include significant loss of power, unusual noises (grinding, excessive whining), visible oil leaks from seals, or a check engine light with related fault codes. Performing the input shaft smoothness test when the belt is off can also reveal internal bearing issues.

Q6: Can I use regular motor oil in my supercharger's nose drive?

A6: Absolutely not. Supercharger nose drives require a specific, high-quality synthetic oil designed for the extreme pressures and temperatures involved in lubricating gears and bearings. Using regular motor oil can lead to rapid wear and catastrophic failure.
