Mastering Your Ride: Deore M6100/M6120 Brakes

When it comes to cycling, especially mountain biking, the importance of reliable and powerful brakes simply cannot be overstated. They are your primary control mechanism, dictating speed, direction, and ultimately, your safety on the trails. Among the myriad of options available, Shimano's Deore series has carved out a sterling reputation for delivering exceptional performance, durability, and value, bridging the gap between entry-level components and high-end professional gear. If you're looking to upgrade or replace your current braking system with a Shimano Deore M6100 or M6120 front disc brake set, understanding what these systems offer and where to acquire them in the UK is crucial for an optimal riding experience.

The Shimano Deore M6100 and M6120 series represent the latest iteration of Shimano's workhorse mountain bike groupset. Both are hydraulic disc brake systems, meaning they use fluid to transfer force from the brake lever to the caliper, offering superior stopping power and feel compared to mechanical systems. The distinction between the M6100 and M6120 primarily lies in their caliper design, which dictates their intended application and braking characteristics.

Understanding the Shimano Deore M6100 and M6120 Calipers

At the heart of any disc brake system is the caliper, the component responsible for squeezing the brake pads against the rotor to create friction and slow you down. The Shimano Deore M6100 and M6120 calipers, while part of the same series, are designed for slightly different riding styles and demands.

The Shimano Deore BR-M6100 caliper is a two-piston design. This means it features two pistons that push the brake pads onto the rotor. It's an excellent choice for cross-country (XC) riding, light trail use, and general recreational cycling where weight savings and efficient braking are prioritised. The two-piston setup offers a crisp lever feel and ample stopping power for most riding conditions, providing reliable performance without excessive bulk.

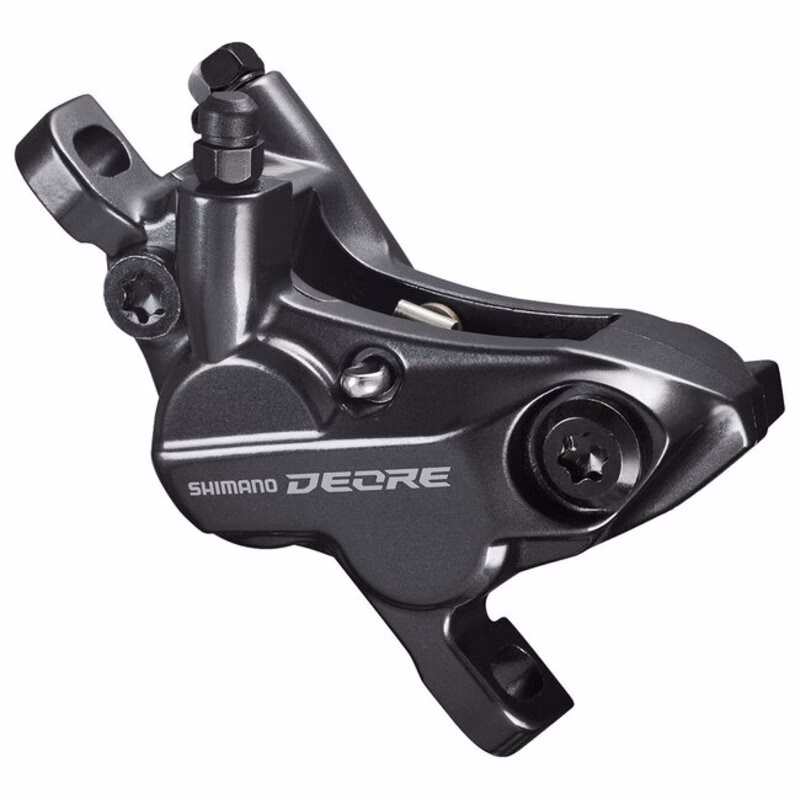

Conversely, the Shimano Deore BR-M6120 caliper is a four-piston design. As the name suggests, it employs four pistons (two on each side) to exert force on the brake pads. This configuration significantly increases braking power and heat management, making it the preferred choice for more aggressive riding disciplines such as trail, all-mountain, and enduro. The additional pistons provide a larger contact area with the brake pads, leading to more consistent and powerful braking, particularly on long, steep descents where heat build-up can be an issue. The four-piston design also contributes to better modulation, allowing riders to finely control their braking force, from a gentle scrub to an emergency stop.

Both caliper types typically pair with the Shimano BL-M6100 brake lever, which features Shimano's SERVO WAVE Action technology, ensuring quick pad engagement and more power for aggressive riding. This lever is ergonomically designed for comfortable and intuitive operation, complementing the performance of either caliper.

Why Choose Shimano Deore Hydraulic Disc Brakes?

Opting for Shimano Deore disc brakes offers a multitude of benefits that enhance your riding experience:

• Consistent Stopping Power: Hydraulic systems provide far more consistent and powerful braking than mechanical alternatives, performing reliably in wet, muddy, or dry conditions.
• Superior Modulation: The ability to precisely control braking force is a hallmark of hydraulic brakes. This means you can feather the brakes for subtle speed adjustments or apply full power when needed, all with greater control and less hand fatigue.
• Durability and Reliability: Shimano is renowned for its engineering quality, and the Deore line is no exception. These brakes are built to withstand the rigours of mountain biking, offering long-term performance.
• Reduced Hand Fatigue: Less force is required at the lever to achieve significant braking, which is a major advantage on extended descents or long rides.
• Low Maintenance (Compared to Mechanical): While hydraulic brakes require occasional bleeding, they don't suffer from cable stretch or contamination issues that can plague mechanical systems.
• Excellent Value: Deore components offer performance that often rivals higher-tier groupsets at a more accessible price point, making them a fantastic choice for serious enthusiasts.

Key Components of a Complete Disc Brake Set

When purchasing a 'front disc brake set,' you are typically looking for the lever and caliper assembly, often pre-bled with the hose connected. However, to have a fully functional braking system, you'll also need:

• Brake Lever (e.g., BL-M6100): The part you squeeze on the handlebar.
• Brake Caliper (e.g., BR-M6100 or BR-M6120): The component that clamps onto the rotor.
• Brake Hose: Connects the lever to the caliper, transmitting the hydraulic fluid.
• Brake Rotor: The disc mounted to your wheel hub, which the pads grip. These are usually sold separately and come in various sizes (e.g., 160mm, 180mm, 203mm).
• Brake Pads: Fitted inside the caliper, these wear out and need replacing. Shimano Deore brakes use either resin (organic) or metallic (sintered) pads.

Where to Purchase Shimano Deore M6100/M6120 Brake Sets in the UK

Finding a Shimano Deore M6100 or M6120 front disc brake set in the UK is generally straightforward, as these are popular and widely stocked components. Here are the primary avenues for purchase:

• Online Cycling Retailers: The vast majority of new cycling components are sold through online retailers. Websites specialising in bike parts and accessories often have the widest selection, competitive pricing, and comprehensive stock levels. Look for well-established UK-based online shops that offer clear product descriptions, good customer service, and reliable shipping. They often sell complete brake sets (lever, caliper, hose) or individual components.
• Local Independent Bike Shops (IBS): Your local bike shop is an invaluable resource. Not only can they order and supply the brake set you need, but they also offer expert advice on compatibility, fitting, and can even install the brakes for you. Supporting your local IBS ensures you have access to hands-on service and knowledge, which can be particularly helpful with hydraulic systems that might require bleeding.
• Specialist Mountain Bike Shops: Some retailers focus specifically on mountain biking. These shops often have a deeper understanding of specific component needs for off-road riding and may carry a broader range of high-performance parts, including various Shimano Deore configurations.

When purchasing, always verify that you are buying a full set (lever, caliper, and hose) if that is your intention, or individual components if you are mixing and matching. Also, ensure the brake comes pre-bled if you prefer not to undertake the bleeding process yourself, although many sets are supplied ready to install.

Installation and Setup Essentials

While installing disc brakes can be a DIY task for the mechanically inclined, it's crucial to follow the correct procedures, especially with hydraulic systems. Here’s a brief overview:

1. Mounting: Attach the brake lever to your handlebars and the caliper to your fork. Ensure correct orientation (left for front brake in the UK).
2. Hose Routing: Carefully route the brake hose along your frame, securing it with appropriate clips or ties.
3. Rotor Installation: If you're also installing a new rotor, ensure it's clean and mounted correctly to your wheel hub (either Centre Lock or 6-bolt standard).
4. Brake Bleeding: This is the most critical step for hydraulic brakes if they are not pre-bled. It involves removing air bubbles from the system to ensure firm lever feel and consistent braking power. Shimano's one-way bleeding system makes this process relatively user-friendly with the right tools and mineral oil.
5. Pad Bedding In: New brake pads need to be 'bedded in' to achieve their full braking potential. This involves a series of moderate and firm braking efforts to transfer pad material to the rotor, creating an optimal friction surface.

Maintaining Your Shimano Deore Brakes

Regular maintenance will prolong the life and performance of your Deore brake set:

• Pad Wear: Regularly check your brake pads for wear. Replace them before they wear down to the metal backing plate to avoid rotor damage.
• Rotor Condition: Keep rotors clean and free from oil or grease. Check for warping or excessive wear.
• Lever Feel: A spongy or inconsistent lever feel is often a sign that your brakes need bleeding.
• Cleaning: Use specific disc brake cleaner to degrease rotors and calipers. Avoid spraying lubricants near your brakes.

Comparative Table: Shimano Deore M6100 vs M6120 Caliper

Comparative Table: Hydraulic vs Mechanical Disc Brakes

Frequently Asked Questions (FAQs)

Can I use an M6100 lever with an M6120 caliper?
Yes, Shimano Deore M6100 levers are fully compatible with both M6100 (two-piston) and M6120 (four-piston) calipers. This allows for flexibility if you wish to upgrade just the caliper for more stopping power.

What kind of brake fluid do Shimano Deore brakes use?
Shimano hydraulic disc brakes exclusively use Shimano's proprietary mineral oil. Never use DOT fluid, as it is corrosive and will damage Shimano's seals.

How often should I bleed my hydraulic brakes?
The frequency depends on your riding style and conditions. For casual riders, once a year might suffice. Aggressive riders or those frequently riding in harsh conditions might need to bleed them more often, or whenever the lever feel becomes spongy or inconsistent.

What's the difference between resin and metallic brake pads?
Resin (organic) pads are generally quieter and offer good initial bite, but wear faster, especially in wet conditions. Metallic (sintered) pads are more durable, offer stronger braking power, particularly in wet and muddy conditions, but can be noisier and require more effort to bed in.

Are these brakes difficult to install for a DIY mechanic?
Installing the physical components (lever, caliper, rotor) is relatively straightforward. However, bleeding the hydraulic system requires specific tools (bleed kit) and careful adherence to instructions. If you're uncomfortable with the bleeding process, it's always best to have a professional bike mechanic do it.

In conclusion, choosing a Shimano Deore M6100 or M6120 front disc brake set is a fantastic decision for any cyclist seeking robust, reliable, and high-performing braking. Whether you opt for the lighter, two-piston M6100 for cross-country efficiency or the powerful, four-piston M6120 for aggressive trail riding, you'll be investing in a system that offers exceptional control and safety. By knowing where to purchase these components in the UK and understanding their maintenance needs, you're well on your way to a more confident and enjoyable riding experience.
