Unravelling the CAV DPA Fuel Injection Pump

The CAV DPA fuel injection pump holds a legendary status in the world of diesel engines, powering countless agricultural, industrial, and automotive applications across the United Kingdom and beyond for decades. Renowned for its compact design, reliability, and relatively simple construction compared to its in-line counterparts, understanding how this vital component operates is fundamental for any mechanic or enthusiast working with older diesel machinery. Far more than just a fuel dispenser, the DPA pump is a sophisticated piece of engineering that precisely controls the timing and quantity of fuel delivered to each cylinder, ensuring efficient combustion and optimal engine performance.

How the CAV DPA Pump Works: A Deep Dive

At its core, the CAV DPA is a distributor type rotary fuel injection pump. This means it uses a single pumping and distributing element to serve all engine cylinders, unlike in-line pumps that have a separate pumping element for each cylinder. This design significantly reduces the pump's size and complexity. The operational cycle begins with fuel entering the pump from the fuel tank, typically via a low-pressure transfer pump (often integral to the DPA unit itself). This transfer pump draws fuel through the primary filter and fills the pump's interior housing, maintaining a constant supply pressure.

Within the pump, the main action revolves around the rotating and reciprocating distributor rotor. This rotor is driven by the engine, ensuring synchronisation with the crankshaft. As the rotor turns, it aligns with an inlet port, allowing fuel to fill the pumping chambers. These chambers are typically formed by two opposing plungers (often referred to as 'tanam plungers' in some configurations) housed within the rotor. As the rotor continues its rotation, cam rollers on the rotor engage with a cam ring, forcing the plungers inwards. This inward movement rapidly increases the pressure of the fuel trapped between the plungers.

Simultaneously with this pressurisation, the distributor rotor aligns with one of the pump's outlet ports, which are connected to the individual fuel injectors in the engine's cylinders. The highly pressurised fuel is then discharged through this port, past a delivery valve, and along the high-pressure fuel line to the corresponding injector. This process is repeated for each cylinder as the rotor aligns with successive outlet ports, ensuring precise and timed fuel delivery. The amount of fuel injected per cycle is controlled by a metering valve, which regulates the quantity of fuel allowed to enter the pumping chambers. This metering valve is, in turn, controlled by the hydraulic governor.

The Role of the Hydraulic Governor

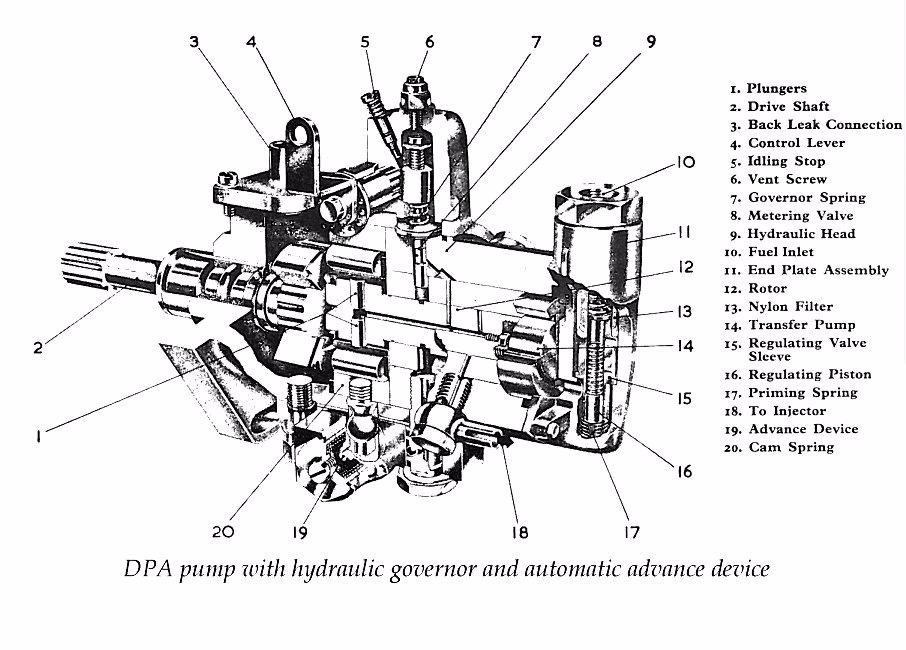

The hydraulic governor is perhaps one of the most ingenious aspects of the DPA pump. Unlike mechanical governors that rely purely on centrifugal weights, the DPA's hydraulic governor uses fuel pressure and springs to control engine speed and fuel delivery. As engine speed increases, the pressure from the integral transfer pump also rises. This increased pressure acts on a diaphragm or piston within the governor assembly, which is opposed by a set of springs. The balance between this fuel pressure and spring tension positions the metering valve, thereby regulating the amount of fuel delivered to the engine.

When the engine is under light load, the governor reduces fuel delivery to maintain the desired RPM. Conversely, under heavy load, it increases fuel delivery to prevent engine speed from dropping. Some DPA pumps feature a 'two-speed' hydraulic governor, designed to precisely control both idle speed and maximum engine speed, offering excellent control across the engine's operating range. This sophisticated yet robust system is crucial for stable engine operation, preventing over-speeding and ensuring smooth power delivery.

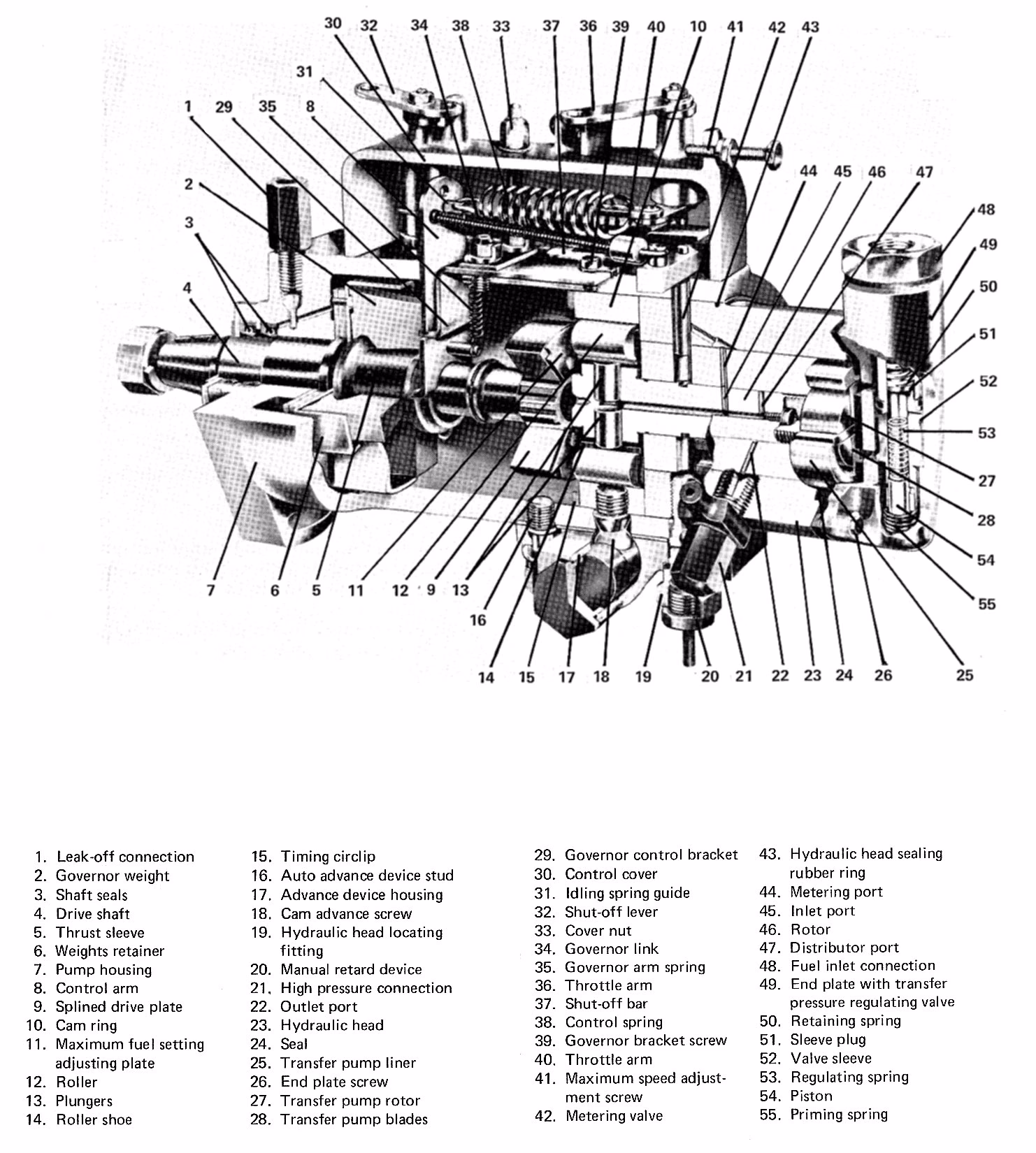

Here's a simplified breakdown of the key components and their functions:

The Critical Importance of Fuel Quality and Priming

For any fuel injection system, but especially for precision-engineered components like the CAV DPA pump, fuel quality is paramount. Diesel fuel, while appearing clean, can harbour microscopic contaminants and water. These impurities are highly detrimental to the delicate internal components of the pump, leading to accelerated wear, scoring, and ultimately, failure. Regular replacement of fuel filters, as per the manufacturer's recommendations, is not merely a suggestion but a critical preventative measure. Never be tempted to bypass or neglect your fuel filter; it's the first line of defence for your expensive injection pump.

How to Prime a DPA Fuel Pump

After running out of fuel, replacing a fuel filter, or undertaking maintenance that introduces air into the fuel system, priming the DPA pump is essential to remove air and restore fuel flow. An air-locked system will prevent the engine from starting or running correctly. Here's a general procedure:

1. Locate the Primer Pump: Most diesel systems with a DPA pump will have a manual primer pump, often located on the fuel filter housing or directly on the lift pump.
2. Operate the Primer: Pump the primer repeatedly. You should feel resistance as fuel fills the system.
3. Bleed Air from Filter (if applicable): If your system has a separate fuel filter, it's often beneficial to slacken the bleed screw or the fuel outlet fitting on the filter housing. Continue pumping the primer until a steady, air-free stream of fuel emerges. Tighten the fitting once air is expelled.
4. Bleed Air from Pump Inlet: For earlier style DPA pumps or if the engine still won't start, locate the fuel pump inlet fitting. Carefully slacken it slightly. Continue priming until fuel, free of bubbles, flows out. Tighten the fitting promptly.
5. Attempt to Start: With the system primed, crank the engine. It may take several attempts for the engine to fire and run smoothly as any remaining small air bubbles work their way out. Avoid excessive cranking to prevent battery drain or starter motor damage. If the engine still refuses to start, you might need to slightly slacken the high-pressure injector lines at the injectors themselves and crank until fuel squirts out, then retighten. However, this is usually a last resort for stubborn air locks.

Caution: Never fill the fuel filter with fuel directly before fitting. The filter's purpose is to remove contaminants, and pre-filling can introduce unseen particles into your clean fuel system, potentially bypassing the filter's effectiveness.

Understanding CAV - Lucas Workshop Manuals

For mechanics and serious DIYers, access to the correct workshop manuals is invaluable. The Lucas Cav injection manuals, including those for the DPA, DCP, Minimec, Micromec, Maximac, and Majormec pumps, form an extensive archive of critical information. However, it's important to note their unique characteristics:

• Assumption of Fundamentals: Unlike Haynes manuals, which are designed for a broader audience, Lucas Cav workshop manuals often assume the technician possesses a foundational understanding of fuel injection principles. They delve into specifics rather than basic theory.
• Inter-Manual References: It's common for one Lucas Cav manual to refer to another book or publication for supplementary information, such as 'Rationalization Data books' or 'Service Bulletins'. This means you might need a collection of resources to get the full picture.

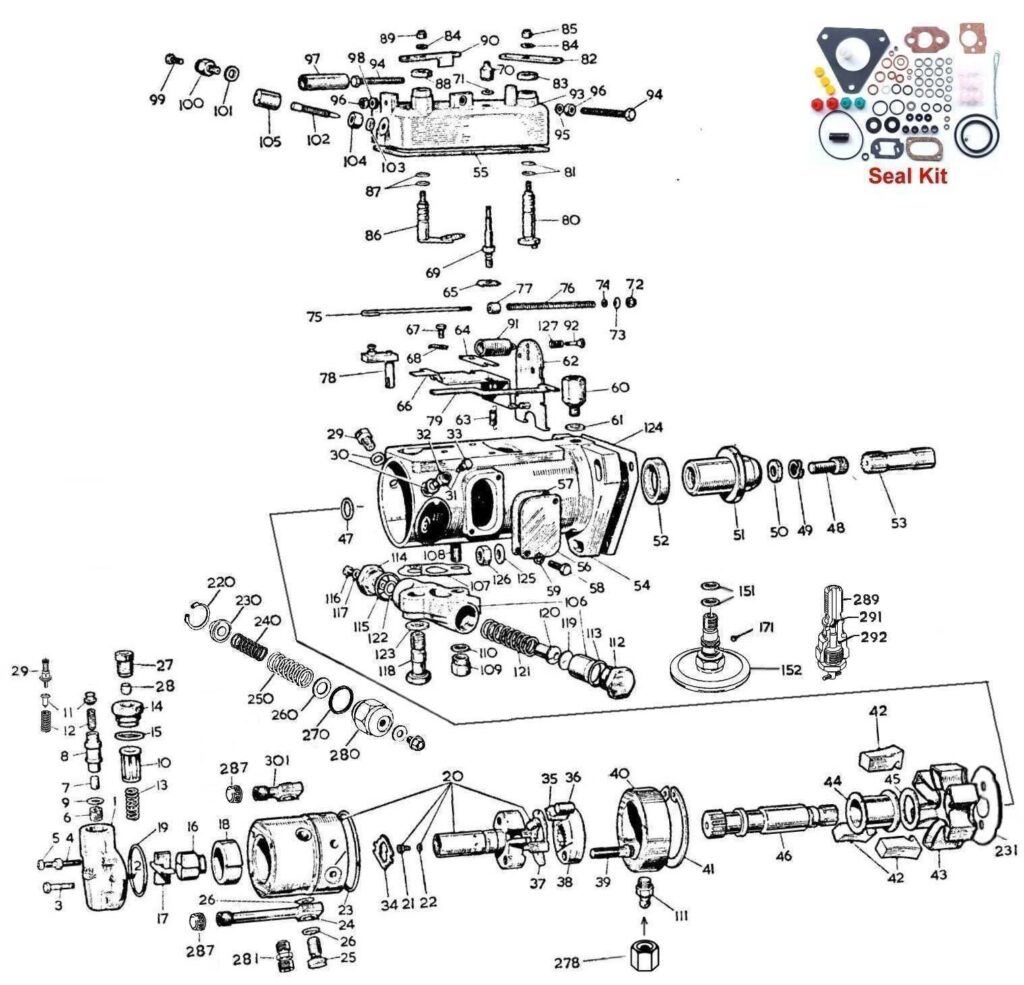

• Layout: While service manuals focus on repair procedures and test data (like pressure charts for governors), parts manuals offer detailed exploded views, showing every nut and bolt, which is incredibly useful for reassembly.
• Service Data & Bulletins: These are vital for staying updated on specific pump variants, common issues, and factory-recommended adjustments or modifications.

Acquiring these service manuals for your specific DPA pump variant (e.g., Rotodiesel DPA, Tanam plunger Hydraulic Fuel Pump) is highly recommended for accurate diagnosis, disassembly, repair, and reassembly. They provide the precise specifications and procedures necessary to correctly service these intricate pumps.

Common Issues and Troubleshooting

While robust, DPA pumps can develop issues over time, often due to wear, contamination, or age. Recognising the symptoms is the first step towards diagnosis:

Many DPA pump issues manifest as performance problems rather than complete failure. Early detection and addressing these symptoms can prevent more severe and costly damage. Always ensure your fuel system is free of air and that your fuel filters are clean before assuming a major pump fault.

Frequently Asked Questions (FAQs)

Q: What types of engines typically used CAV DPA pumps?

A: CAV DPA pumps were incredibly popular and widely fitted to a vast array of diesel engines, particularly in the mid-20th century. Common applications include agricultural machinery (e.g., Massey Ferguson, Fordson, Perkins-powered tractors), industrial equipment (forklifts, generators), and many light commercial vehicles (such as early Ford Transit vans and certain Land Rovers). Engines from manufacturers like Perkins, Ford, and BMC were frequent users of the DPA pump due to its compact size and reliability for a wide range of power outputs.

Q: Can I repair a CAV DPA pump myself?

A: While basic tasks like bleeding air or replacing external seals might be within the scope of a competent DIY mechanic, internal repairs to a CAV DPA pump are highly complex and generally require specialised tools, calibration equipment, and significant expertise. The internal components are manufactured to extremely fine tolerances. Incorrect assembly or calibration can lead to severe engine damage. For any internal issues, it is strongly recommended to send the pump to a reputable diesel injection specialist who has the necessary equipment and experience to rebuild and calibrate it correctly.

Q: Why is clean fuel so important for a DPA pump?

A: Clean fuel quality is paramount because the internal moving parts of a DPA pump, such as the plungers and distributor rotor, rely on the diesel fuel itself for lubrication. Contaminants like dirt, rust, or water act as abrasives, causing wear and scoring on these precision-machined surfaces. This wear leads to internal fuel leakage (often called 'slip'), which reduces pumping efficiency, lowers injection pressure, and can cause hard starting, loss of power, and poor fuel economy. Water can also lead to corrosion and significantly accelerate wear.

Q: What's the difference between a CAV DPA and a Rotodiesel DPA pump?

A: Essentially, they are the same pump design. 'CAV' (C.A.V. Ltd.) was the original manufacturer, a British company that became part of Lucas in the mid-20th century, leading to the 'Lucas CAV' designation. 'Rotodiesel' was a brand name used by some licensees or later iterations of the DPA pump, particularly by companies like Stanadyne (who had licensed the design). So, while the branding might differ, the fundamental working principle and design of the DPA pump remain consistent across these names.

The CAV DPA pump, despite being an older design, continues to be a workhorse in countless applications. Its robust nature and relatively straightforward design, once understood, make it a fascinating and rewarding component to work with. Proper maintenance, especially regarding fuel cleanliness and correct priming procedures, will ensure these reliable pumps continue to serve faithfully for many more years.
