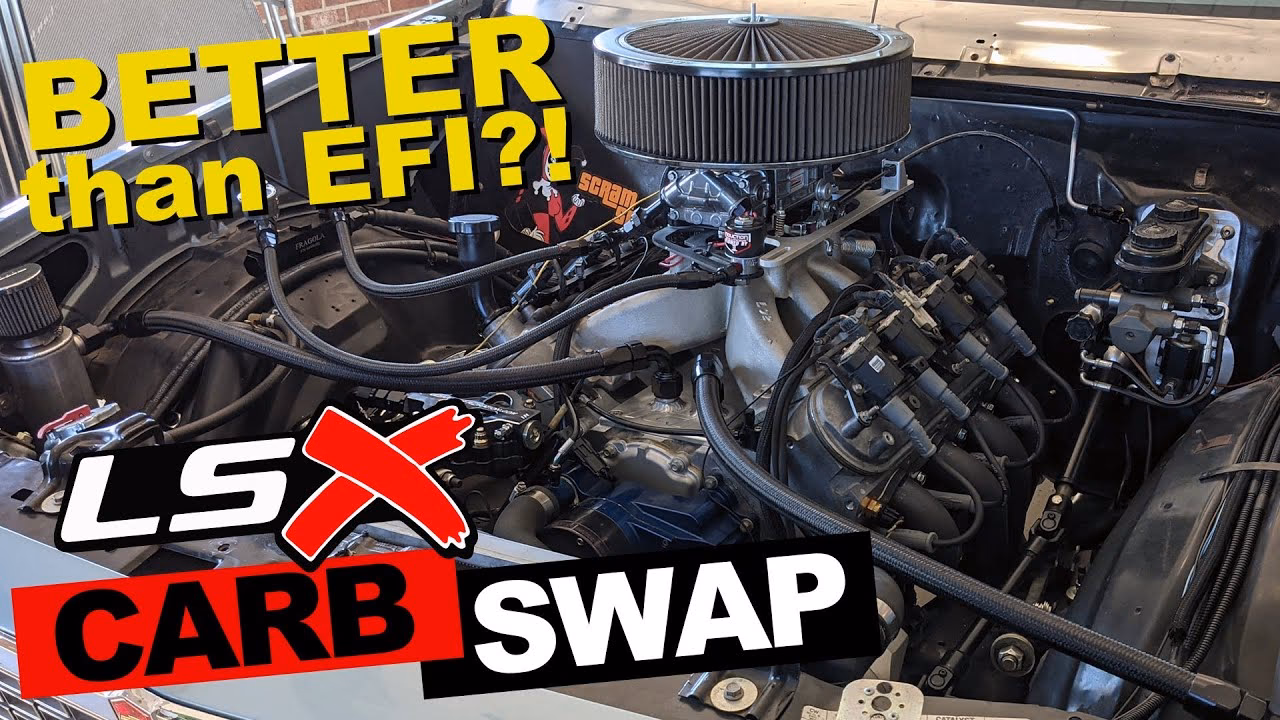

Carb Conversion: LS Engine for Classic Rides

For enthusiasts embarking on an LS engine swap into a vintage street machine or a dedicated track weapon, the allure of a carburettor setup over modern electronic fuel injection (EFI) is undeniable. While it might seem counterintuitive to strip an LS of its advanced EFI, for specific applications, the simplicity, aesthetic, and often lower cost of a carburettor conversion present a highly viable and appealing alternative. This guide will walk you through the essential components and considerations for transforming your LS powerplant into a carburettor-fed marvel, ensuring you achieve that perfect blend of classic feel and modern power.

Converting an LS engine to a carburettor configuration is remarkably straightforward, requiring only a handful of key components to bring your engine to life. Unlike the intricate wiring harnesses and complex Electronic Control Modules (ECMs) associated with EFI, a carburettor setup streamlines the entire process, making it a popular choice for those seeking a more traditional hot rod experience or a no-nonsense race build.

The Foundational Piece: Intake Manifold Selection

The first and arguably most crucial step in your LS carburettor conversion is selecting the appropriate intake manifold. This component bridges your engine's cylinder heads to your chosen carburettor, dictating airflow characteristics and, consequently, your engine's power delivery. Thankfully, the market offers a wide array of options designed specifically for LS engines, making this choice more about matching your application than finding availability.

Manufacturers like GM Performance themselves offer excellent performance intake manifolds, while aftermarket giants such as Edelbrock boast an extensive lineup of carb-ready LS manifolds tailored for various build types. You'll primarily encounter two main designs: dual-plane and single-plane intake manifolds.

• Dual-Plane Manifolds: These are typically favoured for street applications due to their design, which promotes better low-end torque and a broader power band. They excel in providing good throttle response and drivability at lower RPMs, making them ideal for cruisers or street/strip cars that see significant road use.
• Single-Plane Manifolds: In contrast, single-plane manifolds are designed for high-RPM power, making them the go-to choice for dedicated race cars or engines that will spend most of their life in the upper RPM range. They sacrifice some low-end grunt for superior peak horsepower.

When selecting your manifold, consider your specific LS engine variant, its approximate horsepower level, and, critically, the usable RPM range in which your vehicle will primarily operate. Many modern carburettor-specific LS manifolds even include provisions for EFI injectors, offering future flexibility should you ever decide to revert or switch to fuel injection. This adaptability provides a safety net and broadens your tuning options down the line.

Choosing Your Fuel Mixer: The Carburettor Itself

Once you have your intake manifold sorted, the next vital component is the carburettor itself. Selecting the proper size carburettor is often more art than exact science, and a common pitfall is simply opting for the largest unit available. While tempting, a carburettor that's too large can lead to poor throttle response, reduced fuel economy, and a lack of crispness in the engine's operation. Conversely, one that's too small will restrict airflow and limit your engine's ultimate power potential.

To determine the correct carburettor CFM (Cubic Feet per Minute) rating, you need to evaluate your entire engine package. Key factors include your engine's displacement (in cubic inches), its maximum anticipated RPM, and its volumetric efficiency (VE). Volumetric efficiency describes how effectively your engine fills its cylinders with air-fuel mixture.

• Street Engines: Typically operate with a volumetric efficiency around 85%. This means they require less airflow compared to their racing counterparts.
• Racing Engines: Can achieve volumetric efficiencies closer to 110% (due to forced induction or highly optimised natural aspiration), demanding significantly more airflow.

Your choice of intake manifold also plays a role here; a single-plane manifold, designed for higher RPMs, will often pair best with a carburettor that delivers more peak flow, whereas a dual-plane manifold, focused on low-end grunt, might benefit from a carburettor that provides better signal at lower airspeeds.

Carburettor Selection Guide

Ultimately, a well-matched carburettor will provide crisp throttle response, strong power delivery across your desired RPM range, and reliable operation. Don't be afraid to consult with carburettor specialists or use online calculators as a starting point, but always consider the unique characteristics of your specific LS build.

The Brains of the Operation: Ignition Control

One of the significant advantages of converting an LS to a carburettor is eliminating the need for the complex factory LS wiring harness and its accompanying ECM. However, since LS engines utilise coil-on-plug ignition systems and lack a traditional distributor, you'll require a dedicated ignition box to operate the ignition coils and manage ignition timing.

An LS Ignition Control Box, such as those offered by MSD (like their LS Series Ignition Controller), simplifies the wiring immensely. These units typically plug directly into key engine sensors:

• Camshaft Position Sensor: Provides information on the cam's rotational position.
• Crankshaft Position Sensor: Crucial for determining engine speed and piston position.
• Ignition Coils: The direct connection to fire the spark plugs.
• Optional Engine Coolant Temperature Sensor: Allows for temperature-based timing adjustments.

Some advanced ignition boxes even have the Manifold Absolute Pressure (MAP) sensor built directly into the unit, further reducing clutter. Others require an external MAP sensor plugged into the intake manifold.

These modern ignition boxes are incredibly sophisticated devices. While many come pre-programmed with a handful of ignition maps suitable for various applications, they also offer extensive customisation. Users can often:

• Create customised timing maps for each individual cylinder.
• Adjust rev-limiter settings to protect the engine.
• Implement launch control for consistent drag strip starts.
• Fine-tune idle control for smooth running.
• Access datalogging capabilities to record engine parameters for analysis and further tuning.

The level of control and precision offered by these ignition boxes far surpasses what could ever be achieved with a traditional distributor, allowing for optimal performance and engine protection for your carburetted LS.

Fueling the Beast: Pump and Pressure Management

With the intake and ignition sorted, the final critical piece of the puzzle is ensuring a consistent and adequate supply of fuel to your carburettor. Unlike many older engines, the LS platform does not have provisions for a mechanical fuel pump, meaning an electric unit must be installed.

For a carburettor setup, the target fuel pressure is typically around 6.5 psi. Maintaining this precise pressure is vital for optimal carburettor performance, as too much pressure can flood the bowls, and too little can lead to fuel starvation.

There are generally two preferred methods for supplying fuel:

• In-Tank Fuel Pump: This is often considered the most reliable and quiet method. Many GM cars from the late 1970s through the 1980s came standard with in-tank electric fuel pumps, which can often be repurposed or retrofitted into older fuel tanks. Aftermarket universal in-tank pump modules are also readily available, making this a clean and efficient solution. In-tank pumps are less prone to cavitation and run cooler, extending their lifespan.
• External Fuel Pump: Alternatively, external electric fuel pumps can be mounted securely along the frame rail or in a similar protected location. While potentially louder and more susceptible to heat, they offer easier installation for some applications where modifying the fuel tank is not desirable.

Regardless of whether you choose an in-tank or external pump, an in-line fuel pressure regulator is an absolute necessity. This device allows you to accurately dial in the correct fuel pressure for your specific carburettor and application, ensuring consistent and reliable fuel delivery. It’s also wise to consider appropriate fuel line sizing to prevent restrictions and ensure your pump can deliver the required volume of fuel.

Fuel System Considerations

Beyond the Core: Other Essential Considerations

While the intake manifold, carburettor, ignition box, and fuel system form the core of your LS carburettor conversion, several other components will require attention to complete your swap successfully:

• Throttle Linkage: You'll need a suitable throttle cable and linkage setup to connect your accelerator pedal to the carburettor. Many aftermarket kits are available to simplify this.
• Air Cleaner: A proper air cleaner is essential to protect your engine from debris. Ensure it clears your bonnet and provides adequate airflow.
• Cooling System: While not specific to the carb conversion, an effective cooling system (radiator, fans, thermostat) is paramount for any LS engine swap, especially in performance applications.
• Exhaust System: A well-designed exhaust system is crucial for maximising performance and ensuring proper engine breathing.
• Vacuum Lines: Though minimal compared to EFI, some vacuum lines may be needed for brake boosters, PCV systems, or other accessories.

Installation Tips and Best Practices

When undertaking this conversion, meticulous attention to detail is key. Ensure all connections are secure, especially fuel lines, to prevent leaks. Double-check all wiring for the ignition box, following the manufacturer's instructions precisely. Upon initial startup, be prepared for some adjustments to the carburettor's idle and mixture screws. While a basic tune can be achieved by an experienced DIYer, for optimal performance, reliability, and fuel economy, consider having your carburetted LS professionally tuned on a dynamometer. This will unlock its full potential and ensure it runs flawlessly.

Frequently Asked Questions (FAQs)

Q: Is converting an LS to carburettor cheaper than full EFI?
A: Often, yes, especially if you're comparing it to a high-end, fully programmable EFI system with a custom harness. The core components for a carb setup (manifold, carb, ignition box, fuel pump) can be less expensive than a complete EFI conversion, particularly for older LS engines.

Q: Can I use my existing EFI fuel pump with a carburettor?
A: An EFI fuel pump typically operates at a much higher pressure (40-60+ psi) than a carburettor requires (around 6.5 psi). While it's possible to use a high-pressure EFI pump, you would absolutely need a high-quality, bypass-style fuel pressure regulator designed to handle the high input pressure and regulate it down to carburettor levels, often requiring a fuel return line. It's generally simpler and more reliable to use a pump designed for lower pressure carburettor applications.

Q: What are the main advantages of a carburettor LS over an EFI LS for a swap?
A: The primary advantages include simplicity (less complex wiring, fewer sensors), a classic under-bonnet aesthetic that appeals to traditional hot rod builders, and often a lower initial cost for the core components. It also offers a different "feel" for many drivers, with a more mechanical connection to the engine.

Q: Will a carburettor LS pass emissions?
A: In most modern jurisdictions with strict emissions testing, a carburetted LS engine will not pass. This conversion is typically undertaken for off-road, racing, or pre-emissions era classic vehicles where emissions compliance is not a factor.

Q: Do I lose power with a carburettor compared to EFI?
A: Not necessarily. A properly sized and tuned carburettor can make excellent power, often comparable to or even exceeding a basic EFI setup, especially at wide-open throttle. EFI typically offers better drivability, fuel economy, and emissions control across the entire RPM range, but for specific high-performance or race applications, carburettors remain a potent choice.

Conclusion

The conversion of an LS engine to a carburettor setup offers a compelling pathway for those seeking to blend modern V8 power with a timeless, mechanical feel. Whether for a dedicated race car where simplicity and peak power are paramount, or a classic street machine where aesthetics and a traditional driving experience are key, this conversion provides a robust and relatively straightforward solution. By carefully selecting the right intake manifold, carburettor, ignition control unit, and fuel system components, you can unlock the raw potential of your LS engine and enjoy a truly unique and powerful driving experience. Plan meticulously, choose quality components, and consider professional tuning to get the most out of your carburetted LS beast.
