For automotive enthusiasts and professional mechanics alike, the pursuit of optimal engine performance is an ongoing journey. In this quest, advancements in induction systems play a pivotal role. One such innovation making waves in the high-performance arena is the Downdraft EFI Stack Intake Manifold System. This sophisticated setup offers a blend of classic aesthetics with cutting-edge electronic fuel injection technology, promising exceptional tuning capabilities and versatile engine performance, even in applications exceeding 1000 horsepower.
At its core, a downdraft EFI stack intake manifold system is designed to maximise the efficiency of air and fuel delivery to your engine's cylinders. Unlike traditional carburettor setups or even some conventional multi-port EFI systems, the downdraft design promotes a more direct and laminar airflow path, crucial for achieving high power output and precise engine control. This article will delve into the intricacies of these systems, exploring their components, operational benefits, and why they are becoming a preferred choice for serious performance builds.
Understanding the Core Components
To truly appreciate the Downdraft EFI Stack Intake Manifold System, it's essential to break down its primary constituents and understand their individual roles in the overall performance equation.
Electronic Fuel Injection (EFI)
At the heart of modern engine management, EFI systems have largely replaced carburettors due to their superior precision in fuel delivery. An EFI system uses an Engine Control Unit (ECU) to monitor various engine parameters (like engine speed, load, air temperature, and oxygen content in exhaust gases) and then calculates the exact amount of fuel required. This fuel is delivered via electronically controlled injectors, ensuring optimal air/fuel ratios for varying operating conditions. The result is better fuel economy, lower emissions, and improved drivability compared to carburetted engines.
Intake Manifold
The intake manifold is a crucial engine component that distributes the air/fuel mixture (or just air, in the case of port injection EFI) from a central throttle body or individual throttle bodies to each cylinder's intake port. Its design significantly influences engine characteristics such as power band, torque, and throttle response. Traditional manifolds often feature a common plenum, which can sometimes lead to uneven air distribution among cylinders, especially at high RPMs.
Downdraft Design
The term 'downdraft' refers to the orientation of the throttle bodies and the direction of airflow. In a downdraft system, the throttle bodies are mounted vertically, allowing air to flow directly downwards into the intake runners. This straight, unobstructed path minimises turbulence and restriction, promoting higher volumetric efficiency – meaning more air gets into the cylinders. This direct flow is particularly beneficial for high-RPM performance, as it reduces the effort required for the engine to 'breathe'.

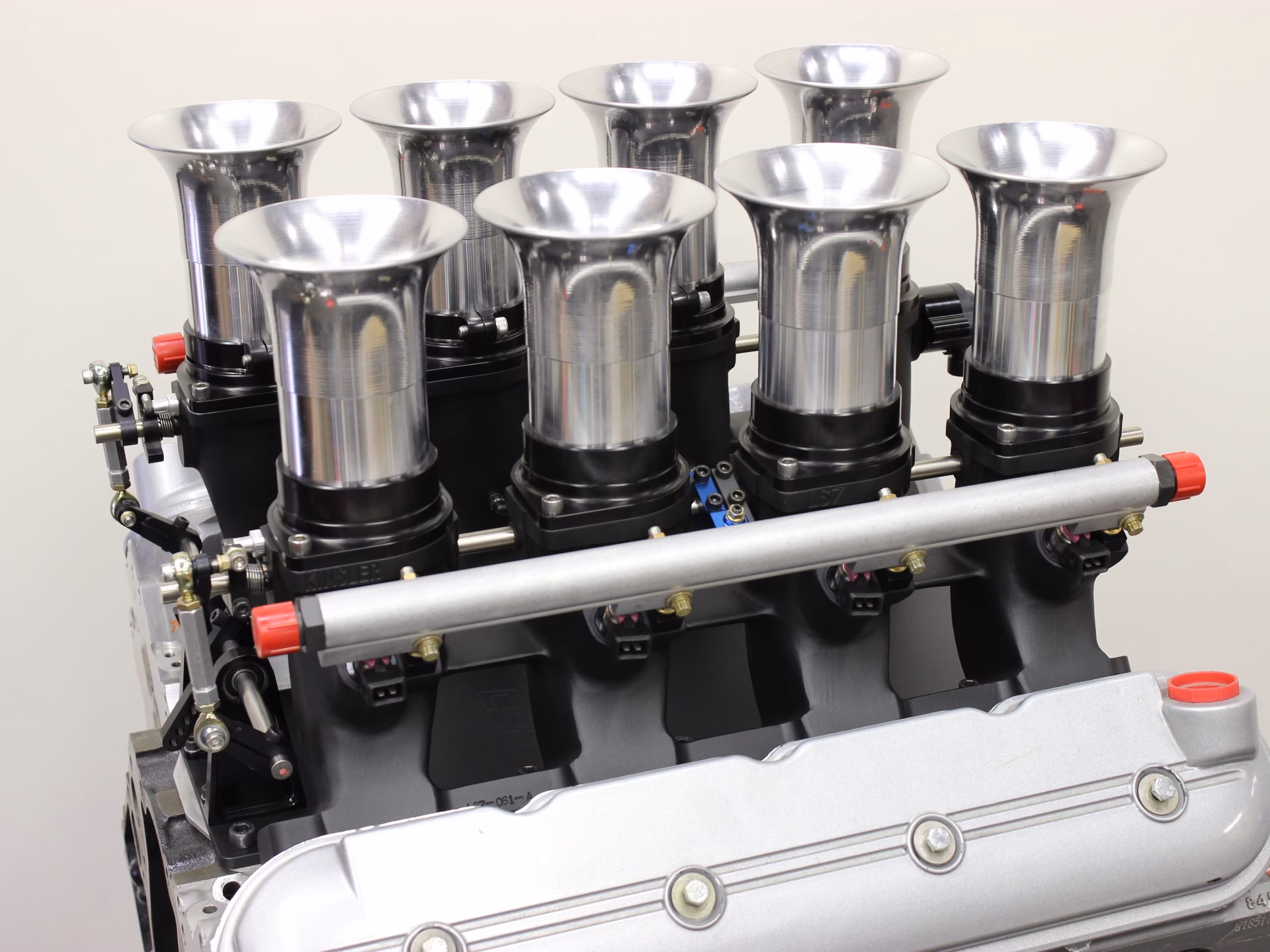

Stack (Velocity Stack) Throttle Bodies
A distinctive feature of these systems is the use of individual throttle bodies (ITBs) for each cylinder, often referred to as 'stacks' or 'velocity stacks'. These are typically large-bore, precision-cast units, such as the 50mm IDA-style throttle bodies mentioned in performance applications. Each throttle body feeds an individual intake runner, eliminating the common plenum found in many multi-port injection systems. The velocity stacks themselves are carefully shaped inlets designed to smoothly guide air into the throttle body, further reducing turbulence and enhancing airflow at specific RPM ranges. The result is incredibly crisp throttle response, as each cylinder receives its own dedicated air supply, reacting almost instantaneously to accelerator pedal inputs.
How the System Works Together
When you combine downdraft individual throttle bodies with an EFI system, you create an incredibly efficient and tuneable induction setup. Here’s a simplified breakdown of its operation:
- Air Induction: As the engine demands air, it is drawn in through the velocity stacks, which are designed to accelerate the airflow smoothly into the individual throttle bodies.
- Throttle Control: Each individual throttle body opens in unison, controlled by the accelerator pedal, allowing precise regulation of air entering each cylinder.
- Fuel Delivery: Simultaneously, the ECU calculates the optimal amount of fuel needed. Fuel injectors, typically mounted near the throttle bodies or directly in the intake runners, spray a fine mist of fuel into the incoming air stream.
- Mixture Formation: The fuel and air mix thoroughly as they travel down the short, direct intake runners.
- Combustion: This perfectly proportioned air/fuel mixture enters the combustion chamber, where it is ignited, producing power.
The beauty of this system lies in its ability to provide each cylinder with an almost identical and independent air/fuel charge, leading to superior cylinder-to-cylinder consistency. This consistency is vital for extracting maximum power and ensuring engine longevity.
Key Advantages and Performance Benefits
The integration of downdraft design with EFI stack technology yields a multitude of benefits for performance vehicles:
- Exceptional EFI Tuning: With individual control over air and fuel delivery to each cylinder, tuners gain unparalleled precision. This allows for fine-tuning the engine for specific applications, whether it's track racing, street performance, or achieving optimal fuel efficiency. The ability to precisely adjust parameters for each cylinder can unlock hidden power and rectify cylinder balancing issues.
- Versatile Engine Performance: These systems are not just for peak power. Their design allows for a broad power band, delivering strong torque from low RPMs and continuing to pull hard through the high end. This versatility makes them suitable for a wide range of driving scenarios.
- Crisp Throttle Response: As mentioned, the direct airflow path and individual throttle bodies virtually eliminate manifold volume, resulting in an immediate and direct connection between the accelerator pedal and engine output. There's no 'lag' as air fills a large plenum; instead, the engine reacts instantly. This throttle response is often described as 'analogue' or 'mechanical' due to its direct feel.
- High Horsepower Capability: Systems like Speedmaster's are rated for applications up to 1000 hp. This high capacity is a direct result of the unrestricted airflow and the ability of large-bore throttle bodies (e.g., 50mm IDA-style) to supply sufficient air and fuel, even under extreme demand. The individual runners prevent 'cross-talk' between cylinders, which can hinder airflow in shared plenum designs at high RPMs.
- Superior Idle Characteristics: Despite their high-performance orientation, these systems can provide remarkably smooth and stable idle. The precision of EFI allows for extremely fine control over the small amounts of air and fuel needed for a steady idle, a significant improvement over many older carburettor setups which could be temperamental at low RPMs.
- Improved Emissions: By maintaining an optimal air/fuel ratio across all operating conditions, downdraft EFI systems contribute to a cleaner burn. This results in reduced harmful exhaust emissions, helping vehicles meet modern environmental standards.
- Better Air/Fuel Ratio Economy: Precision fuel delivery means less fuel is wasted. The ECU continuously monitors and adjusts the air/fuel mixture, ensuring the engine runs as efficiently as possible. This leads to improved fuel economy compared to less precise carburetted systems, especially under varying loads.

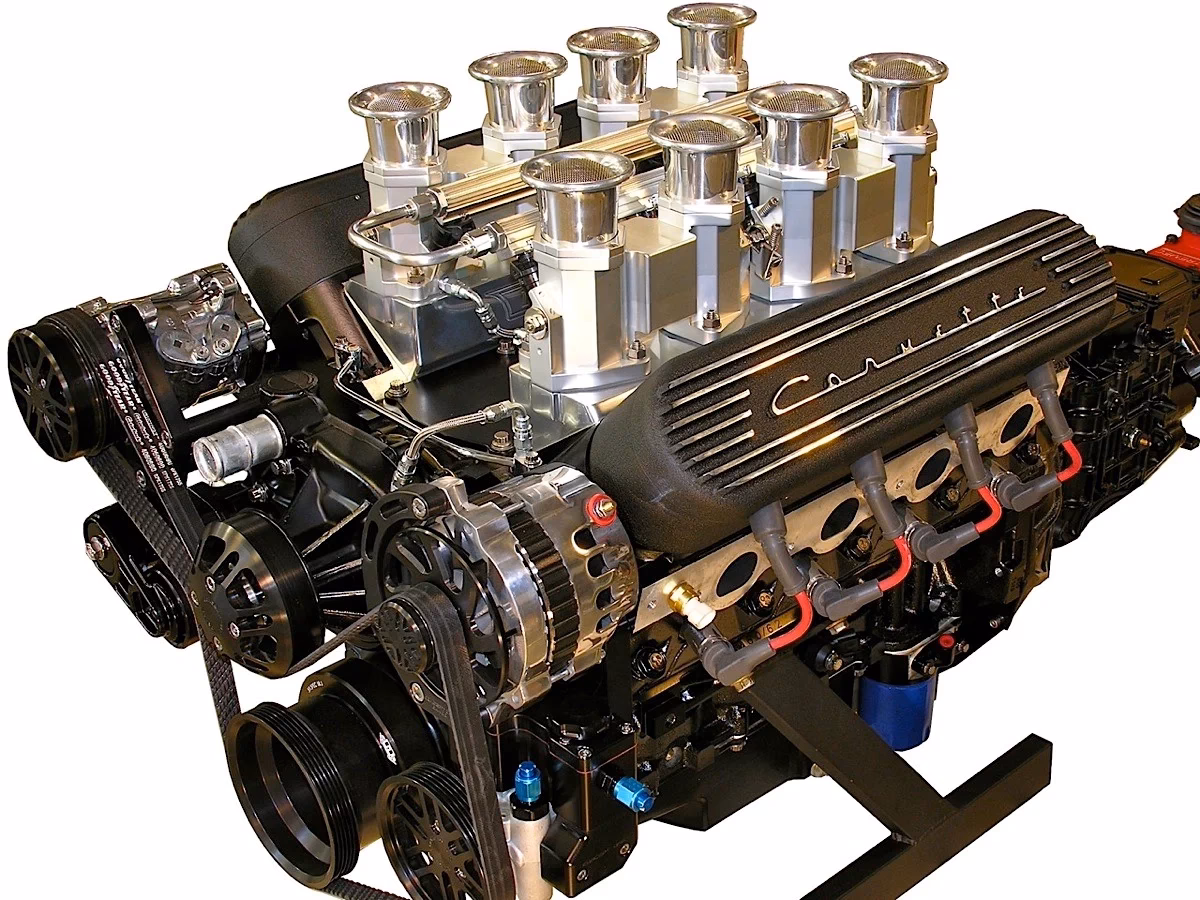

- Aesthetics: Beyond performance, the visual appeal of a downdraft EFI stack system, with its array of polished velocity stacks, often adds a striking, high-tech, yet retro-inspired look to any engine bay.
Downdraft EFI Stacks vs. Other Induction Systems
To put the benefits into perspective, let's compare downdraft EFI stack systems with other common induction methods:
| Feature | Downdraft EFI Stack System | Traditional Carburettor | Standard Multi-Port EFI (Plenum-based) |
|---|---|---|---|
| Fuel Delivery Precision | Excellent (ECU controlled, individual injectors) | Moderate (Mechanical, less precise) | Very Good (ECU controlled, individual injectors) |
| Airflow Path | Direct, unobstructed downdraft into individual runners | Often complex, less direct, common manifold | Shared plenum, then runners to cylinders |
| Throttle Response | Exceptional (Individual throttle bodies, no plenum volume) | Good (Direct mechanical, but can be sluggish) | Good (Electronic, but plenum volume can introduce slight lag) |
| Tuning Capability | Highly Tuneable (Software-based, cylinder-specific) | Limited (Jetting changes, mechanical adjustments) | Very Tuneable (Software-based) |
| Emissions | Improved (Precise AFR control) | Poor (Less precise AFR control) | Good (Precise AFR control) |
| High HP Suitability | Excellent (Designed for high flow) | Good (Can be tuned for high HP, but less efficient) | Good (Can handle high HP, but potentially less linear) |
| Idle Quality | Superior (Precise fuel & air management) | Can be temperamental, less stable | Good (Electronically managed) |
| Fuel Economy | Improved (Optimised AFR) | Poor (Less efficient fuel atomisation) | Good (Optimised AFR) |
| Aesthetics | Very visually appealing, high-tech/retro look | Classic, but can look dated | Often functional, less visually striking |
Considerations for Installation and Tuning
While the benefits are clear, installing and tuning a downdraft EFI stack system is not a simple bolt-on operation for the uninitiated. Here are some key considerations:
- ECU Compatibility: These systems require a sophisticated standalone or highly configurable OEM ECU that can manage individual cylinder fuelling and ignition timing.
- Professional Tuning: To extract the full potential and ensure reliability, professional tuning by an experienced EFI tuner is highly recommended. Incorrect tuning can lead to poor performance, engine damage, or excessive emissions.
- Fuel System Upgrades: High-performance applications will likely require a robust fuel pump, fuel pressure regulator, and appropriate fuel lines to handle the increased fuel delivery demands.
- Sensor Integration: Proper integration of essential sensors (MAP, IAT, TPS, O2, Crank Position, Cam Position) is crucial for the ECU to function correctly.
- Clearance: The vertical nature of downdraft stacks may require careful consideration of bonnet clearance, especially in vehicles with limited engine bay height.
Frequently Asked Questions (FAQs)
Q: Is a Downdraft EFI Stack System suitable for a daily driven car?
A: While primarily associated with high-performance builds, modern downdraft EFI systems, when properly tuned, can offer excellent drivability and smooth idle, making them suitable for daily driving. However, the cost and complexity might be overkill for a standard commuter vehicle unless performance is a primary goal.
Q: Can I install a Downdraft EFI Stack System myself?
A: Installation involves mechanical work, wiring, and crucially, complex EFI tuning. While a skilled DIY mechanic might handle the mechanical aspects, the EFI wiring and tuning are best left to professionals with specialised equipment and knowledge to ensure optimal performance and prevent engine damage.
Q: What kind of ECU do I need for this system?
A: You will typically need a standalone, aftermarket ECU that offers full programmability and control over fuel injection and ignition timing. Some advanced OEM ECUs can be reflashed, but a dedicated performance ECU provides the most flexibility and control for tuning these sophisticated systems.
Q: How does this system affect fuel economy?
A: Compared to carburetted systems, downdraft EFI generally improves fuel economy due to its precise control over the air/fuel ratio, ensuring fuel is not wasted. However, compared to a highly optimised, modern OEM EFI system designed for economy, a performance-oriented downdraft setup might offer similar or slightly reduced economy if tuned purely for power.
Q: What's the significance of 'IDA-style' throttle bodies?
A: 'IDA-style' refers to the design philosophy derived from the iconic Weber IDA carburettors, which were renowned for their performance in racing applications. Applying this design to modern EFI throttle bodies means retaining the short, direct airflow path and large bore size that contributed to the original IDA's success, but with the added precision and tunability of electronic fuel injection.
Conclusion
The Downdraft EFI Stack Intake Manifold System represents a significant leap forward in engine induction technology, particularly for performance applications. By combining the direct, high-flow characteristics of downdraft individual throttle bodies with the precision and tuneability of electronic fuel injection, these systems deliver unparalleled throttle response, versatile power delivery, and the capability to support high horsepower figures. While they demand careful installation and professional tuning, the rewards in terms of performance, efficiency, and driving experience are substantial. For those looking to push the boundaries of their engine's capabilities, a downdraft EFI stack system offers a compelling and effective solution.
