GM LS Engine TBI Conversion: A Comprehensive Guide
The General Motors LS engine platform is renowned for its power, versatility, and widespread adoption in a variety of vehicles. For enthusiasts looking to enhance performance or undertake unique engine swaps, the question of fuel delivery systems often arises. Specifically, many wonder if a GM LS engine can be equipped with a Throttle Body Injection (TBI) system. The short answer is yes, and modern aftermarket solutions are making this conversion more accessible and efficient than ever before.
Historically, TBI systems were common on earlier generations of GM vehicles. However, the LS engine family, which debuted in the late 1990s, predominantly featured more advanced Multi-Port Fuel Injection (MPFI) or Direct Injection (DI) systems. Despite this, the desire to adapt a TBI setup for specific applications, such as custom builds, older chassis swaps, or a particular aesthetic and functional preference, has persisted. Fortunately, companies like Aces Fuel Injection have developed innovative products to bridge this gap.
The JACKPOT™ series by Aces Fuel Injection specifically addresses the conversion of GM LS engines to a TBI EFI system. This system is designed to simplify what was once a complex and time-consuming process. Let's delve into the specifics of how this conversion works and what benefits it offers.
What is the JACKPOT™ LS TBI EFI System?

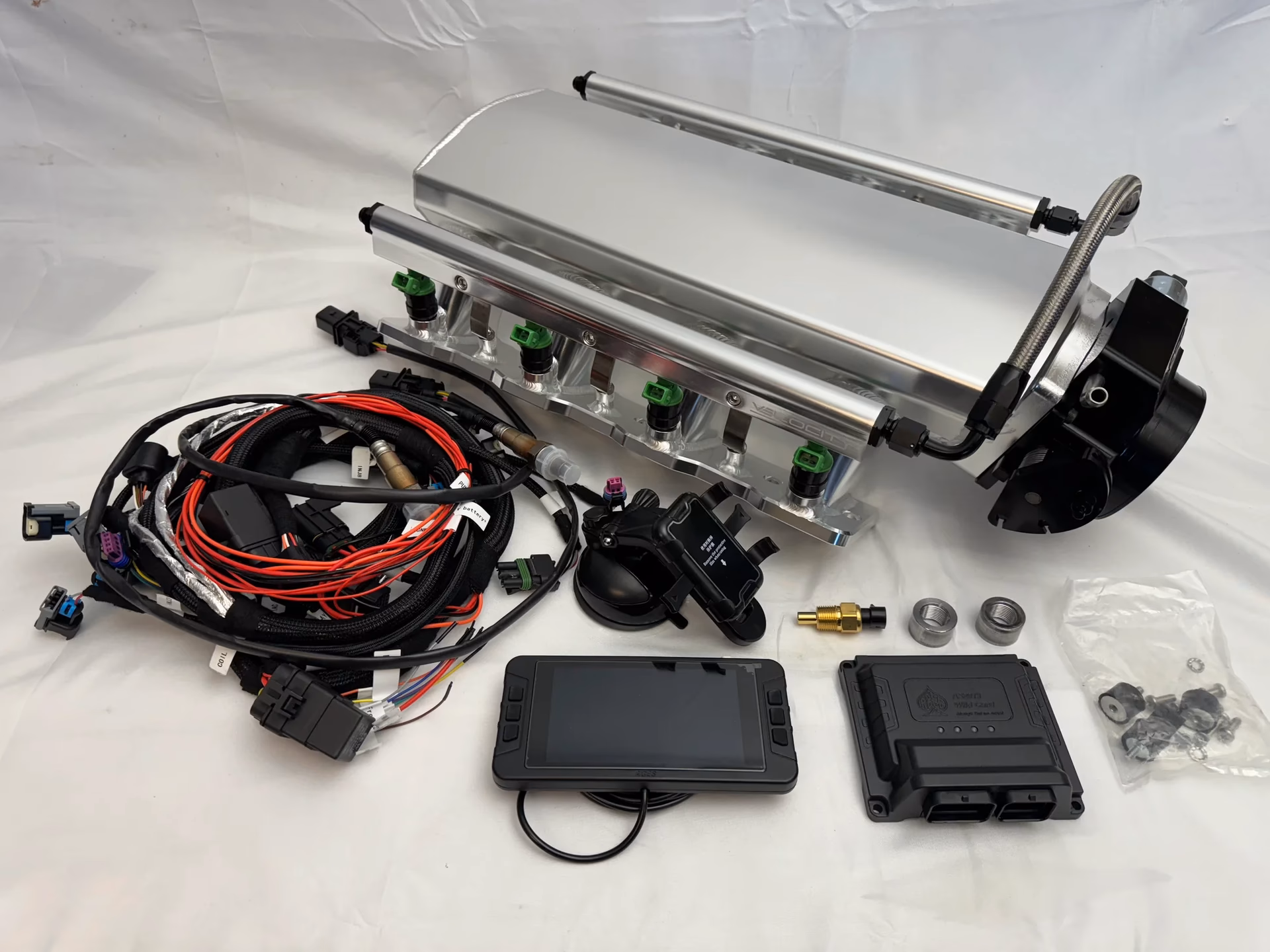

The JACKPOT™ series GM LS TBI EFI system is a purpose-built solution that allows enthusiasts to fit a modern TBI setup onto GM LS engines. This system is not a mere adaptation; it's a comprehensive package designed for ease of installation and robust performance. At its core, the system features a throttle body equipped with four 100 LB./HR. EV6 injectors. This setup is capable of supporting GM LS engines producing up to 650 horsepower.
A key component of the JACKPOT™ system is its remote-mounted JACKPOT™ ECU (Engine Control Unit). This advanced ECU is the brain of the operation, controlling not only the fuel delivery but also the ignition timing and the LS coils. One of the most significant advantages of this ECU is its integrated GM transmission control. This means that if you're using popular GM automatic transmissions like the 4L60E, 4L65E, 4L80E, or 4L85E, the JACKPOT™ ECU can manage them directly. This integration eliminates the need for separate transmission control modules (TCMs), reducing complexity, wiring harnesses, and potential points of failure. Furthermore, it negates the requirement for additional TPS (Throttle Position Sensor) add-ons, saving both time and money during installation.
Compatibility and Versatility
A major hurdle in LS engine conversions is compatibility with different engine variations. The JACKPOT™ TBI EFI system excels in this regard by offering broad compatibility. The same kit is designed to work seamlessly with both the early style 24x reluctor wheel engines and the later 58x reluctor wheel engines. This means you don't need to purchase different harnesses or make significant modifications to accommodate these variations, which is a common issue with other conversion kits.
For those opting for the transmission control versions, the kits come complete with harnesses tailored for the aforementioned GM 4-speed automatic transmissions (4L60E, 4L65E, 4L80E, 4L85E). This plug-and-play approach significantly streamlines the installation process.
Ease of Installation and Tuning
Aces Fuel Injection understands that not everyone is a seasoned engine tuner. Therefore, the JACKPOT™ TBI EFI system is designed with user-friendliness in mind. The system comes with pre-installed base maps for common LS engine combinations. These base maps serve as a starting point, allowing you to get your engine up and running more quickly. The system also features an advanced fuel correction strategy, often referred to as self-learning. With this capability, the ECU uses data from sensors, particularly the O2 sensor, to continuously adjust the air-fuel ratio, optimizing performance and fuel economy.
For stock and mild performance applications, the system's calibration wizard and self-learning fuel strategies can often eliminate the need for highly specialized tuning expertise. However, for more aggressive builds or when seeking maximum performance, Aces offers a full tuning software suite and a USB data cable. This allows for manual tuning, giving experienced tuners the control they need to extract the utmost potential from the engine.
Key Features of the JACKPOT™ LS EFI System
The JACKPOT™ LS EFI System boasts a comprehensive suite of features designed for modern performance applications:
- Advanced ECU: Built with Aces’ 32-bit Power Architecture, an OEM-standard technology for superior signal management, voltage control, and RPM consistency, leading to faster and more stable performance.
- Engine Compatibility: Supports a wide range of LS engines including LS1, LS2, LS3, LS6, LS7, and LS9. It's important to note that it excludes Variable Valve Timing (VVT) and Displacement on Demand (DOD) applications.
- Transmission Control: Available versions are compatible with drive-by-wire setups and GM 4-speed automatic transmissions (4L60E, 4L65E, 4L80E, 4L85E), with integrated harness solutions.
- Dual Wideband O2 Sensors & Closed-Loop Control: Ensures precise fuel and ignition management for optimal efficiency and power output.
- 8 Coil Outputs & 8 Injector Drivers: Provides reliable spark and fuel delivery for each cylinder.
- Sequential Fuel & Spark Control: Includes Individual Cylinder Trim for fine-tuned performance adjustments.
- Boost & Nitrous Compatibility: Features a 2.8-bar MAP sensor, supporting enhanced applications (may require separate controllers).
- Dual Knock Sensor Control: Aids in optimizing ignition timing and ensuring engine safety.
- Rev Limiter: Configurable for maximum engine RPM.
- 2 Stage Limiter: Designed for launch control applications.
- Dual Fan Control: Supports efficient engine cooling system management.
- 5” Full-Color Touchscreen Handheld: Offers a user-friendly interface for real-time monitoring, adjustments, and includes a GPS speedometer.
- Crankshaft Compatibility: Supports both 58x and 24x reluctor wheel crankshafts, ensuring broad compatibility with LS engines.
- Free Laptop Software: Available for advanced tuning and performance customization.
- Integration with Aces Accessories: Works seamlessly with other Aces products like handhelds, dashes, CAN modules, and TCMs.
TBI vs. MPFI for LS Engines
While the JACKPOT™ system offers a TBI solution, it's worth understanding the general differences between TBI and MPFI when applied to LS engines:
| Feature | TBI (JACKPOT™ System) | MPFI (Stock LS) |
|---|---|---|
| Fuel Delivery | Fuel sprayed from a throttle body, similar to a carburettor but with electronic control. | Fuel injected directly into the intake manifold runners, closer to the intake valves. |
| Complexity | Generally simpler system, easier for basic conversions and custom builds. | More complex, with individual injectors for each cylinder port. |
| Performance Potential | Can support significant horsepower (up to 650 HP with JACKPOT™), but may have limitations at extreme power levels compared to direct injection or high-flow MPFI. | Excellent performance, especially with later LS engines featuring direct injection. Optimized for precise fuel control. |
| Tuning | User-friendly with base maps and self-learning; advanced tuning software available. | Requires sophisticated ECU tuning, typically via OEM software or aftermarket EFI systems. |
| Cost | Can be more cost-effective for certain swaps due to simpler components and easier integration. | Stock systems are integrated; aftermarket MPFI conversion kits can vary in price. |
| Aesthetic/Retro | Offers a more traditional look, appealing for classic builds or specific engine bay aesthetics. | Modern, integrated look. |
Warranty and Support Information
Aces Fuel Injection, Inc. stands behind its products with a limited one-year warranty against defects in materials or workmanship from the date of purchase. This warranty is extended solely to the original consumer and is non-assignable. Proof of purchase is required for all warranty claims. The warranty does not cover products that have been modified, altered, subjected to misuse, neglect, accidents, improper installation, or adverse environmental conditions.
Aces EFI's technical support is available to assist with their products. Their tech department can provide guidance on fuel systems, wiring best practices, and basic adjustments using the handheld unit or software. For advanced tuning needs beyond basic setup, Aces EFI can recommend authorized tuners who are knowledgeable about their systems. It's important to note that tuning services provided by these external tuners are separate from Aces EFI and incur their own costs.
Frequently Asked Questions (FAQ)
- Q1: Can any GM LS engine be converted to TBI using the JACKPOT™ system?
- A1: The JACKPOT™ LS EFI System supports LS1, LS2, LS3, LS6, LS7, and LS9 engines, excluding VVT and DOD applications. It is also compatible with both 24x and 58x reluctor wheel configurations.
- Q2: Does the JACKPOT™ system include transmission control?
- A2: Yes, Aces offers versions of the JACKPOT™ LS EFI System with integrated GM transmission control for popular 4-speed automatic transmissions (4L60E, 4L65E, 4L80E, 4L85E). This eliminates the need for separate transmission controllers.
- Q3: How easy is it to tune the JACKPOT™ system?
- A3: The system comes with pre-loaded base maps and features a self-learning fuel correction strategy, making it user-friendly for stock and mild performance applications. Advanced tuning software is also available for more demanding builds.
- Q4: What is the horsepower rating for the JACKPOT™ TBI throttle body?
- A4: The throttle body features 4 x 100 LB./HR. EV6 injectors and supports GM LS engines up to 650 horsepower.
- Q5: What kind of warranty does Aces Fuel Injection offer?
- A5: Aces Fuel Injection offers a limited one-year warranty against defects in materials or workmanship, covering the original purchaser only. Modifications or improper installation will void the warranty.
Conclusion
For those looking to perform a GM LS engine swap into a classic vehicle, build a custom hot rod, or simply prefer the aesthetic and functional simplicity of a TBI system, the JACKPOT™ series GM LS TBI EFI from Aces Fuel Injection presents a compelling and accessible solution. Its thoughtful design, broad compatibility, integrated transmission control options, and user-friendly tuning capabilities make it a standout product in the aftermarket EFI landscape. By simplifying a traditionally complex conversion, Aces Fuel Injection empowers enthusiasts to achieve their project goals with greater ease and confidence, allowing them to enjoy the formidable power of the LS engine in a new and exciting configuration.
