LS Engine Pre-Assembly: Is It Necessary?

When embarking on the exciting journey of building or rebuilding an LS engine, one question that frequently arises among enthusiasts and mechanics alike is the necessity of a pre-assembly. This seemingly simple query delves into a critical stage of engine preparation that can significantly impact the final outcome, from performance to longevity. This article aims to demystify the concept of LS engine pre-assembly, explaining what it entails, why it's a vital step, and what potential pitfalls can be avoided by undertaking this process diligently.

The LS engine platform, renowned for its modular design, power potential, and widespread popularity, has become a staple in a vast array of vehicles, from classic muscle cars to modern performance machines. With such a diverse application, understanding the intricacies of its assembly, including the pre-assembly phase, is paramount for anyone looking to achieve optimal results. Ignoring this crucial step can lead to a cascade of problems, ranging from minor annoyances to catastrophic engine failure, ultimately costing you more time and money in the long run.

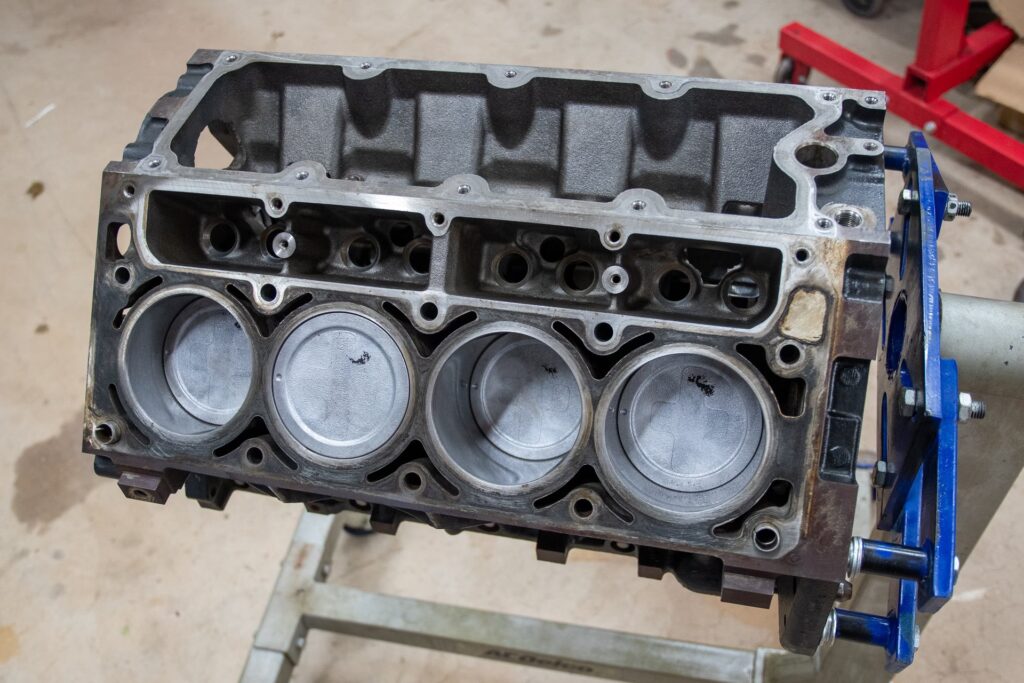

### What Exactly is LS Engine Pre-Assembly?

At its core, pre-assembly, often referred to as a dry assembly or mock-up, is the process of fitting and checking all the internal components of your LS engine before final torquing and sealing. This involves meticulously assembling the crankshaft, connecting rods, pistons, camshaft, valvetrain, and even the cylinder heads and their associated hardware, without applying any final lubricants or sealants. The primary goal is to ensure that every part fits correctly, moves freely, and meets the specified clearances.

This hands-on approach allows you to identify any potential issues with component compatibility, manufacturing defects, or incorrect measurements. It’s a proactive troubleshooting step that can save you immense frustration and expense down the line. Think of it as a dress rehearsal for your engine's grand performance.

### Why is Pre-Assembly So Important for LS Engines?

The LS engine, while generally robust and well-engineered, is not immune to the complexities of internal combustion engine assembly. Several key reasons underscore the importance of pre-assembly for these powerplants:

1. Clearance Verification: This is arguably the most critical aspect. LS engines, like all performance engines, rely on precise internal clearances for proper operation and longevity. These clearances dictate how much space exists between moving parts such as the crankshaft journals and connecting rod bearings, piston skirts and cylinder walls, and piston rings and cylinder bores. Pre-assembly allows you to measure these clearances using plastigage or feeler gauges. Incorrect clearances can lead to excessive wear, oil starvation, or catastrophic failure.

* Bearing Clearances: Proper bearing clearance is essential for maintaining oil film thickness. Too tight, and you risk seizing. Too loose, and you'll have low oil pressure and excessive wear.
* Piston-to-Wall Clearance: This clearance allows for thermal expansion of the piston. Insufficient clearance can cause the piston to seize in the bore. Excessive clearance can lead to piston slap and reduced ring seal.
* Piston Ring End Gap: The gap between the ends of the piston rings needs to be correctly set for the intended application and cylinder bore size. Pre-assembly lets you check and file these gaps.

2. Component Fitment and Compatibility: When swapping parts or building a custom LS engine, ensuring that all components are compatible and fit together without interference is vital. Pre-assembly allows you to check for:

* Piston-to-Valve Clearance: Crucial when using aftermarket camshafts with higher lift and duration, or different piston dome designs. Insufficient clearance will result in bent valves and piston damage.
* Connecting Rod to Crankshaft Fitment: Ensuring the rods bolt up correctly to the crankshaft and spin freely.
* Camshaft and Lifter Fitment: Verifying the camshaft slides into the block smoothly and the lifters seat correctly.

3. Troubleshooting and Identifying Defects: Even with new, high-quality parts, manufacturing defects can occur. Pre-assembly is your opportunity to catch these issues before they cause significant damage. You might discover a burr on a crankshaft journal, a casting flaw in a cylinder bore, or a faulty bearing.

4. Learning and Familiarisation: For those new to LS engine building, pre-assembly provides an invaluable opportunity to become intimately familiar with the engine's internal architecture. It reinforces proper assembly sequences and techniques.

5. Preventing Costly Mistakes: The cost of a mistake in engine assembly can be astronomical. A bent valve, a seized bearing, or a damaged cylinder wall can necessitate a complete engine teardown and replacement of expensive components. Pre-assembly is a relatively low-cost preventative measure.

### The Pre-Assembly Process: A Step-by-Step Guide

While the exact steps can vary slightly depending on the specific LS engine variant and the components being used, a general pre-assembly procedure includes:

1. Block Preparation: Ensure the cylinder block is clean, deburred, and all threaded holes are chased.
2. Crankshaft Installation: Carefully place the crankshaft into the block, install the main bearing caps with the correct bearings, and check for free rotation. Measure main bearing clearances with plastigage.
3. Piston and Rod Assembly: Assemble the pistons to the connecting rods, ensuring correct orientation and rod bolt tightening. Install the piston rings, paying attention to the correct orientation and end gap.
4. Cylinder Installation: Lubricate the cylinder walls and piston skirts with assembly lube. Install the piston and rod assemblies into the cylinders, ensuring the rings are staggered correctly and the pistons are oriented properly. This is where you'll check piston-to-wall clearance.
5. Connecting Rod Bearing Installation: Install the connecting rod bearings, torque the rod caps to spec, and check for free rotation of each piston/rod assembly.
6. Camshaft and Lifter Installation: Install the camshaft and lifters, ensuring they slide in smoothly. Check for any binding.
7. Cylinder Head Mock-up (Optional but Recommended): While not always part of a 'dry' pre-assembly, mocking up the cylinder heads with the camshaft installed can help verify piston-to-valve clearance. This often involves using mock-up valves and springs.

### What Tools and Materials are Needed?

To effectively perform a pre-assembly, you'll need:

* Assembly Lube: A specialized high-zinc lubricant designed for engine assembly.
* Plastigage: Precision measuring strips used to determine bearing clearances.
* Feeler Gauges: For measuring piston ring end gaps and other small clearances.
* Torque Wrench: Essential for accurate tightening of fasteners.
* Piston Ring Compressor: To guide the rings into the cylinder bore.
* Service Manual: Crucial for obtaining correct torque specifications and clearance ranges.

### Common LS Engine Pre-Assembly Mistakes to Avoid

Even with the best intentions, mistakes can happen during pre-assembly. Be mindful of:

* Insufficient Lubrication: While it's a dry assembly, critical contact points still require a light application of assembly lube to prevent galling.
* Incorrect Plastigage Use: Ensure plastigage is placed correctly on the bearing surface and that you follow the manufacturer's instructions for measurement.
* Forcing Parts: If a component doesn't fit easily, don't force it. Stop and investigate the cause.
* Ignoring Specifications: Always refer to your LS engine's service manual for correct clearances and torque values.

### Do I Always Need to Pre-Assemble?

While it's highly recommended, the absolute necessity can be debated in very specific scenarios. For instance, if you are disassembling a perfectly running engine, cleaning all the original parts meticulously, and reassembling them with the exact same components and clearances, a full pre-assembly might be less critical. However, even in such cases, a brief check of critical clearances is prudent.

However, if you are using new components, aftermarket parts, different piston designs, a new camshaft, or if the engine has been bored or honed, pre-assembly becomes essential. The risks of skipping this step far outweigh the time and effort involved.

### Frequently Asked Questions

Q1: Can I just install everything with oil and torque it down?
A1: No. While oil is present during final assembly, it's the assembly lube that provides the necessary protection during the initial start-up and break-in. More importantly, oil does not allow for accurate measurement of critical clearances like plastigage does.

Q2: How long does pre-assembly typically take?
A2: The time can vary greatly depending on your experience and the complexity of the build, but expect it to take several hours, potentially a full day or more, for a thorough pre-assembly.

Q3: What are the most critical clearances to check during pre-assembly?
A3: Main bearing clearance, rod bearing clearance, piston-to-wall clearance, and piston ring end gap are among the most critical.

Q4: If I find an issue during pre-assembly, what should I do?
A4: Identify the specific problem. If it's a clearance issue, you may need different sized bearings, pistons, or rings. If it's a manufacturing defect, contact the supplier for replacement parts.

In conclusion, the pre-assembly of your LS engine is not an optional step; it is a fundamental requirement for a successful build. It's an investment in the reliability and performance of your engine, ensuring that every component works in harmony. By taking the time to meticulously mock up and measure your LS engine's internals, you are laying the groundwork for years of powerful and dependable operation. Don't cut corners on this vital process – your LS deserves the best.
