Gearbox Oil Change Without a Pit

Time to get dirty again folks! Changing the oils in the gearbox, also referred to as ‘the transmission’, is a whole lot easier if you have access to a pit, but it’s easy enough to do it without, so not to worry. This guide will walk you through the process, ensuring you can perform this crucial maintenance task from the comfort of your own driveway.

Why is Gearbox Oil So Important?

The gearbox, or transmission, is a vital component of your vehicle responsible for transferring power from the engine to the wheels. It’s a complex system of gears, bearings, and shafts that operate under significant stress and heat. The oil within the gearbox serves several critical functions:

• Lubrication: It lubricates all the moving parts, reducing friction and wear, and preventing premature damage. Think of it as the lifeblood of your transmission.
• Cooling: As gears mesh and move, they generate heat. The gearbox oil absorbs this heat and dissipates it, preventing the transmission from overheating.
• Cleaning: Over time, tiny metal particles can be shed from the gears and bearings. The oil suspends these particles and carries them to the filter (if present) or allows them to settle, keeping the internal components clean.
• Corrosion Protection: The oil forms a protective layer on metal surfaces, preventing rust and corrosion.

Neglecting regular gearbox oil changes can lead to increased wear, reduced efficiency, and ultimately, costly transmission repairs. Therefore, understanding how to perform this maintenance is a valuable skill for any car owner.

What You'll Need

Before you begin, gather all the necessary tools and materials. Having everything ready will make the process smoother and safer:

Tools:

• New Gearbox Oil: Crucially, ensure you have the correct type and quantity of oil specified in your vehicle's owner's manual. Using the wrong oil can cause serious damage.
• Socket Set and Wrench: You'll need the correct size socket or wrench to remove the drain and fill plugs.
• Drain Pan: A sufficiently large pan to catch the old oil. Ensure it can hold more than the expected amount of oil to avoid spills.
• Funnel: A long, narrow funnel is essential for adding the new oil.
• Gloves: Protect your hands from grease and oil.
• Safety Glasses: Essential eye protection.
• Rags or Paper Towels: For cleaning up spills.
• Jack and Jack Stands: To safely lift and support the vehicle. Never work under a vehicle supported only by a jack.
• Wheel Chocks: To prevent the vehicle from rolling.
• Torque Wrench (Recommended): For tightening plugs to the manufacturer's specified torque.
• Pump or Syringe (Optional but Recommended): For easier filling, especially if the fill plug is in an awkward position.

Materials:

• Replacement Drain Plug Washer/Gasket: It's good practice to replace this each time to ensure a good seal.
• Brake Cleaner or Degreaser: For cleaning up any spills.

Step-by-Step Guide to Changing Gearbox Oil Without a Pit

1. Preparation and Safety First

Safety is paramount when working on any vehicle. Ensure the car is parked on a level surface. Engage the handbrake firmly and place wheel chocks behind the rear wheels (if working on the front) or in front of the front wheels (if working on the rear). This is a critical step to prevent the vehicle from moving whilst it is raised.

Warm up the gearbox oil slightly by running the engine for a few minutes. Warm oil flows more easily, making it easier to drain. However, be cautious not to let it get too hot, as this can cause burns.

2. Lifting the Vehicle

Using your jack, carefully lift the front (for front-wheel drive) or rear (for rear-wheel drive) of the vehicle. Place the jack stands securely under the designated jacking points on the chassis. Lower the vehicle slowly onto the jack stands, ensuring they are stable. Double-check that the vehicle is stable and won't wobble before proceeding. If you are working on a vehicle with a manual transmission, it's often recommended to leave it in neutral with the clutch pedal released while the engine is off, but always consult your vehicle's manual for specific instructions.

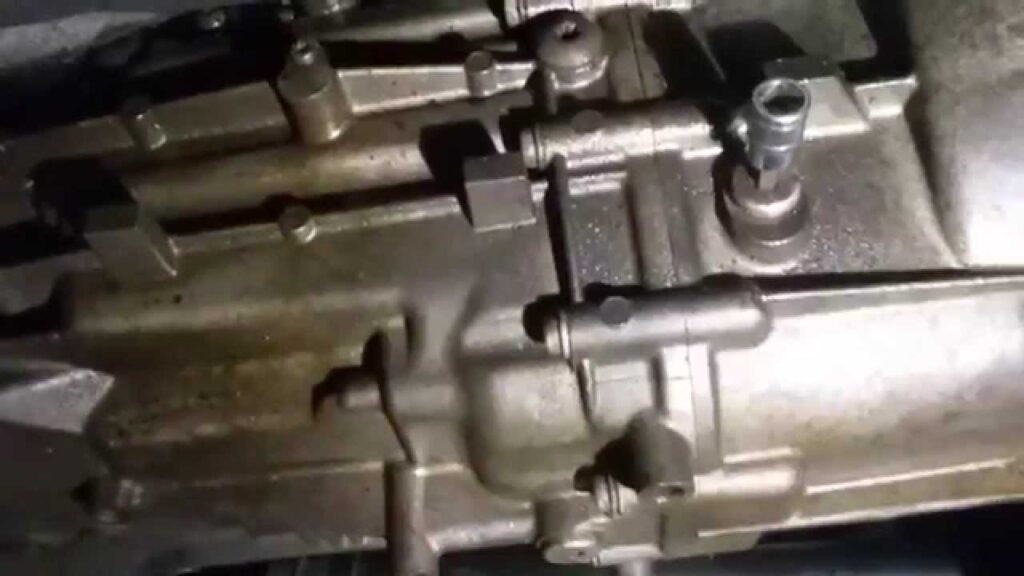

3. Locating the Drain and Fill Plugs

The gearbox typically has two main plugs: a drain plug and a fill plug. The drain plug is usually located at the lowest point of the gearbox casing, allowing all the old oil to be removed. The fill plug is typically located higher up on the gearbox casing, often on the side or front. Consult your vehicle's owner's manual or a repair manual for the exact location of these plugs on your specific model. They are often hexagonal or square and may be covered by a protective plate that needs to be removed first.

4. Draining the Old Oil

Place your drain pan directly beneath the drain plug. Using the appropriate socket or wrench, carefully loosen and remove the drain plug. Be prepared for the oil to start flowing out immediately. Allow the oil to drain completely. This can take several minutes. While the oil is draining, inspect the drain plug for any metal shavings or debris. A small amount of fine metallic paste might be normal, but larger chunks could indicate a problem.

5. Replacing the Drain Plug

Once the oil has finished draining, clean the drain plug and the area around the drain hole with a rag. Fit a new washer or gasket onto the drain plug if required. Screw the drain plug back into the gearbox by hand to avoid cross-threading, and then tighten it with your wrench or torque wrench to the manufacturer's specified torque. Overtightening can damage the threads, so using a torque wrench is highly recommended.

6. Filling with New Gearbox Oil

Now it's time to add the new oil. Locate the fill plug. You may need to remove a protective cover or splash guard to access it. Insert the long funnel into the fill plug hole. If you are using a pump or syringe, connect it to the new oil container and insert the hose into the fill plug hole.

Slowly pour the new gearbox oil into the funnel until it starts to overflow slightly from the fill hole. The correct level is usually when the oil reaches the bottom edge of the fill hole. Some vehicles have a dipstick for checking the gearbox oil level, but this is less common than with engine oil. Again, consult your owner's manual for the precise method and amount of oil required.

Important Note: It's crucial to add the correct type and amount of oil. Overfilling can be just as detrimental as underfilling, potentially causing seal damage or increased pressure within the gearbox. Underfilling will lead to insufficient lubrication and overheating.

7. Final Checks and Lowering the Vehicle

Once the new oil is in, clean the area around the fill plug. Replace the fill plug and tighten it securely, again using a torque wrench if possible. Remove the drain pan and any tools from under the vehicle.

Carefully jack up the vehicle again to lift it off the jack stands. Remove the jack stands and then slowly lower the vehicle back to the ground. Remove the wheel chocks.

8. Post-Change Checks

Start the engine and let it idle for a few minutes. While the engine is running, gently shift through all the gears (with the clutch pedal depressed if it's a manual transmission). This helps distribute the new oil throughout the gearbox. Turn off the engine.

Check for any leaks around the drain and fill plugs. If you notice any leaks, re-tighten the plugs (but do not overtighten). If leaks persist, you may need to replace the drain plug washer or investigate further.

Common Gearbox Oils and Capacities

Gearbox oil specifications vary significantly between vehicle manufacturers and even between different models from the same manufacturer. It's essential to consult your owner's manual for the exact type of oil required. However, here's a general overview of common types:

Note: API GL-5 oils are generally not recommended for manual transmissions with yellow metal components (like brass synchros) as they can be too aggressive. Always verify the correct specification.

Frequently Asked Questions (FAQs)

How often should I change my gearbox oil?

This varies greatly depending on your vehicle and driving conditions. Many manufacturers recommend checking the gearbox oil at regular service intervals and changing it every 30,000 to 60,000 miles, or every 2-4 years. Heavy towing or spirited driving may require more frequent changes. Always consult your owner's manual.

Can I use engine oil in my gearbox?

No. Gearbox oil has a different viscosity and additive package compared to engine oil. Using engine oil can lead to poor lubrication and significant damage to the transmission's internal components.

What happens if I don't change my gearbox oil?

Over time, gearbox oil can degrade, lose its lubricating properties, and become contaminated with metal particles. This can lead to increased friction, overheating, excessive wear on gears and bearings, and eventual transmission failure.

How do I know if I have a leak?

Leaks typically manifest as dark, oily patches under your vehicle. You might also notice a burning smell if oil is leaking onto hot exhaust components. Low gearbox oil levels can also lead to whining or humming noises from the transmission.

Is it safe to work under a car supported by jack stands?

Yes, provided you use high-quality, properly rated jack stands and place them on solid, level ground at the vehicle's designated jacking points. Never rely solely on a jack.

Conclusion

Changing your gearbox oil without a pit is a perfectly achievable task with the right preparation and a focus on safety. By following these steps, you can maintain the health and longevity of your vehicle's transmission, ensuring smooth gear changes and a reliable driving experience. Remember to always consult your vehicle's specific owner's manual for precise instructions and specifications. Happy motoring!
