Engine Compression: Symptoms, Causes & Fixes

Understanding Engine Compression: The Heartbeat of Your Vehicle

The internal workings of an engine can seem like a complex mystery to many. However, understanding the fundamental principles of engine compression is crucial for any vehicle owner who wants to keep their car running smoothly. Compression is the process where the air-fuel mixture is squeezed within the cylinder before ignition. This controlled explosion pushes the piston down, generating the power that propels your vehicle. When this vital process is compromised, the symptoms can range from subtle performance degradations to outright failure to start. This article will delve into what engine compression is, the tell-tale signs of low compression, the common culprits behind it, and how you can diagnose and potentially rectify the issue.

What is Engine Compression?

Both petrol (gasoline) and diesel engines rely on compression to function. In a petrol engine, a precise mixture of air and fuel is drawn into the cylinder, then compressed by the rising piston. A spark plug then ignites this compressed mixture, causing a rapid expansion that forces the piston back down. Petrol engines typically operate with a compression ratio that results in pressures around 150 PSI, though this can vary.

Diesel engines, on the other hand, operate differently. They don't use spark plugs. Instead, they compress only air to much higher pressures, often 350 PSI or more. This extreme compression heats the air sufficiently to ignite the diesel fuel when it's injected directly into the cylinder. This is why diesel engines are generally more robust and heavier; they need to withstand these higher pressures.

For an engine to perform optimally, the compression within each cylinder must be within the manufacturer's specified range. Too little compression means the combustion process is inefficient, leading to a loss of power and other issues. Conversely, excessively high compression can lead to premature detonation (knocking) and potentially severe engine damage.

Symptoms of Low Engine Compression

Recognising the signs of low compression is the first step towards addressing the problem. While some of these symptoms can be attributed to other issues, their presence, especially in combination, strongly suggests a compression problem:

• Engine Misfires: When a cylinder lacks sufficient compression, the air-fuel mixture cannot be ignited effectively, leading to a misfire. You might feel the engine stutter or run unevenly, particularly under load. Backfires, where fuel ignites in the exhaust system, can also occur.
• Decreased Engine Performance: An engine with low compression in one or more cylinders will not produce its full power. This is most noticeable during acceleration or when climbing hills. A four-cylinder engine with one weak cylinder might only operate at 75% of its potential.
• Poor Gas Mileage: If the air-fuel mixture isn't being compressed and burned efficiently, fuel is essentially being wasted. This leads to a noticeable drop in fuel economy. If you're filling up your tank more frequently than usual, low compression could be a contributing factor.
• Problems Starting the Engine: While a dead battery or faulty spark plugs are common starting issues, a significant loss of compression across all cylinders can make it extremely difficult, if not impossible, for the engine to start.
• Excessive Oil Consumption: Worn piston rings or cylinder walls can allow oil to seep into the combustion chamber, where it's burned. This results in increased oil consumption and often blue smoke from the exhaust.
• Rough Idle: An uneven combustion process due to low compression can cause the engine to run roughly when idling.

Common Causes of Low Engine Compression

Several factors can lead to a reduction in cylinder compression. Identifying the root cause is key to an effective repair:

1. Worn or Damaged Piston Rings

Piston rings are vital for creating a seal between the piston and the cylinder wall, preventing gases from escaping the combustion chamber. Over time, these rings wear down, but they can also be damaged by overheating, detonation, or improper lubrication. If the rings fail to seal, compression will be lost. It's common for all rings to wear simultaneously, affecting multiple cylinders.

2. Leaky or Damaged Valves and Valve Seats

The intake and exhaust valves, along with their seats, are responsible for sealing the combustion chamber during the compression and power strokes. If a valve doesn't seat properly (due to carbon buildup, damage, or improper adjustment) or if the valve seat itself is worn or damaged, compression will leak past. A common issue is where the valve seat isn't making full contact around its circumference, allowing gases to escape. This often necessitates a 'valve job', which involves refacing the seats and grinding or replacing the valves. Simple lapping of valves is usually a temporary fix or a diagnostic step, not a cure for worn seats.

3. Head Gasket Failure

The head gasket is a critical seal between the cylinder head and the engine block, preventing combustion gases from escaping and coolant and oil from mixing. If the head gasket fails (often due to overheating or age), it can create a leak path between cylinders or between a cylinder and a coolant/oil passage. This will result in a loss of compression in the affected cylinders. Head gasket replacement is a significant and often expensive repair.

4. Damaged Pistons

Pistons, typically made of aluminium alloy, can be damaged by severe overheating, leading to cracks or even holes. A damaged piston cannot maintain a proper seal within the cylinder, resulting in significant compression loss. This is a serious issue often requiring engine disassembly and piston replacement.

5. Cracked Cylinder Walls

Similar to damaged pistons, cracks in the cylinder walls can allow compression to escape. Overheating is a common cause of cracked cylinder liners. A tell-tale sign can be bubbles appearing in the radiator when the engine is running, indicating combustion gases are being forced into the cooling system.

6. Worn Timing Belt or Chain

While less direct, a slipped or broken timing belt (or chain) can cause the camshafts to lose synchronization with the crankshaft. In 'interference' engines, this can lead to the pistons colliding with the valves, causing severe damage and, consequently, loss of compression. Even without physical collision, incorrect timing will disrupt the compression cycle.

7. Worn Camshaft Lobe

The camshaft lobes actuate the valves. If a lobe becomes excessively worn, it may not open the valve fully or for the correct duration. If a valve is held slightly open during the compression stroke, compression will inevitably be lost.

Diagnosing Low Compression

Before embarking on repairs, it's essential to accurately diagnose the problem. A DIY approach is possible for those with some mechanical inclination:

Performing a Compression Test

This is the standard method for assessing cylinder compression:

1. Preparation: Warm up the engine to operating temperature. Disable the fuel system by removing the fuel pump fuse or relay. Disconnect the ignition system (coil packs or distributor lead).
2. Spark Plug Removal: Remove all spark plugs.

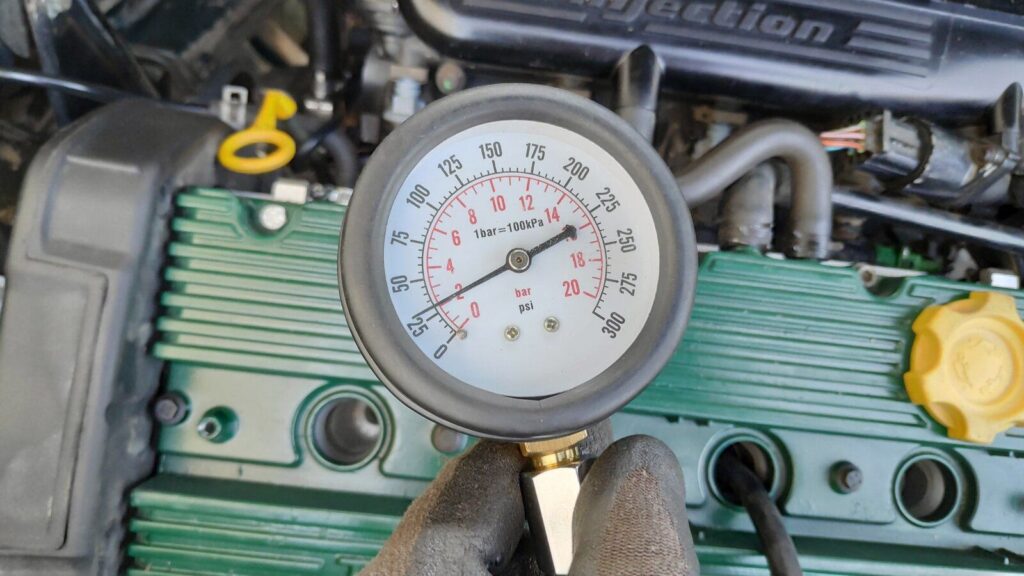

3. Gauge Installation: Screw a compression gauge into the spark plug hole of the first cylinder. Ensure a good seal.
4. Cranking: With the throttle fully open (pedal pressed down), crank the engine several times (typically 4-6 strokes) until the gauge reading stabilises.
5. Recording: Note the reading. Release the pressure in the gauge (if applicable) and move to the next cylinder.
6. Comparison: Repeat for all cylinders. Compare the readings to the manufacturer's specifications. Generally, all cylinders should be within 10% of each other, and above a minimum threshold (often around 100 PSI, but check your manual).

The Wet vs. Dry Test: Pinpointing the Cause

To differentiate between worn piston rings and valve issues:

• Dry Test: Perform the compression test as described above.
• Wet Test: After the dry test on a specific cylinder, remove the gauge. Add about a tablespoon of engine oil into the spark plug hole of that cylinder. Reinstall the gauge and perform the compression test again.

Interpreting Results:

• Significant Increase in Compression (Wet Test): This strongly suggests worn or broken piston rings. The oil temporarily seals the gap between the piston and cylinder wall.
• Little to No Change in Compression (Wet Test): This points towards issues with the valves or valve seats not sealing properly.

Leak-Down Test

A leak-down test is often considered more precise. It involves introducing compressed air into the cylinder at Top Dead Centre (TDC) on the compression stroke and measuring the percentage of air that leaks out. Listening for escaping air can help identify the leak source:

• Air from oil filler cap/dipstick tube: Indicates leaking past piston rings.
• Air from adjacent spark plug hole: Suggests a blown head gasket between cylinders or a cracked block.
• Air from exhaust pipe: Indicates a leaking exhaust valve.
• Air from intake manifold/throttle body: Indicates a leaking intake valve.
• Bubbles in the radiator/coolant reservoir: Suggests a cracked cylinder head or block, or a failed head gasket into a coolant passage.

Checking for Head Gasket Issues

Visually inspect the coolant and oil. Oil in the coolant (a milky, frothy appearance) or coolant in the oil (a milky, light brown sludge) are strong indicators of a blown head gasket.

Solutions for Restoring Compression

The repair strategy depends entirely on the diagnosed cause:

• Worn Piston Rings: Requires removing the cylinder head, and often the pistons, to replace the rings. In severe cases, the cylinder bores may need honing or boring, requiring oversized pistons.
• Leaky Valves/Seats: This necessitates removing the cylinder head for a 'valve job'. This involves refacing the valve seats or replacing them, and grinding or replacing the valves to ensure a proper seal.
• Head Gasket Failure: The cylinder head must be removed for replacement of the head gasket. It's crucial to ensure the cylinder head and block surfaces are perfectly clean and flat before installation.
• Damaged Pistons/Cylinder Walls: Requires significant engine disassembly. Damaged pistons must be replaced, and cylinder walls may need re-boring and fitting with new, larger pistons and rings.
• Timing Belt/Chain Issues: Replacement of the timing belt/chain and associated tensioners and pulleys is necessary. If physical damage occurred (pistons hitting valves), further internal engine repairs will be needed.

Note on RTV Sealant: While some temporary fixes might involve sealants, relying on products like RTV (Room Temperature Vulcanizing) for sealing internal engine components like head gaskets is generally not a recommended or lasting solution for significant compression loss.

Frequently Asked Questions

Q1: How much compression is considered low?
While specific values vary by engine, a general rule of thumb is that readings below 100 PSI are low. More importantly, the variation between cylinders should not exceed 10% of the highest reading.

Q2: Can low compression be fixed without rebuilding the engine?
It depends on the cause. Minor issues like carbon buildup on valves might be resolved with specific treatments. However, worn rings, damaged pistons, or blown head gaskets typically require more extensive repairs, often involving engine disassembly.

Q3: Does crosshatch in the cylinder walls affect compression?
The crosshatch pattern on cylinder walls is primarily for initial ring break-in and oil retention. While important for long-term ring life, its presence or absence (unless severely damaged) is less directly related to immediate compression readings than the condition of the rings themselves.

Q4: Is valve lapping the same as a valve job?
No. Valve lapping is a process to improve the seal of an existing valve and seat, often used for diagnostic purposes or minor wear. A valve job involves refacing the valve seats and valves (or replacing them) to ensure a perfect seal, which is a more comprehensive repair.

Q5: My engine has high mileage, is low compression inevitable?
Not necessarily. Regular maintenance, proper lubrication, and avoiding severe overheating can significantly extend the life of engine components. While wear is inevitable, many high-mileage engines can still maintain good compression if well-maintained.

Conclusion

Low engine compression is a serious issue that directly impacts your vehicle's performance, fuel efficiency, and drivability. By understanding the symptoms and common causes, and by employing diagnostic tools like compression and leak-down tests, you can effectively pinpoint the problem. While some repairs are straightforward, others, such as internal engine work, require significant expertise and can be costly. Addressing low compression promptly is key to preventing further, more severe engine damage and ensuring your vehicle remains reliable on the road.
