Maintaining the gearbox of your Lotus Elise 111R is paramount to ensuring its legendary driving experience remains uncompromised. The gearbox, a Toyota unit in the 111R, is a marvel of engineering, delivering precise and engaging shifts. However, like any mechanical component, it requires diligent care, with the correct gearbox oil being at the heart of its longevity and smooth operation. This comprehensive guide will delve into the recommended oil type for your Elise 111R, provide a detailed walkthrough of the oil change process which often remedies minor leaks, and offer insights into preventing common transmission issues, ensuring your cherished sports car performs flawlessly for years to come.
Understanding the specific requirements of your Elise 111R's gearbox is the first step towards proper maintenance. For the Lotus Elise 111R, which is equipped with the robust Toyota gearbox, the consensus among enthusiasts and experts alike leans heavily towards the use of a fully synthetic gear oil. The primary recommendation that surfaces repeatedly for these units is a 75W-90 viscosity, with Mobil 1 75W-90 Synthetic being a particularly popular and well-regarded choice. This type of oil is specifically formulated to withstand the demanding conditions within a high-performance gearbox, providing superior lubrication, excellent thermal stability, and crucial protection against wear. The benefits of opting for a fully synthetic lubricant are manifold: it contributes significantly to maintaining smooth and precise gear changes, reduces internal friction, and extends the overall life of your gearbox components. While there was a query regarding K-series gearboxes, this article focuses specifically on the Toyota unit found in the 111R, for which fully synthetic 75W-90 is the ideal choice to ensure optimal performance and durability.
Changing your gearbox oil is not merely a task to be performed when a problem arises; it’s a vital part of preventative maintenance. Over time, gearbox oil degrades due to heat, shear forces, and contamination from microscopic metal particles. This degradation reduces its ability to lubricate effectively, leading to increased friction, harder shifts, and accelerated wear on gears and bearings. Regular replacement with fresh, high-quality oil ensures that the internal components are always adequately protected, allowing for the buttery-smooth gear changes that the Elise is known for. Furthermore, addressing minor leaks promptly, often through the simple replacement of crush washers during an oil change, prevents more significant issues down the line, safeguarding your gearbox from potential damage due to low fluid levels.
Identifying a Leaking Transmission
Before diving into the oil change, it's crucial to identify if you indeed have a leak and to understand its potential severity. The most obvious sign of a leaking transmission is discovering puddles or drips of oil beneath your car, especially after it has been parked for a while. Gearbox oil typically has a distinct brownish-red colour, similar to engine oil but often with a slightly different viscosity. If you notice a persistent dampness around the transmission casing, particularly near the drain or fill plugs, or if your gear changes feel unusually stiff or notchy, it could indicate a low fluid level due to a leak. Early detection and intervention are key to preventing more serious damage to your gearbox.
The Gearbox Oil Change and Leak Remediation Process
This detailed guide will walk you through the process of changing your Elise 111R’s gearbox oil, a procedure that inherently addresses common minor leaks originating from the drain and fill plugs. Preparation is key to a smooth process.
Step-by-Step Guide:

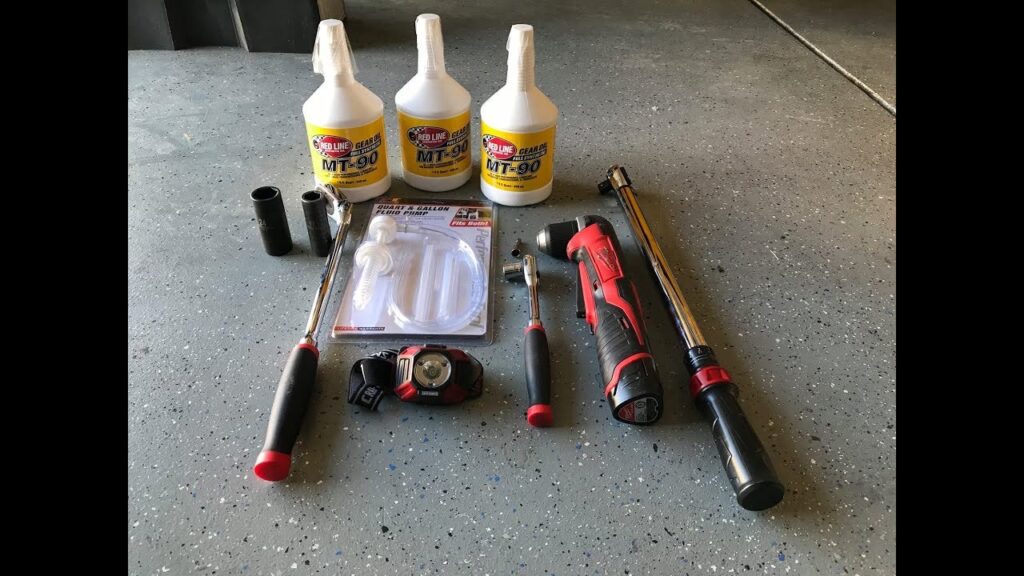

1. Preparation and Vehicle Positioning:
Before you begin, ensure your Elise is on a level, solid surface. Engage a gear (first or reverse) and firmly apply the handbrake. Place wheel chocks securely ahead of the front wheels to prevent any accidental movement. For optimal access and safety, the car needs to be raised. Using a floor jack with wheels is highly recommended, as it allows the jack to 'follow' the chassis as the car lifts, reducing stress on the jacking points. Place a hockey puck or a similar protective pad between the jack and the chassis jacking points to prevent damage. Lift one side of the car, then carefully slide a sturdy Rhino ramp or axle stand under the raised wheel. Lower the car onto the ramp/stand. Repeat this process for the other side, ensuring the car is stable and level. My aluminium jack has a low range of 3 inches, which is often sufficient for getting under the Elise.
2. Accessing the Transmission:
The good news is that for this procedure, you typically only need to remove the service panel, similar to what you would do for a regular engine oil change. The rear diffuser can remain in place, saving you time and effort. Once removed, take the service panel aside for cleaning; wiping it down thoroughly is a good practice.
3. Identifying the Plugs:
This is a critical step where attention to detail prevents costly mistakes. You will see two main plugs on the transmission casing. It is absolutely vital to identify them correctly to avoid loosening the wrong bolts, which could lead to internal gearbox components falling out or other severe issues. The drain plug is typically identifiable by a 'Read Owner's manual' sticker next to it. The fill plug often has a small pink mark near it. When you're under the car, looking up, your head will be near the driver's side rear wheel, giving you a clear view of these plugs.
4. Loosening the Fill Plug First:
Always loosen the fill plug before the drain plug. This is a crucial safety measure. If you drain the oil first and then discover you cannot loosen the fill plug, you'll be left with an empty gearbox, rendering your car immobile until the issue is resolved. Loosen the fill plug just enough to break it free and allow some air to enter later, but do not fully remove it yet.
5. Draining the Old Oil:
With the fill plug loosened, position a suitable drain pan directly beneath the drain plug. Ensure the pan has sufficient capacity for approximately 2.5 litres of gear oil. Carefully loosen and remove the drain plug. The gear oil will begin to flow out. Although there might be a concern about it hitting the rear diffuser, it usually clears it without issue. As the oil drains, you can now fully remove the fill plug to allow for better airflow, which will help the old oil drain more completely.
6. Cleaning and Preparing New Washers:
Once the oil has fully drained, thoroughly clean both the drain and fill plugs. It is highly recommended to replace the crush metal washers on both plugs. These washers are designed to deform and create a perfect seal when tightened, and they should be replaced every time the plugs are removed to prevent future leaks. Genuine Toyota crush washers are inexpensive, so it’s wise to purchase a couple of pairs for future changes.
7. Re-installing the Drain Plug:
With a new crush washer in place, carefully re-install the drain plug. Start threading it by hand to avoid any risk of cross-threading. Once it's finger-tight, use a torque wrench to tighten it to the specified torque of 29 ft lbs (approximately 39 Nm). For better clearance of surrounding cables, a 24mm short socket with an extension can be very helpful.
8. Refilling with New Gear Oil:
Now for the fun part: refilling the gearbox! Ensure your chosen fully synthetic 75W-90 gear oil (e.g., Mobil 1) is ready. A common and effective method for refilling involves using a small plastic hose, hot-glued to the end of a gear oil bottle's cap. Screw this modified cap onto a fresh bottle of gear oil. Elevate the bottle above the fill hole, insert the hose into the fill opening, and gently squeeze the bottle. You can typically get more than three-quarters of a bottle into the transmission with each squeeze. Repeat this process, replacing bottles as needed. Continue filling until the new gear oil begins to seep out of the fill hole. This indicates that the gearbox is sufficiently full, taking approximately 2.3 to 2.4 quarts (around 2.2 litres) for the Elise 111R.
9. Re-installing the Fill Plug:
Once the gearbox is full and oil is seeping from the fill hole, quickly but carefully re-install the fill plug with a new crush washer. Again, start threading it by hand to prevent cross-threading; sometimes, turning the bolt counter-clockwise until you feel a small 'click' (indicating the start of the thread) before turning clockwise helps ensure correct alignment. Use your torque wrench to tighten the 17mm fill plug to 29 ft lbs (approximately 39 Nm).
10. Final Checks and Clean-up:
Wipe down any spilled oil immediately with rags. Wearing latex gloves throughout the process is advisable to keep your hands clean. Once everything is tightened, spend a few moments inspecting the drain and fill plug areas for any signs of leaks. Clean any residual oil from the underside of the car. You're done! Take a moment to admire the engineering from below, knowing you've just performed vital maintenance on your Elise.
Common Causes of Transmission Leaks Beyond Plugs
While the drain and fill plug washers are a common culprit for minor leaks, other issues can lead to transmission fluid loss. These include:
- Worn Seals and Gaskets: Over time, the various seals (e.g., input shaft seal, output shaft seals) and gaskets within the transmission can harden, crack, or wear out, leading to leaks.
- Cracked Transmission Casing: Although rare, severe impacts or manufacturing defects can cause cracks in the transmission housing itself, resulting in significant leaks.
- Loose Bolts: Vibrations can sometimes loosen other bolts on the transmission casing, creating small gaps from which fluid can escape.
- Damaged Cooler Lines (if applicable): Some transmissions have external cooler lines; if these become damaged or their connections loosen, leaks can occur.
If you suspect a leak beyond the drain or fill plugs, it’s advisable to consult a qualified mechanic who can properly diagnose and repair the issue, as these often require more extensive work.
Preventative Measures
To minimise the risk of future leaks and ensure the longevity of your Elise’s gearbox:
- Regular Inspections: Periodically check under your car for any signs of fluid leaks. Early detection can prevent minor issues from becoming major repairs.
- Use Correct Torque Specs: Always use a torque wrench and adhere to the manufacturer's specified torque settings for all fasteners, especially drain and fill plugs. Over-tightening can strip threads or damage components, while under-tightening can lead to leaks.
- Quality Fluids: Always use high-quality, fully synthetic gear oil of the correct viscosity, as recommended for your specific gearbox. This ensures optimal lubrication and protection.
- Replace Washers: As demonstrated, always replace crush washers on drain and fill plugs during an oil change. They are inexpensive and vital for a leak-free seal.
Comparative Overview: Gear Oil Properties
While the specific recommendation for the Elise 111R is clear, understanding why fully synthetic oil is preferred can be helpful.
| Feature | Fully Synthetic Gear Oil (e.g., Mobil 1 75W-90) | Conventional (Mineral) Gear Oil |
|---|---|---|
| Base Stock | Man-made, highly refined chemical compounds | Refined crude oil |
| Viscosity Stability | Excellent across wide temperature ranges | Less stable, prone to thinning at high temps |
| Thermal Stability | Superior resistance to breakdown from heat | More susceptible to thermal degradation |
| Lubrication | Exceptional, forms durable film, reduces friction | Good, but less consistent under extreme conditions |
| Shear Stability | Highly resistant to viscosity loss under shear | Can lose viscosity under high shear stress |
| Longevity | Extended drain intervals, longer component life | Shorter drain intervals, potentially more wear |
| Cost | Higher initial cost | Lower initial cost |
Frequently Asked Questions (FAQs)
Q: What is the best gear oil for my Lotus Elise 111R (Toyota gearbox)?
A: For the Toyota gearbox in the Elise 111R, a fully synthetic 75W-90 gear oil is highly recommended. Mobil 1 75W-90 Synthetic is a popular and proven choice among Elise owners for its performance and smooth shifting properties.
Q: How much gearbox oil does an Elise 111R take?
A: The Lotus Elise 111R's gearbox typically takes approximately 2.3 to 2.4 quarts, which is roughly 2.2 litres, of gear oil during a refill.
Q: What are the torque specifications for the gearbox drain and fill plugs?
A: Both the drain plug and the fill plug on the Elise 111R's gearbox should be torqued to 29 ft lbs (approximately 39 Nm).
Q: How can I prevent cross-threading when reinstalling the plugs?
A: To prevent cross-threading, always start threading the plugs by hand. A good technique is to turn the plug counter-clockwise until you feel a slight 'click' or 'drop' as the threads align, then begin turning clockwise. This ensures the threads are properly engaged before you apply any torque with a wrench.
Q: Do I need to replace the crush washers every time I change the gearbox oil?
A: Yes, it is strongly recommended to replace the crush metal washers on both the drain and fill plugs every time you perform an oil change. They are designed for single use and are crucial for creating a leak-proof seal.
Q: How often should I change my Elise 111R's gearbox oil?
A: While Lotus may have specific service intervals, a general recommendation for high-performance cars, especially if driven enthusiastically or tracked, is to consider changing gearbox oil every 2-3 years or every 20,000-30,000 miles, whichever comes first. If you experience rougher shifts, it's a good indicator that a change might be beneficial.
In conclusion, maintaining the gearbox of your Lotus Elise 111R is a straightforward yet critical aspect of owning this exceptional vehicle. By understanding the correct type of fully synthetic 75W-90 gear oil to use and following a meticulous oil change procedure, you not only ensure silky-smooth gear changes but also proactively address potential minor leaks. This dedication to proper maintenance will safeguard your gearbox, preserving the thrilling and unadulterated driving experience that your Elise 111R was engineered to deliver for many more miles to come. Remember, a well-maintained gearbox is a happy gearbox, and a happy gearbox means an even happier driver behind the wheel of their iconic British sports car.
