Your Essential Guide to Clutch Slave Cylinders

The clutch system in any vehicle is a marvel of engineering, allowing for smooth gear changes and efficient power transfer from the engine to the wheels. At its heart lies a crucial, yet often overlooked, component: the clutch slave cylinder. This small but mighty part plays a pivotal role in translating your foot's action on the clutch pedal into the mechanical movement that engages or disengages the clutch. Understanding its function, recognising signs of failure, and knowing how to address issues can save you time, money, and a great deal of frustration on the road.

What is a Clutch Slave Cylinder and How Does It Work?

A clutch slave cylinder is an integral part of your vehicle's hydraulic clutch system, designed to provide leverage assistance to the clutch fork. It operates on principles similar to any hydraulic cylinder, such as those found on a boom lift. The slave cylinder is hydraulically connected to the clutch master cylinder, typically located on the firewall near the brake master cylinder, via a high-pressure hose or rigid line.

When you depress the clutch pedal, brake fluid (or sometimes dedicated clutch fluid) is pushed from the clutch master cylinder, through the connecting hose, and into the slave cylinder. This hydraulic pressure forces a plunger or piston inside the slave cylinder to extend, pushing against the clutch fork. The clutch fork, in turn, moves the release bearing, which then disengages the clutch from the flywheel, allowing you to change gears.

Upon releasing the clutch pedal, a return spring, located either on or within the slave cylinder, retracts the plunger. This action forces the brake fluid back to the clutch master cylinder, allowing the clutch to re-engage. The entire process relies heavily on Pascal's Law, which states that pressure applied to an enclosed fluid is transmitted undiminished to every portion of the fluid and the walls of the containing vessel. In the context of a clutch hydraulic system, this means that as long as the system has fluid at the proper level and is free of air, the applied force from the pedal is efficiently converted into the necessary mechanical force at the clutch.

Recognising the Signs of a Failing Clutch Slave Cylinder

Identifying a failing clutch slave cylinder early can prevent further damage and leave you stranded. There are primarily two distinct ways to determine if this component is failing or has failed entirely:

1. Fluid Leaks and Low Reservoir Levels

The most common sign of a failing clutch slave cylinder is a leak. The main chamber seal, located within the middle of the slave cylinder, can split or degrade over time. When this happens, brake fluid will leak out, causing the reservoir connected to the clutch master cylinder to become low. As the clutch pedal is pressed, the plunger inside the cylinder housing attempts to apply pressure, but the compromised seal allows brake fluid to spray out at a strong force past it. When the pedal is released, the return spring pulls the plunger back, and this action can inadvertently draw air into the slave cylinder due to the leak.

Symptoms to watch for:

• Visible puddles or drips of fluid under the vehicle, often near the transmission bell housing.
• A noticeable drop in the clutch fluid reservoir level.
• A spongy or soft clutch pedal feel, indicating air in the hydraulic system.
• Difficulty engaging or disengaging gears, as insufficient pressure is being applied to the clutch.

2. Broken or Weakened Return Spring

Another critical failure point is the return spring. If this spring breaks or weakens significantly, the slave cylinder's push rod may remain pressed out with full force against the clutch fork. In such a scenario, when you press the clutch pedal, it will go down to the floor, but crucially, it will not return to its original position when released. This is because the spring is no longer providing the necessary opposing force to retract the plunger and return the fluid to the master cylinder.

Symptoms to watch for:

• Clutch pedal stays on the floor after being pressed.
• Complete inability to engage any gears, as the clutch remains disengaged.
• No resistance or a very light feel when pressing the clutch pedal.

It's important to remember that if the fluid is low, or if air is induced into the hydraulic system, the fluid becomes compressible. This compressibility prevents the full force from being transmitted, causing the slave cylinder to operate inefficiently, often only partially. This leads to the clutch slipping and an inability to engage gears properly because the clutch cannot fully release.

Our Extensive Stock of Clutch Slave Cylinders

Finding the right parts for your vehicle, especially classic cars or commercial vehicles, can be a challenge. At our facility, we pride ourselves on our comprehensive stock of over 450 clutch slave cylinder units. This extensive range covers everything from the smallest classic car models to the biggest classic commercial vehicles, ensuring we have the right fit for almost any requirement. We stock high-quality units from renowned manufacturers such as LOCKHEED and GIRLING, known for their reliability and performance.

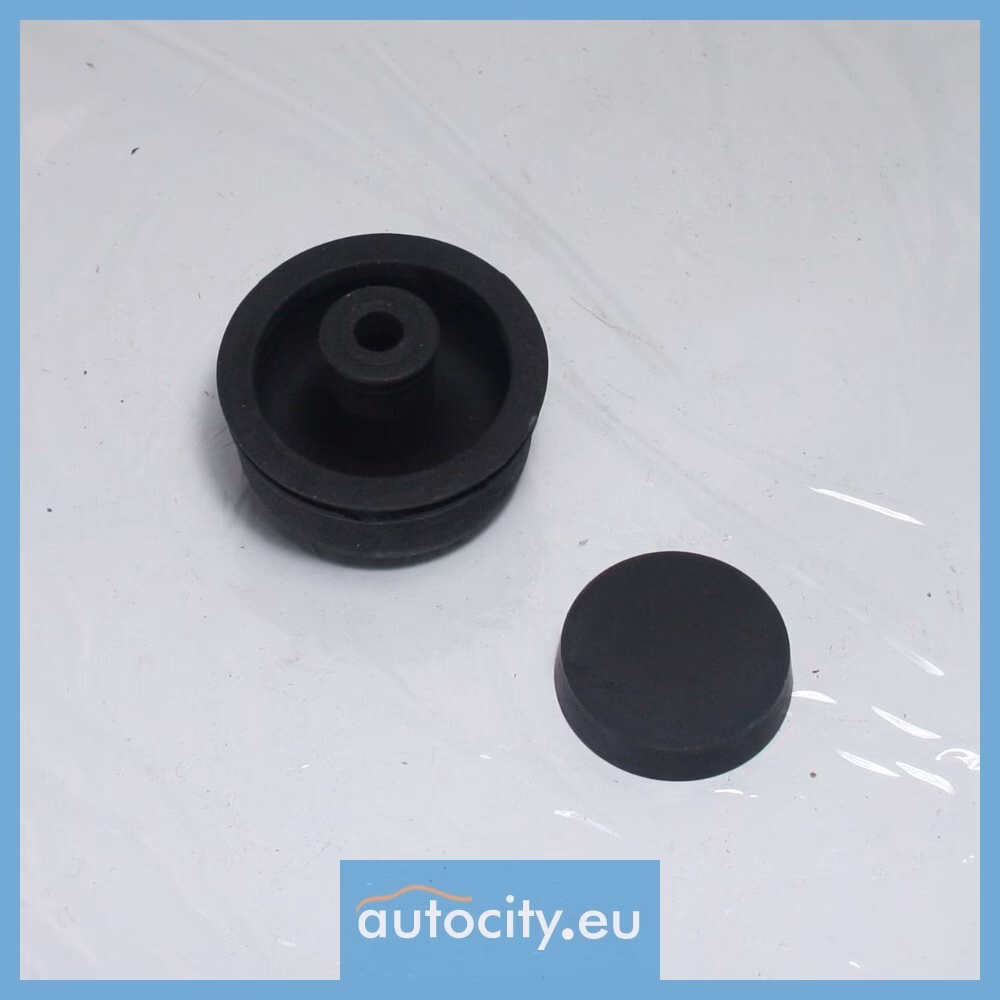

Beyond complete units, we also offer a wide selection of repair and seal kits, allowing for cost-effective repairs if only a seal has failed. Additionally, we stock a variety of flexible and rigid nylon clutch hoses to complete your hydraulic system overhaul. If you need a specific part or advice on what's best for your vehicle, please do not hesitate to contact us with your requirements.

Step-by-Step Guide: Replacing Your Clutch Slave Cylinder

Replacing a clutch slave cylinder can be a challenging but rewarding DIY task for the mechanically inclined. This guide outlines the process for replacing the entire clutch hydraulic system assembly, which often includes the master cylinder, hydraulic line, and slave cylinder, as it provides a comprehensive solution and ensures all components are fresh. Always prioritise safety and consult your vehicle's owner's manual for specific jacking points and torque specifications.

Part 1: Preparing for the Job

Before you begin, ensure you have all the necessary materials and a safe working environment.

Materials Needed:

• Floor jack and jack stands
• Wheel chocks
• Drip pan
• Flashlight
• Creeper (optional, but highly recommended)
• Allen wrench set
• Boxed end wrenches
• Brass punch
• Breaker bar
• Fastener remover
• Needle nose pliers
• Ratchet with metric and standard sockets
• Torque wrench
• Torx bit set
• Vampire pump and bottle (for fluid extraction)
• New clutch slave cylinder or complete hydraulic system assembly
• New brake fluid (DOT 3 or DOT 4, as specified by your vehicle)
• Plastic bag and rubber band

1. Park Your Vehicle Safely: Always park your vehicle on a flat, hard, and level surface. Ensure the transmission is in 'Park' for automatics or 1st gear for manuals.
2. Secure the Vehicle: Place wheel chocks around the rear tyres to prevent any movement. Engage the parking brake to lock the rear wheels.
3. Raise the Vehicle: Using a reliable floor jack, lift the vehicle at its specified jacking points until the wheels are completely off the ground. Refer to your vehicle's owner's manual for precise jacking locations.
4. Position Jack Stands: Carefully place the jack stands securely under the designated jacking points. Once positioned, slowly lower the vehicle onto the jack stands, ensuring it is stable before proceeding.

Part 2: Verifying the Clutch Slave Cylinder Condition

Even if you plan to replace the entire system, a quick inspection can confirm your diagnosis.

1. Inspect for Leaks: Get under the vehicle (using your creeper) and use a flashlight to visually inspect the clutch slave cylinder for any signs of damage or fluid leakage. If no external leaks are visible, gently pull back the dust boot; fluid may be accumulating inside. Place a drip pan underneath to catch any fluid that might leak out.
2. Check Reservoir Level: Open the bonnet and locate the clutch master cylinder. Remove the cover to its reservoir and verify the brake fluid level. A significantly low level is a strong indicator of a leak somewhere in the system.

Part 3: Removing the Clutch Hydraulic System Assembly

This section details how to remove the master cylinder, hydraulic line, and slave cylinder as one unit. This is often easier than trying to disconnect the hydraulic line under the vehicle.

1. Drain the Reservoir: Using your vampire pump and bottle, remove all the brake fluid from the clutch master cylinder's reservoir. Once drained, replace the reservoir cap. Warning: Brake fluid is corrosive to paint; avoid contact with painted surfaces.
2. Disconnect from Pedal: Go into the driver's compartment. Locate the anchor pin on the clevis that attaches the clutch master cylinder push rod to the clutch pedal. Use needle nose pliers to remove the cotter pin securing it, then slide out the anchor pin.
3. Remove Master Cylinder Mounting Nuts: From the engine bay, remove the mounting nuts that secure the clutch master cylinder to the firewall.
4. Release Hydraulic Line Clamps: Locate the hydraulic line that links the clutch master cylinder to the slave cylinder. Remove all insulated clamps that secure this line to the vehicle's chassis.
5. Disconnect Slave Cylinder from Transmission: Go back under the vehicle. Remove the two bolts or the clamp that secures the slave cylinder to the transmission bell housing.
6. Remove Entire System: Very carefully, manipulate and remove the entire clutch hydraulic system (master cylinder, hydraulic line, and slave cylinder) up and out through the engine compartment. Take extreme care not to bend the hydraulic line, as it can easily crack or break.

Part 4: Preparing the New Clutch Hydraulic System Assembly

It is highly recommended to 'bench prime' the new assembly before installation to remove as much air as possible from the system.

1. Unpack and Inspect: Remove the new clutch master cylinder and slave cylinder assembly from its packaging. Visually inspect both cylinders and the hydraulic line for any damage. Ensure the main seal is correctly seated at the back of the clutch master cylinder housing.
2. Secure for Priming: Place the clutch master cylinder securely in a vice, clamping it down just enough so it won't move. Support the slave cylinder on a stool or similar surface so it's not hanging freely.
3. Prepare for Bleeding: Place a drip pan underneath the slave cylinder and remove its bleeder screw.
4. Fill Reservoir: Fill the clutch master cylinder reservoir with new brake fluid, leaving approximately 1/4 inch from the top empty.
5. Prime the System: Using a brass punch as an extension, slowly and steadily pump the plunger from the back of the clutch master cylinder. Watch for brake fluid to drip out of the slave cylinder's bleeder hole. You will likely need to refill the reservoir several times as the fluid fills the entire system. Continue pumping until a solid, consistent stream of brake fluid emerges from the slave cylinder, indicating most of the air has been expelled. At this point, stop pumping and reinstall the bleeder screw tightly.
6. Final Bleed (Optional, but Recommended): For a more thorough prime, enlist a helper. Have them use the brass punch to pump the master cylinder. You then briefly loosen the bleeder screw on the slave cylinder to allow any remaining air to escape with the fluid. Tighten the screw, and have your helper release the plunger. Repeat this a few times if necessary to ensure all air is out.
7. Top Off Fluid: Ensure the bleeder screw is tight. Fill the reservoir with brake fluid up to the 'full' line and install the reservoir cap.

Part 5: Installing the New Clutch Hydraulic System

Now, carefully install the pre-primed assembly back into your vehicle.

1. Install Entire System: Very carefully, lower the entire pre-primed clutch hydraulic system assembly (master cylinder, hydraulic line, and slave cylinder) down through the engine compartment, guiding it into its correct position. Again, avoid bending the hydraulic line.
2. Mount Slave Cylinder: Go underneath the vehicle and install the slave cylinder to its transmission mount. Finger-tighten the bolts, then tighten them an additional 1/8th turn, or securely install the clamp if applicable.
3. Mount Master Cylinder: Install the clutch master cylinder into the firewall from the engine bay side.
4. Secure Master Cylinder Nuts: From inside the driver's compartment, install the mounting nuts onto the clutch master cylinder. Torque them down to the specifications provided in the new part's packaging. If no instructions are given, tighten them hand-tight plus an additional 1/8th turn.
5. Connect to Pedal: Install the anchor pin into the clevis of the push rod. Then, install a new cotter pin into the anchor pin on the clevis, using needle nose pliers. Do not reuse the old cotter pin, as it can be fatigued and prone to premature breakage.
6. Secure Hydraulic Line: Back in the engine compartment, install all mounting insulated clamps that secure the hydraulic line to the vehicle's chassis.

Part 6: Final Bleeding and System Checks

Even with pre-priming, a final bleed is often necessary to ensure all air is out of the system for optimal performance.

1. Bleed the System Thoroughly: With a helper, perform a traditional bleeding procedure. Have your helper press the clutch pedal down to the floor and hold it. You then briefly loosen the bleeder screw on the slave cylinder to allow air and fluid to escape into a drip pan. Tighten the bleeder screw, then have your helper release the clutch pedal. Repeat this process several times until no more air bubbles are visible in the fluid coming out. Ensure the reservoir fluid level never drops too low during this process. If air persists, you may need to bleed the line at the master cylinder end as well, following the same procedure.
2. Top Off Brake Fluid: Once bleeding is complete and no more air is present, remove the reservoir cap and top off the brake fluid to the 'full' line. Replace the cap securely.

Part 7: Vehicle Reassembly and Testing

With the new components installed and bled, it's time to get your vehicle back on the ground and test the repair.

1. Raise Vehicle: Using your floor jack, lift the vehicle off the jack stands.
2. Remove Jack Stands: Carefully remove the jack stands and place them well away from the vehicle.
3. Lower Vehicle: Slowly lower the vehicle until all four wheels are firmly on the ground. Remove the floor jack.
4. Remove Wheel Chocks: Take out the wheel chocks from the rear wheels and store them.
5. Initial Test (Stationary): Ensure the transmission is in neutral. Turn the ignition key and start the engine. Press down on the clutch pedal. The shifter should slide easily into each gear selection (e.g., 1st, 2nd, reverse) without grinding. Turn the engine off when done.
6. Road Test: Drive the vehicle around the block, gradually changing gears from first gear up to the top gear, one at a time.
7. Practice Double Clutching: When moving from a selected gear to neutral, press the clutch pedal down. Then, press the clutch pedal down again when moving from neutral to another gear selection. This process, known as double clutching, ensures the transmission has minimal power from the engine with the clutch properly disengaged, helping to prevent clutch and transmission gear damage.
8. Evaluate Performance: Listen for any grinding noises and assess how smooth the shifting feels from one gear to another. If there's no grinding and shifting feels smooth, your clutch slave cylinder replacement has likely been successful.

Troubleshooting Common Issues After Replacement

Sometimes, even after following all steps, issues can persist. Here are a few common scenarios:

If you cannot engage the transmission into any gear without grinding, or if the clutch pedal will not move at all, there may be a deeper issue, such as a problem with the clutch pedal assembly itself, or a potential transmission failure. If the problem persists after troubleshooting, we highly recommend seeking help from one of our certified mechanics who can expertly inspect the clutch and transmission to diagnose the underlying problem.

Frequently Asked Questions (FAQs)

How often should I replace my clutch slave cylinder?

There's no fixed schedule for replacing a clutch slave cylinder. It's typically replaced when it fails, usually due to internal seal wear or a broken spring. Its lifespan largely depends on driving habits, vehicle age, and maintenance. However, many mechanics recommend replacing both the master and slave cylinders simultaneously if one fails, especially on older vehicles, as the other is likely to follow soon after.

Can I drive with a failing clutch slave cylinder?

It is strongly advised not to drive with a failing clutch slave cylinder. A complete failure can leave you unable to shift gears, making the vehicle dangerous and impossible to control safely. Even a partial failure can lead to clutch slip, causing premature wear on other, more expensive clutch components.

What kind of fluid does my clutch slave cylinder use?

Most clutch hydraulic systems use standard brake fluid, typically DOT 3 or DOT 4. Always refer to your vehicle's owner's manual or the cap on the clutch fluid reservoir to confirm the correct type of fluid to use. Using the wrong fluid can damage seals and lead to system failure.

Is it hard to replace a clutch slave cylinder?

Replacing a clutch slave cylinder can range from moderately difficult to challenging, depending on the vehicle's make and model. Accessibility to the component, particularly if it's located inside the transmission bell housing (concentric slave cylinder), can significantly increase the difficulty. External slave cylinders are generally easier to replace. The most critical part is ensuring all air is bled from the hydraulic system afterwards.

What's the difference between a clutch master cylinder and a clutch slave cylinder?

Both are vital components of a hydraulic clutch system, but they perform different roles. The clutch master cylinder is connected directly to the clutch pedal; it generates hydraulic pressure when the pedal is pressed. This pressure is then transmitted through the hydraulic line to the clutch slave cylinder. The slave cylinder, located near the transmission, converts this hydraulic pressure back into mechanical force, pushing the clutch fork to disengage the clutch. Essentially, the master cylinder is the 'input' and the slave cylinder is the 'output' of the hydraulic system.

Conclusion

The clutch slave cylinder, while small, is an indispensable part of your vehicle's transmission system. Understanding its function, recognising the tell-tale signs of failure, and knowing the steps involved in its replacement are crucial for any classic car enthusiast or commercial vehicle owner. While replacing it can be a detailed task, with careful preparation and attention to detail, it's a job that can be tackled at home. Remember, proper bleeding of the hydraulic system is paramount for a successful repair. Should you require parts or professional assistance, our extensive stock and expert team are always ready to help keep your vehicle shifting smoothly on the roads of the UK.
