Mastering LO206 Motor Lubrication

Ensuring your LO206 kart motor is properly lubricated and maintained is not just good practice; it's absolutely crucial for extracting every last drop of performance and ensuring its longevity on the track. In the demanding world of karting, where every fraction of a second counts, inefficiencies stemming from inadequate maintenance can significantly hinder your progress. This guide delves into the specifics of lubricating and maintaining your LO206 engine, drawing from years of racing experience to provide you with a definitive checklist for keeping your powerplant in prime condition.

The Lifeblood of Your LO206: Engine Oil Management

The engine oil is arguably the single most important component in the lubrication system of your LO206 motor. It reduces friction, dissipates heat, and cleans internal components, all of which are vital for a high-revving, single-cylinder racing engine. Neglecting your oil will inevitably lead to reduced performance and, eventually, catastrophic engine failure.

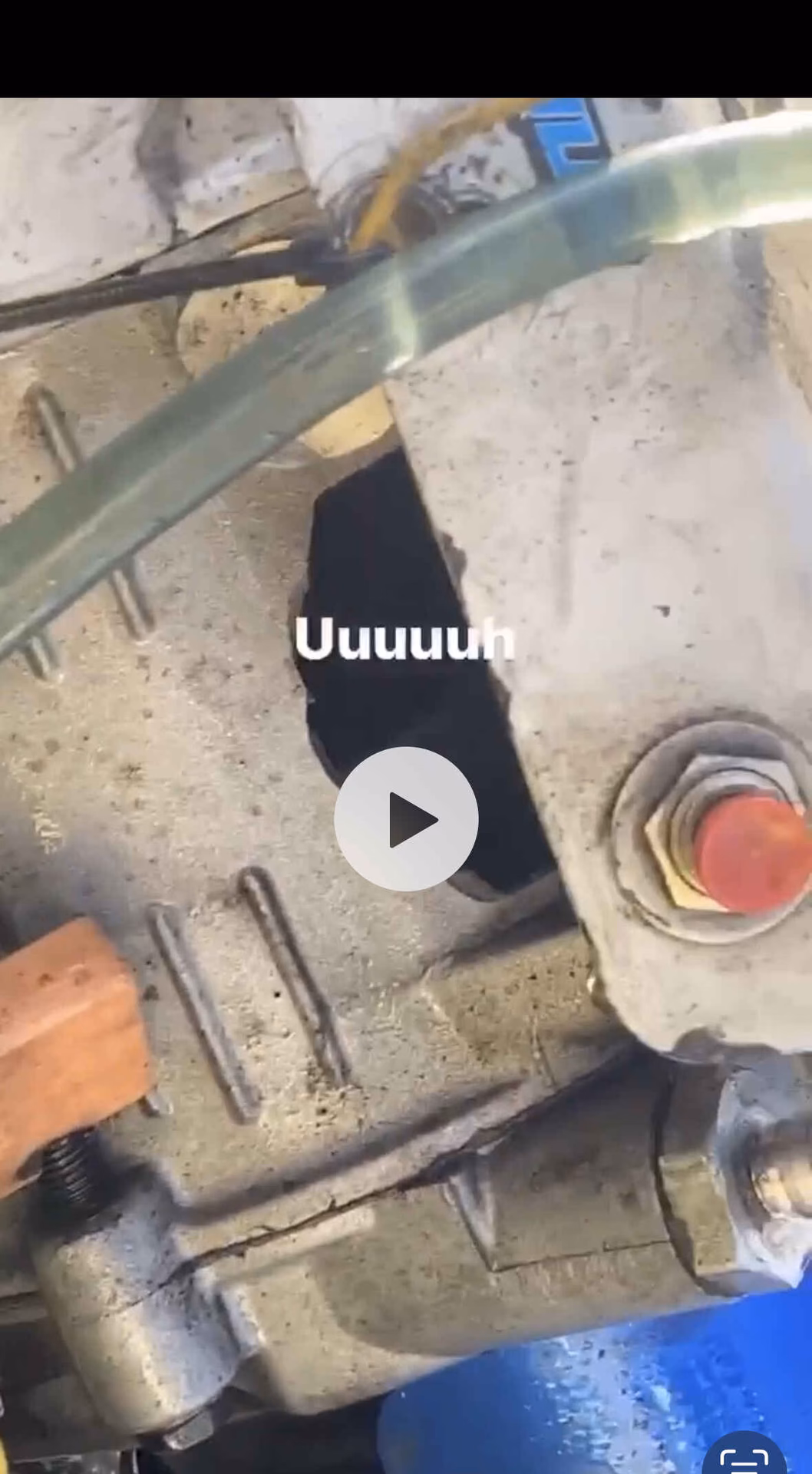

The Essential Oil Change Regime

For a Briggs & Stratton LO206 engine, the recommended oil change frequency is surprisingly often, but for good reason. Given the intense operating conditions, the high RPMs, and the relatively small sump capacity, the oil quickly degrades. Therefore, it is strongly advised that oil should be changed after every day at the track. This isn't an exaggeration; it's a critical step to ensure the oil's protective properties remain intact. Fresh oil provides optimal film strength, crucial for preventing metal-on-metal contact within the engine's precision-engineered components.

When performing an oil change, precision in volume is key. The LO206 motor requires 15 U.S. Fluid ounces or 443ml of oil. Using too little oil can lead to inadequate lubrication and overheating, while too much can cause excessive pressure, foaming, and potential seal damage, both scenarios detrimental to engine health and performance. Briggs & Stratton themselves suggest using well-known synthetic oils. Synthetic oils offer superior thermal stability, better shear resistance, and improved cold-start protection compared to conventional oils, making them an ideal choice for the stresses of kart racing. Many racers, for instance, find Mobil 1 5w30 to be an excellent choice, demonstrating the type of high-quality, full-synthetic lubricant that provides the necessary protection.

The Benefit of a Magnetic Drain Plug

If your LO206 motor isn't already equipped with one, investing in a magnetic drain plug is a highly recommended upgrade. The primary purpose of this simple yet effective component is to capture and hold any ferrous metallic particles that may be circulating in the engine oil. These particles are typically microscopic bits of wear metal generated during normal engine operation. While a small amount is inevitable, a magnetic drain plug acts as a filter, preventing these abrasive particles from recirculating through the engine and causing further wear to bearings, cylinder walls, and other critical surfaces. Regularly inspecting the magnetic drain plug during oil changes can also provide early warning signs of excessive wear, allowing you to address potential issues before they escalate into major problems. A clean plug indicates healthy internal components, whereas significant metallic sludge might warrant further investigation.

Protecting Your Fuel System: The Pulse Tube

While not directly a lubrication point, the proper management of the pulse tube for the fuel pump is integral to overall engine health and consistent fuel delivery. The pulse tube connects to the engine's crankcase, using the pressure fluctuations to drive the mechanical fuel pump. A common issue that can arise is the pulse tube filling with oil. This occurs if the tube is routed incorrectly or if the fuel pump is positioned lower than the engine's pulse port, allowing oil to drain into it.

It is absolutely critical to ensure that the pulse tube is routed in such a way that it is always lower than the fuel pump itself. This simple routing prevents oil from accumulating in the pump, which can severely impede its function. An oil-filled fuel pump will struggle to deliver consistent fuel pressure, leading to erratic engine performance, leaning out, or even complete fuel starvation, all of which can damage the engine or significantly impact your race day. Regular checks of this routing and ensuring no oil accumulation are essential for reliable operation.

Ancillary Lubrication: The Clutch Bearing

Beyond the engine's internal components, a crucial part of your LO206's drivetrain that requires specific lubrication is the clutch. While the clutch shoes and drum must remain clean and dry to ensure proper engagement and prevent slippage, the clutch's plain bearing or bushing requires careful lubrication.

The clutch itself should always be clean and dry, free of any lubricants on the friction surfaces. However, if your clutch incorporates a plain bearing or bushing – a common design feature in LO206 clutches – this component absolutely requires lubrication. This bearing allows the clutch drum to spin freely around the crankshaft when the engine is idling and the clutch is disengaged. Without proper lubrication, this bearing will experience excessive friction, generate heat, and rapidly wear out, leading to premature clutch failure, inconsistent engagement, and potential power loss. A light coating of thick grease should be applied to this bearing to keep it adequately lubricated. This grease reduces friction, prolongs the life of the bearing, and ensures smooth, consistent clutch operation throughout its lifespan. Regular inspection and re-greasing of this bearing are vital maintenance tasks that can prevent costly repairs and ensure consistent power transfer to the wheels.

Breathing Easy: Air Filter Maintenance

The air cleaner is the engine's first line of defence against airborne contaminants, and while it's not a lubrication point in itself, its proper maintenance directly impacts the internal lubrication and longevity of your LO206 motor. A dirty or improperly maintained air filter can starve the engine of air, leading to a rich condition and reduced power, or, worse, allow abrasive dirt particles to enter the engine, causing premature wear to cylinder walls, piston rings, and bearings. This wear, in turn, can compromise the effectiveness of your engine oil.

It is imperative to clean the air cleaner often. The frequency will depend on the track conditions – dusty environments will naturally require more frequent cleaning. The cleaning process typically involves removing the filter, cleaning it with an appropriate air filter cleaner, allowing it to thoroughly dry, and then spraying a light, even coating of K&N air filter spray on it. This spray traps fine dust particles while allowing unrestricted airflow. An over-oiled filter can restrict airflow, while an under-oiled filter won't adequately trap contaminants. Proper air filter maintenance ensures your engine breathes clean air, maintains optimal fuel-air mixture, and preserves the integrity of its internal components, allowing your lubrication system to work as intended without abrasive interference.

Troubleshooting & FAQs for LO206 Motor Maintenance

Even with diligent maintenance, questions and minor issues can arise. Here are some common queries and their solutions related to LO206 motor maintenance:

Q1: How often should I change my LO206 engine oil?

A1: As per racing recommendations, oil should be changed after every day at the track due to the high stress and small sump capacity of the LO206 engine. This ensures optimal lubrication and protection.

Q2: What type of oil is best for an LO206 motor?

A2: Briggs & Stratton suggests well-known synthetic oils. Many racers use a 5w30 synthetic oil, such as Mobil 1 5w30, for its superior protection and stability under racing conditions.

Q3: My fuel pump isn't working correctly; could it be related to oil?

A3: Yes, it's possible. Check the pulse tube that connects from the engine to the fuel pump. Ensure it is routed lower than the fuel pump itself to prevent oil from accumulating in the pump, which can hinder its operation.

Q4: My clutch feels inconsistent or is wearing out quickly. What should I check?

A4: First, ensure the clutch friction surfaces are clean and dry, free of any lubricants. If your clutch has a plain bearing or bushing, make sure it receives a light coating of thick grease. This bearing is critical for smooth operation and longevity.

Q5: How do I know if my air filter needs cleaning?

A5: The frequency of cleaning depends on track conditions, but generally, it should be inspected and cleaned often. A visibly dirty or clogged filter will restrict airflow, potentially leading to reduced engine performance. Always clean, dry, and re-oil with appropriate air filter spray.

Summary of Key Lubrication & Maintenance Points

To summarise the critical aspects of LO206 motor lubrication and maintenance:

By diligently following these lubrication and maintenance guidelines, you are not just performing routine tasks; you are actively investing in the performance, reliability, and lifespan of your LO206 kart motor. These seemingly small details collectively contribute to a well-oiled machine that performs consistently at its peak, giving you the competitive edge on the track and peace of mind in the paddock. Remember, a well-maintained engine is a winning engine.
