Understanding the LLY Duramax Engine

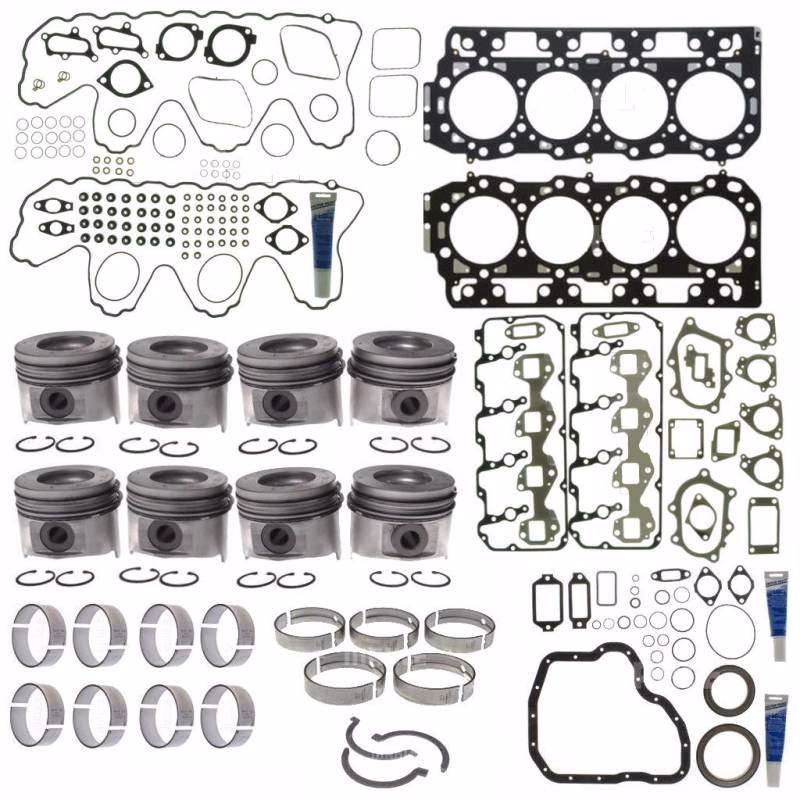

The LLY Duramax: A Powerhouse in Diesel Trucking

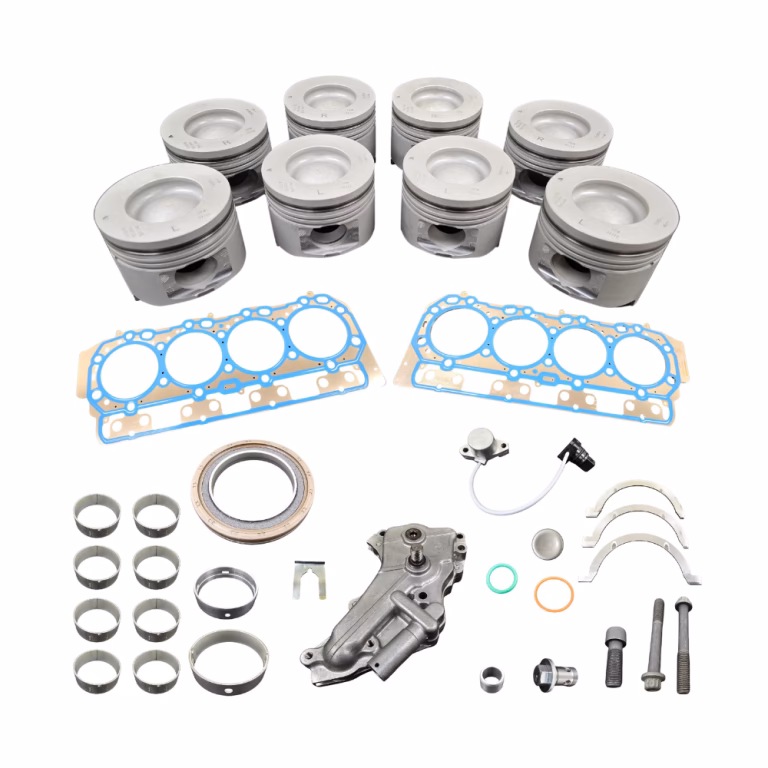

The 6.6-litre LLY Duramax engine represents a significant chapter in General Motors' history of diesel-powered light to medium-duty trucks. Produced by DMAX, a collaborative venture between GM and the Japanese automotive giant Isuzu, this engine family first graced Chevrolet and GMC chassis in late 2001. The introduction of the Duramax was a monumental leap forward, replacing the older, less sophisticated 6.5-litre Detroit Diesel engine. This technological advancement granted GM a considerable edge in the competitive diesel truck market, offering enhanced power and efficiency.

At the heart of the LLY Duramax's performance was its adoption of the advanced Bosch Common Rail Fuel system. This innovative system comprised an Engine Control Module (ECM), a robust CP3 injection pump, a Fuel Injection Control Module (FICM), and precisely engineered injectors. The 'common rail' moniker stems from the shared fuel rail that supplies pressurised fuel to all the injectors, ensuring consistent and efficient fuel delivery. While the early iterations featured an FICM, later versions streamlined the system by omitting the FICM and incorporating an updated CP4 injection pump, further refining performance and reliability.

Technological Advancements and Early Challenges

The LLY Duramax engine, while a technological marvel for its time, was not without its teething problems. Shortly after its release, a widespread issue with injector failures became apparent. General Motors, acknowledging the severity of the problem, took the proactive step of extending the warranty on these injectors to a substantial 200,000 miles. This decision highlighted the significant impact these failures were having on owners.

Changing the injectors on the LLY Duramax, much like its predecessor the LB7, proved to be a somewhat time-consuming task. The injectors were strategically located beneath the valve covers, necessitating a degree of mechanical expertise to access and replace. Investigations into the root cause of these premature injector failures pointed towards the presence of air bubbles within the fuel lines.

The Culprit: Air Bubbles and Injector Failure

The mechanism behind the injector failures was directly linked to these elusive air bubbles. When air entered the fuel system, it would accumulate within the CP3 injection pump. The process of injection involves a high-pressure plunger that precisely meters fuel into the combustion chamber. When an injector was commanded to fire, and a bubble of air was present between the plunger and the injector tip, it lacked the necessary fluid damping. This absence of damping led to a gradual, microscopic gap forming between the plunger and the tip over time. As this gap widened, it allowed fuel to continuously flow through the injector, even when it was supposed to be closed, due to the extremely high rail pressures maintained by the system.

A critical aspect of this particular failure was its stealthy nature. The engine's computer system, the ECM, was not equipped to detect this specific type of internal injector leak. Consequently, drivers were often not alerted to the developing problem via the usual 'check engine' light. The only reliable method for diagnosing this issue was through a specialised diagnostic procedure involving the measurement of the return fuel flow rate. An elevated return flow indicated that fuel was bypassing the intended injection process, confirming the injector fault.

Aftermarket Solutions: Extending the LLY's Lifespan

The ingenuity of the aftermarket automotive industry quickly provided a solution to the LLY Duramax's injector woes. Companies such as AirDog and FASS developed and introduced innovative Fuel Air Separation Systems. These systems were designed to proactively remove air and other contaminants from the diesel fuel before it reached the injection pump and injectors.

The effectiveness of these aftermarket systems was remarkable. According to numerous reports from experienced "hot shot" drivers and fleet vehicle owners, the installation of a Fuel Air Separation System dramatically extended the operational life of the LLY Duramax injectors. Many owners reported achieving an impressive lifespan of around 400,000 miles, a significant improvement over the original injector longevity. This demonstrates the power of targeted aftermarket modifications in enhancing the durability and reliability of even complex engine systems.

How Fuel Air Separation Systems Work

These systems typically operate on a multi-stage principle:

• Pre-filtration: Raw fuel from the tank is first passed through a coarse filter to remove larger debris.
• Air Separation: The fuel then enters a chamber where centrifugal force or a specific vortex design causes entrained air to separate from the liquid fuel. This separated air is often vented or returned to the tank.
• Water Separation: Many systems also incorporate a coalescing filter or a "cyclone" effect to remove water droplets from the fuel.
• Fine Filtration: Finally, the purified fuel is passed through a high-efficiency micron filter before reaching the engine's fuel system.

By ensuring a consistent supply of clean, air-free fuel, these systems protect the sensitive components of the common rail system, particularly the CP3 pump and the injectors, from the damaging effects of cavitation and improper lubrication.

LLV Duramax vs. Other Duramax Variants

It's important to distinguish the LLY Duramax from other iterations of GM's 6.6-litre diesel. While sharing the same displacement, each variant brought its own set of improvements and, at times, unique challenges.

Key Differences and Improvements

The LLY represented a significant step up from the LB7 with its common rail technology. However, the LBZ, which followed, is often lauded for addressing many of the LLY's shortcomings. The LBZ featured a more robust engine block, improved cooling system, and revised tuning that reduced the likelihood of injector failures without the need for aftermarket intervention. The transition to the CP4 injection pump in later models like the LMM also marked a shift in fuel system design, bringing its own set of considerations, particularly concerning emissions equipment.

Frequently Asked Questions about the LLY Duramax

Q1: What were the primary reasons for LLY Duramax injector failures?

A: The main cause was the presence of air bubbles in the fuel system, which led to a lack of damping in the injector plungers, creating gaps and allowing fuel to leak past.

Q2: Can I install an aftermarket Fuel Air Separation System on my LLY Duramax?

A: Yes, systems from manufacturers like AirDog and FASS are widely available and highly recommended by owners to prevent injector failures and extend component life.

Q3: Is the LLY Duramax a reliable engine?

A: With the fuel system issues addressed, particularly through aftermarket solutions, the LLY Duramax can be a very reliable and powerful engine. Stock reliability was impacted by the injector issue.

Q4: What are the typical horsepower and torque figures for an LLY Duramax?

A: Stock LLY Duramax engines typically produced around 310 horsepower and 605 lb-ft of torque, though factory tuning could vary slightly.

Q5: How does the LLY compare to the LBZ Duramax?

A: The LBZ is generally considered an improvement over the LLY, featuring stronger internal components and a more reliable fuel system that is less prone to the injector issues seen in the LLY.

Conclusion: A Legacy of Power and Improvement

The 6.6-litre LLY Duramax engine stands as a testament to GM's commitment to advancing diesel technology. Despite its initial challenges with injector reliability, the innovative spirit of the aftermarket community provided effective solutions that have allowed many LLY engines to achieve impressive longevity. Understanding the nuances of its common rail system and the impact of fuel quality is key to maintaining this powerful powerplant. For owners looking to maximise the performance and service life of their LLY Duramax, investing in a quality Fuel Air Separation System is a highly recommended upgrade, ensuring that this robust engine continues to deliver reliable power for years to come.
