The Ultimate Guide to Gas-Tight Exhaust Systems

A properly sealed exhaust system is far more than just a matter of reducing noise; it's fundamental to your vehicle's performance, emission control, and even your safety. Leaks in the exhaust can lead to decreased engine efficiency, an increase in harmful emissions, and, in severe cases, allow dangerous carbon monoxide fumes to enter the passenger compartment. Achieving a gas-tight seal is crucial, and thankfully, modern sealing compounds offer a straightforward and highly effective solution for both DIY enthusiasts and professional mechanics.

This guide will delve into the critical aspects of installing a truly gas-tight exhaust system, focusing on the benefits and application of specialized sealing pastes designed for this very purpose. These innovative products are engineered to withstand extreme temperatures, prevent components from seizing, and simplify the entire fitting process, ensuring a durable and reliable seal that stands the test of time.

Why a Gas-Tight Exhaust Seal is Non-Negotiable

Before we dive into the 'how-to', it's essential to understand the profound impact a well-sealed exhaust system has on your vehicle. It's not just about keeping things quiet; it's about optimal operation and legal compliance.

• Emissions Control: A primary function of the exhaust system is to channel harmful gases away from the engine and, via components like the catalytic converter, reduce their toxicity before they're released into the atmosphere. Leaks upstream of the catalytic converter can introduce unmetered air, causing the engine's oxygen sensors to misread exhaust gas composition. This can lead to the engine running too rich or too lean, impacting the catalytic converter's efficiency and potentially causing your vehicle to fail its MOT (Ministry of Transport) emissions test. Even small leaks can have a significant effect on emissions readings.
• Engine Performance: Exhaust back pressure is a finely tuned aspect of engine design. While excessive back pressure can hinder performance, a complete lack of it, often caused by significant leaks, can also throw off engine calibration. Proper sealing ensures the exhaust gases flow as intended, maintaining optimal back pressure and contributing to the engine's designed power output and fuel efficiency.
• Noise Reduction: This is perhaps the most immediately noticeable benefit. A leaky exhaust produces an unpleasant, loud, and often rattling noise that can be a nuisance to both occupants and passers-by. A gas-tight seal restores the system's ability to dampen sound effectively, providing a quieter and more refined driving experience.
• Safety: This is arguably the most critical reason. Exhaust fumes contain carbon monoxide (CO), an odourless, colourless, and highly toxic gas. Leaks, especially those close to the passenger compartment, can allow CO to seep into the car's cabin, posing a severe health risk to occupants. Symptoms of CO poisoning can range from headaches and dizziness to unconsciousness and even death. A sealed system ensures these dangerous gases are safely expelled behind the vehicle.

Understanding Exhaust Sealing Compounds

Modern exhaust sealing pastes are a game-changer for exhaust repairs and installations. Unlike traditional methods that might rely solely on gaskets or welding, these pastes offer a flexible, heat-resistant, and highly effective solution for sealing joints and connections.

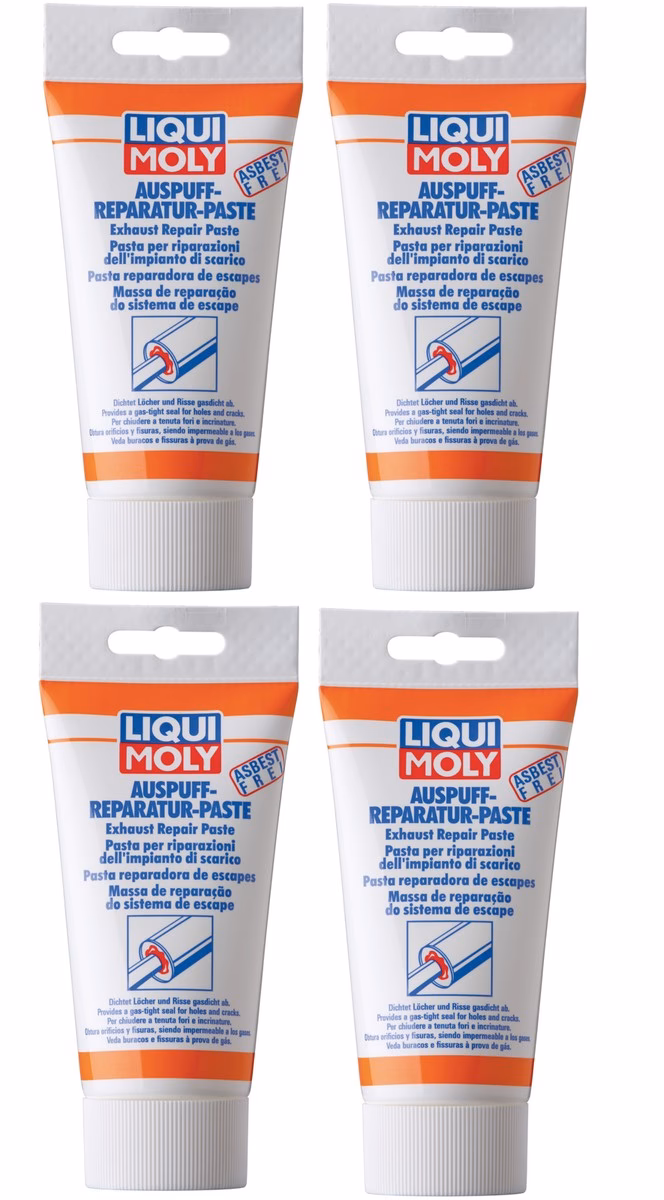

The specific product we're discussing is designed for the permanent sealing of exhaust components. It is incredibly simple and quick to use, making it suitable for both professional fitting and competent DIYers. A standout feature is its ability to prevent installed pipes from seizing, meaning that future removal, should it be necessary for further repairs or replacements, can be achieved with relative ease. This is a significant advantage over methods that can lead to corrosion-welded joints.

These pastes are formulated to withstand extreme conditions, typically operating within a temperature range up to approximately +700 °C, which is well within the operational temperatures of most exhaust systems. They are suitable for a wide array of applications, including the gas-tight assembly of entire exhaust systems, the fitting of tailpipe trim, securing screw and plug connections, and enhancing the seal of traditional exhaust pipe gaskets.

Step-by-Step Guide: Installing a Gas-Tight Exhaust System

Achieving a perfect seal requires careful preparation and precise application. Follow these steps for a successful and lasting repair or installation.

1. Preparation: The Foundation of a Strong Seal

This is arguably the most crucial stage. The effectiveness of the sealing paste hinges heavily on the cleanliness of the surfaces.

• Safety First: Always ensure your vehicle is safely supported on sturdy jack stands on a level surface if you're working underneath. Never rely solely on a jack. Ensure the exhaust system is completely cool to the touch before beginning work to prevent burns. Consider wearing appropriate gloves and eye protection.
• Inspect and Disassemble: Carefully inspect the existing exhaust system for any damage, excessive rust, or signs of previous leaks. If you're replacing a section, carefully remove the old components. This might involve loosening clamps or bolts, which can often be seized due to rust. A penetrating oil can be invaluable here.
• Thorough Cleaning: The exhaust components to be connected – whether new or existing – must be absolutely free of rust, grease, and dust. This cannot be stressed enough.
  • Rust Removal: Use a wire brush, sandpaper, or even a small grinding tool (with caution and appropriate PPE) to remove all traces of rust from the mating surfaces. Rust prevents the paste from adhering properly and can compromise the seal.
  • Degreasing: Once rust is removed, clean the surfaces thoroughly with a suitable degreaser or brake cleaner. Any oil, grease, or residue will act as a barrier, preventing the paste from bonding effectively.
  • Dust Removal: After cleaning, wipe down the surfaces with a clean, lint-free cloth to remove any dust or debris. The goal is a perfectly clean, bare metal surface.

2. Application: Getting the Paste Right

Once your surfaces are pristine, you're ready to apply the sealing paste.

• Generous Application: Apply the paste generously to the male end of the pipe that will be inserted into the female end. Don't be shy; a good, even coating is necessary to fill any minor imperfections and ensure a complete seal.
• Making it Pliable (If Needed): In some cases, especially if the paste has been stored for a while or is particularly thick, you might find it a bit stiff. The instructions indicate that you can make the paste more pliable using a small amount of water. Add water gradually and mix until you achieve a smooth, workable consistency that spreads easily without being too runny.
• Even Spread: Ensure the paste is spread evenly around the entire circumference of the pipe end. This will guarantee a uniform seal once the parts are pushed together.

3. Assembly: Bringing the Components Together

With the paste applied, it's time to join the components.

• Push Parts Together: Carefully push the prepared parts together, twisting slightly if necessary to help spread the paste and ensure a snug fit. Make sure the components are fully seated.
• Align and Secure: Once the joint is made, ensure that the entire exhaust system is correctly aligned. Misalignment can put stress on joints and lead to premature failure. Secure any clamps, hangers, or bolts associated with the joint. Tighten clamps firmly, but be careful not to overtighten, which could crush the pipe.

4. Curing: The Heat-Activated Seal

The unique property of this sealing paste is its heat-activated curing process.

• Engine Heat is Key: Hardening of the paste is achieved thanks to the heat from the exhaust. Once the system is fully assembled and secured, start the vehicle's engine.
• Initial Run: Allow the engine to run for a good 10-15 minutes, or take the vehicle for a short drive. You might notice some smoke or a distinct smell as the paste cures and any excess moisture burns off. This is normal and indicates the curing process is underway.
• Cool Down and Re-check: After the initial run, allow the exhaust system to cool completely. Once cool, it's a good idea to visually inspect the joint again. You should see the paste has hardened into a solid, impenetrable seal. For added peace of mind, you can start the car again and listen carefully for any hissing sounds indicative of a leak, or even feel around the joint (carefully, when cool) for any signs of escaping gases.

Benefits of This Specific Exhaust Sealing Paste

The characteristics outlined for this product highlight several key advantages:

• Exceptional Heat Resistance: With an operating temperature range up to +700 °C, it is designed to withstand the intense heat generated within an exhaust system, ensuring a durable seal even under demanding conditions.
• Non-Seizing Property: This is a significant advantage. Unlike some sealants or simply relying on friction, this paste ensures that installed pipes do not seize. This means that if you ever need to disassemble the exhaust system in the future – perhaps to replace another component – the joint can be easily separated without resorting to cutting or excessive force, saving time and potential damage.
• Professional Fitting: While simple enough for DIY use, its reliability and performance make it suitable for professional workshops, ensuring high-quality, long-lasting repairs.
• Versatility in Application: It's not just for straight pipe-to-pipe connections. Its suitability for tailpipe trim, screw connections, plug connections, and enhancing traditional gaskets makes it an incredibly versatile product in any mechanic's toolkit.

Comparative Analysis: Sealing Paste vs. Other Methods

To further illustrate the utility of exhaust sealing paste, let's compare it to other common methods for sealing exhaust joints.

As the table illustrates, exhaust sealing paste offers a compelling balance of ease of use, cost-effectiveness, and excellent performance, particularly for slip-fit connections where welding might be overkill or impractical, and traditional gaskets might not provide a comprehensive seal.

Troubleshooting Common Issues

Even with the best products, sometimes issues can arise. Here are a few common problems and their solutions:

• Leaks After Installation: If you detect a leak after the paste has cured, the most likely cause is inadequate surface preparation (rust, grease, or dust were present) or insufficient application of the paste. You'll need to disassemble the joint, clean the surfaces thoroughly again, and reapply the paste generously before reassembling and re-curing.
• Paste Not Hardening Properly: This is usually due to insufficient heat. Ensure the engine runs long enough to generate significant exhaust heat, or take the car for a longer drive. In very cold conditions, it might take a little longer. Ensure the paste wasn't excessively diluted with water.
• Difficulty Applying: If the paste is too stiff, a small amount of water (as per instructions) can help make it more pliable. Mix it thoroughly until it reaches a smooth consistency.

Maintaining Your Exhaust System for Longevity

Installing a gas-tight seal is a proactive step, but regular maintenance ensures the entire exhaust system lasts longer.

• Regular Inspection: Periodically check your exhaust system for signs of rust, cracks, loose hangers, or failing clamps. Catching issues early can prevent more extensive and costly repairs.
• Address Rust Promptly: Surface rust is common, but if it starts to pit or create holes, it needs immediate attention. Small holes can sometimes be temporarily patched with specific repair kits, but a lasting solution often involves replacing the affected section.
• Mind Your Driving Habits: Frequent short journeys, especially in cold weather, can lead to condensation building up inside the exhaust, accelerating internal corrosion. Longer drives help to burn off this moisture.
• Beware of Speed Bumps and Kerbs: These are common culprits for exhaust damage. Always be mindful of ground clearance to avoid scraping or impacting the exhaust system.

Frequently Asked Questions (FAQs)

Here are some common questions regarding exhaust sealing paste and its application:

Q1: How long does the exhaust sealing paste take to cure?

A1: The paste hardens and cures with the heat from the exhaust. An initial run of the engine for 10-15 minutes or a short drive is usually sufficient to begin the curing process. Full hardening will occur over the next few driving cycles as the system reaches its operating temperature repeatedly.

Q2: Can I use this paste on a cracked exhaust manifold or pipe?

A2: This paste is designed for sealing joints and connections, not for repairing cracks or holes in pipes or manifolds. While it might offer a temporary patch for a very small pinhole, it is not a permanent solution for structural damage. For cracks, welding or component replacement is typically required.

Q3: Is the seal truly permanent, or will I need to reapply it?

A3: The seal achieved with this paste is designed to be permanent for the life of the joint, provided it's applied correctly to clean surfaces. The unique benefit is that while the seal is robust, the non-seizing property allows for future disassembly if needed, unlike welding.

Q4: What happens if I don't clean the parts properly before applying the paste?

A4: If rust, grease, or dust are present, the paste will not adhere properly to the metal surfaces. This will result in a weak bond, an incomplete seal, and ultimately, a leak. Proper preparation is paramount for a successful, gas-tight seal.

Q5: Can this paste be used on catalytic converter connections?

A5: Yes, absolutely. It's suitable for any slip-fit or gasketed connection within the exhaust system, including those leading to or from the catalytic converter, provided the operating temperature does not exceed the paste's maximum rating of +700 °C, which is generally well within limits for such applications.

Q6: How much paste should I use?

A6: Apply the paste generously to the male end of the pipe. The goal is to ensure a complete, even coating that will fill any minor gaps or imperfections when the components are pushed together. It's better to use a little too much than too little.

Conclusion

Achieving a gas-tight exhaust system is a critical aspect of vehicle maintenance, impacting everything from environmental responsibility and performance to noise levels and, most importantly, safety. With the right tools and techniques, particularly the use of modern, non-seizing exhaust sealing pastes, this task becomes remarkably straightforward for anyone with basic mechanical aptitude.

By following the detailed steps for preparation, application, and curing, you can ensure a durable, effective seal that withstands the rigours of the road and the heat of the exhaust. This not only restores your vehicle's efficiency and quiet operation but also provides the peace of mind that comes from knowing your exhaust system is performing optimally, keeping harmful emissions out of the cabin and ensuring your car is ready for its next MOT.
