Toyota WS Fluid: Unravelling the Lifetime Transmission Mystery

Modern automotive engineering has introduced numerous advancements, and one area that often sparks confusion among vehicle owners is the 'lifetime' transmission fluid found in many contemporary Toyota models. Specifically, the World Standard (WS) transmission fluid has revolutionised how we think about automatic gearbox maintenance. While the idea of a fluid that never needs changing sounds appealing, the reality is a little more nuanced, particularly when it comes to topping up or refilling these sophisticated systems.

This article delves into the specifics of Toyota WS fluid, explaining its properties, the implications of its 'lifetime' designation, and – crucially – how to handle situations where a refill becomes necessary for specific transmissions like the A760H and A960E. Understanding these details is paramount to ensuring the longevity and optimal performance of your Toyota's automatic gearbox.

What Exactly is Toyota WS Transmission Fluid?

Toyota WS (World Standard) transmission fluid is a highly advanced, synthetic automatic transmission fluid (ATF) specifically engineered for many of Toyota's modern automatic gearboxes. Unlike older, more conventional ATFs, WS fluid is designed to withstand extreme temperatures and pressures, offering superior lubrication and protection for complex internal components. It's a critical element in the smooth operation and efficiency of your transmission.

One of the most defining characteristics of WS fluid is its 'lifetime fill' designation. Toyota states that ATF-WS does NOT require any flushing or changing during the life of the vehicle, recommending only an inspection at the 100,000-mile service interval. This is a significant departure from traditional maintenance schedules that often involve periodic fluid changes. The 'lifetime' claim, however, does not mean the fluid is impervious to all circumstances. Leaks, repairs, or specific component replacements can necessitate a fluid top-up or refill, and this is where precise knowledge becomes vital.

The Sealed System and the Missing Dipstick

For many years, checking your transmission fluid level was a simple task involving a dipstick, much like checking engine oil. However, with modern Toyota transmissions designed for WS fluid, you'll notice a distinct absence of this familiar tool. This is by design. These transmissions operate as 'sealed systems,' meaning they are not intended for routine user-level checks or top-ups.

The rationale behind this sealed design is multifaceted:

• Precision: Modern transmissions are incredibly complex and sensitive to exact fluid levels. Even a slight overfill or underfill can lead to operational issues, reduced efficiency, or premature wear.
• Contamination Prevention: A sealed system minimises the risk of dirt, moisture, or other contaminants entering the transmission, which can severely degrade fluid performance and component life.
• Optimised Performance: By controlling the internal environment more rigorously, the transmission can operate at its peak efficiency throughout its intended lifespan.

While the absence of a dipstick is convenient for the average owner, it presents a challenge when a refill is genuinely needed. The procedure becomes more involved, requiring specific knowledge and often specialist tools.

Refill Quantities: Precision is Key

When dealing with a sealed transmission system, guesswork is not an option. If you've had a drain and fill – perhaps due to a repair or an accidental drain – knowing the exact refill quantity is critical. The information provided indicates specific refill quantities for two common Toyota transmissions, the A760H and A960E, which are often found in 250-series vehicles. It's imperative to verify which transmission your vehicle has before proceeding.

Here are the refill quantities for a drain-and-fill scenario (where the drain plug has been removed):

These figures represent the amount needed to bring the fluid back to the correct level after a basic drain. It's not the total capacity of the transmission, which is significantly higher. This distinction is important because you are only replacing the fluid that drained out of the pan, not the fluid remaining in the torque converter or other internal components.

The Emergency Refill Procedure: A Word of Caution

The information available suggests that a formal, published procedure for topping up these transmissions for the general public is scarce. Any instruction for refilling, particularly outside of a dealership, should be considered an emergency procedure designed to get the vehicle safely to a professional for a proper inspection and level adjustment. Attempting this without the necessary understanding and caution can lead to significant and costly damage.

Key Considerations Before You Begin:

1. Verify Your Transmission: Double-check your vehicle's documentation to confirm if you have an A760H or A960E transmission. This is non-negotiable.
2. Capability Assessment: You must honestly assess your capability to perform this procedure. It involves working under the vehicle and dealing with specific temperature requirements.
3. Safety First: Ensure the vehicle is securely supported on jack stands or a lift. Wear appropriate safety gear.

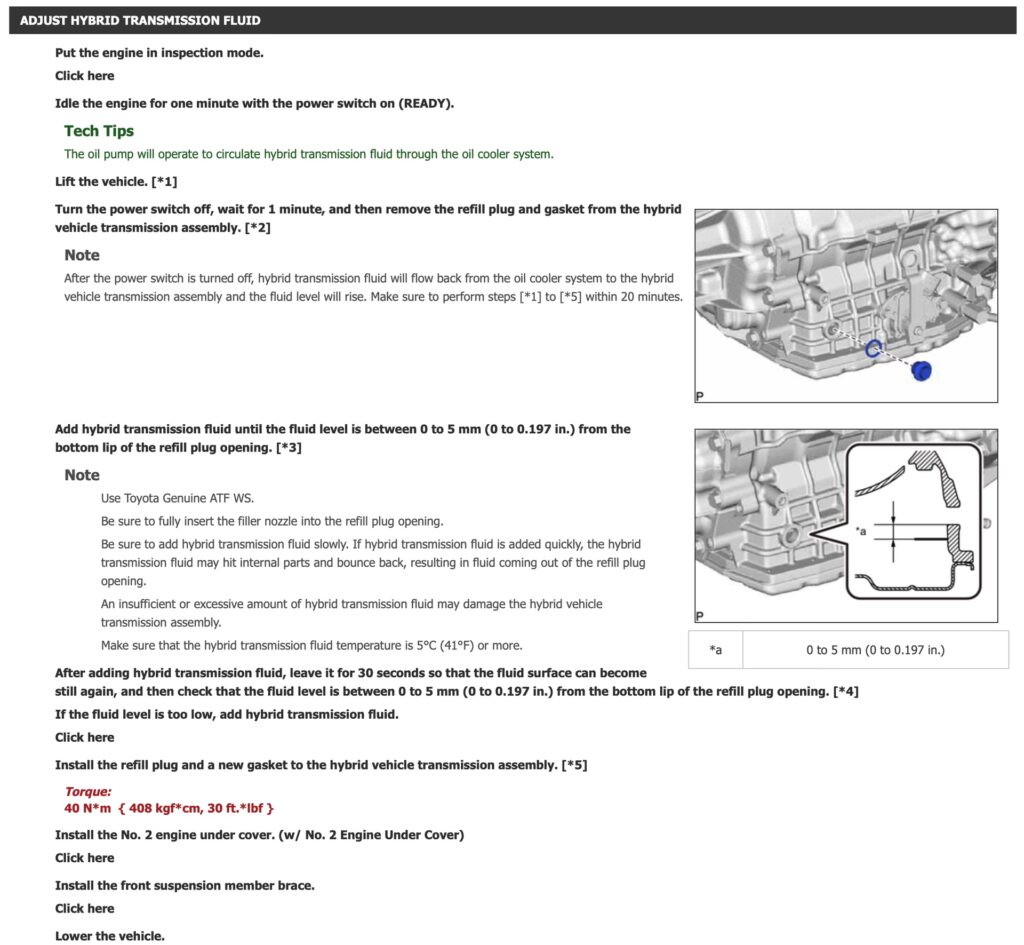

Locating the Fill Plug:

Unlike a dipstick tube, the fill port for these transmissions is a plug, often located on the side of the transmission casing, accessible from underneath the vehicle. It's described as being similar to a manual transmission fill plug. You'll likely need basic tools to remove it.

The Critical Temperature Factor:

This is perhaps the most crucial aspect of refilling these transmissions. The fluid level is highly fluid temperature specific. This means that an accurate level can only be achieved when the transmission fluid is at its proper operating temperature. Without a dipstick, professional technicians use diagnostic tools to monitor the fluid temperature precisely during the filling process. If the fluid is too cold or too hot when checked, the amount added will be incorrect, leading to an overfill or underfill once the fluid reaches its operational temperature.

Adding the Fluid:

Once the fill plug is removed, you will need a suitable pump or funnel system to carefully introduce the specified amount of fluid. Given the precise quantities, it's easy to overfill if not cautious. After adding the fluid, immediately reinsert and tighten the fill plug.

Post-Refill: Seek Professional Inspection

It cannot be stressed enough: this emergency procedure is a temporary measure. After refilling, it is highly advisable to let a qualified Toyota technician inspect the vehicle. They possess the specialised equipment to accurately measure the fluid temperature and ensure the level is spot-on, preventing long-term issues that could arise from even a slight discrepancy.

The Perils of Aftermarket Fluids and Additives

Toyota is very clear on this point: "The use of Genuine Toyota ATF-WS is recommended." Furthermore, "The use of additives or aftermarket fluids that are considered compatible or substitutes may result in shift concerns and damage to the internal transmission components." This warning is not to be taken lightly.

Toyota WS fluid is a highly specific formulation. Aftermarket fluids, even those claiming to be 'compatible,' may not meet the exact specifications required for the intricate internal workings of these transmissions. The wrong viscosity, friction modifiers, or chemical composition can lead to:

• Rough or delayed shifting
• Increased wear on clutch packs and gears
• Overheating
• Catastrophic transmission failure

The cost of a transmission repair or replacement far outweighs any potential savings from using non-genuine fluid. Always opt for Genuine Toyota ATF-WS.

Compatibility Matters: WS vs. T-IV or Dexron

Another critical piece of information is the absolute incompatibility of ATF-WS with other common transmission fluids. "ATF-WS is NOT compatible with T-IV or Dexron ATF." Mixing these fluids, even in small amounts, can have devastating consequences for your transmission. They have different chemical bases and viscosity properties, and their interaction can lead to severe fluid degradation, component damage, and complete transmission failure. Always ensure you are using the correct fluid type for your specific transmission.

Frequently Asked Questions About Toyota WS Fluid

Q: Do I ever need to change my Toyota WS transmission fluid?

A: Under normal driving conditions, Toyota designates WS fluid as a 'lifetime fill,' meaning it does not require routine flushing or changing. However, it should be inspected at the 100,000-mile service interval. Situations like leaks, repairs, or extreme driving conditions might necessitate a top-up or replacement.

Q: Can I use any 'compatible' aftermarket transmission fluid in my Toyota?

A: Toyota strongly advises against using aftermarket fluids or additives, even those claiming compatibility. Only Genuine Toyota ATF-WS is recommended, as using alternatives can lead to shift concerns and damage to internal transmission components.

Q: Why doesn't my Toyota transmission have a dipstick?

A: Modern Toyota transmissions using WS fluid are sealed systems. This design prevents contamination, ensures precise fluid levels for optimal performance, and reduces the need for routine user-level checks.

Q: How do I know if my transmission is an A760H or A960E?

A: You can typically find this information in your vehicle's owner's manual, service manual, or by checking a VIN decoder online. It's crucial to confirm your transmission type before attempting any fluid-related procedures.

Q: What happens if I overfill or underfill the transmission with fluid?

A: Both scenarios can cause severe damage. Underfilling can lead to insufficient lubrication, overheating, and excessive wear. Overfilling can cause aeration (foaming) of the fluid, leading to poor lubrication, overheating, and potential fluid leaks due to excessive pressure.

Q: What is the significance of the 'proper operating temperature' for refilling?

A: Transmission fluid expands when heated. Therefore, an accurate fluid level can only be determined when the fluid is at its specific operating temperature. If checked when cold, the fluid level will appear lower than it actually is, leading to potential overfilling. Professionals use thermal temperature readings to ensure accuracy.

Conclusion

Toyota's WS transmission fluid represents a significant leap in automotive technology, offering impressive longevity and performance. However, its 'lifetime' designation and the sealed nature of the transmissions it serves introduce unique considerations for maintenance. While routine changes are largely eliminated, understanding the correct procedures and precautions for an emergency top-up or refill is vital.

Always prioritise the use of Genuine Toyota ATF-WS and be acutely aware of the specific refill quantities for your transmission type (A760H or A960E). Crucially, recognise that any self-performed refill is an emergency measure, and a subsequent professional inspection with accurate thermal temperature readings is indispensable to guarantee the correct fluid level and prevent costly, long-term damage. When in doubt, always consult a qualified Toyota technician.
