Fuel Injector Fuse Issues Explained

The fuel injector system is a critical component of any modern petrol-powered vehicle. These sophisticated devices are responsible for precisely atomising and delivering fuel into the engine's combustion chambers, ensuring optimal performance, fuel efficiency, and emissions control. When a fuel injector fuse keeps blowing, it's a clear indicator of an underlying problem that needs immediate attention. Ignoring this issue can lead to significant engine damage and costly repairs. This article delves into why your fuel injector fuse might be blowing, the symptoms of fuel injector failure, and how to prevent these problems.

Understanding the Role of Fuel Injectors and Fuses

Before we explore the reasons behind a blowing fuse, it's essential to understand the function of both fuel injectors and fuses. Fuel injectors are electronically controlled valves that spray a fine mist of fuel into the engine. The engine control unit (ECU) dictates the exact amount and timing of fuel injection based on various sensor inputs, such as engine speed, load, and temperature.

Fuses, on the other hand, act as safety devices. They contain a thin wire designed to melt and break the electrical circuit if the current exceeds a safe level. This prevents damage to sensitive electrical components, including the fuel injectors themselves, by disconnecting the power supply in case of a short circuit or overload. Therefore, a blown fuel injector fuse signifies an electrical fault within the fuel injection system.

Why Does My Fuel Injector Fuse Keep Blowing?

A persistently blowing fuel injector fuse is a symptom, not the root cause. The fuse blows to protect the system from excessive current. The underlying issues can be varied, but they generally fall into a few common categories:

1. Short Circuits in the Wiring or Injector

This is perhaps the most common reason for a repeatedly blowing fuse. A short circuit occurs when the electrical current finds an unintended path to ground, bypassing the normal circuit. This can happen due to:

• Damaged Wiring Insulation: Over time, the protective insulation around the wires leading to the fuel injectors can degrade due to heat, vibration, or abrasion. If these wires touch a metal part of the engine or chassis, a short circuit will occur, causing the fuse to blow.
• Faulty Fuel Injector Solenoid: Each fuel injector has a solenoid, an electromagnetic coil that controls the opening and closing of the injector. If this solenoid develops an internal short circuit, it will draw excessive current, blowing the fuse.
• Corrosion: Corrosion in the electrical connectors for the fuel injectors can create unintended electrical paths or increase resistance, leading to overheating and potential short circuits.

2. Overloaded Circuit

While less common than short circuits, an overloaded circuit can also cause a fuse to blow. This might happen if:

• Multiple Faulty Injectors: If several fuel injectors fail simultaneously, the total current draw might exceed the fuse's rating, causing it to blow.
• ECU Malfunction: In rare cases, a fault within the engine control unit (ECU) could command excessive current to the injectors, leading to a blown fuse.

3. Fuel Injector Mechanical Issues Leading to Electrical Stress

While the fuse is an electrical component, certain mechanical failures in the fuel injectors can indirectly lead to electrical stress:

• Leaking Injector Seals: As mentioned in the provided text, if an injector fails to form a tight seal with its seat in the cylinder head, carbon can accumulate. This accumulation, while primarily a mechanical issue, can sometimes lead to electrical problems within the injector's housing or wiring if it affects surrounding components. However, the direct link between leaking seals and a blowing fuse is less common than electrical faults.
• Clogged Injectors: Severely clogged injectors may struggle to open or close properly. While this primarily affects fuel delivery, in extreme cases, the solenoid might be subjected to increased electrical stress as it tries to overcome the blockage, though this is not a primary cause of fuse blowing.

Symptoms of Fuel Injector Problems

A blown fuel injector fuse is often accompanied by other symptoms that indicate a problem with the fuel injection system. These can include:

1. Loss of Engine Power

When fuel injectors are not delivering the correct amount of fuel, the engine will lack power. This can manifest as sluggish acceleration, difficulty maintaining speed, or a general feeling of the engine struggling. Sporadic fuel delivery due to partially clogged injectors can cause the engine to run unevenly.

2. Engine Misfires

An engine misfire occurs when one or more cylinders fail to combust the fuel-air mixture properly. This is often caused by an uneven distribution of fuel due to faulty injectors. You might feel the engine sputtering, running rough, or experiencing noticeable jerks, especially under load.

3. Rough Idling

A healthy engine should idle smoothly. If your fuel injectors are malfunctioning, the engine may idle erratically, with fluctuating RPMs or a noticeable vibration. A sudden cutoff of fuel can cause the engine to stall or idle poorly.

4. Reduced Fuel Efficiency

Leaking or improperly functioning fuel injectors can lead to wasted fuel. This means you'll notice a significant drop in your vehicle's miles per gallon (MPG) or a need to refuel more frequently.

5. Check Engine Light

The 'Check Engine' light on your dashboard is a universal indicator that the vehicle's computer has detected a problem. This could be related to fuel delivery, emissions, or engine performance, and often a blown fuse or faulty injector will trigger this warning.

Common Causes of Fuel Injector Damage and Failure

Understanding what causes fuel injectors to fail can help in preventing future issues:

1. Poor Fuel Quality

Using low-quality fuel contaminated with debris and impurities is a primary cause of fuel injector clogging. These contaminants can build up inside the injector, restricting fuel flow and eventually leading to failure.

2. Heat Soak

When an engine is turned off, especially after a hot run, residual fuel in the injector nozzles can vaporise. As the engine cools, these residues can attract waxy substances from the fuel, which can solidify and clog the injector ports. Frequent short trips where the engine doesn't get hot enough to burn off these deposits can exacerbate this issue.

3. Engine Blow-By

Blow-by is the leakage of combustion gases past the piston rings into the crankcase. If the PCV (Positive Crankcase Ventilation) system or air filter is not functioning correctly, this blow-by can carry oil and carbon residue into the fuel system, potentially clogging the injectors.

4. Solenoid Failure

As mentioned earlier, the solenoid is a critical electrical component of the injector. Electrical faults, such as short circuits within the solenoid coil, will cause the injector to stop working and can lead to fuse blowing.

5. Physical Damage

While less common, physical damage to the injector, such as a cracked casing or damaged internal springs, can lead to leaks or improper fuel delivery.

How to Prevent Fuel Injector Problems

Fortunately, there are several proactive steps you can take to maintain your fuel injectors and prevent issues:

1. Use High-Quality Fuel

Always opt for reputable fuel stations and consider using fuel with a good detergent additive package. This helps to keep the fuel system clean and prevents the buildup of deposits.

2. Regular Fuel System Cleaning

Using a quality fuel injector cleaner additive in your fuel tank periodically can help dissolve existing deposits and prevent new ones from forming. Follow the product's instructions carefully.

3. Regular Engine Servicing

Adhering to your vehicle's recommended service schedule is crucial. This includes regular oil and filter changes. A well-maintained engine puts less stress on all its components, including the fuel system. Ensuring the fuel filter is in good condition is also vital for optimal fuel delivery.

4. Consider Injector Cleaning Services

At recommended intervals (often around 40,000 km or 25,000 miles), consider having your fuel injectors professionally inspected and cleaned. This can involve removing them for a more thorough ultrasonic cleaning or a professional cleaning service performed while they are still installed.

5. Modify Driving Habits

While not always practical, avoiding excessively aggressive driving and frequent short trips can reduce wear on the fuel injectors. Allowing the engine to cool down properly after a drive can also help mitigate heat soak issues.

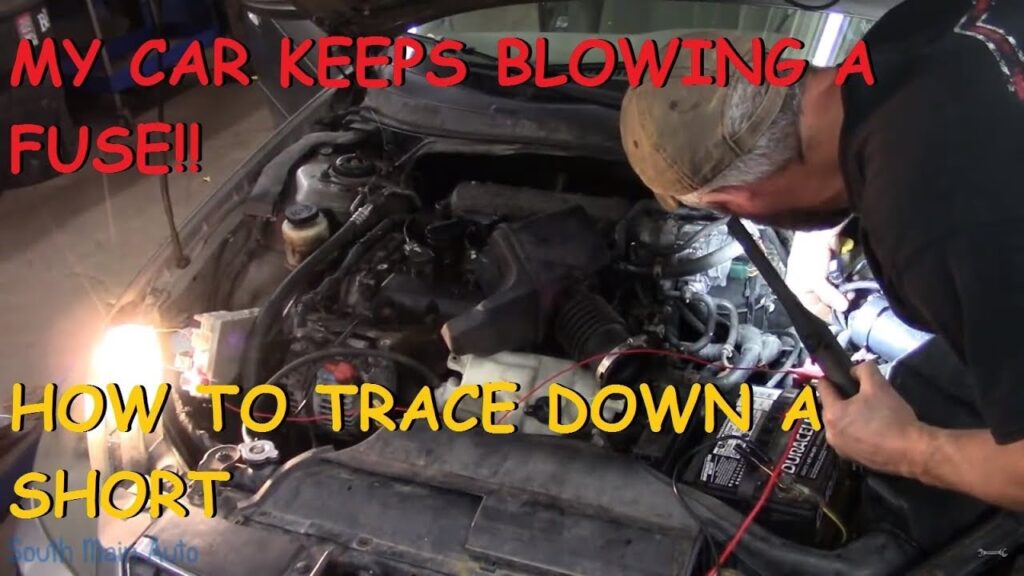

Troubleshooting a Blown Fuel Injector Fuse

If you suspect your fuel injector fuse is blowing, here's a general approach to troubleshooting:

1. Locate the Fuse Box

Consult your vehicle's owner's manual to find the fuse box and identify the specific fuse for the fuel injectors. There might be multiple fuses related to the fuel system.

2. Inspect the Fuse

Carefully remove the suspect fuse and visually inspect it. Look for a broken or melted filament inside the fuse. If it's blown, replace it with a new fuse of the exact same amperage rating. Never use a fuse with a higher amperage rating, as this can lead to severe damage to the electrical system.

3. Test Drive and Observe

After replacing the fuse, start the engine and take it for a test drive. Pay attention to how the engine runs and if the 'Check Engine' light illuminates again. If the fuse blows again shortly after replacement, it confirms an ongoing electrical issue.

4. Professional Diagnosis

If the fuse continues to blow, it's time to seek professional help. A qualified mechanic has the tools and expertise to diagnose the exact cause. They can perform tests such as:

• Continuity and Resistance Tests: To check the integrity of the wiring and the resistance of the injector solenoids.
• Injector Testing: To assess the spray pattern, flow rate, and electrical response of each injector.
• Scan Tool Diagnostics: To read fault codes from the ECU, which can pinpoint specific issues within the fuel injection system.

Frequently Asked Questions (FAQs)

Q1: Can I drive my car if the fuel injector fuse keeps blowing?

A1: Driving with a repeatedly blowing fuel injector fuse is not recommended. It indicates a serious electrical fault that could lead to engine damage, poor performance, or even a complete breakdown. It's best to address the issue promptly.

Q2: How much does it cost to fix a blown fuel injector fuse?

A2: Replacing a fuse itself is inexpensive, costing only a few pounds. However, the cost of repair depends entirely on the underlying cause. If it's just a faulty injector, replacing one can cost anywhere from £100 to £300 or more, depending on the vehicle and part. If there's extensive wiring damage, the cost can be significantly higher.

Q3: How often should fuel injectors be replaced?

A3: Fuel injectors are designed to be durable and can often last the lifetime of the vehicle with proper maintenance. They don't have a fixed replacement interval, but regular cleaning and using quality fuel can significantly extend their lifespan.

Q4: What is the difference between a blown fuse and a faulty fuel injector?

A4: A blown fuse is a symptom of an electrical problem, indicating that too much current flowed through the circuit. A faulty fuel injector is a component that is not functioning correctly, which could be mechanical (clogged, leaking) or electrical (shorted solenoid). The faulty injector is often the cause of the fuse blowing.

Conclusion

A persistently blowing fuel injector fuse is a critical warning sign that your vehicle's fuel system is experiencing an electrical fault. Understanding the potential causes, from short circuits in the wiring to faulty injector solenoids, is the first step towards resolving the issue. By paying attention to the symptoms, performing regular maintenance, and seeking professional help when needed, you can ensure your fuel injection system operates efficiently, keeping your engine running smoothly and reliably.
