Blown Head Gasket: What Happens & How To React

Have you ever been cruising down the road and your car suddenly decides to throw a tantrum? It might sputter and cough like it inhaled a bad batch of fumes, or it starts overheating like a teapot on high heat whenever you're stuck in traffic. These could be alarming signs of trouble with a crucial component in your engine: the head gasket. It's a small but mighty component that acts like a seal between the engine block and the cylinder head, keeping everything running smoothly. This article will be your comprehensive guide to understanding head gaskets: what they do, why they matter, what happens when they fail, and how to avoid those dreaded roadside meltdowns by keeping this essential part happy. So, buckle up and get ready to learn all about the unsung hero of your engine!

What Exactly Is a Head Gasket?

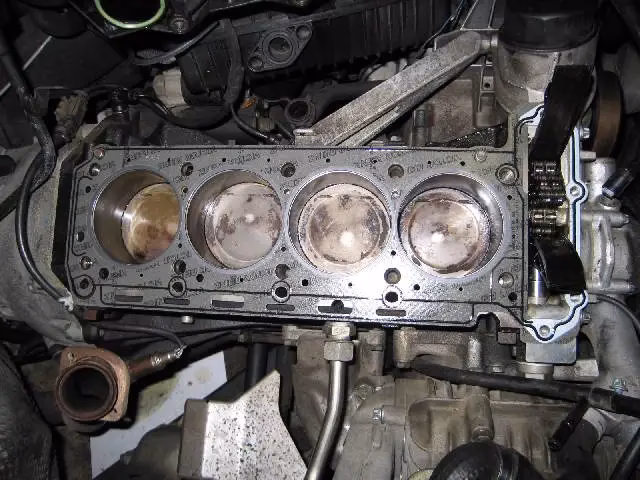

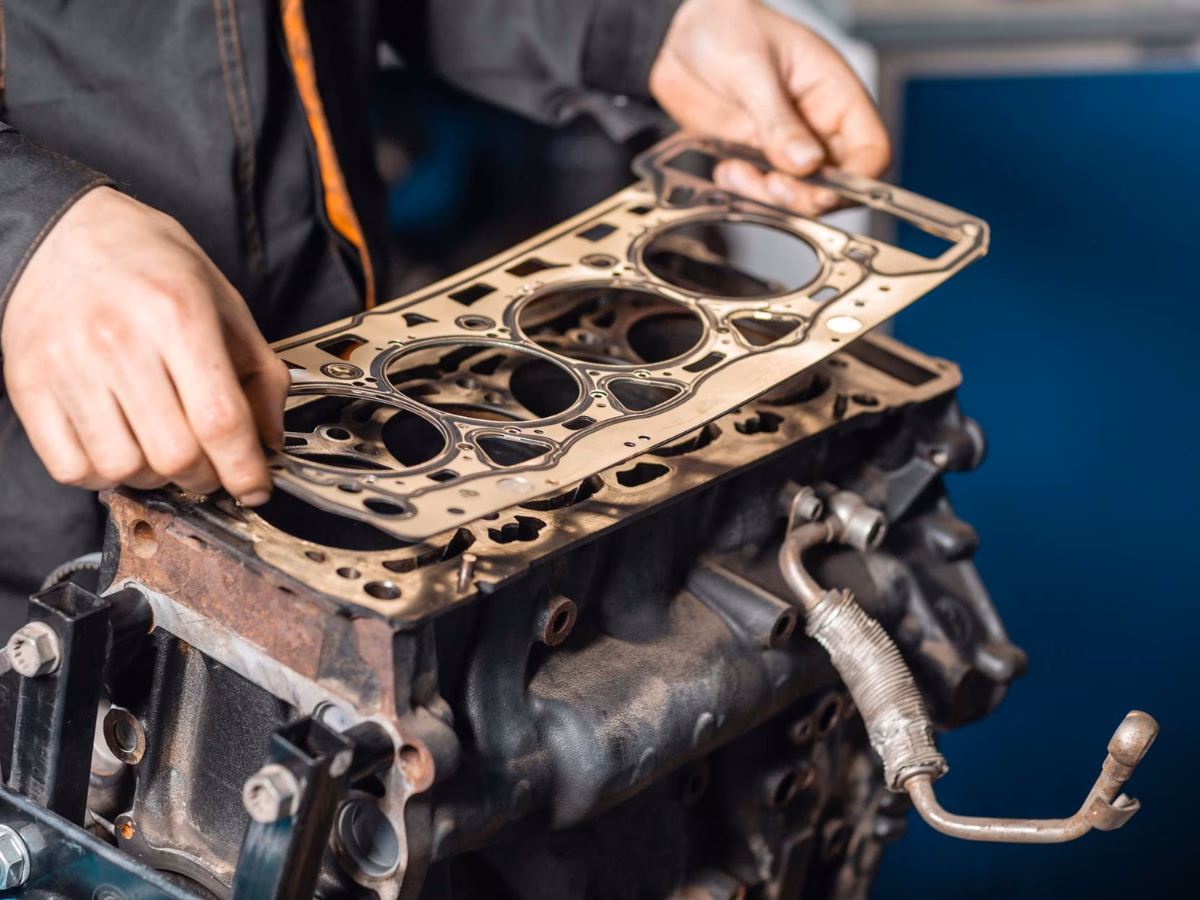

At its core, a head gasket is a thin yet incredibly resilient seal strategically placed between the engine block and the cylinder head(s). Its design is deceptively simple but absolutely crucial for the engine's proper functioning. Imagine it as a sophisticated barrier that maintains distinct compartments within your engine. Specifically, it seals the combustion chambers, preventing the explosive forces of combustion from escaping. Simultaneously, it keeps vital fluids – engine oil and coolant – separate, ensuring they circulate in their designated passages without mixing or leaking.

Made from various materials, often multi-layered steel (MLS), composite, or copper, head gaskets are engineered to withstand extreme temperatures and pressures. They must contend with the intense heat generated by combustion, the constant flow of hot oil and coolant, and the immense compression forces within the cylinders. A perfectly functioning head gasket ensures that your engine's internal workings remain pristine and efficient.

The Unsung Hero: Why Your Head Gasket Matters So Much

The significance of head gaskets becomes abundantly clear when considering their profound impact on engine operation and vehicle reliability. These seemingly small components hold immense importance for several critical reasons:

Engine Integrity and Performance

Head gaskets play a pivotal role in maintaining the integrity of the engine's combustion process. By providing an airtight seal for the combustion chambers, they ensure that the explosive force created during fuel ignition is fully contained and converted into power. This containment is vital for achieving optimal compression, which directly translates to efficient fuel burning and maximum power output. Any compromise to the head gasket's integrity can lead to a significant decrease in performance, ranging from noticeable sluggishness to severe engine damage and potentially catastrophic failure.

Prevention of Fluid Leaks

A properly functioning head gasket is absolutely essential for preventing fluid leaks within the engine. Whether it's coolant, engine oil, or combustion gases, the head gasket acts as a formidable barrier, keeping these critical elements isolated. Leakage of coolant into the oil, or vice versa, can disrupt critical engine functions, compromise lubrication, and lead to overheating or severe mechanical wear. The head gasket acts as a safeguard against such detrimental leaks, preserving the engine's health and longevity by keeping fluids where they belong.

Optimisation of Combustion and Efficiency

Optimal combustion is fundamental to engine efficiency and power generation. By maintaining proper compression and sealing the combustion chambers, the head gasket ensures that the engine operates at its peak performance levels. If the seal is compromised, gases can escape the combustion chamber, leading to a loss of compression. This loss directly impacts the engine's ability to generate power efficiently, resulting in reduced horsepower, decreased fuel economy, and an increase in harmful emissions. In essence, the head gasket is key to your car performing as it was designed to.

Unravelling the Mystery: What Causes a Blown Head Gasket?

Despite its robust design, the head gasket is subjected to immense stresses. When it fails, the consequences can be significant and costly. Understanding the factors that contribute to head gasket failure is crucial for preventing such occurrences. Let's delve into the various causes behind a blown head gasket in more detail:

• Engine Overheating: This is arguably the primary cause of head gasket failure. Excessive temperatures cause the metal components of the engine (block and cylinder head) to expand unevenly, stressing the gasket beyond its design limits. This thermal stress can lead to cracks, warping, or a complete breach in the gasket, allowing fluids and gases to mix or escape.
• Extreme Temperature Fluctuations: Rapid changes in engine temperature, such as repeatedly overheating and then cooling down, can severely strain the head gasket. The constant expansion and contraction of metal components weaken the gasket over time, making it more susceptible to leaks and eventual failure.
• Improper Installation: Correct installation is paramount for head gasket performance and longevity. If a head gasket is not installed properly, or if the cylinder head bolts are not torqued to the manufacturer's precise specifications, it can lead to an imperfect seal. This allows fluids or gases to leak, causing premature failure.
• Manufacturing Defects: While rare, defects in the gasket's manufacturing process can lead to premature failure. Flaws in the material composition, design, or sealing properties can compromise the gasket's ability to withstand normal engine stresses, resulting in an early demise.
• Poor Maintenance Practices: Neglecting regular vehicle maintenance significantly accelerates head gasket deterioration. Failure to replace coolant at recommended intervals can lead to corrosion within the cooling system, which can erode the gasket material. Similarly, ignoring signs of engine overheating or low coolant levels can hasten its demise.
• Excessive Wear and Tear: Over time, the head gasket is constantly exposed to high temperatures, pressure, and various engine chemicals. This continuous exposure can lead to natural wear and tear, degrading the gasket material. This wear manifests as reduced elasticity, minor leaks, or breaches, ultimately leading to failure.
• Combustion Chamber Pressure: The very high pressures generated during the combustion process can sometimes overwhelm a weakened or faulty gasket. In high-performance engines or those with modifications like turbocharging, the increased combustion pressure adds significant stress, increasing the risk of gasket failure if other preventative measures aren't in place.

Spotting the Signs: Symptoms of a Blown Head Gasket

Detecting a blown head gasket early is vital to prevent further, more extensive damage to the engine. Here are some of the most common and critical blown head gasket symptoms to look out for:

• Engine Overheating: This is often the most immediate and alarming symptom. The engine temperature rising quickly or consistently exceeding normal operating levels indicates a significant issue with the cooling system, often due to coolant loss or combustion gases entering the cooling passages via a compromised head gasket.
• Thick White Smoke from Exhaust: If you notice a steady stream of thick, white smoke billowing from your exhaust pipe, particularly upon startup or during acceleration, it's a strong indicator of coolant leaking into the combustion chambers. As the coolant burns along with the fuel, it produces this distinctive white smoke, which often has a sweet, syrupy smell.
• Visible Coolant Leaks: While less common than internal leaks, a blown head gasket can sometimes manifest as external coolant leaks. You might spot puddles of coolant beneath your vehicle or visible wet, discoloured areas around the engine block or cylinder head. These leaks suggest a breach in the cooling system that could stem from the gasket.
• Milky or Frothy Oil (Mayonnaise-like Substance): If the engine oil on your dipstick appears milky, frothy, or like a light brown mayonnaise, it's a definitive sign of coolant contamination. This mixture occurs when coolant leaks into the crankcase through a blown head gasket and mixes with the engine oil. This 'mayonnaise' not only reduces the oil's lubrication effectiveness but also points to a severe internal problem that requires immediate attention.
• Rough Engine Idling or Misfires: A compromised head gasket can lead to a loss of compression in one or more cylinders. This compression loss causes the engine to idle roughly, shake inconsistently, or even misfire. You might notice vibrations or a noticeable lack of smoothness in the engine's operation, especially when stationary.
• Loss of Engine Power and Poor Performance: As a direct result of compression loss and potential fluid contamination, a blown head gasket will often lead to a noticeable loss of engine power and responsiveness. You may experience sluggish acceleration, reduced throttle response, or difficulty maintaining speed, particularly when climbing hills or under heavy load.

If any of these symptoms are observed, it's crucial to address them promptly to prevent further, potentially irreversible damage to the engine. Ignoring signs of a blown head gasket can result in severe engine damage, leading to extremely costly repairs or even a complete engine replacement.

The Cost of Repairing a Blown Head Gasket in the UK

The cost of repairing a blown head gasket in the UK can vary significantly, depending on several key factors. These include the make and model of the vehicle (some engines are much more complex to work on than others), the extent of the damage (e.g., if the cylinder head also needs skimming or replacing), and the labour rates of mechanics or garages in your specific area.

On average, the cost of repairing a blown head gasket in the UK typically ranges from £500 to £1500 or more. This estimate usually covers the labour involved in dismantling a significant portion of the engine, the cost of the new head gasket itself, and often other related components that are replaced as a matter of course, such as head bolts, seals, and fluids. For more complex engines, such as V6 or V8 configurations, or those with forced induction, the cost can easily exceed this range due to increased labour time and more intricate parts. It's always essential to obtain detailed quotes from reputable mechanics or garages for an accurate estimate based on your specific circumstances.

Head Gasket Sealers: A Quick Fix or a Risky Gamble?

You might have heard about head gasket sealers as a potential solution for a blown head gasket. These are liquid products designed to temporarily patch minor leaks in a blown head gasket or other components of the cooling system. They typically contain chemical compounds that react with heat and pressure to form a seal over small cracks or gaps in the gasket, preventing coolant or combustion gases from leaking.

The cost of a head gasket sealer varies depending on the brand, quantity, and formulation, but it typically ranges from £10 to £50 in the UK. While they can offer a temporary reprieve, it's crucial to understand their limitations: they are not a permanent fix and are generally only effective for very minor leaks. They cannot repair a severely blown gasket or underlying issues like a warped cylinder head. Misuse can also lead to clogged cooling system passages, causing more severe problems.

How Does Head Gasket Sealer Work?

Head gasket sealer works by forming a temporary seal over minor leaks in a blown head gasket or other components of the cooling system. When added to the cooling system, the chemical compounds within the sealer circulate with the coolant. Upon reaching a leak point, these compounds react with the heat and pressure of the engine, solidifying or expanding to create a temporary plug or seal over small cracks or gaps in the gasket. This seal aims to prevent coolant or combustion gases from leaking out, allowing the vehicle to operate temporarily without the need for immediate, extensive repairs.

How Do I Use a Head Gasket Sealer?

Using a head gasket sealer is relatively straightforward, but it's crucial to follow the manufacturer's instructions carefully for the best results. Here's a general guide on how to use it:

1. Prepare the Cooling System: Ensure the engine is completely cool. Carefully remove the radiator cap. You may need to drain a small amount of coolant from the system to create space for the sealer, as per the product's instructions.
2. Shake the Sealer: Thoroughly shake the bottle of head gasket sealer to ensure the contents are well mixed and any settling agents are activated.
3. Pour into Radiator or Coolant Reservoir: Carefully pour the recommended amount of sealer directly into the radiator or coolant reservoir. Be sure not to overfill, as this can cause overflow when the engine heats up.
4. Run the Engine: Start the engine and allow it to idle for the recommended duration specified by the manufacturer (often 15-30 minutes). This allows the sealer to circulate throughout the cooling system and reach the leaky areas. Some products may require driving the vehicle for a short period.
5. Monitor the System: Keep a close eye on the coolant levels and engine temperature while the sealer is circulating. If necessary, top up the coolant to the recommended level after the engine has cooled down again.
6. Check for Leaks: After the recommended duration and subsequent cooling period, inspect the cooling system for any signs of leakage. If the leak persists, you may need to repeat the process (if the product allows) or, more likely, consider more extensive, permanent repairs.

Head Gasket Repair vs. Sealer: A Comparison

To help you decide, here's a quick comparison:

Prevention is Key: Don't Let Your Head Gasket Blow

Preventing a blown head gasket is crucial for maintaining the health and longevity of your vehicle's engine. While some failures are unavoidable, many can be prevented with diligent care. Here are some actionable steps you can take to significantly reduce the risk of head gasket failure:

• Regular Maintenance: Adhere strictly to your vehicle's manufacturer-recommended maintenance schedule. This includes routine checks of the cooling system (hoses, radiator, water pump), engine oil quality and level, and other vital components. Regular maintenance helps identify potential issues early on, before they escalate into major problems like head gasket failure.
• Monitor Engine Temperature: Always keep a close eye on your vehicle's temperature gauge while driving. If you notice the engine running hotter than usual, the needle consistently creeping towards the red, or it begins to boil over, it's a clear indication of a problem with the cooling system. Address any cooling system issues promptly to prevent engine overheating and potential head gasket damage.
• Use Proper Coolant: Always use the recommended type of coolant for your vehicle and ensure it's mixed to the correct ratio with water (usually 50/50, unless specified otherwise). Coolant plays a vital role in regulating engine temperature and preventing corrosion within the cooling system, which can erode the head gasket. Regularly check coolant levels and top up as needed to maintain proper cooling system function.
• Avoid Overheating: Take proactive steps to prevent your engine from overheating. Avoid towing heavy loads in extremely hot weather without proper cooling system checks, drive conservatively in heavy traffic to minimise heat buildup, and never ignore a rising temperature gauge. Pull over safely and allow the engine to cool down if it starts to overheat.
• Address Cooling System Issues Promptly: Any leaks, unexplained coolant loss, or abnormalities in the cooling system (e.g., a noisy water pump, a bulging hose) should be investigated and addressed immediately. Inspect hoses, connections, and the radiator for signs of leaks, cracks, or corrosion, and repair or replace any damaged components as needed.
• Proper Engine Operation: While modern engines are robust, avoiding aggressive driving, prolonged excessive idling, or sustained high-speed driving can reduce unnecessary stress on the engine and cooling system. Allow the engine to warm up gradually before driving off, and avoid sudden stops or rapid acceleration that can cause abrupt temperature spikes.
• Check Engine Oil Regularly: Keep a consistent eye on your engine oil level and quality. The appearance of milky or frothy oil is a strong indicator of coolant contamination, which is a classic sign of head gasket failure. If you notice any abnormalities in the oil, have the vehicle inspected by a qualified mechanic without delay to determine the cause.
• Properly Torque Head Bolts: If any engine repair or maintenance requires removing the cylinder head, ensure that the head bolts are torqued to the manufacturer's exact specifications using a calibrated torque wrench. Proper and even torque is absolutely essential for maintaining the integrity of the head gasket seal and preventing future issues.

FAQ on Head Gasket Troubles: Your Questions Answered

1. How long does a head gasket typically last?

With proper maintenance and a well-functioning cooling system, a head gasket is designed to last for the entire lifespan of your car. It's not typically a wear-and-tear item that requires regular replacement. Following a good maintenance routine and addressing overheating issues promptly are key to keeping this crucial component healthy for hundreds of thousands of miles.

2. Can I replace the head gasket myself?

Replacing a head gasket is a highly complex and labour-intensive job that requires specialised tools, significant mechanical knowledge, and meticulous attention to detail. It involves dismantling a large portion of the engine, including removing the cylinder head, cleaning mating surfaces thoroughly, checking for warpage, and ensuring precise alignment and torque during reassembly. It is highly recommended to leave this job to a qualified and experienced mechanic. An improperly installed head gasket can lead to even more severe and costly problems down the road.

3. Are there different types of head gaskets?

Yes, there are various head gasket materials and designs used for different engine types and applications. Common types include Multi-Layer Steel (MLS) gaskets, composite gaskets, and copper gaskets. The choice of material and design depends on factors such as the engine's power output, operating temperatures, cooling system design, and the materials used in the engine block and cylinder head. MLS gaskets are widely used in modern engines due to their durability and sealing capabilities.

4. Can I drive with a blown head gasket?

Driving with a blown head gasket is strongly not recommended and can be extremely detrimental to your engine. Continued driving can lead to rapid and severe engine damage, including a warped cylinder head, cracked engine block, or complete engine seizure due to overheating and fluid contamination. It also poses a safety hazard, as engine performance will be severely compromised. If you suspect a blown head gasket, stop driving as soon as it's safe to do so and arrange for your vehicle to be towed to a garage.

5. Is a blown head gasket the end of my car?

A blown head gasket is a significant issue, but it's not necessarily the end of your car. While it requires immediate attention and can be an expensive repair, many vehicles can be restored to proper functionality with timely and professional repairs. The feasibility of fixing the car largely depends on the extent of the damage (e.g., if the cylinder head is warped beyond repair) and the overall value of the vehicle compared to the repair cost.

6. How to fix a blown head gasket without replacing it?

Fixing a blown head gasket without replacing it is challenging and typically involves using temporary solutions like head gasket sealers. However, these solutions are generally not permanent fixes and may only provide very temporary relief for minor leaks. They do not address the root cause of the failure and can sometimes lead to other problems, such as clogged cooling passages. In most cases, replacing the head gasket is the most effective, reliable, and long-lasting solution.

7. Is it worth fixing a blown head gasket?

Whether it's worth fixing a blown head gasket depends on several factors: the age and overall condition of the vehicle, the estimated cost of repairs, and your long-term plans for the car. If the vehicle is otherwise in good condition, has relatively low mileage, and the repair costs are reasonable compared to the car's market value, then it is often worth fixing. However, for older, high-mileage vehicles where the repair cost approaches or exceeds the car's value, it might be more economical to consider replacing the vehicle.

8. How long will a car last with a blown head gasket?

The lifespan of a car with a blown head gasket is highly variable and depends on the severity of the damage, how it's driven, and how quickly it's addressed. In some cases, a very minor leak might allow a car to be driven for a short period, but this is extremely risky. In most scenarios, driving with a blown head gasket will lead to rapid and severe engine damage, potentially causing the engine to fail completely within a very short distance or time. It's best to have the issue diagnosed and repaired as soon as possible to avoid more extensive damage and ensure your safety.

9. Can a blown head gasket be repaired without replacing it?

As mentioned, temporary solutions like head gasket sealers can provide a very short-term, limited fix for minor leaks. However, they are not permanent solutions and do not address the underlying issue. For a reliable and long-lasting repair, replacing the head gasket by a professional mechanic is almost always necessary.

10. How long does it take to fix a blown head gasket?

The time required to fix a blown head gasket varies significantly depending on the make and model of the vehicle, the complexity of the engine, and the extent of any additional damage (e.g., cylinder head skimming). It can range from a few hours for simpler engines with no additional damage to several days for more complex engines or if parts need to be ordered and machining work is required on the cylinder head. Labour time alone can be extensive, often 8-15 hours or more.

Conclusion

A blown head gasket is undoubtedly a serious issue that requires immediate attention. It's a situation that can quickly become expensive if not handled promptly and correctly. While discovering this problem can be a significant setback, it doesn't necessarily mean the end of your car. With prompt diagnosis, professional repairs, and a continued commitment to proper vehicle maintenance, many vehicles can be restored to full functionality after a head gasket failure.

Understanding the vital role of the head gasket, recognising the early warning signs of its failure, and taking preventative measures are all crucial steps in ensuring the longevity and reliability of your vehicle's engine. Regular checks of your cooling system, consistent monitoring of engine temperature, and adherence to your car's service schedule are your best defence against this costly and inconvenient engine malady. Don't wait for your car to throw a tantrum; be proactive in its care to keep it running smoothly for years to come.
