Lead Loading: The Classic Car Bodyshop Art

For decades, automotive bodywork has relied on a variety of materials to achieve smooth, durable finishes. While modern polymers and fillers have become commonplace, there's a traditional method that continues to be revered in the classic car restoration community: lead loading. This intricate process, once a standard in early auto manufacturing, involves using a tin-lead alloy to fill seams, cover joins, and repair areas where traditional metalwork is challenging. It's a technique steeped in history, offering a level of durability and aesthetic authenticity that modern materials often struggle to match.

The Enduring Appeal of Lead Loading

The use of lead in automotive body repair dates back to the early days of car manufacturing. It was the go-to material for sealing body seams and joints, a testament to its effectiveness and longevity. Many vehicles from that era, expertly leaded, have stood the test of time, their repairs holding strong. The resurgence of interest in the 1950s, particularly among custom car pioneers who sought to smooth out body lines and create iconic "lead sleds," further cemented lead's place in automotive history. For enthusiasts undertaking authentic restorations, lead loading remains an indispensable skill, offering a connection to the original craftsmanship of these beloved vehicles.

Lead is not merely a filler; it's a solution for specific bodywork challenges. Its primary application lies in areas that are difficult or impossible to repair using conventional metal shaping techniques. This includes crucial areas like pillars, the edges of panels, exterior corners, and shut lines. The inherent strength of lead makes it particularly adept at reinforcing vulnerable door and panel edges that are prone to chipping. Furthermore, its ability to flawlessly cover overlapped metal and seams means it won't exhibit witness lines or the dreaded shrinkage that can plague other filling methods.

One of the significant advantages of using high-quality lead, such as that cast from brand new materials, is the elimination of porosity. Porosity in a substrate can lead to future paintwork issues, such as bubbling and blistering. By using pure, contaminant-free lead, restorers ensure a superior base for paint, guaranteeing a long-lasting, flawless finish. The preferred 30% tin / 70% lead alloy is favoured for its advantageous low melting point, typically between 180°C and 250°C, which provides a generous working time and spreadable range. This malleable nature allows it to be applied effectively to both horizontal and vertical surfaces.

What You'll Need: The Lead Loading Essentials

Embarking on lead loading requires more than just the lead itself. A comprehensive kit, designed for ease of use and professional results, is crucial. Such kits typically include:

• Flat Paddle: For spreading and shaping the molten lead over larger areas.
• Round Paddle: Ideal for working into tighter corners and along seams.
• Lead Sticks: The core material, usually provided in a sufficient quantity for a project.
• Tinning Paste: A flux essential for preparing the metal surface, ensuring the lead adheres properly. Note that the container might not appear full as the paste is dense.
• Tallow: Used as a lubricant and to help control the flow and cooling of the lead.

It's important to note that tinning paste, due to its high solid content, may not fill its container entirely. The oversized container is designed to facilitate easier stirring of the thick paste.

The Tools of the Trade: Heating and Application

The art of lead loading, while experiencing a resurgence, was once considered a dying craft. Health and safety concerns, coupled with advancements in plastic filler technology, led to its decline in mainstream bodyshops, confining it to specialist classic car workshops. However, its inherent virtues – suitability for deeper fills, superior durability, and remarkable malleability – are being rediscovered. The latter quality is particularly valuable for finishing joints, such as the tops of rear quarter panels on modern, thin metalwork. The extra effort invested in lead application pays dividends in the long run, resulting in a repair that is resistant to sinking, cracking, or moisture absorption.

It must be acknowledged that lead loading is a labour-intensive skill that demands practice to master. The process involves significant heat application, and incorrect heat management can lead to panel distortion. The choice of heat source is critical:

• Oxy-acetylene Torch: While capable of rapid lead loading, its fierce and highly localised heat requires constant movement and considerable practice to avoid damaging the underlying metalwork.
• Plumber's Blowtorch: Generally preferred due to its wider, less intense flame, making it more manageable for most users.
• Powerful Hot Air Gun: While the slowest method, a powerful hot air gun offers an excellent learning curve for beginners. It allows for more controlled heat application, minimising the risk of distortion. The adage "better to spend two hours applying lead and filing it flat than to spend 15 minutes applying the lead followed by three hours coping with panel distortion" rings true for novices.

Mastering the Technique: A Step-by-Step Approach

Successfully applying lead involves a series of critical steps, best learned through practice. The process typically involves:

1. Surface Preparation: Ensure the metal is clean, free of rust, paint, and contaminants. A thorough degrease is essential.
2. Tinning: Apply the tinning paste to the area to be leaded. This acts as a flux, promoting adhesion.
3. Heating: Gently heat the tinned area with your chosen heat source. The goal is to bring the metal to the correct temperature for the lead to flow and bond without burning off the flux or causing excessive heat build-up.
4. Applying Lead: Introduce the lead stick to the heated area. It should melt and flow smoothly onto the metal. Use paddles to spread and shape the lead as it cools.
5. Working the Lead: As the lead begins to set but is still malleable, use paddles and rags to shape it to the desired contour. This is where the skill lies in achieving a smooth, consistent finish.
6. Cooling and Filing: Allow the lead to cool completely. Once hardened, it can be filed, sanded, and dressed to achieve a perfectly smooth surface, ready for priming and painting.

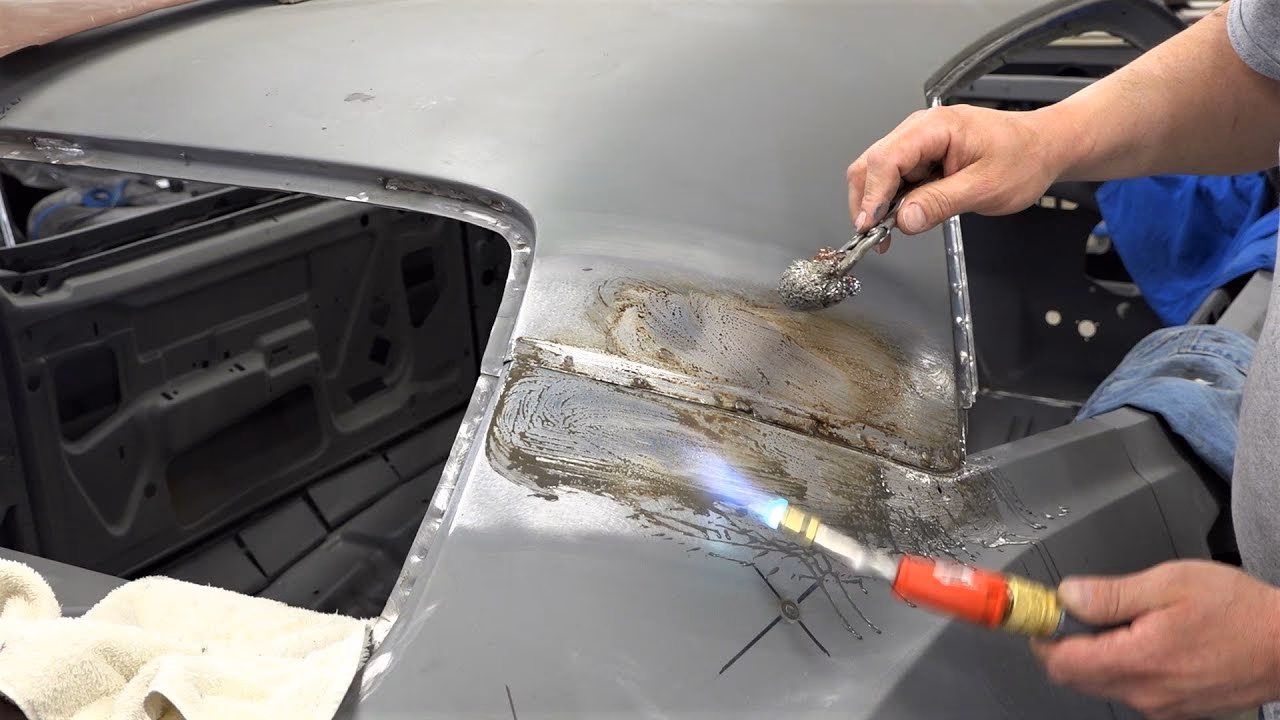

A picture sequence can illustrate the main steps, often focusing on a repair to a C-pillar. However, nothing replaces hands-on practice. Trying out the technique on a test piece is invaluable for developing a feel for the heat required and how the lead behaves. Understanding when the solder flux is sufficiently heated is key; too little heat, and the lead won't grip, simply rolling off the surface. Too much heat, and the lead will run off the panel. Getting this balance right is the hallmark of a skilled lead loader.

Benefits of Lead Loading

The advantages of using lead loading in classic car restoration are significant:

• Durability: Lead repairs are incredibly durable and resistant to cracking, sinking, or shrinking over time.
• Malleability: Its softness allows for precise shaping and blending, creating seamless repairs.
• Corrosion Resistance: When properly applied and sealed, lead offers good protection against corrosion.
• Authenticity: For period-correct restorations, lead loading provides an authentic finish that cannot be replicated by modern fillers.
• Deep Fills: It is ideal for filling larger or deeper imperfections where traditional fillers might fail or require multiple applications.

Frequently Asked Questions

Is lead loading safe?

When performed with appropriate safety precautions, including adequate ventilation and personal protective equipment (gloves, eye protection), lead loading is safe. Always refer to the Safety Data Sheets (SDS) for the materials used.

Can I use lead loading on modern cars?

While lead loading is a traditional technique, it can be applied to modern cars, particularly for specific repairs like smoothing panel gaps or reinforcing edges on thin metal. However, modern plastic fillers are generally more common and easier to use for everyday repairs on contemporary vehicles.

What is the ideal temperature for lead loading?

The ideal working range for a 30% tin / 70% lead alloy is typically between 180°C and 250°C. This allows the lead to melt and spread effectively without becoming too fluid or damaging the surrounding metal.

Where can I buy lead loading kits?

Specialist automotive restoration suppliers, such as Frost (www.frost.co.uk), offer a range of lead loading kits, from basic starter sets to more comprehensive options, catering to different needs and budgets.

What are the main benefits of lead loading compared to modern fillers?

The primary benefits are superior durability, resistance to shrinkage and cracking, excellent malleability for precise finishing, and authentic period appearance. It's also better suited for deeper fills and areas prone to impact.

In conclusion, lead loading is a skilled art form that continues to be a vital part of classic car restoration. While it requires patience, practice, and the right tools, the results are unparalleled in terms of durability, authenticity, and a truly professional finish. For those dedicated to preserving the integrity of vintage automobiles, mastering lead loading is a rewarding endeavour.
