Laying a beautiful patio or sturdy pathway is a rewarding project, but its longevity hinges entirely on one critical element: the sub-base. Without a robust and well-prepared foundation, even the most exquisite paving slabs are destined to settle, crack, or become uneven over time. This is where MOT Type 1 sub-base comes into its own, serving as the unsung hero beneath your outdoor masterpiece, providing the essential stability and drainage required for a durable and aesthetically pleasing finish.
- Why MOT Type 1 is Indispensable for Your Paving Project
- Preparing the Ground for Your MOT Type 1 Sub-Base
- Laying and Compacting Your MOT Type 1: The Foundation of Success
- The Screed Bed: Preparing for Your Paving Slabs
- The Art of Laying Paving Slabs
- Jointing Your Paving Slabs: The Finishing Touch
- Frequently Asked Questions
- Should I use MOT Type 1 paving?
- Do I need to use different techniques for different paving materials?
- Can I put a geotextile membrane between MOT Type 1 and the existing ground?
- What depth should MOT Type 1 be laid to?
- How do I compact MOT Type 1 effectively?
- What is the ideal thickness for a screed bed?
- How long should I wait before walking on newly laid slabs?
- What is a 'rocker' slab?
Why MOT Type 1 is Indispensable for Your Paving Project
When embarking on any significant paving endeavour, the question often arises: "Should I use MOT Type 1 paving?" The answer is a resounding yes, though it's important to clarify that MOT Type 1 is a sub-base material, not a paving material itself. It's a granular aggregate, typically a crushed stone or concrete, graded from dust up to 40mm, that compacts incredibly well to create a dense, stable layer. This stability is absolutely crucial for providing a firm, unyielding foundation for your path or patio, preventing future movement and ensuring the structural integrity of your paving for years to come.
Beyond stability, MOT Type 1 also plays a vital role in drainage. Its varied particle sizes allow for excellent interlocking when compacted, but also create voids that facilitate the movement of water. This prevents water from pooling beneath your paving, which can lead to frost heave in colder months or general instability. By creating a well-draining layer, MOT Type 1 directly contributes to the longevity of your paving, protecting it from the detrimental effects of moisture.
Ultimately, opting for a quality MOT Type 1 sub-base is an investment in preventing future problems. Without it, you risk unsightly settling, cracks, and uneven surfaces, which can be costly and time-consuming to rectify. It's the bedrock upon which all your hard work rests.
Preparing the Ground for Your MOT Type 1 Sub-Base
Before you even think about laying MOT Type 1, proper ground preparation is key. While MOT Type 1 is excellent for sorting out minor undulations, starting with as level an existing soil or sub-grade as possible will save you considerable time and material. The goal is to create a firm, consistent base for your sub-base.
Begin by clearing the area of any vegetation, debris, and loose soil. If the existing ground is particularly soft or uneven, you may need to dig out more to reach a firmer base. For instance, if you're dealing with a clay or muddy substrate, digging down further and potentially incorporating a layer of coarser hardcore beneath the MOT Type 1 can provide additional stability. Conversely, stony ground or an existing hardcore base can be an ideal starting point, requiring less excavation.
The Role of Geotextile Membrane
For ground conditions that are less than ideal, such as heavy clay or very soft soil, incorporating a geotextile membrane can be a game-changer. This permeable fabric is laid directly between your existing ground and the MOT Type 1 sub-base. Its primary function is to prevent the MOT Type 1 from penetrating and mixing with the poorer ground below, which would compromise its structural integrity and drainage capabilities. Essentially, it acts as a separation layer, maintaining the quality of your sub-base. While not always strictly necessary for perfect ground, it’s a wise addition for challenging sites, providing an extra layer of protection and ensuring the performance of your MOT Type 1.
Laying and Compacting Your MOT Type 1: The Foundation of Success
Once your ground is prepared, it's time to lay the MOT Type 1. The recommended depth for MOT Type 1 is typically around 100mm to 150mm when compacted. While 100mm is often sufficient for most domestic patios and paths, you might consider going slightly deeper if the underlying ground is particularly poor. Remember, the deeper the sub-base, the more robust the foundation.
The most critical step after laying the MOT Type 1 is compaction. This cannot be stressed enough. What you don't compact thoroughly at the beginning will inevitably compact on its own over time, often leading to disastrous results such as uneven slabs, cracks, and subsidence. The ideal tool for this is a flat wacker plate compactor or a roller. These machines provide the necessary force to interlock the aggregate particles tightly.
It's vital to compact your MOT Type 1 in layers, rather than trying to compact the full depth at once. Layers of a few inches (approximately 50-75mm) at a time are much more effective for compaction with a standard flat wacker. Lay a layer, compact it thoroughly, then add the next layer and repeat the process. Once you've reached your desired level, top up any low spots and re-compact the entire surface to ensure a consistent, level, and incredibly dense sub-base. This diligent compaction is the secret to a long-lasting, stable paving area.
The Screed Bed: Preparing for Your Paving Slabs
With your MOT Type 1 sub-base expertly laid and compacted, the next layer is the screed bed. This is the material on which your paving slabs will directly sit, providing a perfectly level surface and a strong bond. There are numerous variations for screed bed mixes, and if you ask ten different builders, you'll likely get ten different answers. However, understanding the common types will help you make an informed decision.
The screed bed should ideally be around 50mm thick. Any less can make it difficult to work with, as you need sufficient depth to push your slabs into to achieve a perfect level. Going much thicker isn't necessary and will only increase costs, as sand and cement screed is typically twice the cost of MOT Type 1.
Common Screed Mix Variations:
Here's a breakdown of common screed mixes, along with their pros and cons:
| Screed Mix Type | Description | Pros | Cons |
|---|---|---|---|
| Sharp Sand Only (Dry) | Only sharp sand, laid dry. | Quickest, cheapest to lay. | Not recommended unless for extremely heavy slabs (e.g., thick council slabs). High risk of future movement and instability. |
| Sharp Sand & Cement (Dry) | Sharp sand mixed with cement, laid dry. Moisture eventually permeates to harden. | Better than sharp sand only. Provides some stability as cement reacts with moisture over time. | Mix can be quite weak (often 6:1 or 8:1). Still susceptible to some movement compared to wet mixes. |
| Sharp Sand & Cement (Wet Mix) | Sharp sand and cement mixed with water to a semi-dry, mouldable consistency (e.g., 6:1 ratio). | Highly recommended. Provides excellent stability and strong bond. Mix should be dry enough to mould in hand. | Requires more skill to get the right consistency. Too strong/wet can lead to shrinkage. |
| Sharp Sand, Building Sand & Cement (Wet Mix) | Combination of sharp sand (for strength), building sand (for pliability), and cement (e.g., 6:1 total sand to cement ratio). | Often preferred by pros as it's easier to work with. Combines strength with a more workable consistency. | Not necessarily 'better' than sharp sand & cement wet mix, just different handling properties. |
For most DIY projects, a wet mix of sharp sand and cement (around 6:1) is highly effective. The mix should be just wet enough that you can form it into a ball in your hand without it crumbling, but not so wet that it's sloppy. This consistency allows you to easily push the paving slabs into the bed, achieving a perfect level.

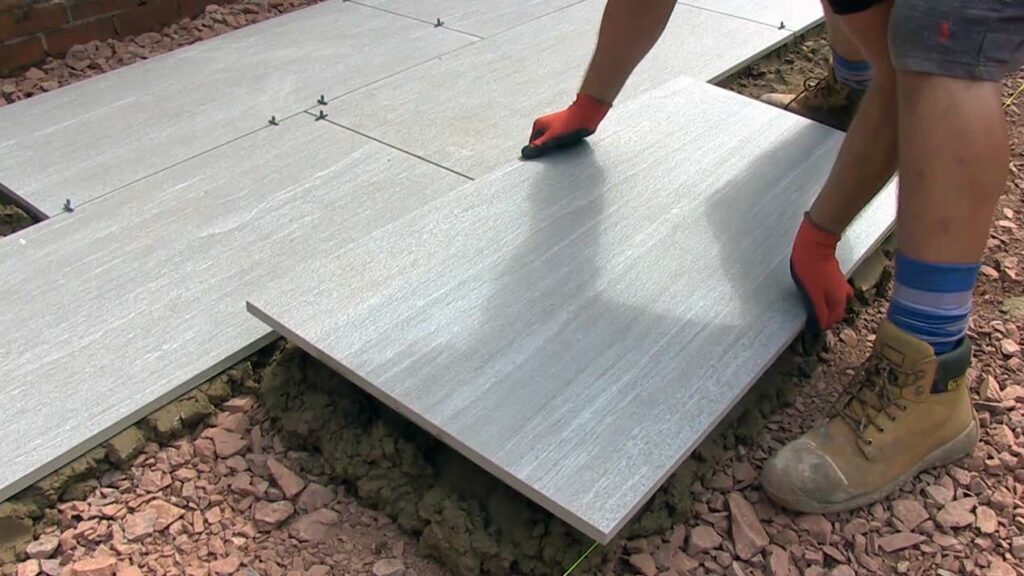

The Art of Laying Paving Slabs
With your screed bed prepared, you're ready to lay your paving slabs. The initial step, often overlooked, is to accurately measure and mark out the area. Determine the precise dimensions of your patio or path in square metres. This measurement is crucial not only for ordering the correct number of slabs but also for calculating the exact quantities of screed materials and jointing compound you’ll need.
When it comes to laying, efficiency is key. Have your slabs positioned next to where you intend to lay them. This minimises the time your screed mix sits exposed, slowly 'going off', especially in warmer summer months. Work methodically, laying each slab carefully into the screed bed, tapping it down gently with a rubber mallet to achieve the desired level and fall for drainage. Use a spirit level frequently to ensure consistent levels across your entire paved area.
A crucial tip: once you've laid your slabs, resist the temptation to walk on them too soon! Ideally, stay off them for at least 24 hours. Premature foot traffic can lead to 'rockers' – individual slabs that rock slightly when stepped on. A rocker is the bane of any hard landscaper's existence. If you discover a rocker the next day, there's no easy fix; you'll have to lift the offending slab, dig out and re-lay the screed beneath it, and then re-set the slab. Patience at this stage truly pays off.
Jointing Your Paving Slabs: The Finishing Touch
The final step in your paving project is jointing the slabs. This fills the gaps between them, providing stability, preventing weed growth, and enhancing the overall aesthetic. Just like screed beds, there are several methods for jointing.
| Jointing Method | Description | Pros | Cons |
|---|---|---|---|
| Dry Sand-Filled Joints | Gaps filled with sharp sand or kiln-dried sand, simply swept in. | Quickest and cheapest method. | Only suitable for concrete slabs with very straight edges and extremely tight gaps (max a few mm). Highly prone to weeds growing from above, and sand can wash out over time. |
| Semi-Dry / Dry Sand with Limited Cement | Sand mixed with a small amount of cement, swept into joints. | Reduces likelihood of weeds compared to pure sand. | Still only suitable for very tight gaps. Not as durable or weed-resistant as wet mortar or compounds. |
| Wet Mortar Mix | Building sand and cement (typically 6:1 to 4:1 ratio), mixed wetter than screed but not staining. Trowelled into joints. | One of the best traditional methods for strong, durable joints. Excellent weed resistance. | Requires more skill and experience to apply neatly without staining slabs. Time-consuming. Can add sharp sand for texture/strength, but building sand should dominate. |
| Jointing Compound | Pre-mixed, ready-to-use compound (often resin-based) sold in tubs. Swept into joints and jointed while wet. | Considered one of the best methods for most slab types. Very easy to use, excellent results. Saves significant time compared to traditional wet mortar. | Most expensive method by far. Always check compatibility with your specific slab type with the manufacturer. |
For a professional and enduring finish, a wet mortar mix or a proprietary jointing compound are generally the most recommended options. Jointing compounds, though pricier, offer unparalleled ease of use and often deliver a superior aesthetic, making them a popular choice for both DIYers and professionals seeking efficiency.
Frequently Asked Questions
Here are some common questions we encounter regarding sub-bases and paving:
Should I use MOT Type 1 paving?
Yes, absolutely. While MOT Type 1 itself isn't a paving material, it is the essential sub-base material you should use beneath your paving. It provides the crucial stable, well-draining foundation that prevents settling and ensures the longevity of your patio or pathway.
Do I need to use different techniques for different paving materials?
The general principles of sub-base preparation using MOT Type 1 remain consistent regardless of the paving material. However, the specific techniques for laying the slabs (e.g., whether they require a full mortar bed or can be laid on a screed) and especially the jointing methods can indeed vary significantly depending on the type of paving slab (e.g., natural stone, concrete, porcelain). Always consult the manufacturer's recommendations for your specific paving material.
Can I put a geotextile membrane between MOT Type 1 and the existing ground?
Yes, you certainly can and often should, especially if your existing ground is soft, clayey, or otherwise unstable. The geotextile membrane acts as a separation layer, preventing the MOT Type 1 from sinking into or mixing with the poorer ground below, thus maintaining the integrity and drainage capabilities of your sub-base.
What depth should MOT Type 1 be laid to?
For most domestic paving projects, a compacted depth of 100mm to 150mm of MOT Type 1 is generally sufficient. If the underlying ground is particularly poor, such as heavy clay or very soft soil, you might consider increasing this depth slightly for enhanced stability.
How do I compact MOT Type 1 effectively?
MOT Type 1 should always be compacted using a flat wacker plate compactor or a roller. It's crucial to compact in layers, typically a few inches (50-75mm) at a time, rather than attempting to compact the full depth at once. Compact each layer thoroughly before adding the next, and re-compact the entire surface once you've reached your desired level.
What is the ideal thickness for a screed bed?
An ideal thickness for your screed bed is around 50mm. This provides enough material to allow you to easily push and adjust your paving slabs to achieve a perfectly level and consistent surface. Going much thinner makes it difficult to work with, while going thicker is unnecessary and costly.
How long should I wait before walking on newly laid slabs?
It is highly recommended to stay off newly laid paving slabs for at least 24 hours. This allows the screed bed beneath the slabs to begin setting and hardening, significantly reducing the risk of 'rockers' or disturbing the level of your paving.
What is a 'rocker' slab?
A 'rocker' slab is a paving slab that moves or rocks slightly when stepped on. This usually occurs because the screed bed beneath it was not properly compacted or allowed sufficient time to set before being walked upon. Rectifying a rocker slab typically involves lifting the slab, clearing and re-laying the screed, and then re-setting the slab.
