Troubleshooting and Replacing Your Lawn Mower Cables
It’s a familiar, frustrating scenario: you’re all set for a weekend of lawn care, only to find your trusty lawn mower stubbornly refusing to start, or perhaps a critical function like the blade engagement or braking isn't working as it should. More often than not, the culprit behind these common mowing maladies is a faulty or broken cable. While the thought of tackling such a repair might seem daunting, understanding the role of these essential components and following a systematic approach can have your mower purring back to life in no time. This guide will walk you through everything you need to know, from identifying different cable types to performing preventative maintenance, ensuring your mowing experience is as hassle-free as possible.
Understanding the Vital Role of Lawn Mower Cables
Lawn mower cables are the unsung heroes of your garden machinery, acting as the crucial conduits that translate your physical input into mechanical action. Without them, your mower would be little more than a stationary piece of equipment. Familiarising yourself with the various types of cables and their specific functions is the first step towards effective diagnosis and repair.
Types of Lawn Mower Cables
Your lawn mower relies on several key cables to operate smoothly and safely. Each plays a distinct role:
- Throttle Cable: This cable is responsible for regulating the engine's speed. If it malfunctions, you might experience issues with the mower running too fast or too slow, making it difficult to achieve a consistent cut.

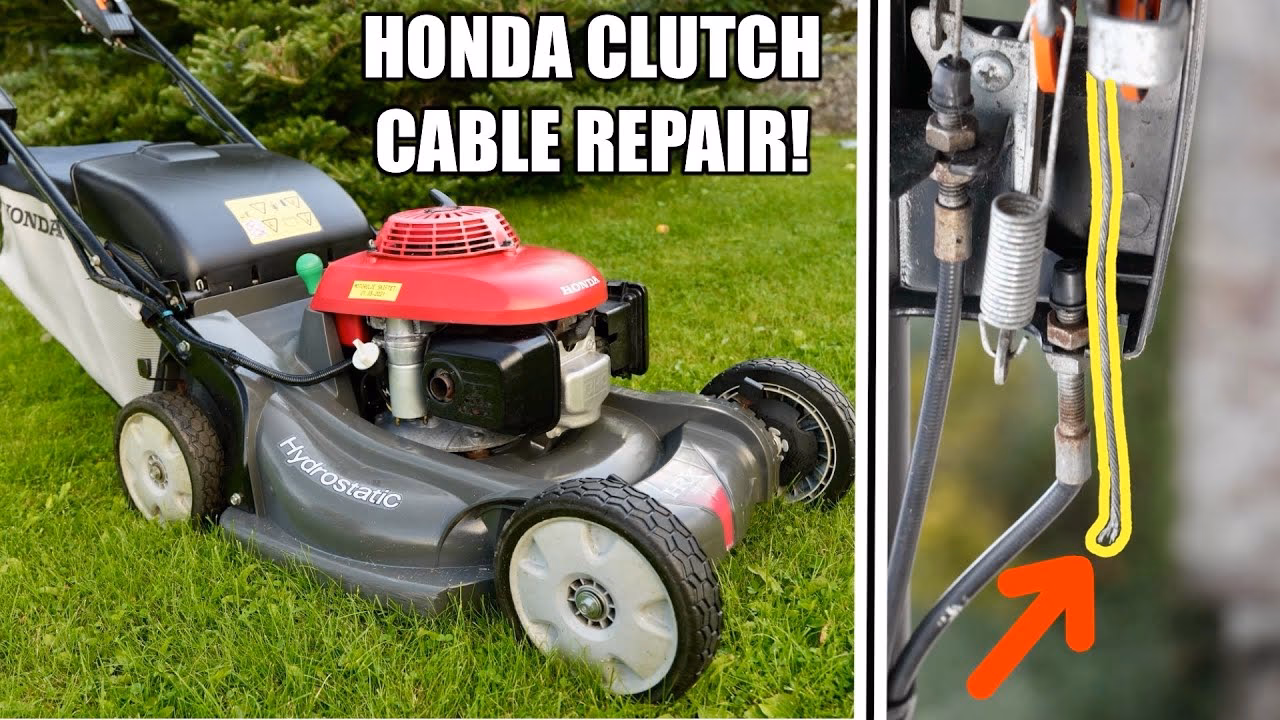

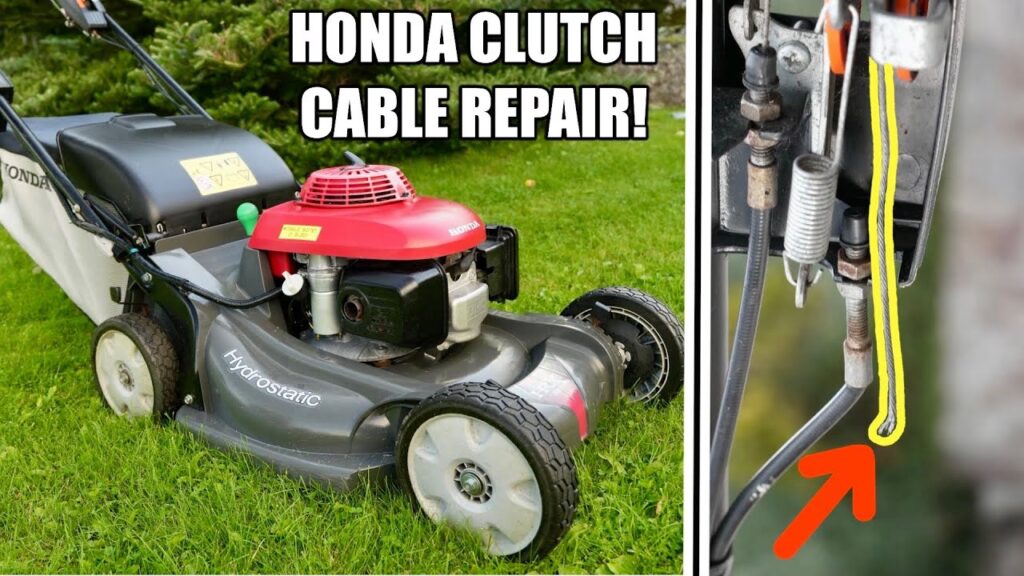

- Clutch Cable: Often referred to as the blade clutch cable, this component is vital for engaging and disengaging the cutting blades. A broken clutch cable means your blades won't spin, rendering your mower useless for mowing. The process for replacing a blade clutch can involve connecting a new blade clutch cable spring to the idler arm, pushing the retainer into the deck bracket to engage locking tabs, and connecting the cable to the keeper on the frame.
- Brake Cable: This safety feature is designed to disengage the mower's operation when the operator releases the control handle. A compromised brake cable can pose a significant safety risk, so it’s imperative to ensure it’s in good working order.
- Starting Cable: This cable connects to the starter mechanism, initiating the engine's combustion cycle. Issues with the starting cable can prevent the mower from starting altogether.
Common Cable Issues to Watch For
Cables are subject to wear and tear over time and with use. Being able to identify common problems can help you catch issues before they lead to a complete breakdown:
- Fraying: Examine the cable casing for any signs of wear, splitting, or exposed wires. Frayed cables are often a precursor to snapping and can lead to erratic performance.
- Snapping: Cables can snap due to excessive tension, age, or physical damage. Regular visual inspections can help you spot weakened areas.
- Rusting: Exposure to moisture, especially during storage or after washing, can cause cables to corrode. Rust not only weakens the cable but can also impede its smooth movement.
- Misalignment: Improper installation or adjustments can lead to cables being out of alignment. This can cause binding, premature wear, or failure to engage/disengage properly.
Essential Tools for Cable Repair
Before you begin any repair work, ensure you have the necessary tools to hand. Having the right equipment will not only make the job easier but also safer:
| Tool | Purpose |
|---|---|
| Screwdriver Set | Removing mower body panels and accessing cable anchor points. |
| Pliers (various types) | Gripping frayed ends, bending small metal components, and holding nuts. |
| Wrench Set | Loosening and tightening nuts and bolts that secure cables. |
| Replacement Cable | Ensure you have the correct type and length for your specific mower model. |
| Cable Clamps or Connectors | Securing the new cable and ensuring a firm connection. |
| Wire Cutters | Trimming excess cable or zip ties. |
| Crimping Tool | Attaching specific types of connectors to the new cable. |
| Lubricant (e.g., spray grease, cable lubricant) | Applying to cable ends and housing to ensure smooth operation and prevent future fraying. |
| Measuring Tape | Accurately measuring the old cable to ensure the replacement is the correct size. |
| Safety Gear (Gloves and Safety Glasses) | Protecting your hands from sharp edges and your eyes from debris. |
Step-by-Step Guide: Fixing a Lawn Mower Cable
Repairing a lawn mower cable is a manageable task if approached methodically. Follow these steps to diagnose and fix the issue:
1. Diagnosing the Problem
Begin by carefully inspecting the cable in question. Look for any visible signs of damage like fraying, kinking, rust, or a complete snap. Gently pull on the cable to see if it moves freely or feels stiff and restricted. If you’re troubleshooting a starting issue, listen for any unusual sounds when you attempt to pull the starter cord or turn the key, which might indicate tension problems. Understanding these symptoms will help you pinpoint whether it's a throttle, clutch, brake, or starting cable that needs attention.
2. Disconnecting the Power Source
Safety first! Before you touch any part of the mower's mechanism, always disconnect the spark plug wire. This vital step prevents the engine from accidentally starting while you are working on it, protecting you from serious injury.
3. Locating and Removing the Old Cable
Identify where the cable is anchored to the mower. Cables are typically secured at both ends: one end connects to the control lever or mechanism (e.g., throttle lever, brake handle), and the other end connects to the component it actuates (e.g., carburetor linkage, blade brake mechanism). Look for screws, clips, or retaining nuts that hold the cable in place. Use the appropriate screwdriver or wrench to remove these fasteners. Once the anchor points are freed, carefully slide or pull the old cable out of its housing and routing path. It’s highly recommended to take note of the cable's exact routing and how it was connected, perhaps by taking a photograph, to ensure correct reinstallation of the new cable.
4. Routing and Installing the New Cable
Take your new, correctly sized replacement cable and carefully route it along the same path as the old one. Ensure the cable runs smoothly without any sharp bends, kinks, or twists, as these can impede its movement and lead to premature wear. Attach the new cable to its anchor points, securing it firmly with the screws, clips, or nuts you removed earlier. Make sure the connections are snug but not overly tight, allowing for free movement.
5. Adjusting Tension
Proper cable tension is crucial for correct operation. The cable should be firm enough to engage the mechanism properly when the control is activated, but not so tight that it binds or constantly applies pressure. Most cables have an adjustment mechanism, often a threaded barrel adjuster or a lock nut, near one of the anchor points. Adjust this mechanism until the cable has the correct amount of slack – usually just a small amount of free play. Consult your mower’s manual if you’re unsure about the specific adjustment procedure for your model.
6. Testing the Cable and Mower
Once the new cable is installed and tensioned, reconnect the spark plug wire. Carefully test the function of the repaired cable. For a throttle cable, check if the engine speed changes smoothly as you move the throttle lever. For a clutch cable, ensure the blades engage and disengage correctly. Test the brake cable by engaging the drive and then activating the brake handle to confirm it stops the mower. If any issues persist, you may need to re-examine the cable routing, tension, or anchor points.
7. Lubrication for Longevity
After successful installation and testing, it’s a good practice to apply a small amount of lubricant to the cable ends where they connect to their respective mechanisms, and if possible, into the cable housing. This helps ensure smooth operation, reduces friction, and can prevent future fraying and corrosion.
Preventative Maintenance for Extended Cable Life
The best way to avoid the hassle of cable repairs is through consistent preventative maintenance. A little regular attention can significantly extend the lifespan of your mower’s cables:
Regular Inspections
Make it a habit to inspect your mower’s cables at least a few times during the mowing season, and especially before storing it for the winter. Look for the signs of wear mentioned earlier – fraying, rust, kinks, or loose connections. Operate the controls (throttle, clutch, brake) and ensure they feel smooth and responsive. Check that all cable anchor points are secure and free from debris. Catching small issues early can prevent them from escalating into major problems.
Proper Storage Techniques
How you store your lawn mower can have a big impact on its components, including the cables:
- Dry Environment: Always store your mower in a dry, covered location. Garages, sheds, or under a proper mower cover are ideal. Avoid storing directly on damp ground or concrete floors, which can retain moisture and promote rust.
- Release Tension: If storing the mower for an extended period (e.g., over winter), consider releasing the tension on the cables. This can be done by disengaging the cable at one of its anchor points or by adjusting tensioners to their loosest setting. This reduces stress on the cable and its housing.
- Breathable Cover: Use a breathable tarp or mower cover. This protects the mower from dust and debris while allowing any residual moisture to evaporate, preventing condensation build-up which can lead to corrosion.
Conclusion
While a broken lawn mower cable can certainly put a damper on your gardening plans, it’s a repair that most homeowners can tackle with the right approach and tools. By understanding the different types of cables, recognising the common signs of wear, and following these step-by-step repair instructions, you can efficiently get your mower back into working order. More importantly, by incorporating regular inspections and proper storage practices into your routine, you can significantly prolong the life of your mower’s cables and enjoy a beautifully manicured lawn with greater reliability and ease. Remember, proactive care is always the most effective strategy!
Frequently Asked Questions
- What is a lawn mower cable and what does it do?
- Lawn mower cables are essential mechanical links that control various functions such as engine speed (throttle), blade engagement (clutch), stopping (brake), and starting the engine. They translate operator input into action within the mower.
- What are the common reasons for lawn mower cables breaking?
- Common causes include general wear and tear, fraying of the cable housing, rust due to moisture exposure, over-tensioning, physical damage or kinks, and simply the cable reaching the end of its service life.
- How do I diagnose a broken lawn mower cable?
- Visually inspect the cable for any signs of damage like fraying, rust, or breaks. Check if the cable moves freely or is stiff. Test the related mower function (e.g., does the throttle respond? Do the blades engage?). Any lack of response or unusual resistance points to a cable issue.
- What tools are necessary for a lawn mower cable repair?
- Essential tools include a screwdriver set, pliers, wrench set, the correct replacement cable, cable clamps or connectors, wire cutters, lubricant, a measuring tape, and safety gear like gloves and safety glasses.
- Can I replace a lawn mower cable myself?
- Yes, in most cases, replacing a lawn mower cable is a straightforward DIY task. It involves safely disconnecting the spark plug wire, removing the old cable by undoing its anchor points, routing the new cable correctly, securing it, adjusting the tension, and then testing the functionality.
- How can I maintain my lawn mower cables to prevent problems?
- Regularly inspect cables for wear and tear. Keep them clean and dry, and lubricate the ends and housing periodically. Store the mower in a dry place, and consider releasing cable tension during long-term storage.
- What are the signs that indicate my lawn mower cable needs replacement?
- Signs include visible fraying, rust on the cable, a cable that feels stiff or binds, or when the mower's controls (throttle, clutch, brake) no longer function correctly or respond as they should. If you notice any of these, replacement is often the best course of action for safety and performance.
