Understanding Car Wheel Alignment Systems

Maintaining proper wheel alignment is paramount for any vehicle owner in the UK. It's not just about steering straight; correct alignment significantly impacts tyre wear, fuel efficiency, vehicle handling, and overall safety. Over time, bumps, potholes, and general wear and tear can knock your wheels out of alignment, leading to a host of problems. Fortunately, a range of sophisticated systems has been developed to diagnose and correct these issues, ensuring your vehicle performs as it should. Understanding these systems can demystify the process and help you appreciate the precision involved in modern vehicle maintenance.

Wheel alignment essentially refers to the adjustment of the angles of the wheels so that they are perpendicular to the ground and parallel to each other. This intricate process involves adjusting three primary angles: camber, caster, and toe. Each plays a crucial role in how your tyres meet the road. The technology used to measure and adjust these angles has evolved dramatically over the years, from rudimentary mechanical tools to highly advanced computerised systems.

The Evolution of Alignment Technology

For decades, mechanics relied on relatively basic tools to perform wheel alignments. These systems, while functional for their time, often involved manual measurements and could be prone to human error. However, as vehicle designs became more complex and performance demands increased, the need for greater precision became evident. This drove innovation, leading to the development of more accurate and efficient alignment systems that we see in workshops today.

Traditional and Mechanical Alignment Systems

Before the digital revolution, alignment was a largely hands-on affair. These methods, though less common for comprehensive alignments now, laid the groundwork and are sometimes still used for quick checks or in specific scenarios.

• String Alignment

  One of the oldest and most basic methods, string alignment, involves stretching strings around the vehicle's tyres to create a precise reference plane. Measurements are then taken from the string to the wheel rim to determine toe angles. While highly accurate in theory for toe, it's a slow process, requires a perfectly level surface, and doesn't easily measure camber or caster. It's primarily used by enthusiasts or for track day setups where extreme precision for specific parameters is needed without the cost of high-tech equipment.

• Bubble/Spirit Level Systems

  These systems use a spirit level attached to the wheel to measure camber. They are simple and inexpensive but offer limited accuracy and only measure one angle at a time. They are rarely used for professional, comprehensive alignments today but might be found in very small workshops or for quick, rough checks.

• Optical/Light Beam Systems

  An advancement over purely mechanical methods, optical alignment systems use light beams (often low-power lasers or traditional light sources) projected onto scales or mirrors to measure angles. Sensors or mirrors are attached to the wheels, reflecting the light back to a master unit, which then calculates the alignment angles. These systems offered improved accuracy and speed over purely mechanical methods and were widely used in the late 20th century. While largely superseded by more advanced digital systems, some variations are still in use, particularly for basic toe adjustments or in workshops with budget constraints.

Computerised and Digital Alignment Systems

The advent of computer technology revolutionised wheel alignment, bringing unprecedented levels of precision, speed, and diagnostic capability. These systems are now the industry standard for professional workshops.

• CCD (Charge-Coupled Device) Sensor Systems

  CCD sensor alignment systems, often referred to as 'run-out compensation' systems, were a significant leap forward. They utilise individual sensor heads clamped onto each wheel. Each sensor head contains a CCD camera and an array of infrared emitters. These sensors communicate wirelessly (or via cables) with a central computer. The emitters project infrared beams across to the sensors on the opposite side of the vehicle, creating a complete measurement circuit around the car. The CCD cameras then detect these beams, and the computer calculates the precise wheel angles.

  Key features of CCD systems include:

  • Run-out Compensation: To account for any imperfections in the wheel or clamp mounting, the technician performs a 'roll-back' or 'lift-and-turn' procedure, where the vehicle is rolled a short distance or the wheels are rotated. The system then compensates for any deviation.
  • Accuracy: Offers high levels of accuracy, significantly reducing human error.
  • Speed: Faster than traditional methods, though still requiring a manual roll-back.
  • Data Display: Live graphical displays on the computer screen guide the technician through the adjustment process, showing real-time changes to angles.

  CCD systems remain a popular choice for many workshops due to their reliability, accuracy, and relatively lower cost compared to 3D imaging systems.

• 3D Imaging Alignment Systems (Camera-Based/Reflector-Based)

  Considered the most advanced and widely adopted alignment technology today, 3D imaging systems employ high-resolution cameras and passive targets (reflectors) attached to each wheel. Instead of sensors communicating with each other, the cameras, usually mounted on a fixed beam in front of the vehicle or on a mobile trolley, capture images of these targets.



  Sophisticated software then analyses the three-dimensional position and orientation of the targets in space relative to the vehicle's body. By precisely mapping these targets, the system can calculate all alignment angles with incredible speed and accuracy. There are generally two main configurations:

  • Fixed Camera Systems: Cameras are mounted on a fixed beam, often integrated into the lift or positioned rigidly in front of the vehicle. These require the vehicle to be positioned precisely.
  • Mobile Camera Systems: Cameras are mounted on a movable trolley or a flexible system, allowing for greater versatility in workshop layout.

  The advantages of 3D imaging systems are substantial:

  • Superior Speed: Measurements are often taken in seconds, as there's no need for run-out compensation via rolling the vehicle. Instead, the system can compensate by simply lifting the vehicle or by using advanced algorithms that account for minor run-out immediately.
  • Exceptional Accuracy: Provides highly precise measurements, crucial for modern vehicles with complex suspension geometries.
  • User-Friendly: Intuitive graphical interfaces make the process straightforward for technicians.
  • Non-Contact: The system doesn't require physical contact with the wheel rim, reducing the risk of scratching expensive alloy wheels.
  • Live Adjustments: Technicians can see real-time graphical representations of angle changes as they make adjustments, ensuring optimal results.
  • Less Space Dependent: Some systems can operate in tighter spaces than traditional setups.

  3D imaging systems are particularly beneficial for modern cars equipped with Advanced Driver-Assistance Systems (ADAS), as precise alignment is critical for the correct functioning of features like lane-keeping assist and adaptive cruise control.

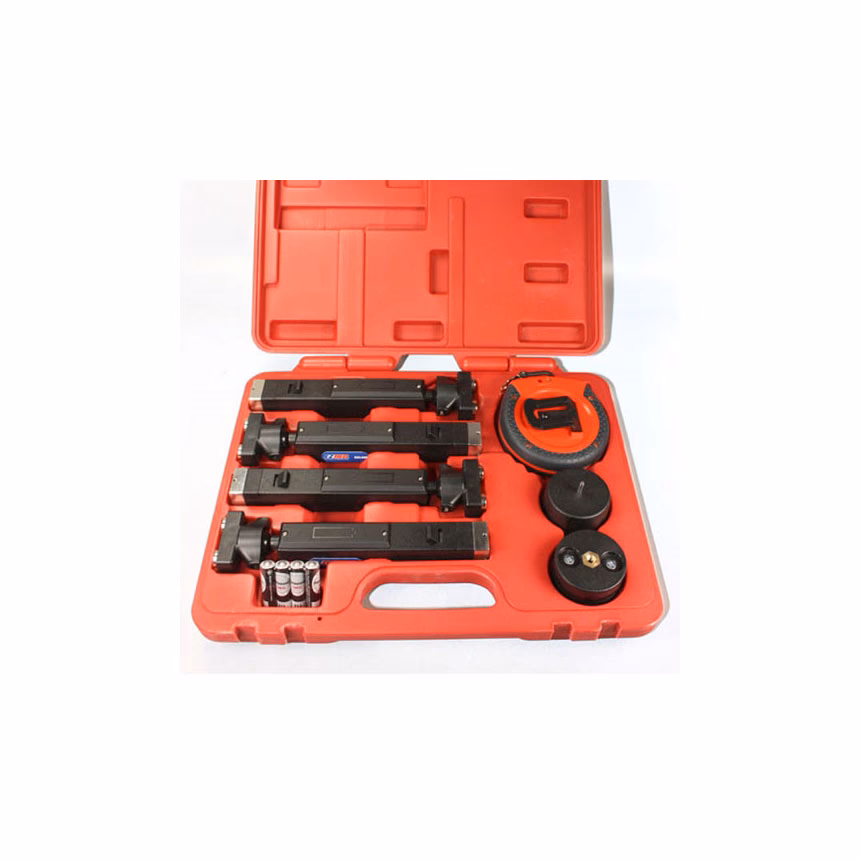

• Laser Alignment Systems (Integrated)

  While often mentioned as a distinct category, true standalone laser alignment systems for comprehensive measurements are less common in modern professional settings. Instead, laser technology is predominantly integrated within CCD or 3D imaging systems. Lasers are used for highly precise point-to-point measurements, ensuring the accuracy of the sensor or camera readings. For instance, some heavy-duty truck alignment systems might still use laser heads that project beams onto scales to measure specific parameters, but for passenger cars, the term 'laser alignment' often refers to the precision achieved by the laser components within the broader CCD or 3D framework.

Key Components of a Modern Alignment System

Regardless of the specific technology (CCD or 3D), most modern alignment systems share several core components:

• Sensors/Targets: These are attached to the wheels. For CCD systems, they are active electronic sensors. For 3D systems, they are passive reflective targets.
• Computer and Software: The brain of the operation. Powerful software processes the data from the sensors/cameras, calculates the angles, compares them to manufacturer specifications, and provides graphical instructions to the technician. This software is regularly updated to include new vehicle models and specifications.
• Cameras (for 3D systems): High-resolution digital cameras capture the position of the targets.
• Vehicle Lift: A dedicated alignment lift (often a 4-post or scissor lift) is essential, providing a level and stable platform for the vehicle. These lifts typically have built-in turntables at the front and slip plates at the rear to allow the wheels to move freely during measurement and adjustment.
• Wheel Clamps: Used to securely attach the sensors or targets to the wheels without damaging the rims.
• Turntables and Slip Plates: Essential for allowing the wheels to pivot freely during measurement (turntables for front, slip plates for rear) and for performing compensation procedures.

Choosing the Right System: Factors for Workshops

For workshops, selecting an alignment system involves weighing several factors:

• Accuracy Requirements: Modern vehicles demand high precision.
• Speed and Efficiency: How quickly can a complete alignment be performed? This impacts throughput.
• Cost: Initial purchase price, ongoing maintenance, and software update costs.
• Ease of Use: How intuitive is the software and hardware for technicians?
• Space Requirements: Some systems require more floor space or specific lift types.
• Vehicle Compatibility: Does the system cover a wide range of vehicles, including older models and the latest releases?
• Diagnostic Capabilities: Can the system help diagnose other suspension issues?
• Customer Presentation: The ability to print clear, easy-to-understand reports for customers.

For the average car owner, understanding these systems means appreciating the investment made by reputable garages to provide the best possible service. A garage using a modern 3D or advanced CCD system is likely to offer a more accurate and efficient alignment service.

Benefits of Modern Alignment Systems for the Driver

While the technical details might seem complex, the benefits of having your car aligned using a modern system are straightforward and significant:

• Extended Tyre Life: Improper alignment is a leading cause of premature and uneven tyre wear. Correct alignment ensures tyres wear evenly, saving you money on replacements.
• Improved Fuel Economy: Misaligned wheels create more rolling resistance, forcing your engine to work harder. Proper alignment reduces this resistance, leading to better fuel efficiency.
• Enhanced Handling and Safety: A properly aligned vehicle handles predictably, steers straight, and responds precisely to your inputs. This contributes significantly to driving safety, especially at higher speeds or in emergency manoeuvres.
• Smoother Ride: Correct alignment can eliminate vibrations and pulling, leading to a more comfortable driving experience.
• Preservation of Suspension Components: Misalignment can put undue stress on steering and suspension components, leading to premature wear and costly repairs.

In conclusion, the evolution of wheel alignment systems from basic string methods to sophisticated 3D imaging has transformed vehicle maintenance. These advanced systems provide unparalleled precision, speed, and diagnostic capabilities, ensuring your vehicle remains safe, efficient, and a pleasure to drive. When seeking an alignment service, asking about the type of system a garage uses can give you confidence in the quality of the work you'll receive.

Comparison Table: Key Alignment Systems

Frequently Asked Questions (FAQs)

Q1: How often should I get my car's wheel alignment checked?

It's generally recommended to have your wheel alignment checked annually or every 12,000 miles, whichever comes first. You should also get it checked after hitting a significant pothole, curb, or after replacing any steering or suspension components (like tie rod ends, control arms, or shock absorbers).

Q2: What are the signs that my wheels are out of alignment?

Common signs include uneven or rapid tyre wear, the vehicle pulling to one side while driving straight, a crooked steering wheel when driving straight, or vibrations coming from the steering wheel or vehicle itself.

Q3: Can I perform a DIY wheel alignment at home?

While basic toe adjustments can be attempted with string or tape measures, comprehensive alignment (including camber and caster) requires specialised equipment and expertise. DIY methods rarely achieve the precision needed for modern vehicles and can lead to more problems. It's always best to use a professional workshop with proper alignment systems.

Q4: What's the difference between 2-wheel and 4-wheel alignment?

A 2-wheel alignment typically refers to adjusting only the front wheels. This is suitable for vehicles with solid rear axles where the rear wheels are not adjustable. A 4-wheel alignment adjusts all four wheels and is necessary for most modern vehicles with independent rear suspension, where rear wheel angles can also be adjusted. A comprehensive 4-wheel alignment ensures all wheels are parallel and tracking correctly, regardless of whether the rear is adjustable or not, setting the thrust angle correctly.

Q5: Why is calibration important for alignment systems?

Just like any precision instrument, alignment systems need regular calibration. Over time, sensors, cameras, or the lift itself can drift out of calibration, leading to inaccurate measurements. Regular calibration, performed by specialist technicians, ensures the system provides consistently precise readings, which is crucial for correct alignment adjustments.

Q6: What are camber, caster, and toe in simple terms?

• Toe: This is the most critical angle for tyre wear. It refers to whether the front of the wheels are pointed slightly inward (toe-in) or outward (toe-out) when viewed from above. Incorrect toe causes tyres to 'scrub' across the road.
• Camber: This refers to whether the top of the wheel is tilted inward (negative camber) or outward (positive camber) when viewed from the front. Incorrect camber leads to uneven wear on the inner or outer edge of the tyre.
• Caster: This refers to the angle of the steering axis when viewed from the side. It affects steering stability, self-centring of the steering wheel, and cornering ability. While not a direct cause of tyre wear, incorrect caster can make steering difficult or unstable.
