Lamborghini Espada: The V12 Grand Tourer

The Lamborghini Espada, a name that evokes images of roaring V12 engines and quintessential Italian design, stands as a significant chapter in the history of Automobili Lamborghini. Released in 1968, this four-seater Grand Tourer was designed to appeal to a discerning clientele seeking both performance and practicality. Penned by the legendary Marcello Gandini of Bertone, the Espada wasn't just another supercar; it was a sophisticated statement of intent, aiming to blend the exhilarating performance expected of the Raging Bull marque with the comfort and space required for longer journeys. It arrived alongside other celebrated models like the Miura and the 400GT, but carved out its own unique niche in the automotive landscape.

A Masterpiece of Gandini's Design

Marcello Gandini, a name synonymous with some of the most iconic car designs of the 20th century, was the creative force behind the Espada's striking appearance. His design drew inspiration from two of Bertone's acclaimed show cars from 1967: the futuristic Lamborghini Marzal and the elegant Bertone Pirana. This lineage is evident in the Espada's distinctive silhouette, characterised by a long bonnet, a sweeping roofline, and a dramatic glass rear panel. The 'Espada' itself, meaning 'sword' in Spanish, refers to the sword used by a matador to dispatch a bull, a fittingly aggressive moniker for a car with such potent underpinnings.

Technical Prowess and Premium Standard Features

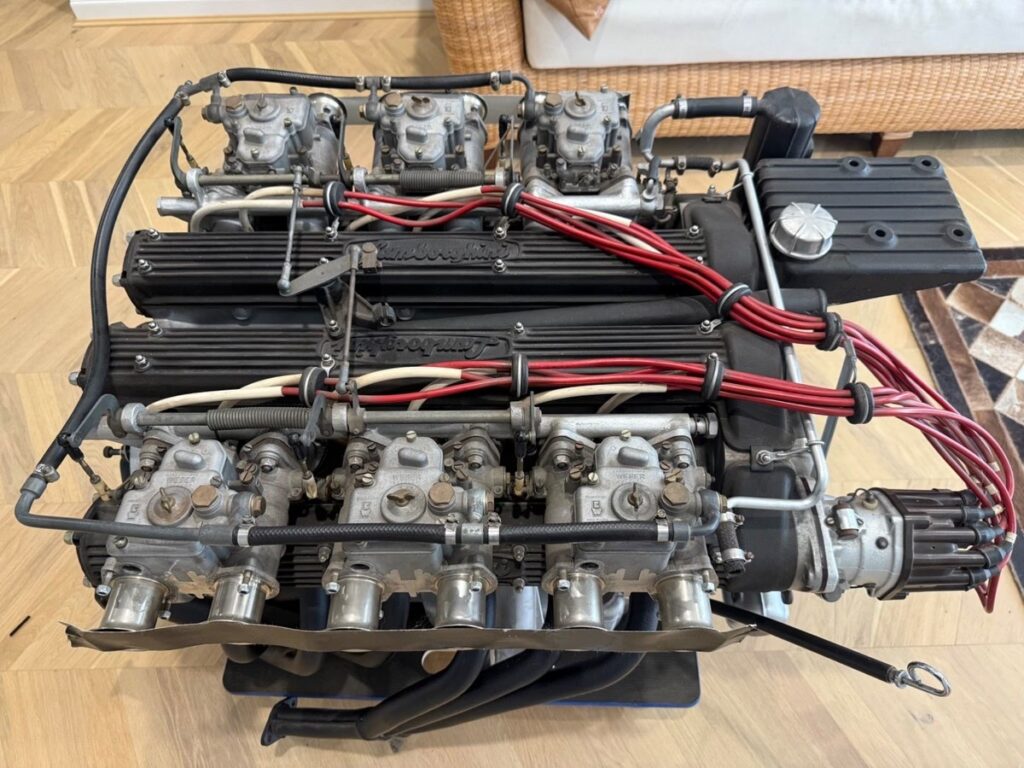

Underneath its captivating exterior, the Espada was a marvel of engineering for its time. It was assembled around a robust monocoque steel body, providing a solid foundation for its performance capabilities. Powering this Italian thoroughbred was Lamborghini's renowned 3.9-litre V12 engine. This powerplant, a staple of Lamborghini's early models, featured 24 valves and breathed through six side-draft Weber carburettors, producing a formidable 321 horsepower in its initial iteration. This potent engine, combined with the car's advanced chassis, offered an engaging and exhilarating driving experience. What truly set the Espada apart, however, was its commitment to providing premium specifications as standard. This included fully independent suspension, double wishbones, anti-roll bars, four-wheel disc brakes for superior stopping power, power steering for effortless manoeuvrability, and air conditioning for enhanced comfort. The inclusion of twin fuel tanks also extended its touring range, further cementing its Grand Touring credentials.

Production Numbers: A Success Story

During its ten-year production run, from 1968 to 1978, a total of 1,217 Lamborghini Espadas were produced. This figure made it Lamborghini's most successful and longest-running model of that era, a testament to its blend of performance, style, and practicality. This success paved the way for future Lamborghini expansion and the development of subsequent models, including the legendary Countach. The Espada's production was divided into three distinct series, each with its own evolutionary refinements.

The Three Series of the Espada

The Espada underwent significant updates throughout its production life, leading to the development of three distinct series:

Series I (1968-1970)

The Espada made its debut at the 1968 Geneva Motor Show. The Series I was equipped with the 3,929 cc V12 engine, producing 325 hp (330 PS). Its dashboard design was directly influenced by the Marzal concept car, featuring distinctive octagonal housings for the main instruments and an additional binnacle for secondary gauges. It rode on Campagnolo alloy wheels with knock-off hubs, a design shared with the Miura. The rear lights were sourced from the Fiat 124 Sport Coupé. A total of 186 Series I Espadas were produced.

Series II (1970-1972)

Unveiled at the 1970 Brussels Motor Show, the Espada S2 brought more substantial changes. Externally, the most noticeable alteration was the removal of the grille that covered the vertical glass tail panel. The interior saw a more radical transformation, with an all-new dashboard, centre console, and steering wheel. The instrument binnacle adopted a more conventional rectangular shape with round gauges, and a wood-trimmed fascia extended across the dashboard. Rear seat ventilation was also improved. Power output was increased to 350 hp (355 PS) thanks to a higher 10.7:1 compression ratio. The braking system was upgraded to vented Girling discs, and CV joints were incorporated into the rear half-shafts. The Series II proved to be the most popular variant, with 575 units produced.

Series III (1972-1978)

The final iteration, the Espada S3, arrived in 1972. This series featured a redesigned aluminium-trimmed instrument panel, placing all instruments and controls within easy reach of the driver. Exterior modifications included newly designed wheels on five-stud hubs, replacing the earlier knock-off versions, and wider Pirelli Cinturato tyres. The front grille was updated with a square mesh, and new tail lights were adopted from the Alfa Romeo 1750 Berlina. A sunroof became available as an optional extra. The 350 hp engine from the S2 was carried over. Crucially, power steering and air conditioning became standard features, enhancing the car's usability. In 1974, a Chrysler Torqueflite 3-speed automatic transmission was introduced as an option. Later US-specification models, from 1975 onwards, were fitted with larger impact bumpers and secondary air injection systems to meet safety and emissions regulations, though Lamborghini did not officially designate these as a separate series.

A Collector's Dream: The Modern Perspective

The Lamborghini Espada is more than just a classic car; it's a piece of automotive history that offers a unique blend of V12 performance, Italian flair, and surprising practicality. For enthusiasts seeking a more usable and tractable Lamborghini experience compared to its more temperamental siblings, the Espada presents an appealing proposition. Its spacious interior, comfortable ride, and the availability of features like power steering and air conditioning make it suitable for regular use or long-distance touring. The example described, a third-generation, right-hand drive Australian-delivered car with an automatic transmission and a comprehensive restoration, highlights the meticulous attention to detail that collectors value. Such vehicles, often the subject of painstaking, ground-up restorations, represent the pinnacle of Espada ownership and are considered extremely collectible. The rarity of right-hand drive automatic models, with only five such cars believed to have been produced, further enhances their desirability. Owning an Espada is an opportunity to acquire not only a stunning piece of design but also one of Lamborghini's most accessible and enjoyable V12 creations.

Frequently Asked Questions

How many Lamborghini Espadas were produced in total?

A total of 1,217 Lamborghini Espadas were manufactured between 1968 and 1978.

What engine does the Lamborghini Espada use?

The Espada is powered by a 3.9-litre V12 engine, originally producing 325 hp and later upgraded to 350 hp.

What are the main differences between the Espada Series?

Key differences include dashboard design, wheel types, front grille mesh, tail light units, and the availability of features like power steering, air conditioning, and automatic transmission, which were progressively introduced or made standard through the series.

Is the Lamborghini Espada a practical classic car?

Yes, compared to many other supercars of its era, the Espada is considered quite practical due to its four-seat configuration, comfortable ride, and the availability of power steering, air conditioning, and an automatic transmission in later models.

What inspired the Espada's design?

The Espada's design was heavily influenced by Marcello Gandini's work for Bertone, specifically drawing cues from the 1967 Lamborghini Marzal and Bertone Pirana concept cars.
