BMW X3 F25 Oil Filter Housing Gasket Replacement

Tackling Oil Leaks in Your BMW X3 (F25)

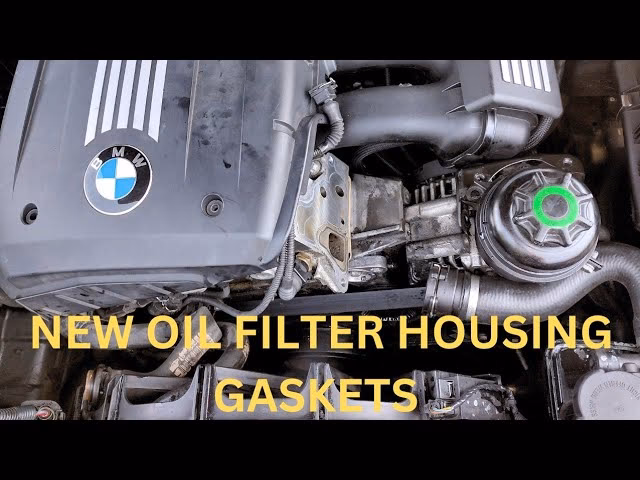

It's a common, albeit frustrating, occurrence for BMW owners: the dreaded oil leak. If you've popped the bonnet of your 2014 BMW X3 F25 and noticed a significant oil slick concentrated towards the front of the engine, you're certainly not alone. This issue is often traced back to a failing oil filter housing gasket, a component that, over time, can degrade and begin to seep oil, creating a mess and potentially leading to more serious problems if left unaddressed. Fortunately, with the right tools and a methodical approach, you can tackle this repair yourself and avoid hefty bills from your local dealership. This comprehensive guide will walk you through the process of replacing your oil filter housing gasket, specifically focusing on the N55 engine found in the F25 X3, though the principles can apply to other BMW applications with this engine.

Common BMW Oil Leak Locations

Before we dive into the specifics of the oil filter housing, it's helpful to understand where else oil leaks might typically manifest on a BMW engine. While the oil filter housing gasket is a frequent culprit, other common areas include:

• Valve Cover Gaskets: These seal the valve cover to the cylinder head. Degradation can lead to oil seeping around the top of the engine.
• Oil Pan Gaskets: Located at the bottom of the engine, the oil pan gasket seals the oil pan to the engine block. Leaks here often appear as drips from the underside of the vehicle.
• Rear Main Seals: This seal sits between the engine and the transmission. Leaks from this area can be more complex to diagnose and repair.

Understanding these potential leak points can help in diagnosing the exact source of an oil problem.

What is the Oil Filter Housing?

The oil filter housing is a critical component in your BMW's lubrication system. Its primary function is to securely house the oil filter, protecting it from external contaminants and ensuring that oil is filtered efficiently before circulating throughout the engine. Manufactured from metal or plastic, it's typically situated near the oil pump and connected to the engine via a network of pipes. A drain plug is usually present for draining used oil during filter changes. Many oil filter housings also incorporate a pressure relief valve to manage internal oil pressure, safeguarding the system.

The engine's moving parts rely heavily on a constant supply of clean, well-lubricated oil to minimise wear and friction, thereby preserving engine longevity. The oil pump, usually mounted at the base of the engine, draws oil from the sump, forces it through the oil filter housed within the filter housing, and then distributes it to vital engine components like the block and cylinder head. After lubricating the engine, the oil typically returns to the sump via dedicated passages.

Oil temperature plays a significant role in engine performance, especially in high-performance vehicles like BMWs. Larger oil sumps can aid in temperature regulation, and in applications with turbochargers, a separate oil cooler is often integrated to manage heat effectively. An interesting fact about BMW oil filter housings is that coolant also flows through them. This dual-purpose design helps to warm the engine oil when the engine is cold, promoting quicker lubrication, and assists in cooling the oil when the engine reaches higher operating temperatures.

Tools You'll Need for the Job

Before you begin, ensure you have the correct tools readily available. Attempting this job without the necessary equipment can lead to frustration and potential damage. Here's a list of essential tools:

Step-by-Step Guide to Replacing the Oil Filter Housing Gasket

Embarking on a DIY repair can seem daunting, especially if you're new to automotive mechanics. However, by following these instructions carefully, you can successfully replace your oil filter housing gasket and save yourself a considerable amount of money.

Step 1: Preparation and Initial Disassembly

Begin by laying out all your tools. Open the bonnet and carefully remove the engine cover. This is usually a simple lift-off procedure, often secured by rubber grommets. Next, you'll need to remove some of the plastic components located on top of the engine. This includes the air duct and the engine air filter box. These parts are typically held in place by rubber grommets; you'll need to pull them upwards firmly to dislodge them. Once the air duct is out of the way, focus on the airbox. Loosen the 6MM hose clamp securing it and remove the entire airbox assembly.

Step 2: Accessing the Intake Manifold

With the airbox and air duct removed, you'll have better access to the engine's upper components. Locate the wire loom that runs from the front to the rear of the engine, near the fuel rail. Gently lift this loom and move it aside to gain access to the intake manifold bolts. The intake manifold is secured to the cylinder head by several 11MM nuts. You'll need to loosen these nuts to create the necessary clearance for the oil filter housing bolt that is hidden behind the manifold.

Step 3: Draining Oil from the Housing

Crucially, before you proceed with removing the oil filter housing, you must loosen the oil filter itself. This allows the oil remaining within the housing to drain down into the oil pan. Failing to do this will result in a much larger oil spillage when you disconnect the housing, making a significant mess. Ensure you have shop rags ready to catch any drips.

Step 4: Loosening the Intake Manifold

To access the hidden oil filter housing bolt, you'll need to loosen the 11MM nuts holding the intake manifold to the cylinder head. You don't necessarily need to remove the entire manifold; unbolting it and carefully lifting it just enough to clear the bolt is sufficient. This maneuver provides the necessary space to reach the Torx E10 bolt that is often obstructed.

Step 5: Removing the Oil Cooler

With the intake manifold shifted, you can now focus on the oil filter housing itself. The oil cooler is attached to the housing and needs to be removed first. There are typically three Torx E12 bolts securing the oil cooler. Use your 3/8" ratchet and the E12 socket to remove these bolts. It's imperative to protect your drive belt from oil spillage, as oil can degrade rubber components. Place a towel or shop rag over the drive belt to prevent contamination. As you remove these bolts, expect some oil and coolant to leak out. Have rags ready to catch this fluid.

Tip: To minimise coolant spillage, ensure the coolant cap is securely on before you start removing the oil cooler.

Step 6: Removing the Oil Filter Housing Bolts

Once the oil cooler is detached and moved aside, you can address the bolts holding the main oil filter housing to the cylinder head. There are usually three bolts in total. One is easily accessible at the front. Another is the Torx E10 bolt located behind the intake manifold, which you gained access to by loosening the manifold. Use an appropriate extension and swivel E10 socket for this bolt if needed. The third bolt is typically located at the top of the housing. You might encounter seized bolts, especially on older vehicles. In such cases, gentle heating with a torch can help expand the bolt, making it easier to remove. Be cautious not to overheat the aluminium housing, as this could cause warping. If a bolt head strips, a chisel and hammer can be used carefully to turn it counter-clockwise, but this should be a last resort.

Important Consideration: When reassembling, applying a small amount of anti-seize compound to the threads of these bolts can prevent future seizing issues.

Step 7: Removing the Oil Filter Housing and Gaskets

With all the bolts removed, carefully detach the oil filter housing from the cylinder head. Be prepared for more oil and coolant to spill out. You may wish to remove the upper radiator hose before fully unfastening the housing to allow for easier cleaning outside the engine bay. However, for speed, you can simply move it aside and clean everything later. Use a right-angle pick or a suitable tool to carefully remove the old gasket from the front of the oil filter housing. There are typically two gaskets that need replacing: one on the front of the housing (for the oil cooler) and the main gasket where the housing meets the cylinder head.

Step 8: Cleaning the Mating Surfaces

Thorough cleaning is essential for a proper seal. Use brake cleaner to remove all traces of oil and gunk from the oil filter housing and the cylinder head where the housing mounts. For stubborn deposits, a mixture of detergent and water, followed by a brush and then brake cleaner, can be effective. Ensure both surfaces are completely clean and dry before installing the new gaskets.

Step 9: Installing New Gaskets and Reassembly

Install the new gaskets onto the oil filter housing. Ensure they are seated correctly and securely. Re-attach the oil filter housing to the cylinder head, tightening the bolts to the manufacturer's specified torque. Do not over-tighten, as this can warp the aluminium housing. Reinstall the oil cooler, tightening its three Torx E12 bolts evenly. Re-position the intake manifold and secure its 11MM nuts. Finally, re-install the airbox, air duct, and engine cover in the reverse order of removal.

Step 10: Final Clean-up and Checks

Clean up any residual oil spills in the engine bay. Remember that any cleaner you used will likely drip down, so you may need to lift the car and clean the underside as well. Start the engine and check carefully for any leaks. Monitor the oil level and top up if necessary. Congratulations, you've successfully replaced your oil filter housing gasket!

Frequently Asked Questions

Performing this maintenance yourself is a rewarding experience that not only saves money but also deepens your understanding of your BMW. By following these detailed steps, you can confidently address this common oil leak issue and ensure your X3 continues to provide reliable performance.

Thank you for reading, and happy motoring!
