Lifting Your L322: A Comprehensive Guide

The Land Rover L322, a hallmark of luxury and off-road capability, presents a unique challenge when it comes to lifting it for maintenance or repairs. Unlike conventional vehicles, the L322 is equipped with an Electronic Air Suspension (EAS) system. This sophisticated system manages ride height and comfort, but it can also complicate the simple act of jacking the vehicle. Understanding how the EAS works and following specific procedures is crucial to avoid damaging the system or creating an unstable lifting situation. This guide will walk you through the essential steps and considerations for safely and effectively lifting your L322.

Understanding the EAS System's Reaction to Lifting

The primary concern when jacking an L322 is the EAS system's automatic response. When a wheel is lifted off the ground, the system detects a change in vehicle height. Its primary function is to maintain a level and stable ride. Therefore, it will attempt to compensate for the lifted wheel. This can manifest in several ways:

• Air Bag Expansion: As you jack the vehicle, the air spring (air bag) on the lifted corner will naturally expand, but it will not be filled with air by the compressor. You will still need to lift the suspension to its full travel to get the wheel clear of the ground.
• System Misinterpretation: If the vehicle's doors or tailgate are opened while it's being jacked, the EAS system may interpret this as a manual adjustment attempt. It might try to deflate the air bag on the lifted corner to lower the vehicle, or conversely, inflate other air springs to try and level the vehicle. This can lead to an unstable situation where the car appears to be moving or "boinging" as the system attempts to re-level itself.
• Fault Codes: If the EAS system cannot achieve a level state or detects an anomaly it cannot rectify, it will likely trigger a fault code. This often results in an EAS warning light illuminating on the dashboard, indicating a potential issue that needs attention.

The Importance of Disconnecting the Battery

To prevent the EAS system from interfering with your work, a common and effective method is to temporarily disable it by disconnecting the battery. This effectively "resets" the system's awareness of the vehicle's current state. However, simply disconnecting the battery is not enough. The vehicle needs to be secured in a way that the ECU (Engine Control Unit) doesn't register the suspension anomaly. Here's the recommended procedure:

Step-by-Step Guide to Safely Lifting Your L322:

1. Prepare the Vehicle: Before you begin, ensure the vehicle is on a level surface. Engage the parking brake firmly. Chock the wheels that will remain on the ground to prevent any accidental rolling.

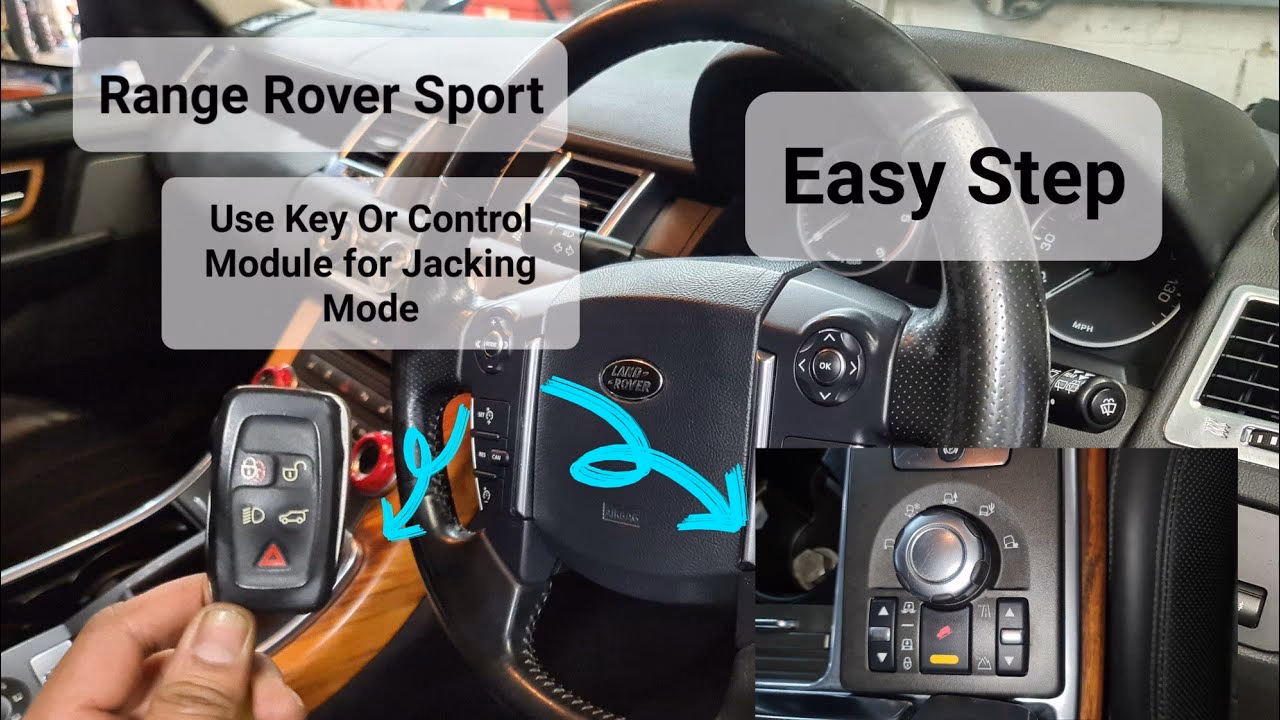

2. Raise Suspension to Maximum Height: For easier access and less effort in lifting the affected wheel, it is advisable to raise the vehicle's suspension to its maximum off-road height using the in-car controls. This gives you more clearance to work with.
3. Secure the Vehicle: Once you have reached the desired height and are ready to jack, it's time to prepare for disabling the EAS.
4. Lock All Doors and Tailgate: Using the central locking button on the console, ensure ALL doors and the tailgate are locked. This is a critical step.
5. Open the Driver's Door (Twice): Pull the driver's door handle twice. This action is specific to ensuring the internal locking mechanisms are disengaged from the central locking system for the next steps.
6. Open the Bonnet: With the driver's door ajar, open the bonnet.
7. Disconnect the Battery: Locate the vehicle's battery (usually in the boot or under the bonnet, depending on the model year). Disconnect the negative terminal first, followed by the positive terminal. Ensure the terminals cannot accidentally touch.
8. Close the Bonnet: Securely close the bonnet.
9. Lock the Driver's Door with the Key: Now, use the physical key (ensure it works in the lock!) to manually lock the driver's door. This locks the vehicle externally, and because the battery is disconnected, the ECU will not be aware of the open door or the subsequent jacking.
10. Position the Jack: Place your jack under the designated jacking point for the corner you intend to lift. Refer to your owner's manual for the precise jacking points.
11. Lift the Vehicle: Carefully operate the jack to lift the vehicle. Support the vehicle with sturdy axle stands at the appropriate jacking points for safety. Never rely solely on the jack.

What NOT to Do (Common Misconceptions)

There are several myths and incorrect practices that circulate regarding lifting L322s. It's important to debunk these:

• Opening the Tailgate: Some suggest opening the tailgate and turning on hazard lights. While hazard lights increase visibility, opening the tailgate does not lock the suspension or prevent the EAS system from reacting. This is a common misconception, possibly stemming from other vehicle models with different EAS implementations.
• Leaving Doors Open: Leaving any door or the tailgate open after disconnecting the battery can still lead to the EAS system detecting an anomaly when power is eventually restored, or if residual power is still present.
• Jacking on Lower Wishbone: While technically possible, jacking on the lower wishbone is generally not advised. It can put undue stress on suspension components and may not provide a stable lifting point. Always use the manufacturer-specified jacking points.

Lowering the Vehicle and Resetting the EAS

Once your maintenance is complete, the process of lowering the vehicle and resetting the EAS system is just as important:

1. Unlock the Vehicle: Before reconnecting the battery, unlock the driver's door using the key in the external door lock. Leave the door open.
2. Open the Bonnet: Open the bonnet to access the battery.
3. Reconnect the Battery: Reconnect the battery terminals, positive first, then negative. Ensure they are secure.
4. Lower the Vehicle: Carefully lower the vehicle off the jack stands using your jack. Remove the jack stands and the jack.
5. Start the Engine: Start the engine. The EAS system will likely report an error initially, and you might hear it "boing" and "moan" as it tries to re-establish its normal operating parameters.
6. Reset Steering Angle Sensor: Turn the steering wheel from full lock to full lock (left to right and back again). This action helps to reset the Steering Angle Sensor, which is often linked to the EAS and other systems like ABS and HDC.
7. Clear Warning Lights: After turning the steering lock to lock, the EAS failure warning, along with ABS and HDC warning lights, should clear. If they don't, a short drive might be necessary.
8. Allow the Suspension to Settle: Close the driver's door. The suspension will not fully settle to its normal driving height immediately. Due to the suspension geometry, it needs to be driven for approximately 100 yards for the system to properly calibrate and settle the vehicle.

Table: Common L322 Lifting Scenarios and Best Practices

Frequently Asked Questions (FAQ)

Q1: Do I really need to disconnect the battery?
A1: Yes, disconnecting the battery is the most reliable way to prevent the EAS system from interfering with the lifting process and potentially causing damage or instability. The specific procedure of locking the doors externally with the key after disconnecting the battery is crucial for the ECU not to register the fault.

Q2: What happens if I don't disconnect the battery?
A2: The EAS system will likely detect the change in ride height and attempt to compensate, leading to the vehicle "boinging" or moving unpredictably. This can make it unstable and may trigger fault codes that require clearing.

Q3: Can I just leave the doors unlocked when I disconnect the battery?
A3: No, it's essential to lock the vehicle externally using the key in the driver's door lock after disconnecting the battery. This ensures the ECU doesn't register the open door state and the subsequent suspension changes as a fault.

Q4: Why does my steering wheel need to be turned lock-to-lock?
A4: This action resets the Steering Angle Sensor, which is often interconnected with the EAS, ABS, and HDC systems. Resetting this sensor is usually required to clear related warning lights after the battery has been reconnected and the vehicle has been lowered.

Q5: How long does it take for the suspension to settle after reconnecting the battery?
A5: The suspension will not fully settle until the vehicle has been driven for a short distance, typically around 100 yards. The system needs to move to recalibrate itself to the normal driving height.

Conclusion

Lifting a Land Rover L322 requires a more nuanced approach than with many other vehicles due to its advanced EAS. By understanding the system's behaviour and meticulously following the procedure of disconnecting the battery, locking the vehicle correctly, and resetting the necessary sensors upon completion, you can ensure a safe and trouble-free lifting experience. Always prioritise safety, use appropriate jacking equipment, and refer to your vehicle's owner's manual for specific jacking points and procedures.
