L322 Brake Pad Replacement Guide

The Range Rover L322, a paragon of off-road capability and luxury, relies heavily on its braking system for safe operation, especially given its considerable mass. Replacing the brake pads is a fundamental maintenance task that, while achievable for the home mechanic, requires attention to detail and the right approach. This guide will walk you through the process, from preparation to the final test drive, ensuring you can tackle this job with confidence.

Essential Tools and Preparation

Before you begin, gather all the necessary tools and materials. Having everything to hand will streamline the process and prevent frustrating interruptions. You will need:

• New brake pads for your L322 (ensure they are the correct type for your specific model year).
• A suitable jack and axle stands.
• A lug wrench or socket set for your wheel nuts.
• A C-clamp or piston compression tool.
• A wire brush.
• Brake cleaner.
• Copper slip or brake lubricant.
• Gloves and eye protection.
• A torque wrench.
• A flathead screwdriver or pry bar.
• A container to catch brake fluid overflow (optional, but recommended).
• A clean cloth.

Crucially, ensure you are working on a level surface and have engaged the parking brake. It's also a good idea to chock the wheels that will remain on the ground for added safety. Locate your brake fluid reservoir and remove the lid. Place a clean cloth around the reservoir to catch any potential spills, as pushing back the brake pistons will displace fluid. You may need to top up the fluid level once the job is complete.

Step-by-Step Brake Pad Replacement

1. Removing the Wheel

Begin by loosening the lug nuts on the wheel you'll be working on while the vehicle is still on the ground. Then, use your jack to lift the vehicle to a height where you can safely place an axle stand beneath a secure jacking point. Lower the vehicle onto the axle stand and remove the lug nuts completely. Take off the wheel and set it aside.

2. Accessing the Brake Caliper

You will now see the brake caliper assembly covering the brake disc. The caliper is typically held in place by one or two bolts, often referred to as slider pins or guide bolts. These bolts may have dust caps covering them. Use the appropriate socket or wrench to remove these bolts. Once the bolts are out, you should be able to carefully split the caliper. You might need to gently pry it apart with a flathead screwdriver or pry bar. Be careful not to damage the rubber boots on the slider pins.

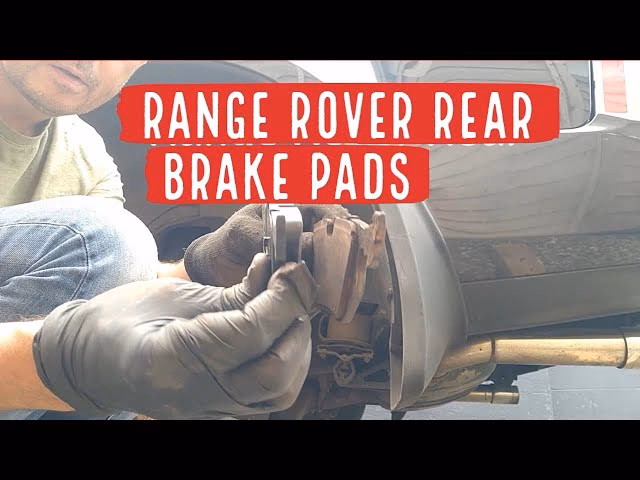

3. Removing Old Brake Pads

With the caliper split and opened, you can now remove the old brake pads. They usually slide out of their retaining clips within the caliper bracket. Note how the pads are seated, paying close attention to the position of any wear sensors. Many L322 models feature an electronic wear sensor, which is a small metal tab integrated into the brake pad. As the pad wears down, this sensor makes contact with the brake disc, completing a circuit and illuminating a warning light on your dashboard. You'll need to detach this sensor before you can fully remove the old pad.

4. Compressing the Brake Pistons

This is a critical step. The new brake pads are thicker than the worn ones, so you'll need to retract the brake caliper pistons to make room. You can use a dedicated brake piston compression tool for this, which is the safest and most effective method. Alternatively, a large set of sliding pliers can be used, but exercise caution to avoid damaging the piston or its seal. Slowly and steadily push the piston back into its bore. As you do this, monitor the brake fluid level in the reservoir to prevent overflow. If it gets too high, you may need to remove some fluid with a syringe.

5. Cleaning and Lubrication

Before fitting the new pads, thoroughly clean the caliper bracket and the areas where the pads will sit. Use a wire brush to remove any rust, dirt, or old pad material. Apply a thin layer of copper slip or brake lubricant to the contact points on the caliper bracket where the new pads will slide. This helps prevent sticking and reduces noise. Avoid getting lubricant on the friction material of the pads or the surface of the brake disc itself.

6. Installing New Brake Pads

Now, it's time to install the new brake pads. If your old pads had small metal shims attached to the back, and these are not supplied with your new pads, you must transfer them over. These shims are crucial for preventing brake squeal. Carefully slide the new pads into their designated slots in the caliper bracket. Ensure they are seated correctly and move freely. Attach the wear sensor to the new pad if it's a separate component, or ensure it's properly integrated if it's part of the pad assembly.

7. Reassembling the Caliper

Carefully swing the caliper back over the new pads and align it with the caliper bracket. Reinsert the slider pins and tighten them to the manufacturer's specified torque. If you removed the caliper completely, you'll need to reattach it to the bracket and torque those bolts as well. It's essential to use a torque wrench for these bolts to ensure they are tightened correctly and safely.

8. Refitting the Wheel and Lowering the Vehicle

Once the caliper is securely reassembled, refit the road wheel. Tighten the lug nuts by hand in a star pattern to ensure the wheel is seated evenly. Lower the vehicle off the axle stand and then firmly tighten the lug nuts with your lug wrench or torque wrench to the specified torque setting for your L322.

9. Pumping the Brakes and Final Checks

Before you drive the vehicle, you must pump the brake pedal several times. This action will push the caliper pistons back out, bringing them into contact with the new pads and restoring pedal feel. The pedal should feel firm. Check the brake fluid level in the reservoir and top up if necessary with the correct type of brake fluid. Ensure the reservoir cap is securely replaced.

Checking Brake Discs

While you have the wheels off, it's an opportune moment to inspect the condition of your brake discs. Look for signs of excessive wear, such as deep grooves, scoring, discolouration (blueing), or a noticeable lip on the outer edge. If the discs appear worn or damaged, it's highly recommended to replace them along with the brake pads. Purchasing a discs and pads set is often more cost-effective and ensures optimal braking performance.

Common Issues and Tips

• Squealing Brakes: This is often caused by the lack of anti-squeal shims or improper lubrication of the contact points. Ensure shims are transferred and a small amount of copper slip is used.
• Stiff Pistons: If the pistons are difficult to retract, it could indicate a problem with the caliper seals or the brake fluid. Clean the caliper and slider pins thoroughly. If the problem persists, the caliper may need rebuilding or replacing.
• Brake Fluid Overflow: Always monitor the fluid level and be prepared to remove excess fluid to prevent mess and potential damage to paintwork.
• Wear Sensor Malfunction: If the warning light is already on, the sensor might be faulty or the pads are already significantly worn. Replace the pads and sensor as a unit.

Frequently Asked Questions

Q1: How often should I replace my brake pads on an L322?

A1: The lifespan of brake pads varies greatly depending on driving style and conditions. A general guideline is to inspect them every 10,000-15,000 miles, and replacement may be needed every 20,000-40,000 miles.

Q2: Can I just replace the brake pads or do I need to replace the discs too?

A2: It's best practice to replace brake discs when they show signs of wear (grooving, thinning, blueing). If your discs are in good condition, you can just replace the pads. However, for optimal performance and longevity, replacing them as a set is often recommended.

Q3: What type of brake fluid does the L322 use?

A3: The Range Rover L322 typically uses DOT 4 brake fluid. Always check your owner's manual for the exact specification.

Q4: Do I need special tools to replace L322 brake pads?

A4: While not strictly essential, a brake piston compression tool is highly recommended for safely retracting the pistons. A torque wrench is also vital for correct reassembly.

Test Drive and Final Thoughts

Once everything is reassembled and the brake pedal feels firm, it's time for a cautious test drive. Start at low speeds in a safe area. Gently apply the brakes to ensure they are functioning correctly. Listen for any unusual noises and check for any pulling to one side. New brake pads require a bedding-in period, which usually involves a series of moderate stops from around 30-40 mph, gradually increasing speed and intensity. Avoid hard braking during the first few hundred miles to allow the pads and discs to mate properly. By following these steps, you can effectively replace the brake pads on your Range Rover L322, ensuring the continued safety and reliability of your vehicle.
