29/06/2015
When discussing the health and longevity of your beloved Range Rover Full Size L322, a common misconception often arises: does it need water? The simple answer, in the context of its mechanical systems, is no – not in the way one might think for a fluid system. Unlike the cooling system which relies on coolant (a water-based solution), the critical components we're focusing on today, such as the differentials, transfer case, and engine, operate on petroleum-based fluids. These fluids, much like any other consumable in your vehicle, are subject to degradation over time and through use. Ignoring their timely replacement can lead to significant wear, reduced performance, and ultimately, prohibitively costly repairs.
Understanding the vital role these fluids play is the first step towards proactive maintenance. Just as engine oil lubricates the intricate moving parts of your engine, specialised oils protect the gears within your differentials and transfer case. Over time, these petroleum-based fluids break down, losing their lubricating properties. Furthermore, and perhaps more critically, condensation can build up within these sealed units. Water ingress, even in minute quantities, into the differentials or the transfer case is highly detrimental. It can lead to corrosion, accelerated wear, and a complete breakdown of the components. This article will delve into the often-overlooked yet incredibly vital service of changing these essential fluids, ensuring your L322 continues to deliver the smooth, powerful performance it was designed for.
Understanding Your Range Rover's Vital Fluids
Your Range Rover L322 is a complex machine, and its performance relies heavily on a network of vital fluids, each serving a distinct purpose. Beyond engine oil, which most owners are familiar with, the differentials and the transfer case house their own specific lubricants. These components are integral to your vehicle's four-wheel-drive system, distributing power efficiently to all wheels. The oils within them are subjected to immense pressure and heat, especially during demanding driving conditions. This constant stress causes the oil to degrade, becoming less effective at reducing friction and dissipating heat. The result? Increased wear on gears, potential for overheating, and ultimately, component failure.
Moreover, the phenomenon of condensation is a silent saboteur. As temperatures fluctuate, moisture in the air inside these sealed units can condense into water droplets. This water mixes with the oil, forming an emulsion that significantly reduces the oil's lubricating capabilities. In the worst-case scenario, it can lead to rust and pitting on precision-engineered gears. Therefore, simply checking the fluid level isn't enough; regular replacement with fresh, high-quality fluid is paramount to maintaining the integrity and longevity of these critical driveline components.
The Often-Forgotten Differential and Transfer Case Service
While engine oil changes are part of a routine maintenance schedule for most drivers, the service for the differentials and transfer case is often overlooked or completely forgotten. This oversight can be incredibly detrimental to your Range Rover L322. Land Rover master technicians, like Doug, consistently highlight the importance of this service, recommending it be performed every 60,000 miles. This interval is not arbitrary; it's based on the expected lifespan and degradation rate of the fluids under typical operating conditions. Fresh fluids work wonders, not only for the immediate performance of your vehicle but also as a preventative measure against much more expensive repairs down the line. A clean, properly lubricated drivetrain ensures smoother power delivery and reduces strain on components.
Think of it as a hidden hero of your vehicle's reliability. The front differential, rear differential, and transfer case are constantly working to manage power distribution, especially crucial in a full-time four-wheel-drive vehicle like the L322. Neglecting their fluid changes means these hardworking components are operating with compromised lubrication, accelerating wear on gears, bearings, and seals. Signs of severely degraded fluid might include increased noise from the differentials or transfer case, a feeling of "lurching" or "jerking" during acceleration or deceleration, or a general lack of smoothness in the drivetrain. However, by the time these symptoms become apparent, significant wear may have already occurred. Proactive replacement at the recommended interval is the best defence.

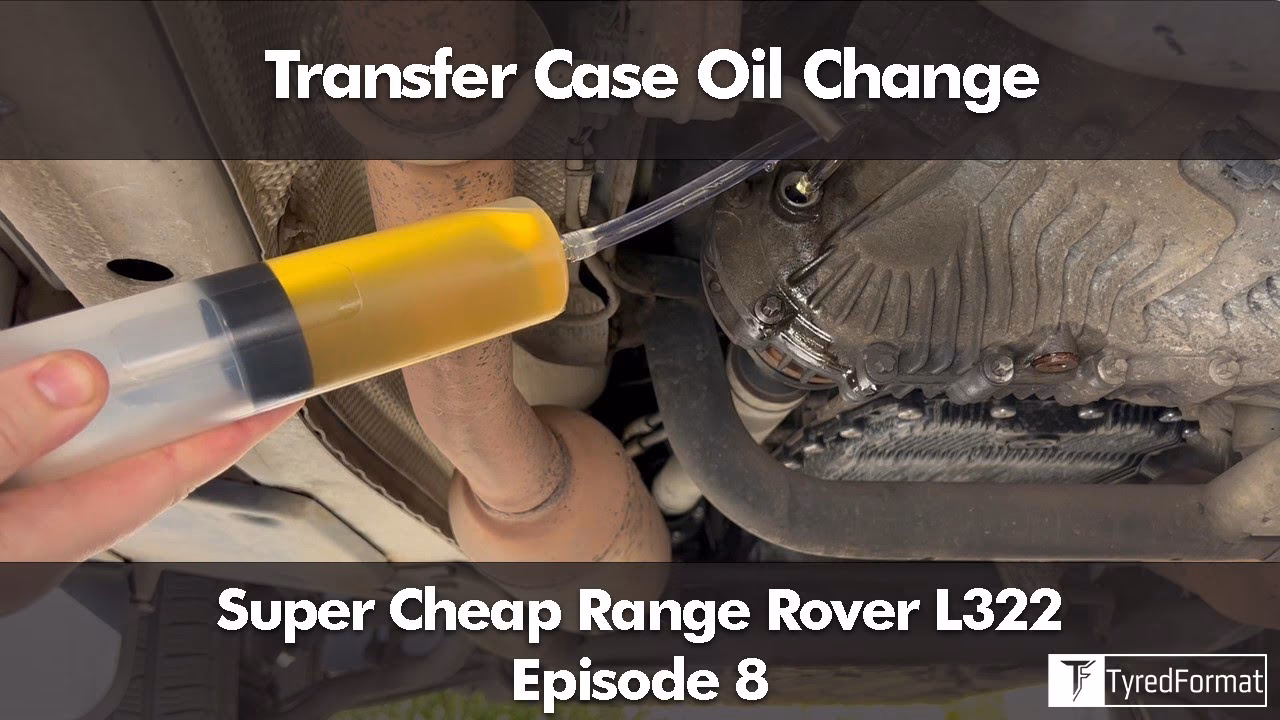

Performing the Differential and Transfer Case Oil Change
Changing the oil in your Range Rover L322's differentials and transfer case is a service that can be performed by a competent DIY mechanic, provided they have the right tools and knowledge. It involves accessing specific drain and fill points for each component. For the front and rear differentials, a 14mm socket is typically used for the drain plug, while a 6mm Allen key (or hex bit) is common for the fill plug. The transfer case will have its own specific drain and fill plugs, which are usually easily identifiable.
When performing this service, you'll observe the condition of the old oil. It's common for the fluid to appear very dark, even black, which indicates significant degradation and contamination. The drain plugs, particularly on the differentials, often have magnets designed to capture metallic wear particles. It's normal to see a certain amount of fine metallic sludge stuck to these magnets; however, excessive amounts or larger chunks could indicate more significant internal wear. Cleaning these magnets thoroughly before reinstallation is crucial.
The choice of new fluid is critical. For the transfer case, a 75W-90 full synthetic oil is generally recommended. For the front and rear differentials, the choice can vary. Some owners opt for 75W-140 synthetic, while others, particularly those in hotter climates like Arizona, prefer 85W-140. The higher '140' weight offers greater protection in extreme heat, which can be beneficial where road temperatures are consistently very high. The difference between limited slip and open differentials also plays a role in fluid choice, though most L322s will have open differentials. You can typically determine which type you have by jacking up the rear end and spinning one wheel: if the other wheel spins in the same direction, it's a limited slip; if it spins in the opposite direction, it's an open differential. Regardless of the exact type, selecting a high-quality, full synthetic gear oil appropriate for your climate and vehicle's specifications is paramount. After changing the fluids, many owners report a noticeably smoother driving experience with less jerking, affirming the positive impact of fresh lubricants.
Fluid Capacities and Types for Drivetrain Components
| Component | Recommended Fluid Type | Approximate Capacity | Typical Drain Plug Tool | Typical Fill Plug Tool | Service Interval |
|---|---|---|---|---|---|
| Front Differential | 85W-140 or 75W-140 Full Synthetic Gear Oil | ~1.0 - 1.2 litres | 14mm Socket | 6mm Hex/Allen | Every 60,000 miles |
| Rear Differential | 85W-140 or 75W-140 Full Synthetic Gear Oil | ~1.0 - 1.2 litres | 14mm Socket | 6mm Hex/Allen | Every 60,000 miles |
| Transfer Case | 75W-90 Full Synthetic Gear Oil | ~1.5 - 1.7 litres | Specific Hex/Torx (varies) | Specific Hex/Torx (varies) | Every 60,000 miles |
Note: Always consult your Range Rover L322's owner's manual or a certified Land Rover technician for the most precise and up-to-date fluid specifications and capacities for your specific model year. Capacities listed are approximate and can vary slightly.
Engine Oil Service: A Fundamental Maintenance Task
Beyond the specialised fluids of the drivetrain, the engine oil change remains the cornerstone of routine maintenance for your Range Rover L322. This is a fairly straightforward process, but attention to detail is crucial. Here's a general outline of the steps:
- Prepare the Vehicle: Start by raising the vehicle to its 'Off-Road Height' setting to gain sufficient clearance for working underneath. Ensure the vehicle is on a level surface and securely supported with jack stands if you are not using a lift.
- Access the Drain Plug: Locate and remove the forward skid plate, which is typically secured by 5-10 x 10mm bolts. This will expose the oil pan and drain plug.
- Drain the Old Oil: Loosen the oil filler cap on top of the engine. This helps the oil drain more freely. Place a suitable oil drain pan beneath the oil drain plug (typically a 13mm bolt) and carefully remove the plug. Allow ample time for all the old oil to drain out completely.
- Replace the Oil Filter: While the oil is draining, locate the oil filter housing. This usually requires a 90mm oil filter cap wrench to loosen. Remove the old filter element and replace it with a new one, ensuring you apply a thin coat of new oil to all the new O-rings before installing them. Tighten the filter cap to the manufacturer's specified torque.
- Reinstall Drain Plug: Once the oil has finished draining, replace the crush washer on the oil drain plug with a new one. Reinstall the drain plug and tighten it to the correct torque specification.
- Refill with New Oil: Your Range Rover L322 (specifically the 4.4L BMW engine from 2003-2005) typically requires approximately 8.5 US quarts (or about 8 litres) of new engine oil. The recommended viscosity is 5W-30. While Range Rover historically recommended Castrol oil, the debate among enthusiasts about specific brands is ongoing. The key is to use a high-quality, full synthetic oil that meets or exceeds the manufacturer's specifications.
- Check Oil Level and Leaks: Start the engine and let it run for about 10 minutes to circulate the new oil. Turn the engine off and let it sit for another 10 minutes to allow the oil to settle. Check the oil service level on the vehicle's onboard display (as there is no traditional dipstick on these models). Also, visually inspect for any leaks around the drain plug and oil filter housing.
- Final Steps: Once satisfied, reinstall the skid plate. Finally, perhaps enjoy a well-deserved beverage!
Vacuum Oil Extraction Method
An alternative to draining the oil from the bottom is the vacuum extraction method. On the Range Rover L322, there's a smaller tube inside the main oil fill tube specifically designed for vacuum extraction. Since there isn't a traditional dipstick, this dedicated tube is the only way to use an extractor. This method can be cleaner and quicker as it avoids having to get under the vehicle and remove the skid plate. However, some argue that draining from the bottom is more thorough, as it allows any heavier sludge or particles to be flushed out with the oil via gravity. Both methods are viable, and the choice often comes down to personal preference and available equipment.
Why Regular Fluid Checks are Non-Negotiable
In conclusion, while your Range Rover Full Size L322 doesn't "need water" in its driveline components, it absolutely demands meticulous attention to its petroleum-based fluids. The degradation of differential oil, transfer case oil, and engine oil over time is an unavoidable reality. Condensation build-up, especially in the differentials and transfer case, poses a significant threat to the internal components, potentially leading to rust and accelerated wear. Proactive maintenance, adhering to the recommended service intervals of every 60,000 miles for the drivetrain fluids, and regular engine oil changes, is not merely a suggestion; it is a critical investment in your vehicle's future.
Fresh fluids do much more than just lubricate; they cool, clean, and protect, ensuring the intricate mechanical parts operate with minimal friction and maximum efficiency. Neglecting these services can lead to a domino effect of issues, culminating in substantial repair bills that could have been easily avoided. By prioritising these fluid changes, you're not just maintaining a vehicle; you're safeguarding a significant asset, ensuring its continued reliability and enjoyment for many years and miles to come. Don't wait for symptoms to appear; be proactive, and your Range Rover L322 will reward you with the robust performance and luxurious ride it's renowned for.
Frequently Asked Questions About L322 Fluid Maintenance
- How often should I change my differential and transfer case fluids?
- It is strongly recommended to change the differential and transfer case fluids every 60,000 miles. This interval helps ensure that the fluids remain effective and prevents degradation that can lead to costly component wear.
- What type of oil should I use for my Range Rover L322 differentials?
- For differentials, a high-quality full synthetic gear oil is crucial. Common recommendations include 75W-140 or 85W-140. The 85W-140 is often preferred in very hot climates for its enhanced protection. For the transfer case, a 75W-90 full synthetic gear oil is typically specified.
- Is a vacuum oil change method better than draining for an L322?
- Both methods are viable for engine oil changes. The vacuum method, utilising the dedicated tube within the oil fill, can be cleaner and quicker as it avoids working under the vehicle. However, some mechanics prefer draining from the bottom as it may help flush out more sediment. The choice often comes down to personal preference and available equipment.
- What are the signs that my differential fluid needs changing?
- While it's best to change fluids proactively at recommended intervals, signs of severely degraded differential fluid can include increased noise (whining or humming) from the differentials, a feeling of 'lurching' or 'jerking' during acceleration or deceleration, or excessive metallic sludge on the drain plug magnet during inspection.
- Can I perform these fluid changes myself?
- For individuals with mechanical aptitude and the correct tools (e.g., specific sockets, torque wrenches, drain pans), performing differential, transfer case, and engine oil changes is achievable. However, if you are unsure or lack confidence, it is always best to consult a certified Land Rover technician to ensure the service is performed correctly and safely.
