The Enduring Legacy of the Range Rover L322

The Range Rover L322 stands as a monumental figure in the history of luxury SUVs, a vehicle that masterfully blended unparalleled off-road prowess with the sumptuous comfort and sophisticated technology expected of a premium saloon. Often simply referred to as 'the Range Rover' during its decade-long production run, this third-generation model carved out a significant niche, becoming a favourite among enthusiasts and critics alike, including Jeremy Clarkson who famously hailed it as 'the best car in the world and best 4x4.'

What is the Range Rover L322?

The Range Rover L322 is the third iteration of Land Rover's flagship luxury SUV, produced from 2001 to 2012. Initially conceived under the codename 'L30' and developed during BMW's ownership of Land Rover, it was designed to be a significant leap forward from its predecessor, the P38A. The L322 brought a new level of refinement, technology, and capability to the Range Rover badge, solidifying its reputation as a true luxury off-roader. Despite BMW selling Land Rover to Ford just before its commercial launch, the L322 retained many BMW-engineered components, particularly in its early models, before transitioning to Ford/Jaguar systems.

The Genesis of an Icon: Development History

The journey of the L322 began in the mid-1990s, shortly after BMW acquired the Rover Group. Recognising the P38A's limitations and outdated underpinnings, BMW management at Land Rover quickly prioritised an all-new Range Rover. The project, initially known as L30, was a collaborative effort between Rover Group and BMW engineers, with its early stages based at BMW's FIZ Engineering Centre in Munich. This location was chosen due to capacity constraints at Rover Group's Gaydon facility, which was already heavily involved in other projects like the new MINI (R50).

The development aimed to integrate BMW's robust engineering, sharing components and systems such as electronics and core power units, particularly with the E38 7 Series. However, a pivotal moment occurred when BMW sold Land Rover to Ford in 2000, just two years before the L322 commenced commercial production. The sales contract, fortunately, included a clause ensuring BMW's continued association until after the vehicle entered volume production. Following the sale to Ford, the internal codenaming system shifted, and L30 was re-designated as L322, placing it at the pinnacle of a new model range that included the Range Rover Sport (L320), Land Rover Discovery (L319), and Freelander (L314).

Design & Initial Features (2002-2005)

Upon its initial release as a 2003 model in North America, the Range Rover L322 set new benchmarks. It featured a cantilever construction design complemented by a sophisticated four-wheel autonomous air suspension system. This innovative air suspension allowed for variable ride height, ensuring both formidable off-road axle articulation and significantly enhanced on-road performance, a combination that few rivals could match at the time. The L322 was among the first SUVs in its class to offer such a comprehensive independent suspension setup.

Inside, the L322 was a sanctuary of luxury and technology. Early models boasted a tri-zone climate control system, a power-tilt leather-wrapped steering wheel with integrated radio controls, and a memory system for driver settings. Occupants enjoyed plush seating, with the driver benefiting from a 12-way power-adjustable seat and the front passenger a 10-way adjustable one. Standard features included cruise control, a power sunroof, a premium sound system with a six-disc CD changer, a navigation system with voice recognition, a rear-view camera, and even a wireless mobile phone connection. Optional extras further elevated the experience, such as 14-way power heated/cooled front seats, a DVD theatre system, and advanced leather upholstery.

Evolution & Facelifts

2006 Updates

The L322 underwent its first significant exterior modernisation in 2006. Crucially, the BMW V8 engines were replaced with Jaguar units, offering new options: a 4.4-litre V8 producing 300 hp (220 kW) and a formidable 4.2-litre supercharged V8 delivering 400 hp (300 kW). These aluminium alloy engines featured an innovative torque-based management system, drive-by-wire throttle, and adjustable camshaft phasing on the 4.4-litre version.

The infotainment system received a major overhaul, introducing a touch screen with integrated on- and off-road navigation, satellite radio (in the US), phone connectivity, and a rear-view camera, all accessible through a unified user interface. This system relied on industry-standard fibre optic networks like MOST (Media Oriented Systems Transport) and a CAN bus electronic network, technologies also found in the Land Rover Discovery and Range Rover Sport. The audio system, co-developed with Harman Kardon, was particularly noteworthy, offering a 720 Watt, 14-speaker setup and pioneering the use of the Logic 7 surround algorithm in an OEM vehicle.

2007 Enhancements

For the 2007 model year, most of the L322's alterations were mechanical or interior-focused. The exterior saw a subtle C-pillar glass facelift, mirroring the design of the Range Rover Sport. Inside, practicality improvements were made, such as replacing the cumbersome folding cup holder with a more robust in-console design. The ignition switch was repositioned to the dashboard, next to the steering wheel, and perhaps most significantly, the L322 gained the acclaimed Terrain Response system from the Range Rover Sport / LR3, alongside a remodelled four-wheel-drive control panel. The handbrake also became electronic. Seat designs were updated, and the HVAC system was upgraded for quieter operation and better airflow, complemented by an acoustic laminated windscreen to reduce noise. Interior space was enhanced with a new split-dual glove box, and more wood inserts were added to the centre console and doors. Midway through the 2007 production, the key design also transitioned from the BMW style to Land Rover's distinctive 'switchblade' type.

A crucial engine change also occurred in 2007: the BMW M57 diesel engine was superseded by the much-anticipated 3.6-litre TDV8 engine, developed by Ford and Land Rover. This AJD-V8 32-valve twin-turbo V8 produced a robust 272 hp (203 kW), a significant increase from the previous 177 hp (132 kW). This power allowed the hefty vehicle to achieve 0-60 mph in a respectable 8.6 seconds and reach a top speed of 124 mph, impressive for a car weighing nearly 2.7 tons. Torque was a substantial 472 lb/ft (640Nm) at 2,000 rpm. Further mechanical improvements for 2007 included modified suspension and better brakes, with supercharged Range Rovers featuring an electronic rear differential, an optional extra on other models.

2010-2012 Modernisation

The final refresh for the L322 arrived for the 2010 model year, unveiled at the 2009 New York Auto Show. This facelift brought a new exterior grille, updated LED head/tail lights, redesigned bumpers, and a sophisticated multi-camera vision system. Under the bonnet, two brand-new engines were introduced: a 5.0-litre naturally aspirated V8 and a potent 5.0-litre supercharged V8.

The interior received a subtle but impactful revamp, with much of the switchgear reshaped and repositioned, updating many BMW-era designed items. A key technological advancement was the adoption of new visual display units, similar to those seen in the new Jaguar XJ (X351). This included a 12-inch TFT LCD virtual instrument panel, replacing the traditional analogue gauges. This innovative display could present various information, from navigation maps to engine readouts, and even reconfigure itself to show vehicle suspension, transmission, and steering graphics when off-road driving modes were selected. Furthermore, a bi-directional screen on the centre console allowed the driver to view navigation information while a front passenger could simultaneously use the same screen for the on-board DVD player. The advanced multi-camera system provided the driver with multiple views and overlays for easier manoeuvring.

The 2011 Range Rover models saw minor design tweaks, enhanced interiors, and an improved 4x4 system. A new 4.4-litre TDV8 diesel engine became available, paired with a new ZF 8HP70 eight-speed automatic transmission. These models also featured upgraded leather and wood finishes, along with reclining rear seats equipped with winged headrests. A top-tier Autobiography Black model was introduced, boasting a distinct grille, exclusive Barolo Black paintwork, and unique Jet/Ivory or Jet/Pimento interior options.

Engines of the L322 Era

The Range Rover L322 offered a diverse range of engines throughout its production, each contributing to its reputation for effortless performance and refinement. From powerful petrol V8s to robust diesel units, there was an option to suit every need. Below is a comprehensive overview of the engines fitted to the L322:

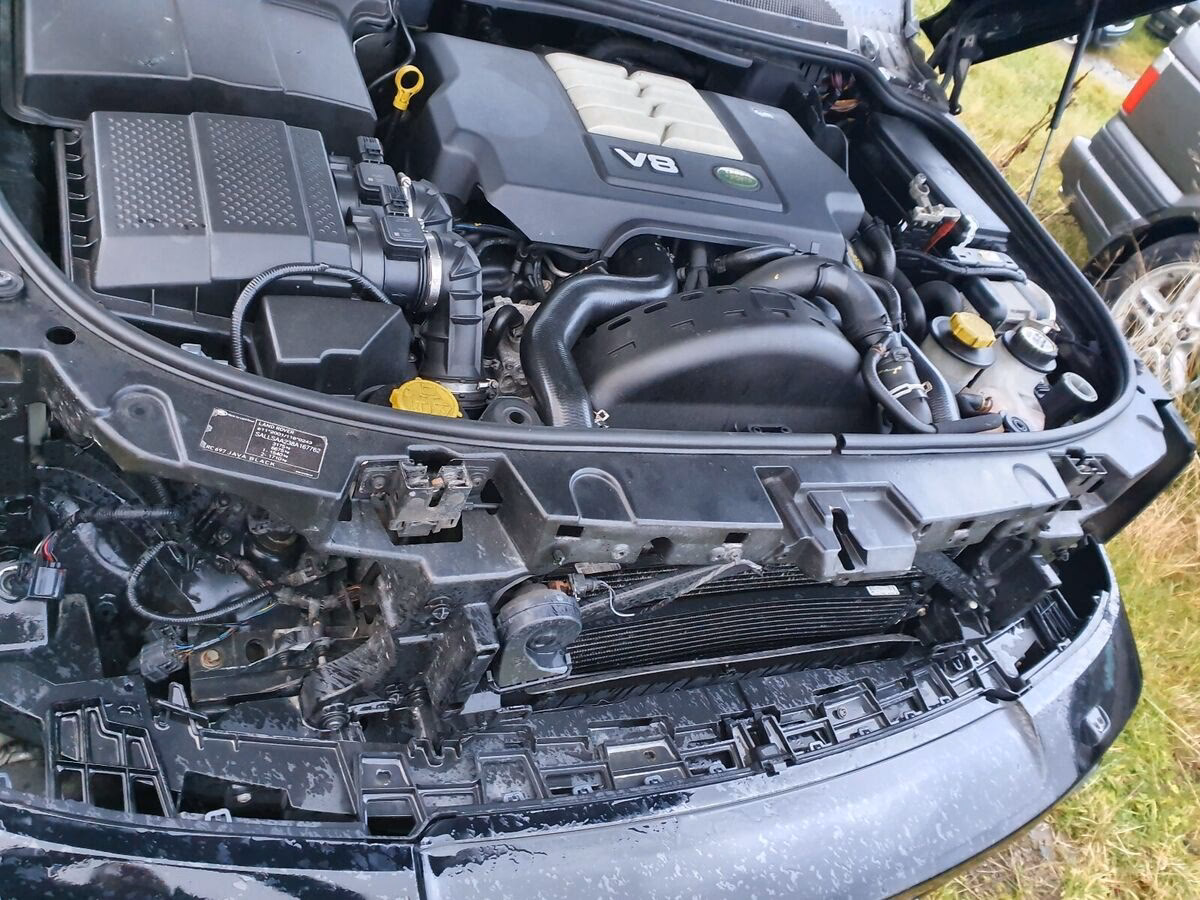

Spotlight on the 3.6L TDV8 Engine

The 3.6L TDV8 diesel engine, codenamed AJD-V8 or 368DT, was a significant addition to the Range Rover L322 lineup from 2007 to 2010. Part of the Ford Lion engine family, this V8 unit was specifically designed to provide robust power and torque for the demanding Range Rover and Range Rover Sport applications. Its block is constructed from compacted graphite iron, helping to reduce weight for its substantial size and capacity, while the DOHC cylinder heads are crafted from high-strength aluminium, featuring four valves per cylinder. A key differentiating factor from its V6 counterpart, the 2.7L TDV6, is its use of a timing chain rather than a timing belt, generally implying less maintenance in that area. The engine is also air-to-air intercooled and utilises a common-rail injection system with Piezo injectors, capable of a maximum injection pressure of 23,900 psi.

3.6L TDV8 Engine Specifications

Common Issues & How to Spot Them with the 3.6L TDV8

While the 3.6L TDV8 is a powerful and capable engine, like any complex piece of machinery, it has known vulnerabilities that owners should be aware of. Early detection of these issues can significantly reduce repair costs and prevent catastrophic failure.

Engine Misfiring Problem

One of the most concerning issues reported with the 3.6L TDV8 is engine misfiring. Tell-tale signs include a noticeable knocking noise from the engine, a significant lack of power, and unusual smoke from the exhaust. Due to the immense torque produced by this V8 diesel, drivers might initially ignore these symptoms, as the vehicle may still seem to operate, albeit poorly. However, continuing to drive a misfiring engine can lead to severe internal damage. Common consequences include bent connecting rods and scoring of the cylinder walls. In the most extreme cases, the connecting rods can even snap, potentially punching holes through the engine block or crankcase, rendering the engine beyond economical repair. It is absolutely critical not to ignore these early warning signs; address them immediately.

Turbo-Related Problems

Another prevalent issue revolves around the turbochargers. The turbos are prone to wear, which can lead to oil leakage. Given the large oil sump capacity (nearly 9 litres), a gradual decrease in oil level due to turbo leakage might be hard to spot, and less experienced mechanics might simply top up the oil without investigating the root cause. Over time, this leaking oil accumulates in the intercoolers. Once the oil level in the intercoolers becomes sufficiently high, a surge of oil can flow into the engine's inlet manifold and subsequently into the combustion chambers. This phenomenon, known as hydro-lock, occurs because oil, unlike fuel or air, is incompressible. When the pistons attempt to move upwards against this incompressible oil, the immense pressure can cause the connecting rods to bend or even snap. This is similar to the damage caused by water ingress in a flooded engine. Again, prompt attention to any signs of excessive oil consumption or turbo noise is vital to prevent costly engine rebuilds or replacements.

Exclusive Editions

Beyond its standard trim levels (SE, HSE, Vogue), the L322 was also celebrated with several exclusive and limited-edition models, catering to the most discerning of clientele:

• 20th Anniversary Edition: Produced to mark 20 years of Range Rover in North America, only 40 units were made. Each was a supercharged model, finished in a unique pearl white paint, featuring diamond split-spoke 20-inch wheels and a distinctive two-tone interior. Numbered badges denoted its exclusivity.
• 35th Anniversary Edition: A UK-specific production run of 35 cars, adorned in elegant Claret coachwork with matching two-tone claret/jet interiors. These were based on the Vogue SE specification and powered by the 4.2-litre supercharged 400 bhp Jaguar V8 engine.
• Armoured Range Rover: Developed in 2007 by Land Rover Special Vehicles in collaboration with Armour Holdings Group, this variant offered European B6 ballistic protection. Key features included uprated suspension, enhanced handling and braking systems, side-blast and under-floor grenade protection, and wheels fitted with run-flat tyre systems. Optional security features such as tinted windows, anti-tamper exhaust, and an intercom system were also available.
• Autobiography Ultimate Edition: A pinnacle of luxury, this special edition was crafted entirely by Land Rover. While sharing the standard Autobiography front, it featured more extensive wood finishes and unique trim pieces. The rear cabin was transformed into a mobile executive suite, equipped with a pair of iPads, electric reclining climate-controlled seats, a fixed armrest with a metal laptop desk, and a refrigerator. Available in two distinct colours with 20-inch wheels, smoked grills and gills, and body-coloured door handles, only 500 units were ever manufactured, making it a truly exclusive model.

Frequently Asked Questions (FAQs)

Q: What does L322 stand for?

A: L322 is the internal codename used by Land Rover to designate the third-generation Range Rover model. It was originally codenamed L30 during its development under BMW ownership, but the designation was updated to L322 after Land Rover was sold to Ford, aligning it with a new series of vehicle project codes.

Q: How long was the Range Rover L322 in production?

A: The Range Rover L322 was in production for over a decade, from 2001 until 2012, when it was succeeded by the L405 model.

Q: What engines were available in the Range Rover L322?

A: The L322 featured a variety of engines throughout its lifespan. Early models (2002-2005) primarily used BMW engines, including a 4.4L V8 petrol and a 3.0L Td6 diesel. From 2005 onwards, it transitioned to Jaguar-derived petrol engines (4.2L supercharged V8 and 4.4L V8). Diesel options evolved from the BMW Td6 to the 3.6L TDV8 (2006-2010) and later the 4.4L TDV8 (2010-2012). The final facelift models (2009-2012) also introduced new 5.0L normally aspirated and supercharged V8 petrol engines.

Q: Does the L322 have air suspension?

A: Yes, all Range Rover L322 models came equipped with a four-wheel autonomous air suspension system. This system allowed for variable ride height, enhancing both its legendary off-road capability and its on-road comfort and handling.

Q: Is the Range Rover L322 reliable?

A: The L322's reliability can vary greatly depending on its maintenance history and the specific model year and engine. While known for its robust build and capabilities, some common issues, particularly with the air suspension, electronics, and certain engine variants (like the 3.6L TDV8's turbo-related problems), can arise if not properly maintained. Regular, thorough servicing is essential for its longevity.

Q: What is Terrain Response on the L322?

A: Terrain Response is Land Rover's proprietary system that optimises the vehicle's settings (engine, gearbox, suspension, differentials, and traction control) for various driving conditions. It was introduced to the Range Rover L322 as part of the 2007 model year enhancements, having first appeared on the Range Rover Sport and Discovery 3.

Conclusion

The Range Rover L322 remains a testament to Land Rover's commitment to luxury and capability. Its journey from BMW's drawing board to Ford's production lines is a fascinating tale of automotive evolution. With its sophisticated design, advanced features for its time, and a range of powerful engines, including the notable 3.6L TDV8, the L322 solidified its place as a true automotive icon. While owning an L322 today demands diligent maintenance, its enduring appeal, commanding presence, and remarkable versatility ensure it continues to be a highly sought-after vehicle for those who appreciate the finer things in life, both on and off the beaten track. Its legacy continues to influence the design and engineering of modern luxury SUVs.
