Suzuki KZ 400/440: Lubrication Guide

The Lifeline of Your Classic Ride: A Deep Dive into Suzuki KZ 400/440 Lubrication

Owning a classic motorcycle like the Suzuki KZ 400 or KZ 440 is a rewarding experience, but it comes with the responsibility of proper care. One of the most crucial aspects of this care is lubrication. Without the right lubrication, these iconic machines, known for their reliability and smooth parallel-twin engines, will quickly fall into disrepair, leading to costly damage and a diminished riding experience. This guide will walk you through everything you need to know to keep your KZ 400 or KZ 440 properly lubricated, ensuring it continues to perform admirably for years to come.

Why is Lubrication So Important?

At its core, lubrication is about reducing friction. In any internal combustion engine, moving parts are constantly sliding and rotating against each other. Without a lubricating film, this metal-on-metal contact would generate immense heat and wear, rapidly destroying critical components. For your Suzuki KZ 400/440, this means protecting:

• Engine Internals: Pistons, crankshaft, connecting rods, camshafts, valves, and gears all rely on oil to create a protective barrier.
• Clutch: The clutch plates need to engage and disengage smoothly, which is facilitated by the correct type and amount of oil.
• Transmission: Gears within the gearbox are constantly meshing and require lubrication to prevent grinding and premature wear.
• Cables and Linkages: Beyond the engine, essential control cables (throttle, clutch, brake) and suspension linkages need periodic lubrication to operate freely.
• Drive Chain: The final drive chain is a high-stress component that requires regular cleaning and lubrication to prevent stretching, corrosion, and eventual failure.

Proper lubrication not only prevents wear but also helps to dissipate heat, keep components clean by suspending contaminants, and prevent corrosion. It is, quite literally, the lifeblood of your motorcycle.

Engine Oil: The Heart of the Matter

The most critical lubrication point is the engine oil. The KZ 400 and KZ 440 models typically utilise a wet clutch system, meaning the clutch operates within the engine's oil bath. This dictates the type of oil you must use.

Choosing the Right Engine Oil

For your Suzuki KZ 400/440, you should always use motorcycle-specific oil that is JASO MA or JASO MA2 certified. These oils are formulated to be compatible with wet clutches and prevent slippage. Using automotive oil (which often contains friction modifiers) can cause your clutch to slip, leading to poor performance and potential damage. Viscosity: The recommended viscosity for these bikes is typically a 10W-40 or 20W-50, depending on the ambient temperature. Consult your owner's manual for the precise recommendation for your climate. A 10W-40 is generally suitable for a wider range of temperatures, while a 20W-50 might be preferred in very hot climates. Type: You have a choice between mineral, semi-synthetic, and fully synthetic oils. For a classic bike like the KZ 400/440, a good quality mineral or semi-synthetic oil is often perfectly adequate and cost-effective. Fully synthetic oils offer superior protection, especially under extreme conditions, but may not be strictly necessary for typical riding.

When to Change Your Engine Oil and Filter

Regular oil changes are paramount. The general recommendation is to change the oil and filter every 3,000 to 5,000 miles (5,000 to 8,000 kilometres) or once a year, whichever comes first. However, if your bike is subjected to frequent short trips, dusty conditions, or hard riding, more frequent changes might be beneficial. Oil Filter: Always replace the oil filter whenever you change the oil. The filter traps microscopic debris that circulates in the oil. A clogged filter restricts oil flow and reduces its effectiveness.

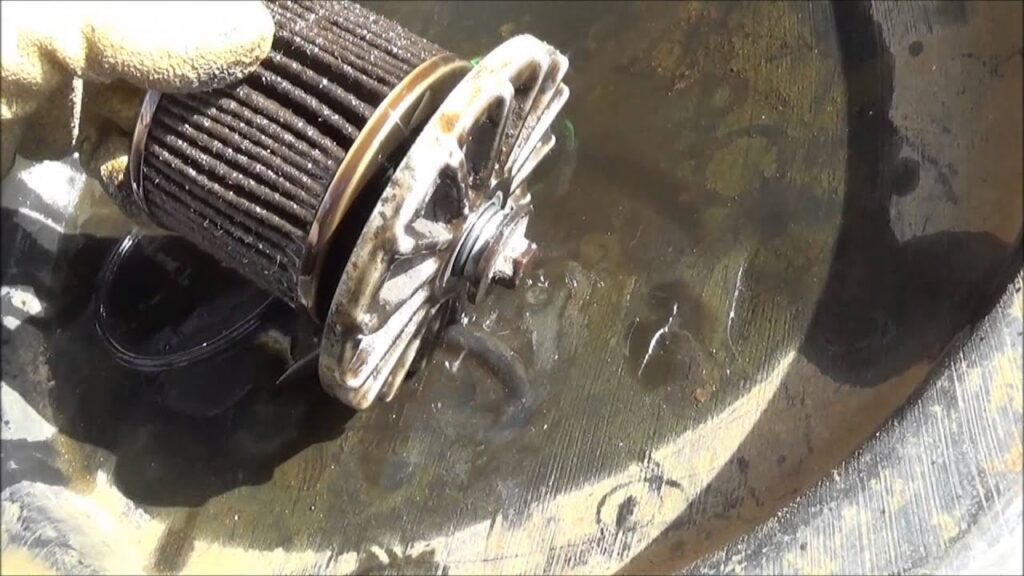

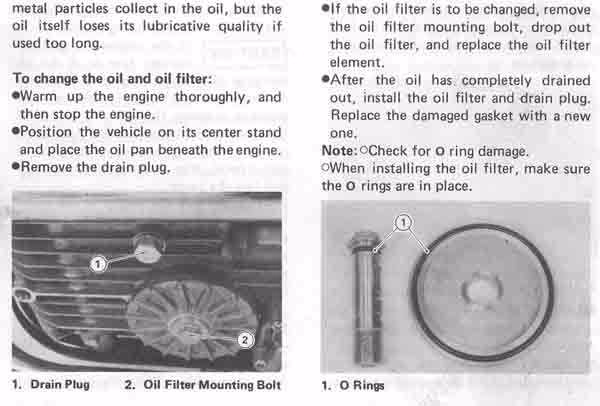

How to Change Your Engine Oil and Filter

This is a relatively straightforward DIY task. 1. Gather Supplies: You'll need new motorcycle oil (correct type and viscosity), a new oil filter, a wrench for the drain plug, a filter wrench, a drain pan, and rags. 2. Warm Up the Engine: Run the engine for a few minutes to warm the oil. Warm oil flows more easily, allowing more contaminants to be drained. 3. Locate and Remove the Drain Plug: Position the drain pan beneath the engine's oil drain plug. Use the appropriate wrench to loosen and remove the plug. Be careful, as the oil will be hot. 4. Drain the Oil: Allow all the old oil to drain completely into the pan. This may take several minutes. 5. Replace the Drain Plug: Once drained, clean the drain plug and its washer. Reinstall the plug and tighten it securely (do not overtighten). 6. Locate and Remove the Oil Filter: Position the drain pan under the oil filter. Use a filter wrench to unscrew the old filter. Some oil will spill out. 7. Prepare the New Filter: Before installing the new filter, apply a thin film of fresh oil to the rubber gasket on the new filter. This ensures a good seal and makes future removal easier. 8. Install the New Filter: Screw the new filter on by hand until the gasket contacts the engine casing. Then, tighten it an additional 3/4 to one full turn by hand, as per the filter manufacturer's instructions. 9. Refill with New Oil: Locate the oil filler cap on the engine. Remove it and use a funnel to add the correct amount of new oil. Refer to your owner's manual for the exact capacity. Do not overfill. 10. Check the Oil Level: Replace the filler cap. Start the engine and let it run for a minute or two. Check for any leaks around the drain plug and filter. Turn off the engine and wait a few minutes for the oil to settle. Check the oil level using the dipstick or sight glass (if applicable) and top up if necessary.

Gearbox Oil: Ensuring Smooth Shifting

While the engine oil lubricates many internal components, the gearbox often has a separate oil supply, although some designs may share oil. For the KZ 400/440, the transmission typically shares its oil with the engine. Therefore, maintaining the engine oil quality directly impacts the gearbox's health. However, it's worth noting that some older motorcycles might have a separate gearbox oil fill. If your specific model has a separate gearbox fill, consult your service manual for the correct oil type and capacity.

Lubricating Cables and Linkages: The Unsung Heroes

Don't overlook the smaller, yet vital, lubrication points. Smooth operation of your controls depends on well-lubricated cables and linkages. * Throttle Cables: These should be lubricated periodically to ensure the throttle snaps back quickly and operates smoothly. Use a light penetrating oil or a cable-specific lubricant. * Clutch Cable: Similar to the throttle cable, a lubricated clutch cable ensures smooth clutch operation. * Brake Cables (if applicable): Some older models might have brake cables that benefit from lubrication. * Lever Pivots: The pivot points for the brake and clutch levers can become stiff. A small dab of grease or a spray of lubricant will keep them operating smoothly. * Kickstand Pivot: A squeaky kickstand is easily remedied with a shot of lubricant. Apply lubricants sparingly to these areas. Too much can attract dirt and grime, creating a paste that hinders movement.

Drive Chain Lubrication: The Final Frontier

The drive chain is a critical component for transferring power from the engine to the rear wheel. Proper lubrication is essential for its longevity and your safety.

Cleaning the Chain

Before lubricating, the chain must be clean. Use a dedicated chain cleaner or a degreaser and a stiff brush to remove old grease, dirt, and grit. Rinse thoroughly with water and allow the chain to dry completely. A chain cleaning tool can make this process much easier.

Choosing the Right Chain Lube

There are various chain lubes available, including spray-on waxes, oils, and greases. For a classic bike like the KZ 400/440, a good quality motorcycle chain spray is usually the most convenient and effective option. * Spray Lube: These are easy to apply and penetrate well into the rollers and O-rings (if your chain has them). * Waxes: Offer good protection and attract less dirt but can be harder to apply evenly. Avoid using WD-40 as a primary chain lubricant. While it's excellent for cleaning and displacing water, it doesn't provide long-lasting lubrication and can actually strip away existing grease.

How to Lubricate the Chain

1. Support the Rear Wheel: Ensure the motorcycle is safely supported on its centre stand or a paddock stand so the rear wheel can spin freely.
2. Apply Lubricant: While slowly rotating the rear wheel backwards, spray or apply the lubricant to the inside of the chain, focusing on the rollers. Ensure an even coating across the entire length of the chain.
3. Wipe Off Excess: After applying, let the lubricant sit for a few minutes to penetrate. Then, use a clean rag to wipe off any excess lubricant from the outside of the chain. Excess lube on the outside will attract dirt and fling off onto the swingarm and rear tyre. Frequency: Lubricate your chain every 300-500 miles (500-800 kilometres), or more frequently if riding in wet or dusty conditions, or after washing the bike.

Suspension and Other Points

• Fork Oil: The front forks contain hydraulic oil that needs to be changed periodically. This is a more involved maintenance task, typically recommended every 10,000-15,000 miles (16,000-24,000 kilometres), or if the forks feel harsh or leaky. Consult a service manual for the correct procedure and oil type.
• Wheel Bearings: These are often sealed units, but if yours are accessible, they may require periodic greasing. Check your service manual.
• Swingarm Bearings: These can become dry and stiff, affecting suspension performance. They usually require periodic greasing. Accessing them often involves removing the rear wheel and shock absorbers.

Common Lubrication Issues and Solutions

Frequently Asked Questions (FAQs)

• Q: Can I use any motorcycle oil for my KZ 400/440?A: No, you must use motorcycle-specific oil that is JASO MA or JASO MA2 certified due to the wet clutch system.
• Q: How often should I check my engine oil level?A: It's good practice to check your oil level before every ride, or at least weekly.
• Q: Is it okay to mix different brands or types of oil?A: While it's generally best to stick to one type, if you must top up, ensure the viscosity and specifications are the same. However, a full oil and filter change is recommended soon after mixing.
• Q: My chain looks clean, do I still need to lube it?A: Yes. Even if it looks clean, the internal rollers and pins need lubrication to reduce friction and wear. Regular lubrication is key.
• Q: How tight should the oil filter be?A: Hand-tight is usually sufficient. Once the gasket contacts the mounting surface, tighten an additional 3/4 to 1 full turn. By diligently following these lubrication guidelines, you'll ensure your Suzuki KZ 400/440 remains a reliable and enjoyable machine to ride. Regular maintenance, including proper lubrication, is the cornerstone of preserving these classic Japanese motorcycles and the joy they bring. Happy riding!
