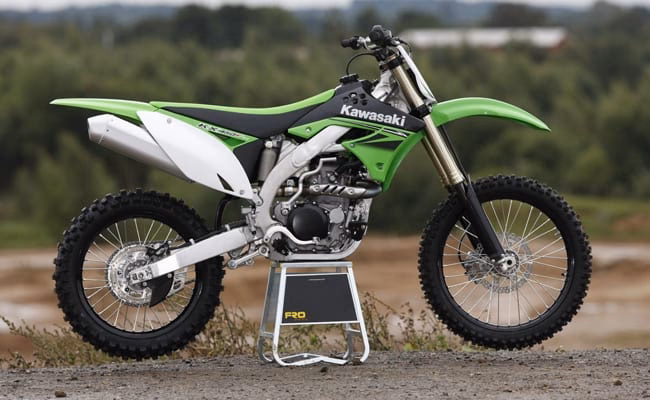

For enthusiasts of off-road prowess, the Kawasaki KX450F stands as a formidable machine, a true contender in the fiercely competitive world of motocross. Since its debut, this nearly half-litre powerhouse, driven by a 449cc liquid-cooled DOHC engine, has consistently pushed the boundaries of performance. However, a common question arises regarding its technological evolution, particularly concerning its fuel delivery system across different model years. Did the 2008 Kawasaki KX450F, for instance, feature electronic fuel injection, or was it a later innovation that truly propelled the bike into a new era of precision and power?
The Introduction of Electronic Fuel Injection
The journey of the Kawasaki KX450F began in 2005, though its retail introduction was famously postponed to the 2006 model year due to an unforeseen failure during the Japanese MX season. The early models quickly established a reputation for raw power, clinching significant titles such as the AMA World Supercross GP and BOOKoo Arenacross, as well as Hare and Hound championships. These initial iterations, from 2005 through to the 2008 model year, relied on traditional carburettor systems for fuel delivery. While robust and effective for their time, carburettors demanded more nuanced tuning for varying conditions and altitudes.
The significant leap forward in fuel management for the KX450F arrived with the 2009 model year. It was in this pivotal year that Kawasaki introduced a comprehensively redesigned motocross machine, boasting not only a new chassis and bodywork but, crucially, a brand-new electronic fuel injection (EFI) system. This marked a profound shift, offering riders more consistent power delivery, easier starting, and automatic compensation for changes in temperature and altitude. The 2009 KX450F, powered by its 449cc four-stroke liquid-cooled single-cylinder engine, delivered a formidable 56 hp at 8,500 rpm and 50 Nm (37 lb-ft) of torque at 7,000 rpm, showcasing the immediate benefits of the new EFI system.
Evolution Through Generations: A Brief Overview
The Kawasaki KX450F has seen several distinct generations, each bringing its own set of improvements and innovations. Understanding these generations helps to contextualise the technological advancements, particularly regarding the fuel system.
| Generation | Model Years | Key Fuel System | Notable Features |
|---|---|---|---|
| First | 2005-2008 | Carburettor | Initial debut, established dominance, raw power. |
| Second | 2009-2011 | Electronic Fuel Injection (EFI) | Major redesign: new chassis, bodywork, EFI introduced. |
| Third | 2012-2015 | EFI | Further refinements, continued competitive performance. |
| Fourth | 2016-2018 | EFI (Heavily Revised) | Significant ground-up redesign, lighter, more powerful, advanced EFI calibration. |
| Fifth | 2019-Present | EFI | Continued evolution, latest technologies. |
The Ground-Up Redesign of the 2016 KX450F
While the introduction of EFI in 2009 was a significant milestone, Kawasaki did not rest on its laurels. The 2016 KX450F represents one of the most comprehensive redesigns in the model's history, a testament to Kawasaki's relentless pursuit of perfection in the 450cc class. The goal was not just to win, but to dominate, and this meant scrutinising every component from the ground up.
Engine Enhancements: Power and Precision
Kawasaki engineers meticulously revised or redesigned almost every aspect of the 2016 KX450F engine to boost performance and reduce overall weight. The changes were extensive and aimed at creating a more efficient, responsive, and powerful powerplant.
- Intake System: The intake ports were redesigned and coated to enhance high-rpm performance. The intake cam timing was advanced by 2 degrees to improve low-rpm grunt, while the cam and cam sprocket were made 1.2 ounces lighter.
- Cylinder and Piston: The cylinder offset was moved 8.5mm forward, a clever design choice to reduce piston drag. A new crown design for the bridge-box piston, directly derived from factory race machines, matched the new intake valve shape and featured a 12.8:1 compression ratio.
- Crankshaft and Balancer: To complement the top-end changes, Kawasaki redesigned the crankshaft shape and its housing. The crankshaft balancer and drive gear shapes were also altered for improved performance and a total weight reduction of around 3 ounces between the two.
- Fuel Injection System Overhaul: The heart of the 2016 engine's efficiency was its refined fuel injection. Kawasaki's all-new 449cc engine was fed by a more compact Keihin throttle body, which eliminated the need for the throttle linkage used on the 2015 model. The fuel-injection settings were extensively revised, and the new fuel injector itself was 3.7mm shorter. Furthermore, the outer fuel-pump design was changed, allowing the gas-tank flange to be 6.9mm lower, contributing to an overall lower centre of gravity for the bike.
- Airbox and Exhaust: The airbox was completely redesigned, eliminating all steel parts for a weight saving of almost 9 ounces. This new design incorporated an under-seat air-intake channel, specifically located at the rear-seat/rear-fender junction, to improve engine performance and reduce intake noise. A new exhaust system featured an all-new header design with a resonator chamber, designed to improve low-end performance and further reduce sound emissions.
- DFI Couplers and Calibration: With all the changes to the powerplant, Kawasaki updated all three DFI couplers. These still came pre-programmed for standard, hard, or soft terrain, but now offered complete programmability with Kawasaki’s handheld FI calibration kit, allowing riders to fine-tune the engine's characteristics at the track without a laptop. The ECU retained the class-leading Launch Control feature and could store up to seven preset maps.
Chassis and Bodywork: Lighter, Slimmer, More Agile
The 2016 redesign wasn't limited to the engine. The frame and bodywork received equally significant attention, aiming for a lighter, narrower, and more agile machine without sacrificing stability.
- Frame: The aluminium perimeter frame was redesigned to reduce weight, improve handling, and narrow the cockpit. The perimeter spars were 6mm thinner than the 2015 model and shaved off 1 pound of weight. The subframe seat rails were thickened for increased durability.
- Swingarm: The alloy swingarm featured a cast front section and tapered hydro-formed spars with a raw-aluminium finish. This new design improved overall rigidity while enhancing rear-wheel traction, and it was 7.8 ounces lighter than the previous model.
- Styling: The 2016 model introduced all-new styling, giving the bike a more aggressive yet minimalistic look. The radiator shrouds and side panels became a single piece, flowing seamlessly down both sides. The rear fender featured air intake panels and a flatter profile. The top of the fuel tank was lowered, creating a flatter rider cockpit for easier movement on the bike. Aesthetic touches included green engine plugs, an oil filler cap, generator plug covers, blue suspension adjusters, an embossed logo on the clutch cover, and black alumite rims.
Suspension and Ergonomics: Refined Control
While the suspension components remained Showa, they received crucial revisions to complement the new chassis and enhance ride quality and adjustability.
- Showa SFF-AIR TAC Forks: The front suspension featured Showa's Separate Function Fork Triple Air Chamber (SFF-AIR TAC), based on the factory race team's version. These forks offered extensive adjustment, allowing the spring rate to be changed by adding or subtracting air in the main chamber. They received updated settings and Kashima coating for reduced internal friction.
- Showa Uni-Trak Rear Shock: In the rear, Kawasaki designed new linkage ratios to suit the new frame and swingarm. The Showa piggyback reservoir shock also received updated settings and Kashima coating. For 2016, Kawasaki opted for a softer rear spring (from 53 Nm to 52 Nm) for a plusher ride.
- Brakes and Adjustability: The 270mm pedal-style front rotor, upgraded in 2015, returned on the 2016 model, paired with a 240mm rear rotor and Nissin calipers, providing excellent stopping power and feel. Ergonomic adjustability was a key highlight, with four-way-adjustable handlebar mounts and dual-position footpeg options that could be lowered by 5mm, accommodating a wide range of rider sizes.
Addressing Common Rider Feedback
Despite the comprehensive redesign, the 2016 KX450F wasn't entirely perfect straight off the showroom floor, but its issues were largely manageable with the new calibration tools. One recurring issue reported by test riders was a deceleration pop when the bike became hot, especially with the standard FI setting. This could be mitigated by using the preset 'Torque' map for ignition and customising fuel delivery, adding fuel down low and gradually tapering it off.
For expert-level riders, the stock suspension settings, particularly the softer rear spring, could feel a little too plush, causing the bike to blow through its travel easily on big jumps and high-speed whoops. This was addressed by adjusting the air pressures in the SFF-TAC forks (moving to Kawasaki's recommended 'Hard' settings) and stiffening the shock action with high-speed and low-speed compression damping adjustments.
| Suspension Chamber | Kawasaki Standard Settings | Kawasaki Recommended Hard Settings |
|---|---|---|
| Inner Chamber | 174 psi (12 BAR) | 189 psi (13 BAR) |
| Balance Chamber | 203 psi (14 BAR) | 218 psi (15 BAR) |
| Outer Chamber | 14.5 psi (1 BAR) | 14.5 psi (1 BAR) |
Frequently Asked Questions
Q: Did the 2008 Kawasaki KX450F have electronic fuel injection?
A: No, the 2008 Kawasaki KX450F did not feature electronic fuel injection. Electronic fuel injection was first introduced on the Kawasaki KX450F with the 2009 model year, marking a significant technological upgrade from the carburettor system used in prior models.
Q: How has Kawasaki redesigned the 2016 KX450F engine?
A: The 2016 KX450F engine underwent a near-complete redesign. Key changes included redesigned and coated intake ports, advanced intake cam timing, lighter cams and sprockets, a forward-offset cylinder for reduced piston drag, a new bridged-box piston design, and a reshaped, lighter crankshaft. The fuel injection system was updated with a more compact throttle body, shorter injector, and a redesigned fuel pump allowing for a lower centre of gravity. The airbox was made lighter and more efficient, and the exhaust system featured a new header with a resonator. All DFI couplers were revised for enhanced programmability with the handheld FI calibration kit.
Q: What were the main goals of the 2016 KX450F redesign?
A: The primary goals for the 2016 redesign were to make the KX450F lighter, more powerful, and significantly improve its handling and rider ergonomics. Kawasaki aimed to build upon its past successes and reclaim dominance in the 450cc class by refining every aspect of the motorcycle.
Q: Is the 2016 KX450F's suspension highly adjustable?
A: Yes, the 2016 KX450F features highly adjustable Showa suspension components. The front Showa SFF-AIR TAC forks allow for spring rate changes via air pressure adjustments in three chambers, along with extensive compression and rebound damping settings. The rear Showa shock also offers multiple compression and rebound damping adjustments, along with spring preload. Kawasaki even supplies a digital air pump for precise fork adjustments.
Q: What was the overall reception of the 2016 KX450F?
A: The 2016 KX450F was largely well-received. Test riders praised its lighter feel, enhanced flickability, smooth and controllable power, and significantly improved steering precision. While some minor issues like deceleration popping and overly plush stock suspension settings were noted, these were largely correctable with the advanced FI calibration tools and suspension adjustments, making it a strong contender in its class.
Conclusion
The Kawasaki KX450F's journey from its carburetted origins to the highly refined, electronically fuel-injected machine of today is a compelling narrative of continuous innovation. The shift to EFI in 2009 was a crucial step, providing a foundation for more precise engine control. However, it was the extensive, ground-up redesign of the 2016 model that truly elevated the KX450F, making it lighter, more powerful, and significantly more agile. This commitment to improvement ensures that the KX450F remains a top-tier choice for motocross riders seeking peak performance and unparalleled adjustability on the track.
