Kawasaki KX450F: Oil Change Guide

Your Essential Guide to a Kawasaki KX450F Oil Change

Regular oil changes are the lifeblood of any high-performance motorcycle, and the Kawasaki KX450F is no exception. Keeping your KX450F’s engine lubricated with fresh oil is crucial for maintaining its power, longevity, and overall performance. Whether you’re a seasoned mechanic or tackling this task for the first time, this guide will walk you through the process step-by-step, ensuring your KX450F is ready to dominate the track or trail.

Why Regular Oil Changes Are Vital

Engine oil does more than just lubricate. It cools vital engine components, cleans away contaminants, and protects against wear. Over time, oil breaks down, loses its viscosity, and becomes laden with metal shavings and combustion by-products. Neglecting oil changes can lead to increased friction, overheating, premature wear of engine parts, and ultimately, costly repairs. For a machine as potent as the KX450F, adhering to a strict maintenance schedule, especially for oil changes, is paramount.

Gathering Your Tools and Supplies

Before you begin, ensure you have all the necessary items. This will make the process smoother and more efficient. You'll need:

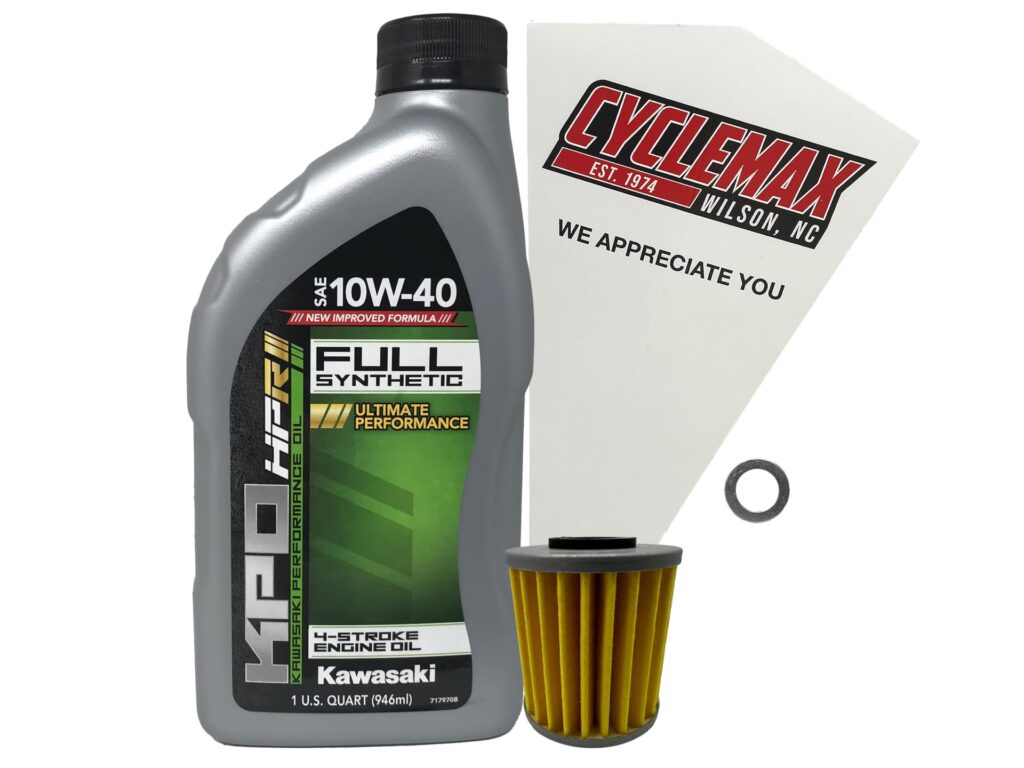

• New Engine Oil: Consult your KX450F owner’s manual for the recommended oil type and viscosity (e.g., 10W-40 is common, but always verify). You'll typically need around 1.3 quarts (approx. 1.2 litres).
• New Oil Filter: Ensure it's the correct filter for your KX450F model year.
• Drain Pan/Container: A container large enough to hold at least two quarts of used oil.
• Wrenches: A 14mm socket for the main drain plug and a 10mm socket for the secondary drain plug and oil filter cover bolts.
• Torque Wrench: Recommended for ensuring drain plugs are tightened to the correct specification, preventing leaks or damage.
• Shop Rags or Paper Towels: For cleaning up spills and wiping down components.
• Gloves: To keep your hands clean.
• Optional: Funnel for adding new oil.

Step-by-Step Oil Draining Procedure

Follow these steps carefully to drain the old oil from your KX450F:

1. Warm the Engine: Start your KX450F and let it run for a few minutes. This circulates the oil, making it thinner and easier to drain. Be cautious, as the engine and exhaust will become hot.
2. Position the Motorcycle: Place your KX450F securely on its triangle stand (if equipped) or lean it against a stable surface like a wall or workbench. Ensure the bike is upright and stable.
3. Loosen the Oil Filler Cap: Locate the oil filler cap on the right side of the engine, on top of the clutch cover. Unscrew and remove it. This helps to break the vacuum and allows the oil to drain more freely.
4. Locate and Loosen Drain Plugs:
   • Main Drain Plug: On the bottom of the engine crankcase, you'll find the primary drain plug. Using your 14mm socket wrench, carefully loosen this plug. Be prepared for the oil to start flowing.
   • Secondary Drain Plug: Kawasaki KX450F models often have a secondary drain plug located near the main one. This plug is typically removed with a 10mm socket. Loosen and remove this plug as well.
5. Drain the Oil: Position your drain pan beneath the drain plugs to catch the old oil. Allow sufficient time for all the old oil to drain out completely. This may take several minutes.
6. Clean and Replace Drain Plugs: Once the oil has finished draining, wipe the area around the drain plug holes with a clean rag. Inspect the drain plugs and their crush washers (if applicable). Replace the drain plugs and tighten them snugly. Crucially, do not over-tighten, as this can strip the threads in the engine case. If you have a torque wrench, refer to your owner's manual for the correct torque specification.

Changing the Oil Filter

With the oil drained, it's time to replace the oil filter. This is a critical step often overlooked by beginners.

1. Locate the Oil Filter Cover: On the right side of the engine, you'll find a circular cover secured by two 10mm bolts.
2. Remove the Cover Bolts: Using your 10mm socket, loosen and remove the two bolts holding the oil filter cover in place. Important: Note that the top bolt is typically longer than the bottom one. Keep track of which bolt goes where to ensure correct reinstallation.
3. Remove the Filter Cover: Gently pry the circular cover off with your fingers. Avoid using a screwdriver, as this could damage the O-ring inside the cover, leading to oil leaks.
4. Inspect O-rings: Once the cover is removed, carefully inspect the O-rings that seal the cover to the engine case. Ensure they are in good condition – free from cracks, nicks, or thin spots. If they appear worn or damaged, replace them to prevent leaks.
5. Remove and Replace the Oil Filter: Pull the old oil filter straight out of its housing. Take your new oil filter and apply a light film of fresh engine oil to the rubber lip of the new filter. This helps it seal properly and makes future removal easier.
6. Reinstall the Filter Cover: Carefully replace the oil filter cover, ensuring it seats correctly. Reinstall the two 10mm bolts, remembering that the longer bolt goes on top. Tighten them securely, but again, avoid over-tightening.

Adding New Oil

Now that the old oil is out and the new filter is in place, it's time to fill the engine with fresh oil.

1. Position the Bike Upright: Ensure the motorcycle is standing upright on a level surface.
2. Add New Oil: Using a funnel if necessary, carefully pour the recommended amount of new engine oil into the oil filler hole. For most KX450F models, this is approximately 1.3 quarts (1.2 litres).
3. Check the Oil Level Window: Locate the oil level window on the side of the engine (usually near the filler cap). As you add oil, watch the level in the window. It should gradually rise.
4. Top Off as Needed: Continue adding oil slowly until the level settles in the middle of the oil level window. You may need to add slightly more or less than the initial 1.3 quarts to reach the correct level.
5. Replace the Filler Cap: Once the oil level is correct, securely screw the oil filler cap back into place.

Final Checks and Warm-up

Before you ride, perform these final checks:

1. Start the Engine: Start the engine and let it idle for a few minutes. This allows the new oil to circulate throughout the engine and fill the new oil filter. Check for any leaks around the drain plugs or the oil filter cover while the engine is running.
2. Cool Down and Re-check: Turn off the engine and let the motorcycle cool down for a few minutes.
3. Final Oil Level Check: With the bike upright and cool, re-check the oil level in the window. Top off if necessary to ensure the level remains within the correct range.

Kawasaki KX450F: A Champion's Machine

The Kawasaki KX450F is a renowned motocross and off-road machine, celebrated for its potent engine and championship-winning pedigree. The introduction of features like electric start, a new hydraulic clutch, and advanced suspension systems, as seen in models like the 2022 KX450, highlight Kawasaki’s commitment to performance and rider comfort. The 449cc engine, often developed with input from racing teams, offers substantial power and torque, making it a formidable competitor. The chassis design, featuring a slim aluminum perimeter frame, contributes to its light and nimble handling, crucial for quick lap times. Features like the Showa A-KIT suspension and the coned disc-spring hydraulic clutch further enhance its race-ready capabilities. The ERGO-FIT system, allowing for adjustable handlebars and footpegs, ensures a personalized fit for a wide range of riders, enhancing control and comfort.

Frequently Asked Questions

How often should I change the oil on my KX450F?

This depends on your riding conditions. For hard motocross use, changing the oil every 10-15 hours of riding is recommended. For trail riding, you might stretch this to 20-25 hours. Always consult your owner's manual for specific recommendations.

What kind of oil should I use?

Always use an oil specifically designed for high-performance four-stroke motorcycles, meeting the viscosity and JASO rating recommended in your owner's manual (commonly 10W-40, JASO MA or MA2).

Do I need to replace the crush washer on the drain plug?

Yes, it is highly recommended to replace the crush washer (if your model uses one) every time you change the oil. This helps ensure a proper seal and prevents leaks.

Can I use a regular car oil filter?

No, you must use an oil filter specifically designed for your Kawasaki KX450F. Using the wrong filter can lead to inadequate filtration and potential engine damage.

What happens if I over-tighten the drain plugs or filter cover bolts?

Over-tightening can strip the threads in the engine casing, which is a very expensive repair. Always tighten components to the manufacturer's specified torque or until snug, avoiding excessive force.

By following this comprehensive guide, you can confidently perform an oil change on your Kawasaki KX450F, ensuring its continued performance and reliability for many rides to come.
