Kugelfischer Injection: A Mechanical Marvel

In the annals of automotive engineering, few systems evoke as much reverence and intrigue as the Kugelfischer injection pump. Far from being a mere component, the System Kugelfischer was a sophisticated mechanical fuel injection (MFI) marvel that redefined performance in its era. Produced initially by FAG Kugelfischer and later by Robert Bosch GmbH, this system emerged from the early 1960s, evolving from diesel pump technology to become a cornerstone for high-performance petrol engines. Its ingenious design, relying on precision mechanical principles rather than electronics, allowed for a level of fuel delivery customisation previously unheard of, making it a true game-changer for a generation of iconic vehicles.

What Exactly is a Kugelfischer Injection Pump?

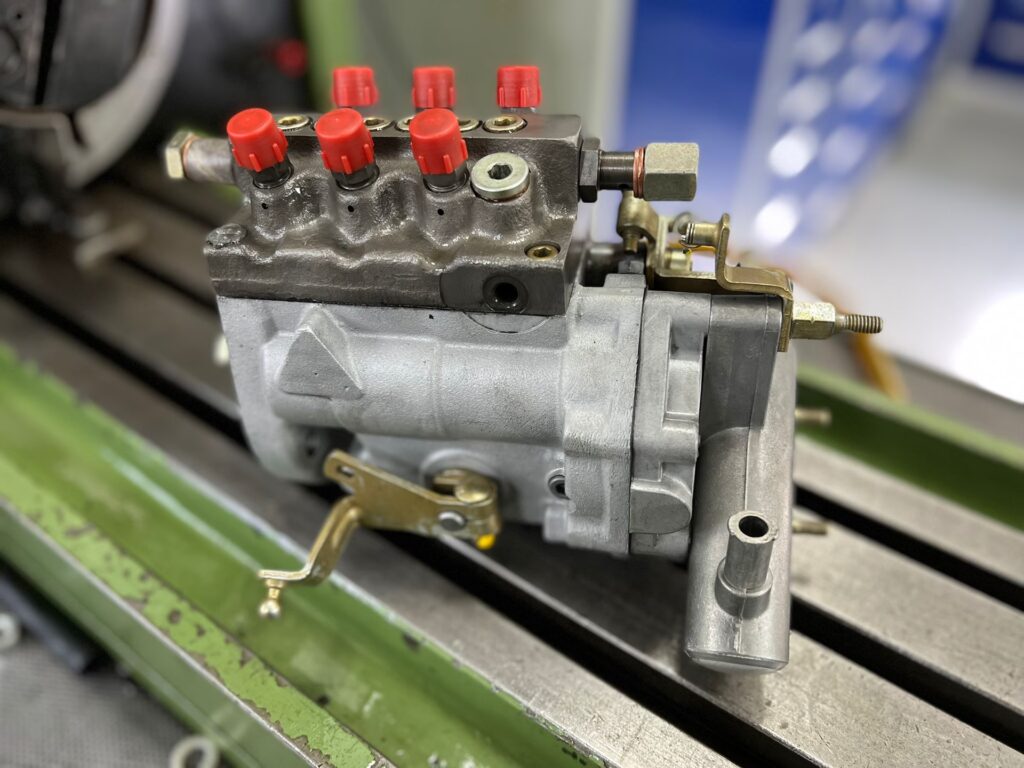

At its core, the Kugelfischer injection pump is a mechanical fuel injection system. Unlike carburettors, which rely on venturi effect and atmospheric pressure to mix fuel and air, or modern electronic fuel injection (EFI) systems that use complex electronic control units (ECUs) and sensors, the Kugelfischer operated with remarkable mechanical precision. Derived from robust diesel pump designs of the early 1960s, it brought a new level of sophistication to petrol engine fuelling. It was designed to deliver a precise amount of fuel directly into the engine's intake ports or cylinders, depending on the specific application, rather than mixing it beforehand in a carburettor.

What truly set the Kugelfischer system apart was its innovative approach to fuel delivery mapping. In an era predating widespread electronic engine management, the Kugelfischer achieved what electronic systems do today: it dynamically adjusted fuel delivery based on various engine parameters. This was accomplished not through silicon chips and software, but through an intricate arrangement of mechanical components, most notably irregularly shaped, two-dimensional cams, often referred to as 'cones'. These cones effectively encoded the fuel delivery maps, allowing the system to react to inputs such as engine RPM, throttle position, engine temperature, and in some more advanced iterations, even barometric pressure. The mechanical linkage and precise machining of these cones ensured that the engine received the optimal fuel-air mixture across its operating range, leading to improved power, efficiency, and responsiveness compared to the carburettor systems it often replaced.

A Glimpse into Automotive History: Kugelfischer Applications

The impact of the Kugelfischer system on the performance car landscape of the late 1960s and early 1970s cannot be overstated. Its precision and reliability made it a favoured choice for several premium and performance-oriented manufacturers. You would find this mechanical masterpiece under the bonnets of a diverse range of vehicles, each benefiting from its advanced fuelling capabilities:

• BMW: Perhaps its most famous association is with BMW, notably in the iconic 2000tii and 2002tii models from 1970 to 1975. The 'tii' designation itself stood for 'Touring International Injection', directly referencing the Kugelfischer system. It later found its way into the legendary BMW 2002 Turbo, a groundbreaking turbocharged production car of its time, and even the high-performance BMW M1 supercar produced between 1978 and 1981.
• Ford UK: The system was also adopted by Ford UK for their performance models, such as the Ford Capri RS2600, showcasing its versatility across different manufacturers.
• Lancia: Another European marque that embraced the Kugelfischer for its performance variants.
• Peugeot: Surprisingly, Peugeot utilised the Kugelfischer in certain versions of their 404 and 504 models, demonstrating its application beyond just high-strung sports cars, spanning from 1961 to 1983.
• Porsche: A significant user, Porsche fitted the Kugelfischer to various iterations of their venerable 911, including the 1964–1976 Porsche 911/911S, Carrera RS, RSR, and Carrera MFI models. Its presence in these legendary sports cars cemented its reputation for performance and precision.

The widespread adoption by such diverse and demanding manufacturers underscores the Kugelfischer's technical prowess and the performance advantages it offered over contemporary carburettor setups.

Why BMW Championed Kugelfischer: Reliability and Performance

BMW's choice of the Kugelfischer system for some of its most demanding applications, including high-performance road cars and even Formula 1 racing engines, speaks volumes about its inherent qualities. While Bosch had their own electronic fuel injection (EFI) systems, such as Motronic, in development or early use, BMW often opted for the Kugelfischer mechanical injection for critical applications. A significant reason for this preference was the system's extreme reliability.

This reliability was paramount, especially when considering the brutal demands of motorsport. For instance, BMW's 1350 hp Formula 1 Turbocharged engine (M12/13), a powerhouse of its era, often relied on the Kugelfischer system during early races in 1982. In an environment where a single component failure could mean the difference between victory and defeat, or even catastrophic engine damage, the mechanical robustness and predictable performance of the Kugelfischer were invaluable. Unlike early electronic systems which could be susceptible to electrical interference, sensor failures, or software glitches, the purely mechanical nature of the Kugelfischer offered a level of consistency and dependability that was highly prized. Its intricate design, though complex to manufacture, resulted in a physically robust unit capable of withstanding the harsh vibrations and extreme temperatures of a racing engine, consistently delivering precise fuel metering.

The Decline and Legacy of a Mechanical Titan

Despite its technical brilliance and performance advantages, the Kugelfischer system's reign was relatively short-lived in mainstream production vehicles. The primary factor contributing to its eventual decline was its high manufacturing cost. The intricate machining required to produce the precision components, particularly the fuel-mapping cones, made it an expensive system to produce on a mass scale. Each pump was a work of art, a testament to mechanical engineering, but this precision came at a premium.

By the late 1970s and early 1980s, the automotive industry was on the cusp of a technological revolution: the advent of cheaper, more flexible, and increasingly sophisticated electronic engine management systems. Electronic Fuel Injection (EFI) offered a significant advantage in terms of cost, ease of manufacturing, and crucially, adaptability. Electronic systems could be easily reprogrammed to suit different engine configurations or emission regulations, whereas altering a Kugelfischer's fuel map required physically changing or re-profiling its mechanical cones. Furthermore, continuous-injection mechanical systems, which were simpler and less costly to produce than the intermittent, timed injection of the Kugelfischer, also began to emerge as viable alternatives for mainstream vehicles.

While it faded from mass production, the Kugelfischer system continued to be revered and utilised as a specialty injection pump for purpose-built race engines well into the 1980s. Its proven reliability and precision, once set up, made it ideal for environments where ultimate performance and consistent delivery were paramount, such as in the 1982 Porsche 911 SC/RS. This enduring presence in high-level motorsport underscores its fundamental strengths as a mechanical engineering achievement.

Kugelfischer vs. Other Fuel Systems: A Comparative Look

To truly appreciate the Kugelfischer, it's helpful to see where it fit in the landscape of fuel delivery systems:

Maintaining a Kugelfischer System Today

Owning a classic vehicle equipped with a Kugelfischer injection pump today is a unique experience. While the system is renowned for its durability, it does require specialist knowledge for maintenance and repair. Finding expertise can be challenging, as the mechanics of these pumps are vastly different from modern electronic systems. Parts scarcity is another significant hurdle, often requiring custom fabrication or the sourcing of rare, used components. However, for enthusiasts dedicated to preserving the authenticity and performance of these classic machines, the effort is often seen as a worthwhile endeavour, a testament to a bygone era of mechanical ingenuity.

Frequently Asked Questions About Kugelfischer Injection

Q: Is the Kugelfischer injection system still used in new vehicles today?
A: No, the Kugelfischer system is no longer used in new production vehicles. It was phased out due to its high manufacturing cost and the advent of more cost-effective and flexible electronic fuel injection (EFI) systems. However, it remains a critical component in many classic performance cars and is cherished by enthusiasts.

Q: How does Kugelfischer differ from a carburettor?
A: A carburettor mixes fuel and air in a venturi before it enters the engine, relying on airflow. The Kugelfischer, being a mechanical fuel injection system, precisely meters and injects fuel directly into the intake ports or cylinders. This allows for more accurate fuel delivery across varying engine speeds and loads, leading to better performance, efficiency, and emissions control than most carburettors of its time.

Q: What were the main advantages of the Kugelfischer system?
A: Its primary advantages were its exceptional precision in fuel delivery for its era, leading to improved engine performance and responsiveness. It also offered remarkable mechanical reliability and robustness, making it suitable for high-stress applications like racing engines, and was less susceptible to issues like carburettor icing or fuel slosh during aggressive driving.

Q: What were the main disadvantages of the Kugelfischer system?
A: The most significant disadvantage was its incredibly high manufacturing cost due to the intricate machining and precision required for its components. This made it economically unviable compared to electronic systems. It was also less flexible for tuning or adapting to different engine specifications, requiring physical changes to its internal components rather than simple software adjustments.

Q: Are parts for Kugelfischer systems readily available?
A: No, parts for Kugelfischer systems are generally not readily available. Due to the system's age and specialised nature, sourcing replacement components often requires searching specialist classic car parts suppliers, dedicated restoration shops, or even commissioning custom-made parts. Maintaining these systems typically requires specialist knowledge and tools.

Q: Did any other manufacturers use the Kugelfischer system besides BMW and Porsche?
A: Yes, as mentioned, Ford UK (e.g., Capri RS2600), Lancia, and Peugeot (in some 404 and 504 models) also utilised the Kugelfischer system in various production vehicles, demonstrating its broad appeal to manufacturers seeking performance advantages.

In conclusion, the Kugelfischer injection pump stands as a powerful reminder of an era when mechanical ingenuity pushed the boundaries of automotive performance. While electronic systems ultimately superseded it for reasons of cost and adaptability, the Kugelfischer's legacy as a robust, precise, and remarkably effective piece of engineering remains unchallenged. It represents a fascinating chapter in the evolution of engine technology, a testament to the fact that sometimes, the most elegant solutions are found not in silicon chips, but in meticulously crafted metal.
