Kubota L3301 Engine & Transmission Guide

The Kubota L3301 is a popular compact tractor renowned for its versatility and dependability in various agricultural and landscaping tasks. Whether you're a seasoned farmer or a homeowner with a substantial property, understanding the core components of your L3301 is crucial for optimal performance and longevity. This guide will delve into the specifics of its engine and provide essential information on maintaining its manual transmission, ensuring your tractor remains a reliable workhorse for years to come.

Understanding the Kubota L3301 Engine

At the heart of the Kubota L3301 lies a robust and efficient diesel engine, engineered to deliver ample power for a wide range of applications. The specific engine model powering the L3301 is the Kubota D1703-M-DI. This is a 3-cylinder, naturally aspirated, direct-injection diesel engine, celebrated for its fuel efficiency and smooth operation.

Key Engine Specifications:

• Engine Model: Kubota D1703-M-DI
• Type: 3-Cylinder, 4-Cycle, Diesel, Water-Cooled
• Displacement: 1.647 litres (99.5 cubic inches)
• Bore x Stroke: 87 mm x 92 mm (3.43 in x 3.62 in)
• Gross Horsepower: Approximately 33 HP (24.6 kW)
• PTO Horsepower: Approximately 27 HP (20.1 kW)
• Injection System: Direct Injection
• Aspiration: Naturally Aspirated
• Fuel System: Bosch inline injection pump
• Cooling System: Water-cooled
• Oil Capacity: Varies slightly, but typically around 5.5 litres (5.8 US quarts)

The D1703-M-DI engine is known for its durability and ease of maintenance. Its direct-injection system means fuel is injected directly into the combustion chamber, leading to more efficient combustion and better fuel economy compared to older indirect injection systems. The naturally aspirated design, while not offering the same power boost as a turbocharger, contributes to its reliability and simpler maintenance needs, as there are fewer complex components to fail.

Engine Maintenance Essentials:

To keep your L3301's engine running at its peak, regular maintenance is paramount. Here are some key aspects:

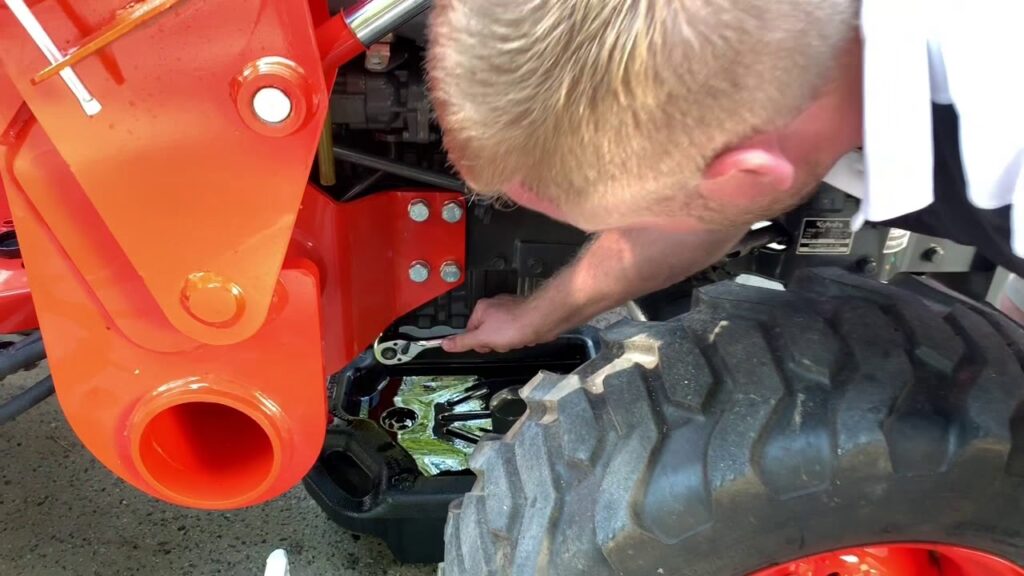

• Oil Changes: Regularly change the engine oil and filter according to the manufacturer's recommendations, typically found in your owner's manual. Using the correct type and viscosity of diesel engine oil is crucial.
• Air Filter: Inspect and clean or replace the air filter regularly. A clogged air filter can significantly reduce engine performance and fuel efficiency.
• Fuel Filter: Replace the fuel filter at recommended intervals to prevent contaminants from reaching the injection system, which can cause significant damage.
• Coolant: Check the coolant level regularly and ensure the cooling system is free of leaks. Use the correct type of antifreeze/coolant mixture.
• Pre-heating: In cold weather, utilize the glow plugs as instructed to ensure easier starting.

Kubota L3301 Manual Transmission: Adjustments and Care

The Kubota L3301 typically comes equipped with a robust manual transmission, offering a range of gears to tackle different workloads. While generally very reliable, understanding how to perform minor adjustments can save you time and money on potential repairs. The most common adjustment required for a manual transmission relates to the clutch linkage.

Clutch Adjustment:

Over time, the clutch pedal free play can change, potentially leading to a clutch that doesn't fully disengage or engages too high. Adjusting the clutch linkage ensures proper operation. The exact procedure can vary slightly depending on the specific configuration of your L3301, but the general principles remain the same. Always consult your owner's manual for the precise steps and torque specifications.

General Steps for Clutch Adjustment (may vary):

1. Locate the Clutch Linkage: This is typically found on the clutch operating arm or lever connected to the transmission housing.
2. Identify Adjustment Points: There will usually be a threaded rod with lock nuts that allows you to change the length of the linkage.
3. Check Pedal Free Play: With the engine off, press the clutch pedal down until you feel resistance. Measure the amount of travel before the clutch mechanism begins to engage. This is the "free play." Refer to your manual for the specified free play, which is often around 20-30 mm (0.8 - 1.2 inches).
4. Make Adjustments: Loosen the lock nuts on the threaded rod. Turn the rod to either lengthen or shorten the linkage, thereby increasing or decreasing the pedal free play.
5. Tighten and Re-check: Once the correct free play is achieved, tighten the lock nuts securely. Re-check the pedal free play to ensure the adjustment held.
6. Test Clutch Operation: Start the engine (with the clutch pedal depressed) and shift through the gears to ensure smooth engagement and disengagement.

Important Note: If you are uncomfortable performing this adjustment or if the problem persists, it is best to consult a qualified Kubota technician. Improper clutch adjustment can lead to clutch slippage or premature wear.

Transmission Fluid and Maintenance:

The transmission relies on the correct type and level of lubricant to function smoothly and prevent excessive wear. The L3301 typically uses Kubota UDT (Universal Transmission Fluid) or an equivalent fluid suitable for hydrostatic and mechanical transmissions in tractors. Always verify the recommended fluid type in your owner's manual.

Transmission Fluid Checks:

• Level: Periodically check the transmission fluid level using the dipstick or sight glass, as indicated in your manual. Ensure the tractor is on a level surface when checking.
• Condition: Observe the fluid for any signs of contamination, such as a milky appearance (indicating water ingress) or metal shavings (indicating gear wear). If contamination is suspected, the transmission may require flushing and refilling.
• Changes: Follow the manufacturer's recommended intervals for changing the transmission fluid and any associated filters.

Common Transmission Issues and Solutions:

While the L3301's transmission is robust, common issues can arise:

Frequently Asked Questions (FAQ)

Q1: What type of oil should I use for the Kubota L3301 engine?
A1: The Kubota L3301 typically requires a high-quality diesel engine oil, such as SAE 10W-30 or 15W-40, depending on the ambient temperature. Always refer to your owner's manual for the specific oil viscosity and API classification recommended by Kubota.

Q2: How often should I change the engine oil and filter?
A2: Consult your owner's manual for the exact interval, but a common recommendation is every 50 or 100 operating hours, or annually, whichever comes first. More frequent changes may be necessary if operating in very dusty or severe conditions.

Q3: Can I adjust the clutch myself on my L3301?
A3: Yes, minor clutch adjustments, particularly to the pedal free play, can often be performed by the owner. However, ensure you follow the instructions in your owner's manual carefully and are comfortable with the procedure. If unsure, seek professional help.

Q4: What fluid is used in the L3301 transmission?
A4: The L3301 transmission typically uses Kubota UDT (Universal Transmission Fluid) or an equivalent specified by Kubota. Using the wrong type of fluid can cause damage.

Q5: Where can I find my Kubota L3301 owner's manual?
A5: Your owner's manual should have come with the tractor. If you've misplaced it, you can often download a digital copy from the official Kubota website or contact your local Kubota dealer.

Understanding and maintaining the engine and transmission of your Kubota L3301 is key to unlocking its full potential. By adhering to regular maintenance schedules and performing necessary adjustments, you ensure that this capable machine continues to serve you efficiently for many years.
