Kubota L2501: Your Compact Tractor Guide

The Versatile Kubota L2501: A Comprehensive Overview

The Kubota L2501 stands out as a premier compact tractor, meticulously engineered to blend robust performance with intuitive, user-friendly operation. Designed to be a true workhorse, this tractor is adept at handling a diverse array of tasks, from landscaping and property maintenance to light agricultural duties. Its reputation for a reliable and powerful engine, coupled with its compact size, makes it an ideal choice for homeowners, small farm operators, and anyone requiring a capable yet manageable tractor.

Understanding the Kubota L2501's Core Strengths

At its heart, the L2501 is a testament to Kubota's commitment to quality and durability. This compact utility tractor, part of the esteemed L-series, has been a reliable option since its manufacture began in 2014. It's built to withstand demanding work while providing a comfortable and efficient operating experience. Its versatility is further enhanced by the availability of popular attachments such as the Kubota LA525 loader and the Kubota BH77 backhoe, transforming it into a multi-functional tool for various projects.

Engine Power and Performance

The powerhouse behind the Kubota L2501 is the Kubota D1703-M-DI-E4 engine. This is a formidable 1.6-litre, three-cylinder, direct-injection diesel engine, displacing 1,647 cm² (100.5 cu·in). With a bore of 87.0 mm (3.43 in) and a stroke of 92.4 mm (3.64 in), it delivers a strong performance. The engine produces a gross output power of 25.2 PS (18.5 kW; 24.8 HP) and a net horsepower of 24.2 PS (17.8 KW; 23.9 HP). This power is ample for most compact tractor applications, ensuring efficient operation for tasks like mowing, tilling, and material handling.

Transmission Options: Tailoring to Your Needs

A key feature that enhances the L2501's adaptability is its choice of transmissions. Operators can select between two robust options:

• Gear Type Transmission: This option features a dry disc clutch and offers 8 forward and 4 reverse gears. This traditional setup provides a direct feel and is favoured by many for its simplicity and reliability.
• Hydrostatic Transmission (HST): For those seeking effortless operation and infinite speed control, the HST is the ideal choice. It provides infinite forward and reverse speeds across three distinct ranges, allowing for smooth transitions and precise manoeuvring without the need for clutching.

The choice between these transmissions often comes down to operator preference and the specific types of tasks the tractor will be used for. The HST is particularly beneficial for tasks requiring frequent speed changes and intricate control, such as loader work or mowing around obstacles.

Key Specifications at a Glance

To provide a clearer picture of the L2501's capabilities, here’s a summary of its essential specifications:

Operator Comfort and Safety Features

The L2501 is designed with the operator in mind. It features an open operator station equipped with a two-post folding ROPS (rollover protection structure), ensuring safety during operation. Integral type power steering makes manoeuvring the tractor effortless, reducing operator fatigue. For braking, it employs reliable mechanical wet disc brakes, offering consistent stopping power in various conditions. The fuel tank capacity of 38.0 litres (10 US gal.) allows for extended periods of work without frequent refuelling.

Hydraulic System and PTO

The tractor's hydraulic system is of the open centre type, providing a pump flow of 5.15 gpm (19.5 lpm) and a steering flow of 3.13 gpm (11.8 lpm) at a pressure of 2,205 psi (152 bar). This robust hydraulic system powers the tractor's functions and implements. The three-point hitch is Category I, with a lift capacity of 870 kg (1,920 lbs), making it suitable for a wide range of implements. The Power Take-Off (PTO) is available at the rear, with a speed of 540 rpm. Depending on the transmission, it can be either transmission-driven with an overrunning function (Gear type) or live-continuous running (HST).

The Crucial 50-Hour Service: Why It Matters

One of the most critical maintenance intervals for any new Kubota tractor, including the L2501, is the initial 50-hour service. This isn't just a routine oil change; it's a vital break-in maintenance procedure. During the first 50 hours of operation, new engine and transmission components shed microscopic metal particles. These particles, if not removed, can contaminate the engine oil and hydraulic fluid, leading to accelerated wear or even catastrophic failure of these expensive components.

DIY vs. Dealer Service Costs

The cost of this initial service can vary significantly depending on whether you perform it yourself or take it to a dealership.

• DIY: For those comfortable with basic mechanical tasks, the 50-hour service can typically be completed in 1-2 hours and costs approximately $120–$150. This includes the cost of new oil, filters, and any necessary supplies.
• Dealer Service: A dealership will typically charge between $350–$700 for the same service. While more expensive, it ensures the work is done by trained technicians using genuine parts.

What's Involved in the 50-Hour Service?

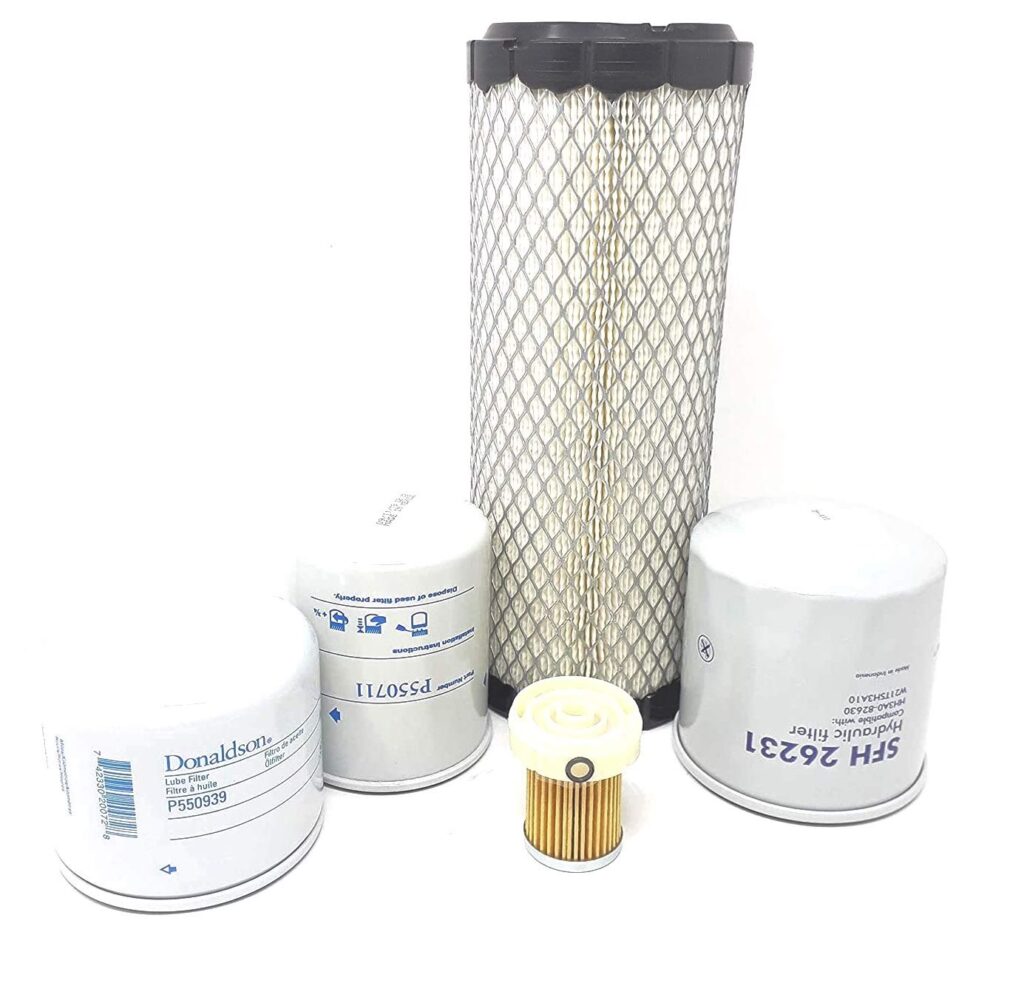

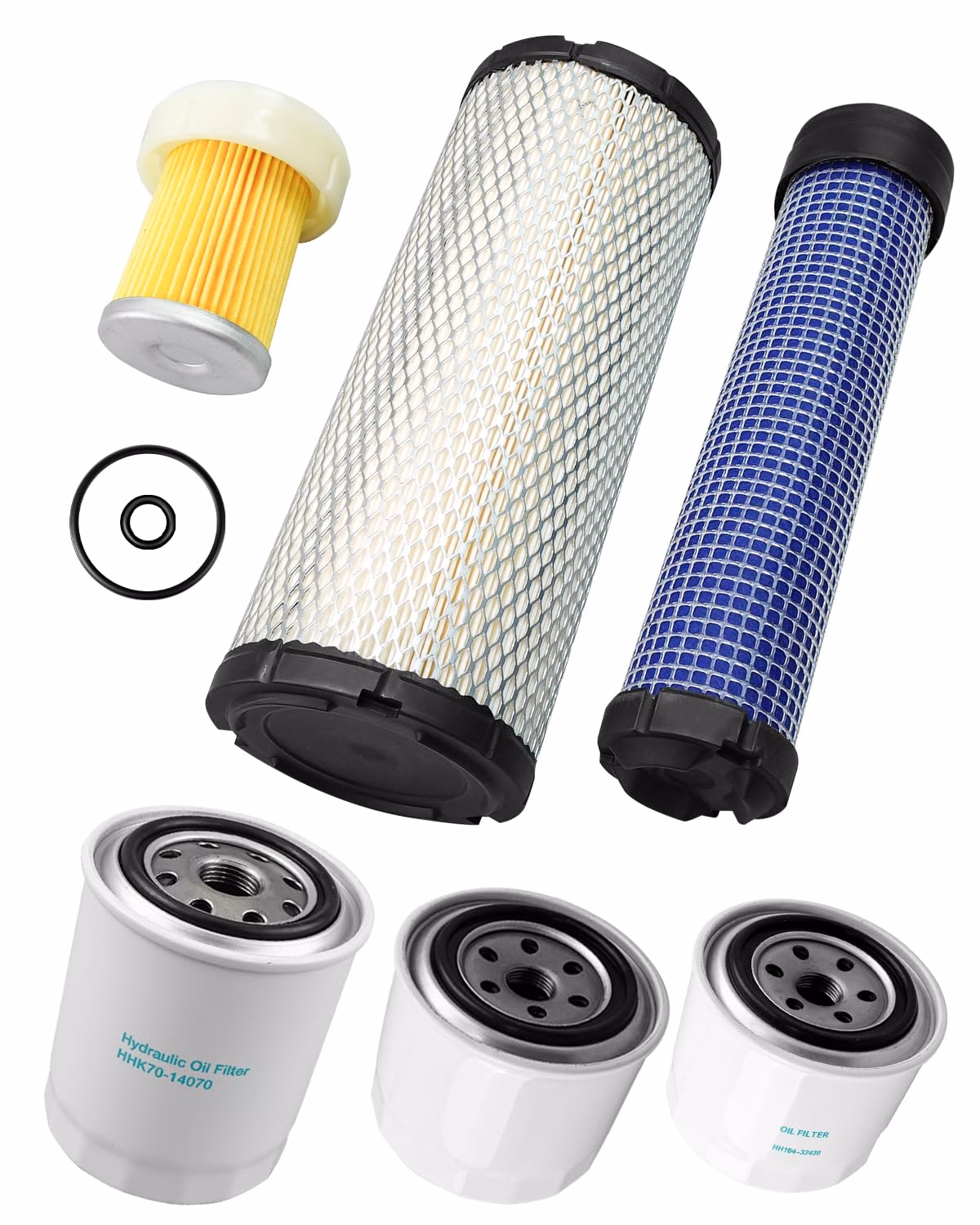

The core of the 50-hour service involves replacing the engine oil and oil filter, as well as the transmission and hydraulic filters. This process effectively flushes out the metal debris accumulated during the initial break-in period.

PRO TIP: To minimise contamination when changing the oil filter, use a vacuum pump to suction out any residual oil from the filter housing before removing the old filter and installing the new one.

Is the 50-Hour Service Mandatory?

Absolutely. Kubota specifies this service as non-negotiable for a reason. Skipping this critical maintenance procedure not only voids your tractor's warranty but also significantly increases the risk of premature wear and damage to the engine and hydraulic systems due to the abrasive metal particles. Think of it as an investment in the long-term health and reliability of your tractor.

Tools and Considerations for DIY Service

Most of the tasks involved in the 50-hour service require only basic hand tools. A strap wrench, particularly in the 65-74mm size, is highly recommended as factory-installed filters can be notoriously tight. If you are comfortable changing the oil in your car, you can certainly handle this maintenance on your Kubota with proper preparation and guidance.

The Benefits of DIY Maintenance

Undertaking the 50-hour service yourself offers significant advantages:

• Cost Savings: You can save between $200 and $550 compared to dealership labour costs.
• Knowledge Gain: It provides invaluable hands-on experience and a deeper understanding of your tractor's maintenance requirements.
• Peace of Mind: You ensure the job is done correctly, using genuine OEM filters and fluids, which is crucial for maintaining your warranty and the longevity of your machine.

With just a couple of hours and a few basic tools, you can effectively maintain your Kubota L2501, safeguarding your investment and enjoying the satisfaction of a job well done.

Frequently Asked Questions (FAQ)

Q1: What is the primary purpose of the 50-hour service on a Kubota L2501?

The primary purpose is to remove microscopic metal particles generated during the engine and transmission break-in period, preventing contamination of the oil and hydraulic fluid.

Q2: Can I use non-Kubota filters for the 50-hour service?

While aftermarket filters might fit, it is highly recommended to use genuine Kubota OEM filters and fluids. This ensures compatibility, optimal performance, and helps maintain your warranty.

Q3: How often should I change the engine oil and filters after the initial 50-hour service?

Kubota typically recommends subsequent oil and filter changes every 200–400 hours of operation, or annually, whichever comes first. Always consult your owner's manual for the specific intervals for your L2501.

Q4: What are the main differences between the gear transmission and the HST on the L2501?

The gear transmission offers a set number of gears with a clutch, providing a more traditional driving experience. The HST offers infinite speed control and easier operation, especially for tasks requiring frequent speed adjustments.

Q5: Is the ROPS on the Kubota L2501 foldable?

Yes, the Kubota L2501 features a two-post folding ROPS, which allows for easier storage and operation in areas with height restrictions.

Conclusion

The Kubota L2501 is a capable and versatile compact tractor that offers a compelling blend of power, efficiency, and user-friendliness. Whether you opt for the straightforward gear transmission or the convenient hydrostatic option, this tractor is equipped to handle a wide range of tasks. Understanding and performing the critical 50-hour service is paramount to ensuring its longevity and optimal performance. By taking a proactive approach to maintenance, whether DIY or through a trusted dealer, you can guarantee that your Kubota L2501 remains a reliable partner for years to come.
