KTM LC8 Engine: Powering the RC8 Superbike

When discussing high-performance motorcycles, the conversation inevitably turns to the engine – the very heart of the machine. For enthusiasts of the Austrian marque, KTM, the LC8 engine is a name that resonates with raw power, precision engineering, and an unmistakable character. This formidable powerplant has been the driving force behind some of KTM's most aggressive and celebrated models, particularly the RC8 superbike. But what exactly defines the KTM LC8 engine, and what makes it such a distinctive and potent force in the world of two wheels?

The LC8 Engine: An Engineering Marvel

At its core, the KTM LC8 engine is a liquid-cooled, 75-degree, V-twin unit. This specific configuration is a hallmark of KTM's design philosophy, balancing compact dimensions with potent power delivery. The V-twin layout inherently offers a narrow profile, aiding in chassis design and rider ergonomics, while the 75-degree angle is carefully chosen to optimise firing intervals, contributing to its unique sound and power pulse. This design choice is crucial for both performance and the visceral riding experience.

Initially, in the base model of the RC8, the LC8 displaced 1148cc, a substantial capacity for a superbike. However, KTM, renowned for its 'Ready to Race' ethos, soon introduced an 'R' version, which saw a significant upgrade in the engine department. The 'R' variant received a 2mm overbore, increasing the displacement to a formidable 1195cc. This wasn't merely a bump in cubic capacity; the 'R' version also benefited from a suite of internal enhancements designed to elevate performance and reliability even further. These included lightened pistons and trapezoidal connecting rods, which collectively reduced overall reciprocating mass. This reduction is vital for allowing the engine to rev more freely and to endure the higher stresses associated with increased power output.

Beyond the fundamental architecture, the cylinder heads of the LC8 'R' model also saw specific modifications. Titanium intake valves were introduced, a premium material known for its strength and low weight, allowing for higher revs and improved gas flow. Coupled with flatter combustion chambers, the compression ratio was significantly bumped from 12.5:1 in the base model to an even more aggressive 13.5:1 in the 'R'. This higher compression directly translates to increased thermal efficiency and, consequently, greater power output. Furthermore, the camshaft sprockets were made adjustable, a feature that provides crucial flexibility for fine-tuning the engine, especially when integrating KTM's various race-kits designed for everything from club-level racing to full-on superbike competition.

Core Specifications and Variants

The LC8 engine's fuel mixture generation is handled by Keihin EFI (Electronic Fuel Injection) engine management, directing fuel through 52mm throttle bodies. While the RC8, particularly in its earlier iterations, eschewed complex electronic rider aids like traction control or sophisticated ride-by-wire systems, the engine itself was engineered for immediate and clean throttle response. It's designed to rev quickly and cleanly, delivering strong power from as little as 3000 rpm, making it incredibly tractable for such a high-performance machine.

Power output figures are impressive: the base RC8 claimed 153 crankshaft horsepower, while the 'R' version boasted a claimed 168 horsepower at 10,250 rpm. While these numbers might not always have topped the charts against some four-cylinder rivals, the LC8's delivery is what truly sets it apart. It feels remarkably linear and particularly strong in the low-end and mid-range, areas where street riders and track enthusiasts alike spend a significant amount of their time. The torque figures are equally compelling, with a sterling 91 ft/lbs (claimed) at 8000 rpm for the 'R' model. This prodigious torque is instrumental in ripping the bike out of slow corners and effortlessly lofting the front wheel in the lower gears, if one so desires.

To highlight the differences between the two primary LC8 engine variants found in the RC8, here's a comparative table:

Performance on the Road and Track

The LC8 engine, particularly in the RC8 chassis, provided an extremely responsive and engaging ride. Early test machines noted a slight abruptness when coming back on the throttle mid-corner, a characteristic sometimes associated with powerful V-twins without sophisticated ride-by-wire. However, KTM addressed this with an eccentric twist-grip tube in production models, subtly diluting throttle response for the initial movement, ensuring a smoother transition. This attention to detail exemplifies KTM's commitment to refining the rider experience, even without employing the most complex electronic aids.

The LC8 Within the RC8 Chassis

The engine doesn't operate in isolation; its performance is inextricably linked to the chassis that cradles it. The RC8 was designed around the LC8, creating a holistic package. The 'R' model, for instance, came with Marchesini's gorgeous forged-alloy multi-spoke wheels, contributing to its status as one of the lightest bikes in its class, tipping the scales at just over 400 pounds (claimed) without fuel. This impressive lack of mass is noticeable even at a standstill and translates directly to exceptional agility and precise handling once underway.

The chromoly tubular trellis frame, a KTM signature, combined with top-shelf WP suspension, initially feels firm but delivers superb feedback. Both the fully adjustable 43mm fork and the rear shock, TiN coated for reduced stiction, work in harmony with the LC8's power delivery, allowing the rider to exploit its capabilities fully. The chassis geometry, with a slightly increased caster angle for stability and a shortened wheelbase for agility, ensures the RC8 points and turns predictably, neutrally, and with precision.

Gearbox and Clutch Innovation

A crucial component that often goes hand-in-hand with engine performance is the gearbox. Earlier KTM models sometimes received criticism for their 'crunchy' gearboxes, prone to occasional false neutrals. However, the RC8s featured a redesigned gearbox, which was a true revelation. This transformed the transmission into a system offering six positive-feeling ratios that shifted perfectly every time, significantly enhancing the riding experience. The hydraulically actuated clutch, while not a slipper clutch (which might seem unusual on a premium superbike), was cleverly integrated with the Keihin ECU. On deceleration, the ECU would open the rear-cylinder butterfly slightly, effectively reducing back-torque and preventing excessive rear-wheel hop, even under hard braking. This demonstrated KTM's innovative approach to achieving desired performance characteristics without relying solely on conventional components.

Braking Prowess and Rider Adjustability

Braking on the RC8 is handled by the now-ubiquitous Brembo components. However, KTM engineers didn't just bolt them on; they re-worked the internal hydraulic ratios on the RC8 Brembos. The emphasis was on progressive feel rather than a shockingly abrupt initial bite. This engineering effort was a success, resulting in brakes that are light to the touch, predictable, and offer plenty of feel, even when leaned over or trail braking deep into a corner. This progressive feel, honed through KTM's racing experience, allows riders to modulate stopping power with extreme precision, enhancing confidence and control.

Perhaps one of the most remarkable aspects of the RC8's chassis, and thus its synergy with the LC8 engine, is the incredible amount of adjustability available to the rider. KTM clearly moved away from the 'one-size-fits-all' approach. The handlebars are changeable from a comfortable HeliBar-level position to a full-on racebike crouch. Both clutch and brake levers are adjustable for reach. The subframe adjusters allow seat height to be altered by almost an inch, accommodating riders of different statures. Likewise, the footpegs can be set in a high racing position or a more luxurious lower position for comfort. Even the shifter and brake pedal are three-way adjustable for length, with the shift lever also offering adjustments for leverage and a swift change to a track-shift pattern. This unprecedented level of ergonomic customisation ensures that virtually any rider can precisely tailor the RC8 to fit their body and riding style, allowing them to extract the maximum performance from the powerful LC8 engine.

Instrumentation and Rider Aids (or lack thereof)

The RC8's instruments are contained within a well-positioned, easy-to-read digital pod. While it notably lacked a gear indicator (a common request from riders), it offered different displays for track or street, toggled via handlebar switches. Track settings included lap times, maximum RPM, attained top speed, and total race time. For street use, a clock, two tripmeters, fuel consumption, miles-to-empty, total trip time, and ambient temperatures were available. While the RC8 might have foregone some of the advanced electronic rider aids like traction control or ABS that became common later, its design focused on pure, unadulterated rider engagement, relying on the inherent balance and excellent mechanical grip provided by its well-engineered chassis and the predictable power delivery of the LC8 engine.

Maintaining Your LC8 Engine: Oil Considerations

For any high-performance engine like the KTM LC8, proper maintenance, particularly oil selection and change intervals, is paramount. The LC8, with its multi-cam and multi-valve design, is known to be quite sensitive to the absolute viscosity of its engine oil. It's not just about adhering to a '10W-50' grade, but where that oil falls within the acceptable viscosity range for that grade. These engines, especially with their hydraulic cam tensioners, rely on precise oil pressure and flow, and using an incorrect or out-of-spec oil can potentially lead to accelerated wear or even engine damage.

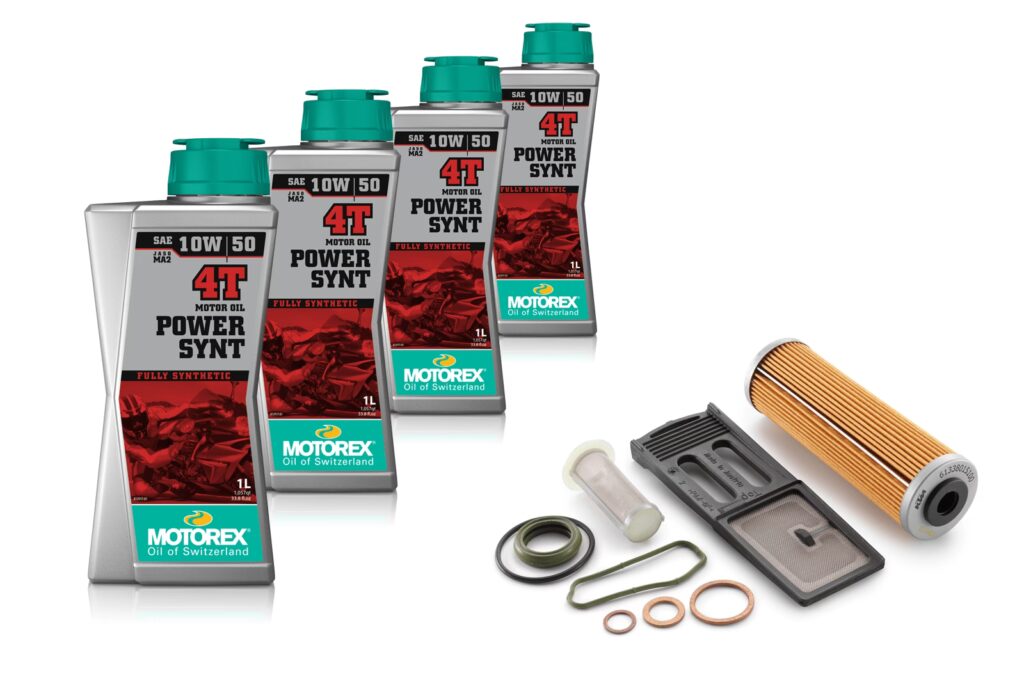

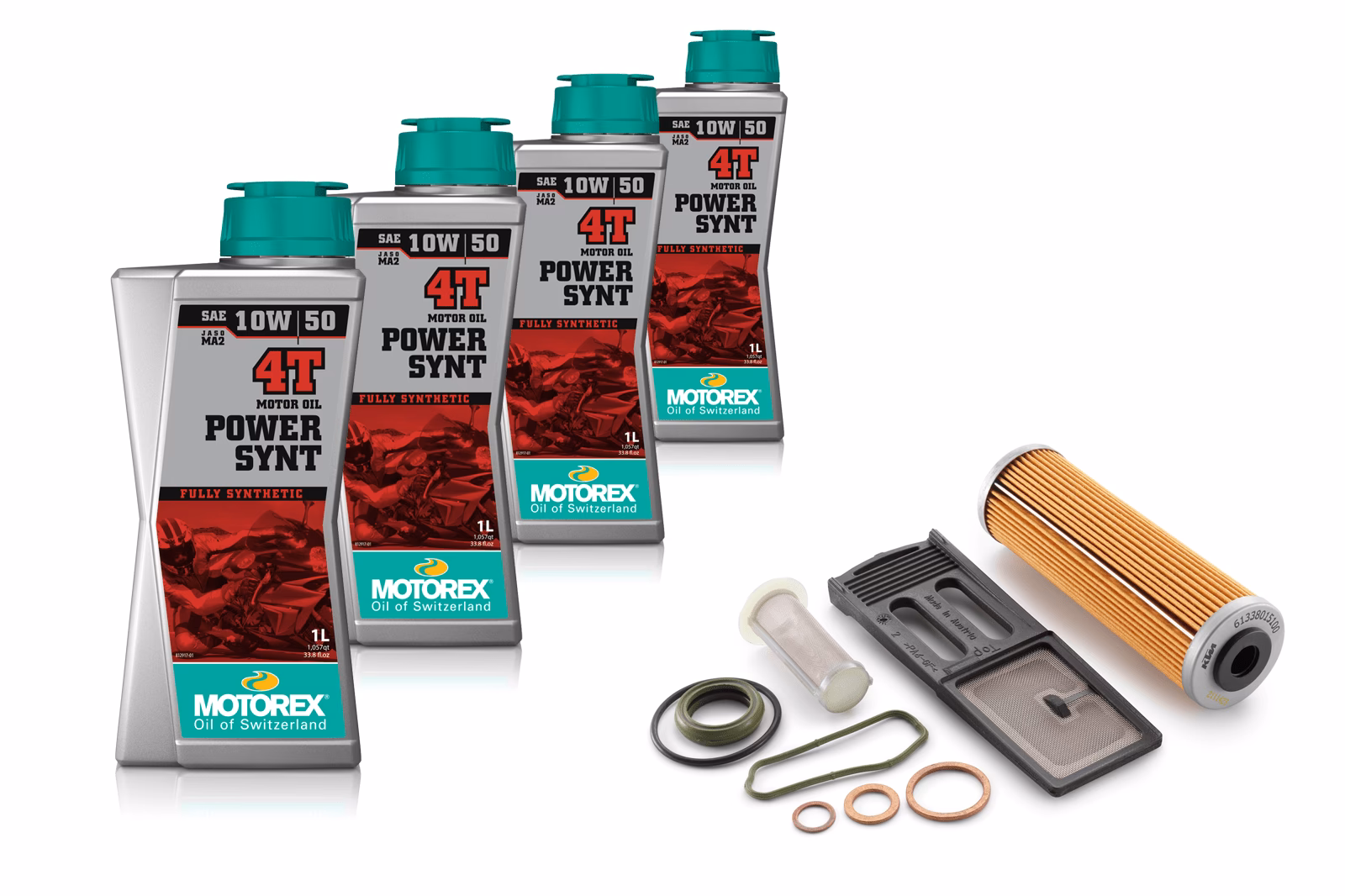

KTM typically recommends Motorex, specifically their fully synthetic SAE 10W-50 oil, for the LC8. Many owners prefer to stick with the manufacturer's recommendation, often noting that their engines run smoothly, maintain oil cleanliness, and exhibit consistent shifting. While other high-quality synthetic oils from brands like Maxima or Redline are available and may offer comparable performance, without knowing the exact specifications (such as CST hot and cold viscosities, flash and pour points, and additive content) of the recommended Motorex Power Synth 10W-50, choosing a direct replacement can be challenging. Some 15W-50 oils, for example, can surprisingly be thinner than certain 10W-50 oils depending on their formulation. For a critical component like the LC8 engine, especially given its performance demands, deviating from recommended oils or specifications without thorough research is generally not advised. For many, the slight cost difference of using the recommended oil is a small price to pay for peace of mind and the assurance of optimal engine health over thousands of miles.

Why the KTM LC8 Stands Out

Despite its comparative lack of some electronic rider aids found on other superbikes of its era, the KTM RC8, powered by the LC8 engine, is a remarkably well-designed and engineered machine. Its strengths lie in its exceptional balance, ease of riding, and the sheer character of its engine. The LC8 delivers prodigious torque, particularly in the crucial low to mid-range, combined with an excellent, redesigned gearbox, making for an incredibly engaging and effective powerplant. The lightweight chassis, coupled with agile and neutral handling, transforms the RC8 into a genuine pleasure to ride.

The unparalleled adjustability built into the ergonomics of the RC8 is also a significant factor, allowing riders to perfectly tailor the bike to their individual needs. Whether in its base 1148cc form or the more potent 1195cc 'R' variant, the LC8-powered RC8 remains a remarkable machine. While undoubtedly 'Ready to Race' with options like the Club Race Kit boosting horsepower and torque, the LC8's linear power delivery and refined chassis also make the RC8 an ideal streetbike, capable of delivering thrilling performance for weekend rides and spirited road miles alike.

Frequently Asked Questions About the LC8 Engine

What does 'LC8' stand for?

'LC8' is KTM's internal designation for its range of large-displacement, liquid-cooled, 8-valve (4 valves per cylinder) V-twin engines. The 'LC' signifies 'Liquid Cooled', and the '8' refers to the total number of valves.

Is the KTM LC8 engine reliable?

Generally, yes, the LC8 engine is considered reliable, especially with proper maintenance. Like any high-performance engine, it requires adherence to service schedules and the use of high-quality, specified lubricants. The 'R' version even included lightened pistons and trapezoidal connecting rods to increase reliability alongside performance.

What is the typical maintenance schedule for an LC8 engine?

Maintenance schedules vary slightly by model year and specific LC8 application, but generally involve regular oil and filter changes (often every 4,000-6,000 miles or annually), valve clearance checks, and other routine inspections. Always refer to your specific motorcycle's owner's manual for precise intervals and procedures.

Can I use a different brand of oil than Motorex in my LC8 engine?

While KTM officially recommends Motorex 10W-50 fully synthetic oil, many owners use other high-quality synthetic oils that meet or exceed the required specifications (e.g., API SN, JASO MA2). However, it's crucial to ensure the chosen oil's absolute viscosity and additive package are suitable for these sensitive engines, especially regarding hydraulic cam tensioners. Consulting with a KTM specialist or thoroughly researching oil specifications is advised before switching.

Does the LC8 engine have a slipper clutch?

In the RC8, the LC8 engine was paired with a hydraulically actuated clutch that was not a traditional slipper clutch. However, KTM engineered a system where the Keihin ECU would momentarily open the rear-cylinder butterfly on deceleration to reduce back-torque, effectively mimicking some of the benefits of a slipper clutch and preventing rear-wheel lock-up or hop.

What is the significance of the 75-degree V-twin angle?

The 75-degree V-twin angle is a specific design choice by KTM to optimise the engine's firing intervals. This configuration helps to balance the engine's primary forces, reducing vibrations while also contributing to the engine's distinctive exhaust note and strong, linear power delivery. It also allows for a compact engine package, which aids in chassis design.

Are there different versions of the LC8 engine?

Yes, the LC8 engine has seen several iterations and displacements across various KTM models (e.g., Super Duke, Adventure, RC8). In the context of the RC8 superbike, there were primarily two versions: the 1148cc unit in the base RC8 and the more potent 1195cc unit in the RC8 R, which featured additional performance enhancements.
