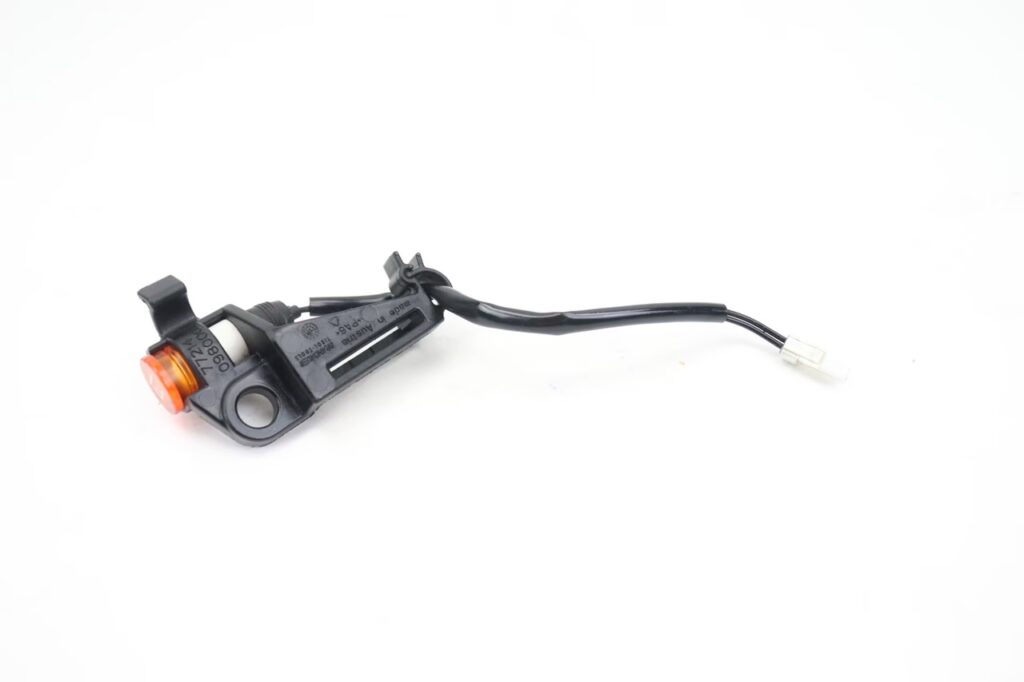

Understanding Your KTM's FI Warning Light
If you're a proud owner of a fuel-injected KTM, you've likely encountered the dreaded FI warning light. This little indicator is your bike's way of telling you something isn't quite right with the electronic fuel injection (EFI) system. But what does it mean, and how can you decipher its cryptic messages? This guide will delve into the world of KTM blink codes, helping you understand common faults and how to get your bike running smoothly again.
When a sensor on your KTM goes outside its operational limits, the FI light will illuminate. Crucially, the way it illuminates is your diagnostic clue. If the light is on constantly when the engine is above idle, you'll need to bring the revs down to idle to get the light to start flashing. These flashes are the bike's way of communicating a specific issue, much like Morse code. Your KTM Owner's Manual is your primary reference for these fault code tables, allowing you to interpret the sequence of long and short blinks.
How to Interpret Blink Codes
The process of diagnosing a fault code involves a systematic approach:
- Check the Fault Codes: Refer to your KTM Owner's Manual. The tables provided will help you match the flashing sequence to a specific sensor or circuit fault.
- Inspect Sensor Connections: Once you've identified a potential fault, the first physical check should be the relevant sensor's connection. Look for any signs of corrosion, dirt, or loose wiring.
- Measure Sensor Resistance: Your manual will often provide the correct resistance values for various sensors. Using a multimeter, you can test if the sensor is within the specified range.
- Examine Wiring Integrity: Chafed wires or loose connections are common culprits on dirt bikes due to the demanding nature of the sport. Trace the wiring loom from the sensor all the way back to the ECU, checking for any damage or poor earth connections.
- Utilise Diagnostic Tools: For a more definitive diagnosis, a KTM Dealer can use their proprietary diagnostic tool. Alternatively, the TuneECU program, used with a laptop, offers similar capabilities for reading and clearing fault codes.
The Most Common Fault Code: Fuel Pump Issues
A frequently encountered blink code is a sequence of 4 long flashes followed by 1 short flash. This can sometimes be misread as 5 flashes and specifically points to the Fuel Pump Controller. It's important to note that there isn't a separate 'controller' in the traditional sense. Instead, the EFI system manages the fuel pump's operation by controlling its earth connection.
If you're experiencing this fault code and the bike is failing to start, a common symptom is the fuel pump not running. This can be an early indicator of a pump that is about to fail completely. In some instances, you might be able to coax it back to life to get you home. Try leaving the ignition on and flicking the kill switch on and off. Each time you switch it to the 'run' position, the pump should prime for a couple of seconds. Tapping the base of the pump simultaneously might help it kick into action. If you can't get it to run, it's likely time for a replacement pump. You could also try removing it and giving it a clean, perhaps flushing it with WD40.
To determine if the EFI is preventing the pump from operating, check for continuity to earth when you cycle the kill switch with the ignition on. If there's no continuity, the EFI is intentionally preventing the pump from running for a specific reason.
Key Hints and Tips for Diagnosis
When troubleshooting your KTM's EFI system, keep these valuable tips in mind:
- Doubt the Wiring First: Sensors and throttle bodies are generally robust. More often than not, the issue lies with the wiring. Dirt bikes are particularly prone to chafed wires or connections that have vibrated loose.
- Beware of Component Swapping: Dealers often resort to replacing components as a quicker solution. However, this can lead to lengthy waits if a part like a throttle body is on backorder.
- Utilise Dealer Tools: KTM dealers have a "Breakout Box" designed to test the integrity of wiring looms. Encourage your dealer to use this tool, as not all dealerships are equipped with one.
Commonly Monitored Sensors and Their Functions
The ECU (Engine Control Unit) constantly monitors a range of sensors to ensure optimal engine performance. Here's a look at some of the key players and their roles:
| Sensor | Function | Location/Notes |
|---|---|---|
| System Voltage | EFI systems are sensitive to voltage fluctuations. Insufficient voltage can cause erratic behaviour. Check Fault Table H first. | Ensure battery and charging system are in good condition. |
| Crankshaft Position Sensor | Determines engine speed and Top Dead Centre (TDC) position. | Located in the LH engine side cover. A pulse coil sensing the rotor. |
| Engine Coolant Temperature Sensor | Adjusts fuel mixture for cold starting. | Located below the spark plug. May shut down the engine if overheating. |
| Sidestand Switch | Prevents the engine from running if the sidestand is down and the bike is in gear. | Can be bypassed with a 2.2k ohm resistor. Located by the sidestand pivot. |
| Ignition Coil | The EFI monitors the coil's resistance for faults. | Check resistance values as per manual. |
| Intake Air Temperature Sensor | Trims fuel mixture based on intake air temperature. | Located inside the airbox. Can be damaged by oil contamination. Resistance varies with temperature (e.g., -20ºC: 18.8KΩ, +40ºC: 1.136KΩ). Consider rerouting the gearbox vent to an external pod filter to keep the airbox cooler. |
| Ambient Air Pressure Sensor | Measures atmospheric pressure to optimise air/fuel mixture. | Located behind the headlight. The sensing tube must point downwards to prevent clogging. |
| Rollover Sensor | Acts as a crash switch, shutting down the engine if the bike is laid on its side. | Located behind the rear brake reservoir. If it sticks, it can prevent restarting. The bike will run with it disconnected, but this is not recommended for extended periods. |
| Gear Position Sensor | Prevents starting in gear (unless clutch is pulled) and influences neutral fuel maps. | Located by the gear lever. Also contains 3rd and 4th gear switches that can limit power for emissions control, often disabled with performance maps. |
| Lambda Sensor (O2 Sensor) | Senses exhaust gases to fine-tune the fuel mixture for emissions control. | Located in the exhaust below the radiator. Often disabled with aftermarket performance mapping. The ECU uses open-loop operation when the engine is cold or under heavy load. |
| Lambda Sensor Heater | Heats the O2 sensor to ensure accurate readings. | Part of the Lambda sensor assembly. |
| Fuel Evaporation Valve | Controls fuel vapour emissions. | Primarily found on USA models. |
| Secondary Air Valve (SAS) | Injects air into the exhaust to aid emissions control. | Often disabled with performance mapping or manually via TuneECU. Can be removed, but may require a resistor to prevent an FI light if not disabled in the ECU. |
Throttle Body Components
The throttle body is a complex unit, and often when a fault is detected within it, the entire assembly is replaced. This can be an expensive proposition and lead to extended downtime due to parts availability.
| Component | Function | Location |
|---|---|---|
| Throttle Position Sensor (THAD) | Senses the position of the throttle butterfly valve. | LH side of the throttle body. |
| Accelerator Position Sensor (APAD) | Senses the input from the throttle cables. | RH side of the throttle body. |
| Manifold Absolute Pressure Sensor (MAP) | Measures pressure in the intake manifold to determine air density. | On top of the throttle body. Normal pressure at sea level is around 1013 hPa. |
| Motor Drive | Electrically driven motor that controls the throttle butterfly valve. | Integrated within the throttle body assembly. |
| Motor Drive Hall Sensor | Provides feedback on the position of the motor drive. | Integrated within the throttle body assembly. |
| Motor Drive Voltage | Monitors the voltage supplied to the motor drive. | Monitored circuit. |
Frequently Asked Questions
Q1: My KTM's FI light is flashing. What should I do first?
A1: The first step is to bring the engine down to idle if it's not already there. Then, observe the flashing pattern of the FI light. Consult your KTM Owner's Manual to decode the specific fault code indicated by the sequence of long and short flashes.
Q2: What does the 4 long, 1 short flash code mean?
A2: This common code typically indicates an issue with the fuel pump. While often referred to as a "Fuel Pump Controller" fault, it's more likely related to the ECU's control of the fuel pump's earth connection or the pump itself.
Q3: Can I fix a faulty sensor myself?
A3: For many sensor issues, basic checks like inspecting connections and measuring resistance can be done by the owner. However, complex diagnostics or repairs might require specialised tools and knowledge, so consulting a qualified technician is often recommended.
Q4: Is it safe to ride with the FI light on?
A4: It depends on the nature of the fault. Some minor faults may allow you to ride, but performance could be compromised. If the bike is running poorly, making strange noises, or the FI light is flashing continuously, it's best to stop riding and diagnose the issue to prevent further damage.
By understanding these blink codes and common fault areas, you can be better equipped to diagnose and address issues with your KTM's fuel injection system, ensuring your adventures continue without interruption.
