Akra vs Evo Maps: Understanding the Differences

When delving into the world of motorcycle performance enhancement, particularly after fitting aftermarket exhausts and making other modifications, you'll inevitably encounter discussions around ECU (Engine Control Unit) mapping. Two terms that frequently surface are 'Akra maps' and 'Evo maps'. While both aim to optimise your bike's performance, understanding their fundamental differences is crucial for making informed decisions. This article aims to demystify these popular tuning options, explaining what they do, how they differ, and the tangible benefits they can offer.

What are Akra and Evo Maps?

Essentially, both 'Akra maps' and 'Evo maps' refer to custom-designed fuel and ignition maps loaded onto your motorcycle's ECU. These maps are developed by specialist tuners or manufacturers to complement specific modifications, most commonly the installation of a full aftermarket exhaust system, such as those produced by Akrapovič (hence the term 'Akra map'). 'Evo map' is often used more broadly to denote a highly refined, performance-oriented map, sometimes associated with specific tuning companies or a more advanced stage of tuning.

The Core of the Matter: Fuel and Ignition

The primary functions of any engine map are to control the air-fuel ratio (AFR) and the ignition timing. When you change components like exhausts, air filters, or even internal engine parts, the way the engine breathes and combusts changes. The stock ECU map is calibrated for the original factory specifications. Once you deviate from these, the stock map may no longer be optimal, potentially leading to performance losses, increased heat, or even engine damage due to running too lean or too rich.

Fueling Modifications

Aftermarket exhausts, especially those that remove the catalytic converter, often allow the engine to 'breathe' more freely. This improved airflow typically requires an adjustment in the amount of fuel injected into the cylinders.

• Lean Mixture: Too little fuel relative to air. This can lead to higher combustion temperatures, potential engine damage (like piston melt), and a harsh, 'pinging' sound (detonation).
• Rich Mixture: Too much fuel relative to air. This can result in reduced power, poor fuel economy, fouled spark plugs, and increased emissions.

Both Akra and Evo maps will adjust the fuel delivery across the rev range to achieve a more optimal AFR for the modified setup. This often involves increasing fuel delivery at certain points to compensate for improved airflow and ensure the engine runs safely and efficiently.

Ignition Timing Adjustments

Ignition timing refers to precisely when the spark plug fires relative to the piston's position. The goal is to ignite the air-fuel mixture at the optimal moment for maximum power and efficiency, while avoiding detonation.

• Advanced Timing: The spark plug fires earlier in the compression stroke. This can improve throttle response, power, and can also contribute to a smoother, quieter engine operation. However, excessive advance can lead to detonation.
• Retarded Timing: The spark plug fires later in the compression stroke. This is often done to prevent detonation in engines running lean or with high compression. However, overly retarded timing results in a loss of power and efficiency.

Crucially, changes in fueling often necessitate corresponding changes in ignition timing. A richer mixture burns more slowly than a lean one. If you simply add more fuel without adjusting ignition timing, the peak combustion pressure might occur too late in the power stroke, leading to a loss of power and increased vibrations. Similarly, advancing ignition timing on an already lean mixture can drastically increase the risk of detonation.

Akra Maps: Tailored for Akrapovič Systems

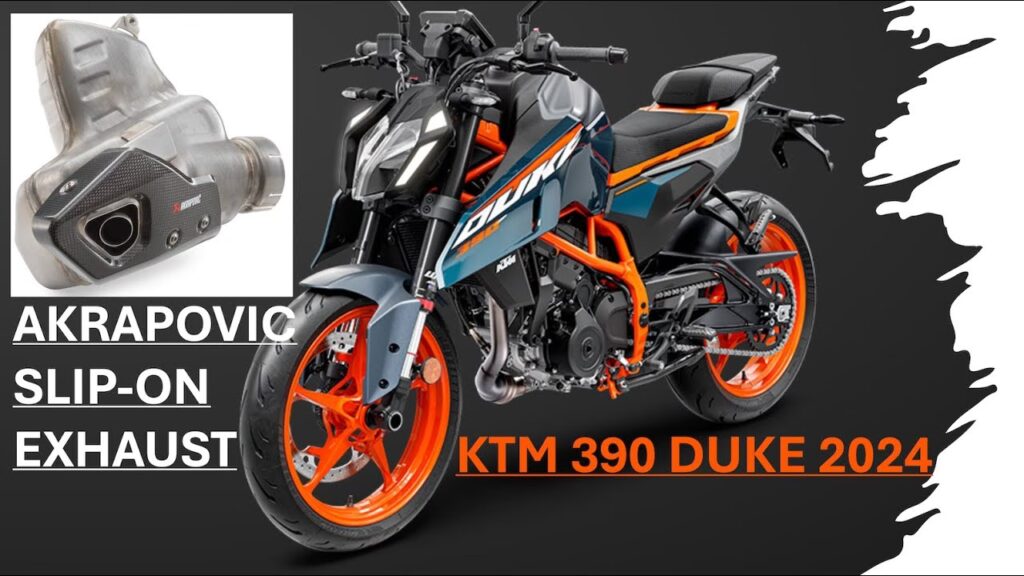

'Akra maps' are specifically developed by Akrapovič or tuners working closely with them to complement their own exhaust systems. These maps are meticulously calibrated to optimise the performance gains expected from fitting an Akrapovič header and/or muffler combination.

A user reported experiencing an Akra map installation and noted:

• Quieter Operation: This might seem counterintuitive for an aftermarket exhaust, but advanced ignition timing can reduce exhaust noise. When the spark fires earlier, the combustion event is more complete before the exhaust valve opens, meaning less unburnt fuel and less pressure wave hitting the exhaust port, resulting in a quieter note.
• Smoother Power Delivery: Optimized ignition timing ensures the force of combustion acts on the piston at the most effective point throughout the rev range, reducing jerkiness and improving overall smoothness.
• Quicker and Freer Revving: Correct ignition timing and appropriate fueling allow the engine to respond more eagerly to throttle inputs and rev more freely, enhancing the riding experience.

The user’s experience highlights that these improvements are not solely due to fueling changes. Their previous setup, with a fuel controller adding extra fuel, had already addressed potential lean conditions. The significant improvements observed after the Akra map strongly suggested that ignition timing was a key factor being adjusted.

Evo Maps: A Broader Category of Performance Tuning

The term 'Evo map' can be more general, often referring to a highly evolved or performance-focused map. It might be developed by a tuning house like Woolich Racing, Dynojet (for Power Commanders), or other specialist tuners. An Evo map is designed to extract the maximum performance from a set of modifications, potentially going beyond what a manufacturer-specific map like an Akra map might offer, or catering to a wider range of aftermarket parts.

The critical takeaway from the user’s experience is the synergy between fuel and ignition. They theorised that the stock map was too lean, requiring their fuel controller to compensate. However, the stock ignition timing was likely designed for the lean factory setup. When they ran richer with the fuel controller, the stock ignition timing became too late, leading to a less powerful and more vibey engine. The Akra/Evo map, by providing both optimised fueling and advanced ignition timing, created a much more harmonious and potent engine package.

Akra vs. Evo: Which is Right for You?

The choice between an Akra map and a more generic 'Evo' map often depends on your specific modifications and goals:

The Importance of Ignition Timing

The user's observation that more fuel alone didn't produce the same results as the Akra map underscores the critical role of ignition timing. Simply adding fuel to a lean condition might prevent catastrophic failure, but it won't necessarily unlock the engine's full potential or achieve the smoothness and responsiveness that comes from precisely synchronised fueling and ignition.

The question of whether aftermarket fuel controllers (like a Power Commander or similar) can adjust ignition timing is vital. If they can, then a skilled tuner could potentially replicate the benefits of an Akra or Evo map without needing a specific pre-made map. However, if a popular fuel controller *cannot* adjust ignition timing, then a dedicated ECU flash map (like an Akra or Evo map) becomes almost essential for achieving optimal results after significant modifications. Trying to compensate for ignition timing issues solely through fueling adjustments can be a compromise.

Common Questions Answered

Q1: Does an Akra map change both fuel and ignition?

Yes. Based on user experiences and the principles of engine tuning, Akra maps are designed to adjust both the air-fuel ratio and the ignition timing to suit the specific performance characteristics of Akrapovič exhaust systems. The improvements in smoothness and responsiveness often reported are strong indicators of ignition timing optimisation.

Q2: My bike runs fine with just a fuel controller. Do I need an ECU map?

While a fuel controller can help manage lean conditions, it might not address the optimal ignition timing required for your modifications. If your fuel controller doesn't also adjust ignition timing, you may be leaving performance and smoothness gains on the table. An ECU map that optimises both fueling and ignition offers a more complete solution.

Q3: What is the difference between a stage 1 and stage 2 map?

Stage 1 maps are typically designed for basic modifications like an aftermarket slip-on exhaust or air filter. Stage 2 maps are usually more aggressive and cater to more extensive modifications, such as a full exhaust system (header and muffler), a high-flow air filter, and potentially internal engine work. They often involve more significant changes to both fueling and ignition across a wider rev range.

Q4: Can I use an Akra map if I don't have an Akrapovič exhaust?

While you might see some benefit, it's generally not recommended. Akra maps are specifically tuned for Akrapovič systems. Using them with a different brand of exhaust might not yield optimal results and could potentially lead to an suboptimal AFR or ignition timing for your specific setup.

Conclusion

Understanding the interplay between fueling and ignition is key to appreciating the benefits of dedicated ECU maps like those from Akrapovič or specialist tuning houses. While aftermarket fuel controllers offer a degree of adjustability, a comprehensive ECU flash that optimises both parameters provides a more holistic and often superior solution for performance and engine health. The reported improvements in smoothness, responsiveness, and even noise levels after fitting an Akra map strongly suggest that optimised ignition timing is a critical component often overlooked when only considering fueling adjustments.
