KTM 390 Duke Throttle Body: A Surprisingly Clean Affair

Embarking on motorcycle maintenance can often feel like a journey into the unknown, with components revealing their condition in unexpected ways. For owners of the popular KTM 390 Duke, understanding the typical state of key parts like the throttle body is crucial for proactive care. Recently, a detailed account shared by BHPian SunnyBoi offered a fascinating glimpse into the internal workings of a 390 Duke, including a rather surprising observation about its throttle body's cleanliness.

The Throttle Body: A Clean Slate?

In the realm of motorcycle engines, the throttle body is a critical component responsible for regulating the flow of air into the engine. Over time, it can accumulate carbon deposits, oil residue, and other gunk, which can affect performance and throttle response. Therefore, regular cleaning is often recommended. However, in SunnyBoi's experience, the throttle body on his KTM 390 Duke was found to be surprisingly clean. This stood in stark contrast to another 390 Duke he had encountered, which exhibited significantly more carbon buildup despite having fewer miles on the clock. This observation suggests that factors such as riding style, fuel quality, and perhaps even manufacturing variations can play a role in how quickly a throttle body becomes fouled.

Beyond the Throttle Body: A Comprehensive Maintenance Log

While the throttle body's condition was a notable point, SunnyBoi's undertaking was far more extensive, involving several other significant maintenance tasks. This provides a broader perspective on the kind of work that might be undertaken on a KTM 390 Duke.

Starter Motor and Tensioner Replacement

The process began with the removal of the airbox and throttle body. Following this, the starter motor and the cam chain tensioner were also addressed. The tensioner was removed primarily to facilitate easier access to the starter motor. The comparison between the old and new starter motors highlighted the wear and tear that these components can endure. The tensioner itself presented a minor concern, with one tang sticking out. The owner speculated whether this indicated an impending failure or if it was a consequence of the removal process, leaning towards the latter.

Navigating Engine Timing: A Challenging Endeavour

A significant portion of the maintenance involved working on the engine's timing. Rotating the engine to Top Dead Centre (TDC) proved to be more difficult than anticipated when attempting it solely from the clutch side. To simplify this, the magnet cover was removed. Upon reaching TDC, the timing was assessed. The intake timing was deemed good, but the exhaust timing was slightly retarded. This led to a deeper dive into the cam chain and its alignment.

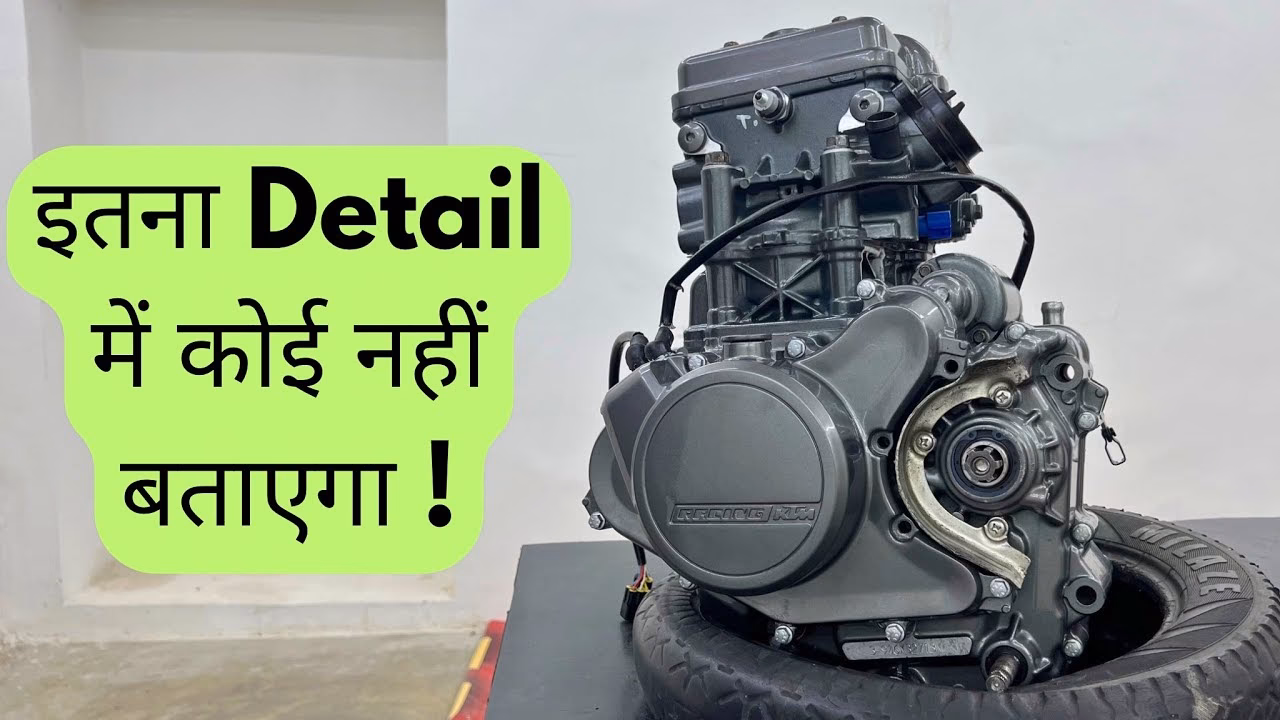

Drawing inspiration from a Duke 200 engine rebuild video, where the presenter mentioned the difficulty of aligning the Duke 200 chains and the tactic of removing the inlet cam sprocket, SunnyBoi considered a similar approach. Initially, he hesitated to change the timing chain, noting that the old one appeared to be in good condition. However, having committed to the task, he proceeded. The removal of the cam bridge revealed that the cams were quite stiff and wouldn't budge easily with the chain in place. This made the prospect of changing the chain daunting, especially when compared to the perceived ease of doing so on a 390.

The removal of the intake cam was followed by a stark realisation: there was very little slack to manoeuvre the cams with the chain still attached. This contrasted sharply with the experience on a 390, where such tasks were described as being orders of magnitude easier. Despite these challenges, the old timing chain was successfully removed and replaced with a new one.

The Struggle for Perfect Timing

Surprisingly, refitting the cams back into timing didn't initially seem as difficult as anticipated. However, a closer inspection, prompted by showing the alignment marks to an apprentice, revealed a critical error. The cams were not aligned correctly; one was ahead, and the other was behind. This led to a frustrating hour-long battle to get the cams to sit properly. If they were seated tightly, they would be out of time.

The breakthrough came with the decision to remove the inlet cam sprocket. As a standard wrench proved insufficient, an impact wrench was employed to remove the bolt, with the cam held by hand. The process involved timing the cam as per the video's guidance. However, refitting the sprocket bolt was hindered by chassis obstruction. A creative solution was devised: the chain was ziptied to the sprocket, and the cam was lifted at an angle to access the bolt, which was then tightened using the impact wrench. Yet, the triumph was short-lived, as the timing was discovered to be off by one tooth.

Rectification and Reassembly

With despair setting in, a break was taken. Later, the timing was corrected using the original method: removing the cam, manipulating the chain to move the cam one tooth back, and then refitting. After reinstalling the cam bridge with just two bolts and rotating the crank twice, the timing appeared correct. All bolts and the tensioner were then put back, followed by two more rotations of the crank. With the tensioner in place, all four timing marks aligned perfectly, a moment of immense relief and satisfaction.

Following the successful timing correction, both the clutch and magnet covers were reinstalled with new gaskets. The valve cover, which still had the factory RTV silicone sealant in the corners, was a point of consideration. Despite having a new, albeit expensive, valve cover gasket kit, the owner decided to reuse the original gasket, adding RTV silicone to the corners as per the factory method, opting for a calculated risk.

Exhaust System Woes and a Pragmatic Decision

The next planned task was to address the exhaust system, which included replacing a rusted silencer clamp, painting the exhaust, and renewing all exhaust bushes. The rusted clamp predictably broke upon removal. However, when attempting to remove the exhaust from the header, it wouldn't budge, echoing a similar issue encountered during maintenance on a 390. To slide out the header pipe, the radiator would need to be removed, which in turn required draining and refilling the coolant. Faced with the prospect of further downtime and the sheer volume of work already undertaken, SunnyBoi made a pragmatic decision.

Everything was reassembled, including the exhaust bolts, with liberal application of copper anti-seize to prevent future rust and thread seizure. This pragmatic approach highlights the balancing act between achieving ideal maintenance and the practicalities of time and resources.

Summary of Jobs

Completed Jobs:

• Timing Chain and Tensioner Replacement
• Starter Motor Replacement
• Airbox and Throttle Body Removal

Jobs Remaining:

• Clean Throttle Body (ironically, after removal and inspection)
• Fix Broken Airbox (specifically the lid nuts)
• Replace Rear Suspension
• Replace Cup Cone Set
• Fill Engine with Oil
• Replace horn clamp and tidy wiring

The ambition was to have the motorcycle, affectionately nicknamed "Daisy," back on the road by Saturday evening, acknowledging the likelihood of two very long days ahead. This detailed account not only sheds light on the surprisingly clean state of a KTM 390 Duke's throttle body but also provides a valuable insight into the complexities and challenges of performing more in-depth engine maintenance on these capable machines.

Frequently Asked Questions

Q1: How often should the throttle body on a KTM 390 Duke be cleaned?
While there's no strict mileage interval, it's generally advisable to inspect the throttle body during major services. If you notice symptoms like rough idling, poor throttle response, or hesitation, it might be time for a clean. The experience shared suggests it might not always be a high-priority item for cleaning compared to other components.

Q2: What are the symptoms of a dirty throttle body?
Common symptoms include erratic idling (too high or too low), hesitation during acceleration, poor fuel economy, and a general loss of engine power or responsiveness.

Q3: Can I clean the throttle body myself?
Yes, you can. You'll need a specific throttle body cleaner spray and a clean, lint-free cloth. Be gentle, and avoid using excessive force or harsh abrasives. Ensure the engine is off and cool. Some recommend disconnecting the battery before starting. Always refer to your owner's manual or a reliable service guide for specific instructions for your model.

Q4: Why was the inlet cam sprocket removed in this case?
It was removed to overcome the difficulty in aligning the cam timing when the chain had very little slack. Removing the sprocket allowed for better access and manoeuvreability to achieve the correct timing.

Q5: Is it common for the exhaust to be difficult to remove on a KTM 390 Duke?
Yes, as indicated by this account and the comparison to a previous experience, the exhaust system, particularly the header pipe, can sometimes be tightly fitted and may require removal of other components like the radiator for access.
