KTM Clutch Basket: Troubleshooting & Upgrades

It sounds like you've hit a common snag when delving into your KTM Duke 125's gearbox. That initial fix for the gear lever was a good start, but the inability to select gears beyond third suggests a deeper issue within the transmission, and often, the clutch assembly is the prime suspect. While the information provided here focuses heavily on older KTM 250/300/380 models, the fundamental principles of clutch basket removal and common issues can often be applied across different KTM models, including your Duke 125, albeit with specific part number variations. Let's break down how to approach removing your clutch basket and what to look out for.

Why Can't I Remove My Clutch Basket?

You've removed the clutch cover and presumably the retaining nut, but the clutch basket still won't slide off. This is a classic symptom that the clutch basket is likely still engaged with the primary drive gear or an internal locking mechanism. It's not as simple as a direct pull-off in many cases. The primary gear often has splines that mate with the crankshaft, and the clutch basket itself might be keyed or splined to this primary gear. The clutch basket nut you removed is typically a large, single nut that holds the entire clutch assembly together, including the pressure plate, clutch plates, and the basket itself. If this nut is correctly removed, the basket should theoretically be free to slide off its splined shaft, or at least be movable. However, sometimes corrosion, sticky clutch plates, or a misaligned component can make it seem stubbornly stuck. Ensure no other retaining clips or bolts are present after removing the main clutch nut.

How to Remove a KTM Clutch Basket: A Step-by-Step Guide (General Principles)

While your Duke 125 will have specific torque settings and part numbers, the general procedure for removing a KTM clutch basket involves several key steps:

1. Drain the Oil: Always start by draining the engine oil. This minimises mess when you remove the clutch cover.
2. Remove the Clutch Cover: You've already done this. Be mindful of the gasket; it's best to replace it when reassembling.
3. Remove the Pressure Plate and Clutch Plates: With the cover off, you'll see the pressure plate, which is held on by several bolts. Loosen these bolts evenly, in a criss-cross pattern, to release the spring tension gradually. Once the bolts are out, carefully remove the pressure plate and then the clutch plates, noting their order and orientation (some plates may be 'stepped' or have specific orientations).
4. Remove the Clutch Basket Nut: This is the crucial step. You will need a specialized clutch basket wrench or a large socket that fits the central nut. It's often a very tight nut and may have a locking tab or washer. Use a tool to hold the clutch basket stationary while you loosen the nut. A dedicated clutch holder tool is highly recommended to prevent damage to the basket and gears. Remember that this nut is usually reverse-threaded on some models, but most modern KTMs have standard-threaded nuts. Always check your service manual for confirmation.

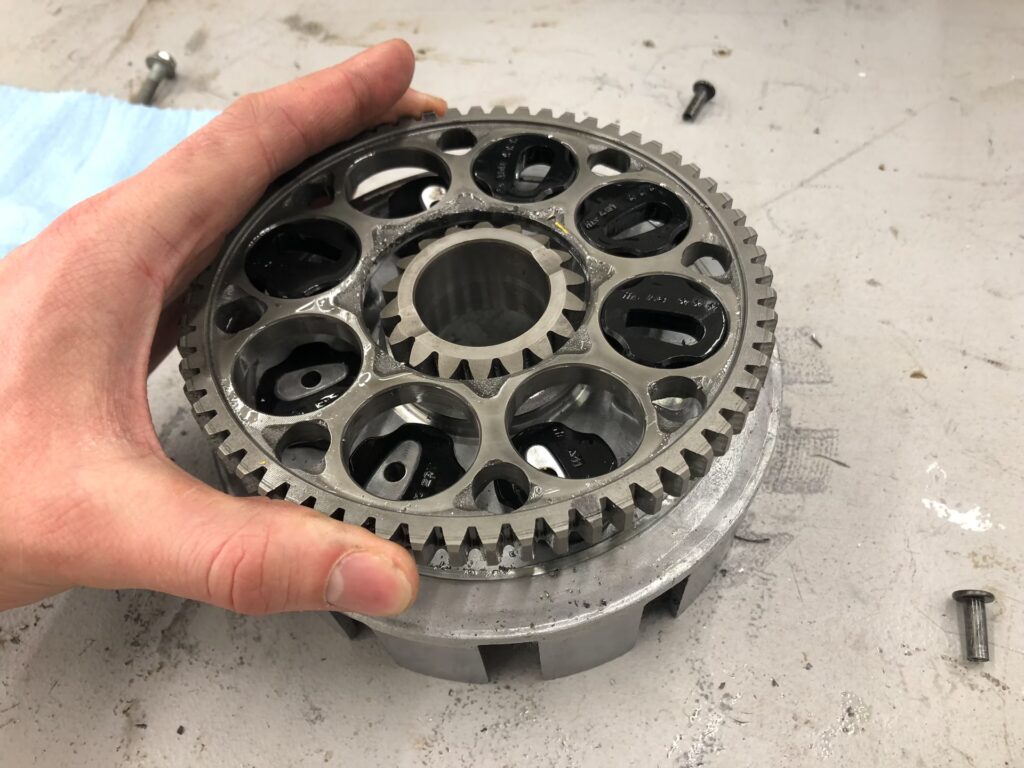

5. Remove the Clutch Basket: Once the nut is off, the clutch basket should be free. It might require a gentle wiggle or a light tap with a rubber mallet to break it free from the splines on the primary shaft. If it's still stuck, double-check that the nut is fully removed and that no other components are interfering. Avoid excessive force, as this can damage the crankshaft or the primary gear.

Common Issues Affecting Clutch Basket Removal and Gear Selection

Given your symptoms, here are some areas to investigate once you can access the clutch assembly:

• Bent Shift Forks: These are the components that move the gear dogs to engage different gears. If one is bent, it can prevent the gear selector mechanism from reaching its full range of motion.
• Worn Shift Drum/Selector Drum: The drum itself has grooves that guide the shift forks. Wear or damage to these grooves can cause shifting problems.
• Damaged Gear Dogs: The 'dogs' on the gears that engage to lock them in place can become worn or chipped, leading to gears popping out or failing to engage fully.
• Shift Locating Mechanism: As the provided information suggests for older KTMs, the shift locating mechanism (often a plastic drum or roller assembly) can fail. A faulty locator can prevent the gearbox from fully engaging or disengaging gears, leading to the symptoms you're experiencing. The upgrade to an all-metal unit for older models is a strong indicator of how critical this part is.
• Bent or Damaged Input/Output Shafts: Less common, but possible, are bent shafts that can cause binding and restrict gear movement.

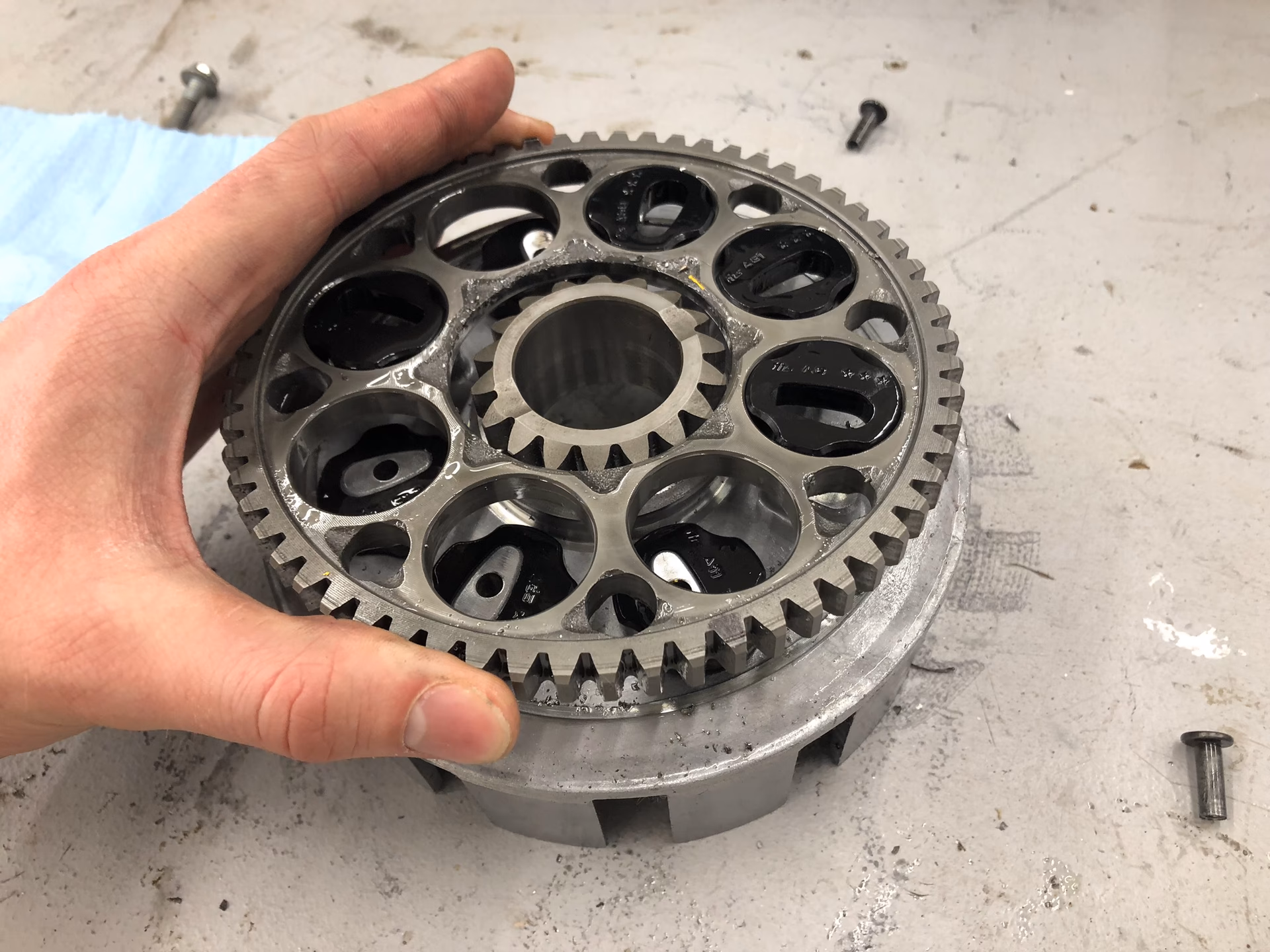

Aftermarket Clutch Baskets and Inner Hubs: Compatibility for Older KTMs

The information you've provided regarding older KTM 250/300/380 models is valuable for understanding the evolution of these components. It highlights that direct 'bolt-on' compatibility isn't always straightforward, especially with the inner hub. The key differences often lie in:

• Spline Count and Profile: The engagement points between the basket, inner hub, and primary gear can change.
• Dimensions: Slight variations in diameter, width, or recess depth can prevent fitment.
• Material and Design: Billet aluminium baskets (like the Pro-X example) are often stronger and lighter than stock, but ensuring they are designed for the correct spline interface is paramount.

For your Duke 125: While the older KTM data gives us context, you'll need to source clutch components specifically listed as compatible with the 2015 Duke 125. Aftermarket brands like ProX, Hinson, Wiseco, and Barnett are reputable, but always verify the exact model fitment through their product catalogues or by cross-referencing OEM part numbers.

What to Look for When Buying Aftermarket Clutch Components

• OEM Part Number Cross-Reference: Find the OEM part numbers for your Duke 125's clutch basket and inner hub, then search for aftermarket equivalents that explicitly state compatibility.
• Material: Forged or billet aluminium is generally preferred for durability over cast aluminium.
• Design Features: Some aftermarket baskets have reinforced mounting points or improved oil flow characteristics.
• Completeness: Ensure the component comes with any necessary hardware, such as damping elements or retaining clips, or factor these into your purchase.

Essential Tools and Parts for Clutch Work

Attempting clutch maintenance without the right tools can lead to frustration and costly damage. Here's what you'll likely need:

Addressing the Gear Shifting Problem on Your Duke 125

Since you can only select the first three gears, and you've ruled out a simple linkage issue, the problem is almost certainly internal to the gearbox or clutch mechanism. Your initial thought to inspect the selector mechanism is correct. When you eventually get the clutch basket off, pay close attention to:

• Shift Drum and Forks: As mentioned, inspect the shift drum for wear in its grooves and the shift forks for any signs of bending or damage.
• Gear Engagement: With the clutch removed, you can try to manually turn the input shaft and observe how the gears engage. See if the selector mechanism can push the gears into their respective positions correctly.
• The Shift Locating Drum: If your 2015 Duke 125 has a similar plastic shift locator to the older models mentioned, this is a very strong candidate for the fault. A worn or broken locator can prevent the gearbox from finding neutral or engaging higher gears. Upgrading this to a metal version, if available for your model, is a wise preventative measure.
• Bolt Securing the Shift Drum: The note about the bolt securing the shift drum working loose on older KTMs is a vital piece of information. If this bolt comes loose, it can jam the shifting mechanism or prevent it from operating correctly. Check this thoroughly.

Frequently Asked Questions

Q1: How tight should the clutch basket nut be?

A1: Clutch basket nuts are typically torqued to high specifications. Always refer to your KTM Duke 125 service manual for the exact torque value. Overtightening can damage the shaft or the nut, while undertightening can lead to catastrophic failure.

Q2: Can I use a car's impact wrench to remove the clutch basket nut?

A2: It is strongly advised *against* using an impact wrench. The torque required can be very high, and it's easy to strip the nut or damage the splines or crankshaft. A proper clutch holding tool and a breaker bar offer much more control and safety.

Q3: My clutch plates look fine. Do I still need to replace them?

A3: Visually inspecting clutch plates is a good start. However, even plates that don't appear burnt can be worn beyond their service limit, losing their friction material. If you're doing this much work, it's often economical and wise to replace the entire clutch pack (friction plates, steel plates, and springs) as a preventative measure, especially if the bike has high mileage or an unknown service history.

Q4: Is it normal for the clutch basket to be difficult to remove?

A4: While it shouldn't require excessive force, a slight sticking due to splines can be normal. However, if it feels truly seized, re-check that all retaining nuts and clips are removed. Corrosion can sometimes bind components over time.

Q5: What are the symptoms of a failed plastic shift locator?

A5: Symptoms can include difficulty finding neutral, gears jumping out, inability to select certain gears, or a general feeling of the gearbox being 'sloppy' or unreliable. It can mimic other gearbox failures, making it a sneaky problem to diagnose.

Tackling this kind of repair requires patience and the right tools. Getting that clutch basket off is the first hurdle, and once it's off, you'll be in a much better position to diagnose the root cause of your gear selection woes. Good luck!
