KTM 690 Enduro R: Maintenance & Manual Guide

The KTM 690 Enduro R stands as a beacon for riders seeking the ultimate blend of road performance and off-road capability. It's a machine built for adventure, but like any high-performance motorcycle, it demands diligent care and a thorough understanding of its mechanics. Whether you're a seasoned globetrotter or a weekend warrior, mastering the maintenance of your 690 Enduro R is paramount to ensuring its longevity, reliability, and continued thrill on every journey. This comprehensive guide will delve into the critical aspects of owning and maintaining this formidable dual-sport bike, from understanding the necessity of a service manual to executing vital maintenance procedures.

The Indispensable Service Manual: Your KTM's Definitive Guide

For any serious motorcycle owner, a service manual is not merely an accessory; it is the definitive guide to your bike's health and performance. While specific sources for the KTM 690 Enduro R service manual are best sought through official KTM channels or reputable aftermarket publishers, understanding its immense value is the first step. This manual contains detailed instructions for every conceivable maintenance task, from routine checks and fluid changes to complex engine overhauls. It provides precise torque specifications, wiring diagrams, troubleshooting guides, and part numbers, making it an invaluable resource for both minor adjustments and major repairs. Relying on guesswork or incomplete information can lead to costly errors and compromise your bike's integrity. Therefore, investing in the correct service manual for your specific model year is a wise decision that will pay dividends in the long run, empowering you to perform accurate maintenance and identify issues before they escalate.

While online forums and community resources can offer helpful tips and shared experiences, they should always be used as a supplementary resource, not a replacement for the official service manual. The manual ensures you have access to manufacturer-approved procedures and specifications, which are essential for maintaining the bike's warranty and its designed operational parameters. Always verify information with an authoritative source when performing critical maintenance or repairs.

Essential Maintenance: Mastering Air Box Access on Your 690 Enduro R

One of the most fundamental yet frequently performed maintenance tasks on a KTM 690 Enduro R, especially for those venturing off-road, is the removal and reinstallation of the air box. This procedure is crucial for air filter inspection, cleaning, or replacement, which directly impacts engine performance and longevity. The process is remarkably consistent across 2008-2018 690 models, including your 2016 KTM 690 Enduro R, making these instructions widely applicable. For 2019-on models, while similar principles apply, there may be specific differences that require consulting a model-specific guide.

Preparation and Initial Steps

Before you begin, ensure your bike is stable, ideally on a stand. Gather your tools, including screwdrivers and possibly a plastic tie cutter. The process starts with exposing the components:

• First, carefully remove the seat. This typically involves unbolting or unlatching it from the rear.
• Next, remove the plastic side covers. These usually have a few bolts or clips holding them in place. Be mindful not to scratch them.

Accessing the Air Box Bolts and Connections

With the covers off, you can now access the air box itself. This stage requires meticulous attention to connections and fasteners:

• Locate the regulator/rectifier (reg/rec). You don't need to disconnect its wires; simply remove the bolts holding it in place and let it hang freely. This creates necessary clearance.
• Proceed to remove the air box lid. This often involves several small bolts; keep them organised.
• Identify the four small bolts securing the air box itself. The front bolts are conveniently accessible through dedicated holes in the plastic cover. Note that one of these holes is positioned behind where the reg/rec was.
• Unplug the breather hose. It's crucial step to remember its routing for reinstallation. If in doubt, take a quick photo.
• Locate the air temperature sensor wire. Cut the plastic tie holding it and carefully remove the sensor from the air box. On older 2008-2013 models, this sensor might be found below the air box.
• (Optional) For additional working space, you may choose to remove the ECU unit. This is not always necessary but can make the process easier for some.

The Throttle Body Connection

The final element holding the air box in place is the rubber boot connecting it to the throttle body. This connection requires a specific approach:

• On 2014-2016 models, there are two hose clips on this boot. Pay close attention: you only need to loosen (not remove) the one marked in green (typically the outer one). Leave the one marked in red (inner one) untouched.
• This loosening is best done while the air box is still connected to the throttle body, using a screwdriver from the side.

Removing the Air Box

With all connections loosened or removed, the air box can now be extracted:

• Lift the rear of the air box, gently pulling the rubber boot off the throttle body.
• Once detached, twist the air box to manoeuvre it out from its confined space.

Securing the Throttle Body and Reinstallation Tips

Once the air box is out, it's paramount to protect the exposed throttle body opening:

• Immediately secure the throttle body opening with a clean plastic bag or similar cover to prevent any debris or dirt from entering the engine. This is a critical component of engine protection.
• When you've completed your maintenance tasks (e.g., air filter service), simply follow these steps in reverse order for reinstallation.

Few Vital Tips for Reassembly:

• Grease Application: Apply a thin layer of grease to the throttle body. This will help the rubber boot slide back on easily without binding.
• Hose Routing: If you're unsure about the breather hose routing, refer to any photos you took, or consult your service manual.
• Hose Clip Tightening: Be gentle touch with the hose clip holding the rubber boot onto the throttle body. Ensure the rubber boot is perfectly positioned before tightening. There's no need to overtighten; a snug fit is sufficient.
• Air Box Bolts: Similarly, be gentle with the four small bolts that hold the air box. They screw into rubber cushion elements, so overtightening can damage these components. Hand-tightening with a final gentle turn with a tool is usually enough.
• Air Box Lid Bolts: This is very, very important: be extremely gentle with the two bolts securing the air box lid. These are often delicate. Tighten them by hand only! They are designed for minimal torque.
• Air Temp Sensor: Don't forget to secure the air temperature sensor wires with a plastic clip to prevent them from rubbing or snagging.

The KTM 690 Enduro R: A Legacy of Adventure and Evolution

The KTM 690 Enduro R has carved out a significant niche in the dual-sport motorcycle market since its inception. MCN first reviewed the original KTM 690 Enduro in February 2008, introducing it as part of an entirely new 690 family. This lineup showcased KTM's innovative LC4 engine, a powerful single-cylinder unit that quickly became synonymous with the brand's performance philosophy. Alongside the Enduro, the family also included the 690 SMC supermoto and the road-biased 690 Duke, demonstrating the versatility of the LC4 platform.

Over the years, the 690 Enduro R has undergone a series of refinements and updates, each iteration building upon the success of its predecessor. These changes have consistently aimed at enhancing its capabilities, whether through engine improvements, chassis adjustments, or electronic rider aids. This continuous evolution has solidified its reputation as a highly capable and adaptable machine, equally at home navigating challenging off-road trails as it is cruising on the tarmac.

The 2023 KTM 690 Enduro R: Refined Aesthetics and Uncompromised Performance

For the 2023 model year, the KTM 690 Enduro R introduces subtle yet impactful updates, primarily focusing on aesthetics that draw inspiration from KTM's competition enduro range. While previous generations saw more significant mechanical overhauls, the 2023 model maintains its robust core while presenting a fresh visual appeal. It continues to be powered by the iconic LC4 engine, a testament to its proven reliability and performance.

Key Highlights of the 2023 KTM 690 Enduro R:

New Aesthetics:

Updated bodywork colours and graphics, directly inspired by the aggressive styling of the EXC family, giving it a sharper, more modern look.

LC4 Engine:

The heart of the beast remains the renowned LC4 single-cylinder engine, featuring electronic fuel injection for precise fuelling, ride-by-wire technology for smooth throttle response, dual-balancer shafts for reduced vibration, a PASC slipper clutch for enhanced control during downshifts, and a robust six-speed transmission.

Ergonomics:

A manageable seat height of 910mm (35.8in) ensures accessibility for a wider range of riders while maintaining ample ground clearance for off-road obstacles.

Suspension System:

Equipped with adjustable WP XPLOR suspension, featuring separate damping circuits and an impressive 250 mm (9.8 in) of travel both front and rear, providing exceptional control and comfort over varied terrain.

Chassis:

A lightweight chrome-molybdenum trellis frame offers a perfect balance of rigidity and flex, contributing to the bike's agile handling.

Fuel System & Weight Distribution:

A cleverly designed polymer rear fuel tank not only contributes to a low centre of gravity but also significantly reduces overall weight, enhancing the bike's nimble feel.

Braking Performance:

Reliable stopping power is provided by a Brembo braking system combined with waved discs, ensuring consistent and powerful deceleration.

Advanced Electronics:

Includes Cornering ABS for enhanced safety on the road, with an optional Offroad ABS dongle. This dongle is a valuable addition for off-road enthusiasts, allowing for less ABS intervention at the front wheel and complete disengagement of ABS at the rear, enabling controlled slides and improved technical downhill performance. A Quickshifter facilitates clutchless gear changes for seamless acceleration. Lean-angle sensitive Motorcycle Traction Control (MTC) along with selectable Street and Offroad ride modes, switchable directly from the handlebars, provide tailored performance for any condition.

Detailed Specifications of the KTM 690 Enduro R:

Engine Type:

Single cylinder, four-stroke, SOHC

Displacement:

692.7cc

Bore/Stroke:

105/80 mm

Starter:

Electric; 12V 8.6Ah

Transmission:

Six-speed

Fuel System:

Keihin EFI, 50mm throttle body

Lubrication:

Pressure lubrication, two oil pumps

Cooling:

Liquid cooling

Clutch:

PASC hydraulic slipper clutch

Ignition:

Keihin EMS with ride-by-wire, dual ignition

Frame:

Chrome-moly steel trellis

Subframe:

Self-supporting plastic tank

Handlebar:

Aluminium, tapered, Ø 28/22mm

Front Suspension:

WP XPLOR USD Ø 48mm

Rear Suspension:

WP XPLOR Monoshock with pro-lever linkage

Suspension Travel (Front/Rear):

250mm / 9.8in

Front/Rear Brakes:

Disc brake 300mm / 240mm

Front/Rear Wheels:

1.85 x 21”, 2.50 x 18”

Front/Rear Tyres:

90/90-21”; 140/80-18”

Steering Head Angle:

27.7º

Wheelbase:

1,502mm ± 15mm / 59 ± 0.6 in

Ground Clearance:

270 mm / 10.6 in

Seat Height:

910 mm / 35.8in

Tank Capacity:

13.5 l / 3.6 gal

Dry Weight (Approx):

146kg / 321.9lbs

Frequently Asked Questions (FAQs) About the KTM 690 Enduro R

Where can I find a service manual for my KTM 690 Enduro R?

The most reliable place to obtain a service manual for your KTM 690 Enduro R is through official KTM dealerships or directly from KTM's official channels. Reputable aftermarket manual publishers may also offer comprehensive guides. Always ensure the manual corresponds to your specific model year to guarantee accurate information for maintenance and repairs.

How should I maintain my KTM 690 Enduro?

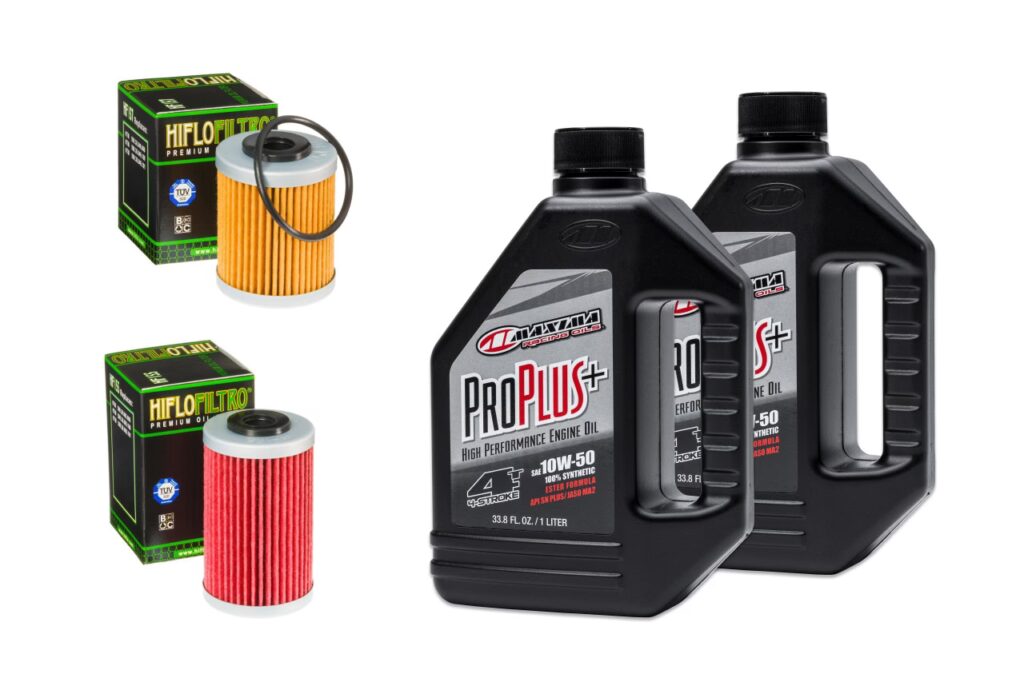

Proper maintenance of your KTM 690 Enduro involves a combination of routine checks and scheduled servicing. Key areas include regular oil and filter changes, chain lubrication and adjustment, brake fluid checks, tyre pressure monitoring, and air filter maintenance. The detailed instructions for air box removal and reinstallation provided in this article are an excellent starting point for one of the most common maintenance tasks. Always consult your service manual for precise service intervals and procedures tailored to your model.

When did the KTM 690 Enduro first come out?

The original KTM 690 Enduro was first introduced in February 2008 as part of KTM's new family of 690cc motorcycles, all featuring the powerful LC4 engine.

What changes were made to the 2023 KTM 690 Enduro R?

The 2023 KTM 690 Enduro R primarily received updated aesthetics, with new graphics and bodywork colours inspired by KTM's competition enduro range. Mechanically, it retains the proven LC4 engine and advanced features like adjustable WP XPLOR suspension, Brembo brakes, Cornering ABS with optional Offroad ABS, Quickshifter, and lean-angle sensitive MTC.

What makes the LC4 engine special?

The LC4 engine, a single-cylinder, four-stroke unit, is renowned for its powerful output, compact design, and robust reliability. It features electronic fuel injection, ride-by-wire technology, and dual-balancer shafts, contributing to its smooth power delivery and reduced vibrations, making it ideal for both road and off-road applications.

Is the KTM 690 Enduro R suitable for long-distance touring?

While designed with off-road capability in mind, the KTM 690 Enduro R's powerful LC4 engine, comfortable ergonomics, and respectable fuel capacity make it surprisingly capable for long-distance touring, especially if your journey involves a mix of paved roads and unpaved tracks. Many riders enhance its touring capabilities with aftermarket luggage, comfort seats, and wind protection.

Conclusion

The KTM 690 Enduro R is a truly versatile and exhilarating machine, capable of tackling almost any terrain you throw at it. To fully appreciate its capabilities and ensure years of reliable performance, diligent and informed maintenance is essential. By familiarising yourself with your bike's service manual, understanding critical procedures like air box access, and staying informed about its continuous evolution, you empower yourself to keep your KTM 690 Enduro R in peak condition, ready for your next great adventure. Ride safe, and keep those wheels turning!
