Mastering Your KTM 500 EXC-F Suspension: A Comprehensive Guide
The KTM 500 EXC-F (2024) is a formidable off-road machine, renowned for its potent engine and sophisticated suspension system. To truly harness its capabilities and conquer challenging terrains, understanding and adjusting your suspension is paramount. This guide will delve into the intricacies of tuning your EXC-F's suspension, ensuring you achieve the perfect balance of comfort, control, and performance for your riding style and the conditions you encounter. Whether you're a seasoned enduro rider or new to the world of KTM, mastering these adjustments will elevate your off-road experience.
Understanding Suspension Fundamentals
Before we dive into the adjustments, it's crucial to grasp the basic principles of motorcycle suspension. Your KTM 500 EXC-F is equipped with a sophisticated WP XPLOR front fork and a WP XPLOR PDS rear shock absorber. These systems are designed to absorb impacts, maintain tyre contact with the ground, and provide stability. Key elements to understand include:
- Spring Preload: This adjustment affects how much the suspension compresses under the rider's weight. It's the primary method for setting your static sag.
- Compression Damping: Controls how quickly the suspension compresses. High-speed compression affects sharp impacts, while low-speed compression influences body roll and chassis movement.
- Rebound Damping: Dictates how quickly the suspension extends after being compressed. Proper rebound prevents the bike from "packing down" or bouncing excessively.
Setting Your Sag: The Foundation of Performance
Sag is the amount your suspension compresses under your static weight (rider and gear). It's the most critical adjustment for a balanced and predictable ride. Incorrect sag can lead to poor handling, instability, and reduced traction.
What You'll Need:
- A tape measure or ruler.
- A friend to help with measurements (optional but recommended).
- Your riding gear.
Steps for Setting Sag:
- Measure Unsprung Length: With the bike on a stand, measure the distance from the rear axle to a fixed point on the fender or subframe. Let's call this the "unloaded" measurement.
- Measure Rider Sag: Mount the bike with all your riding gear on. Have a friend help you push down on the rear of the bike and let it settle. Measure the distance from the same fixed point on the fender/subframe to the rear axle again. This is your "rider sag" measurement.
- Calculate Sag: Subtract the "rider sag" measurement from the "unloaded" measurement.
KTM's Recommended Sag: For the 500 EXC-F, KTM typically recommends approximately 100mm to 110mm of rider sag for the rear suspension. Consult your owner's manual for the precise recommendation.
Adjusting Rear Preload:
The rear shock absorber has a spring collar that you can turn to adjust preload. Turning the collar clockwise will increase preload (reducing sag), and turning it counter-clockwise will decrease preload (increasing sag). Make small, incremental adjustments and re-measure until you achieve the desired sag.
Front Suspension Adjustments: Forks
The WP XPLOR front forks on your KTM 500 EXC-F offer a range of adjustments to fine-tune front-end performance.
Front Sag (Static Rider Sag):
Similar to the rear, you can set front sag. Measure from the bottom of the fork leg to the bottom triple clamp with the bike on a stand, then measure again with the rider on board. The recommended front sag is typically around 30-35mm.
Adjusting Front Preload:
The top of the front forks will have preload adjusters (usually a 17mm hex head). Turning these clockwise increases preload, while turning them counter-clockwise decreases it. Again, make small adjustments and check your sag.
Compression and Rebound Damping:
On the top of the forks, you'll find clickers for compression and rebound damping. The numbers usually indicate the number of clicks from fully closed (softest setting).
- Compression (often marked with a "C"): Turning clockwise generally makes the damping firmer (slower compression), and counter-clockwise makes it softer (faster compression).
- Rebound (often marked with an "R"): Turning clockwise usually makes the rebound firmer (slower extension), and counter-clockwise makes it softer (faster extension).
General Tuning Tips for Damping:
- Too harsh on small bumps: Try softening compression damping.
- Bottoming out on large impacts: Increase compression damping or consider if your sag is set correctly.
- Packs down on successive bumps: Soften rebound damping.
- Pops up too quickly after bumps: Increase rebound damping.
Rear Shock Adjustments
The rear WP XPLOR PDS shock absorber also features compression and rebound damping adjustments, typically located at the base of the shock.
- Compression Damping: Usually has separate low-speed and high-speed adjusters. Low-speed affects chassis movement and general ride feel, while high-speed deals with impacts like "rocks and roots".
- Rebound Damping: Controls the speed at which the shock extends.
Adjusting Rear Damping:
- Compression: Adjusters are often marked with "L" for low-speed and "H" for high-speed. Clockwise is firmer, counter-clockwise is softer.
- Rebound: Typically a single adjuster. Clockwise is firmer, counter-clockwise is softer.
Tuning the Rear Shock:
- Harshness over small bumps: Soften low-speed compression.
- Bottoming out: Increase high-speed compression or consider if your sag is correct.
- Excessive pogo-ing: Increase rebound damping.
- Slow to return after compression: Decrease rebound damping.
Suspension Tuning Scenarios
Here are some common scenarios and how you might adjust your suspension:
| Riding Condition/Problem | Front Fork Adjustment | Rear Shock Adjustment |
|---|---|---|
| Riding on rough, choppy terrain | Soften compression damping (both H/L if applicable) | Soften compression damping (both H/L if applicable) |
| Riding on smooth trails or moto tracks | Slightly firm up compression damping | Slightly firm up compression damping |
| Bike feels unstable on braking | Increase compression damping, check sag | Increase rebound damping |
| Bike feels "nervous" or kicks out | Soften compression damping, check sag | Soften rebound damping |
| Bottoming out on jumps or big hits | Increase compression damping (especially high-speed if available) | Increase high-speed compression |
| Front end feels too stiff | Soften compression damping, check preload | (Less direct effect) |
| Rear end feels too stiff | (Less direct effect) | Soften compression damping, check preload |
Important Considerations and Best Practices
- Make one adjustment at a time: This helps you isolate the effect of each change.
- Keep notes: Record your settings and how they affect the bike's handling.
- Start with sag: Ensure your sag is correctly set before fine-tuning damping.
- Rider weight is key: Adjustments will vary significantly based on your weight and riding style.
- Environment matters: Suspension settings for a rocky trail will differ from those for a sand wash or a motocross track.

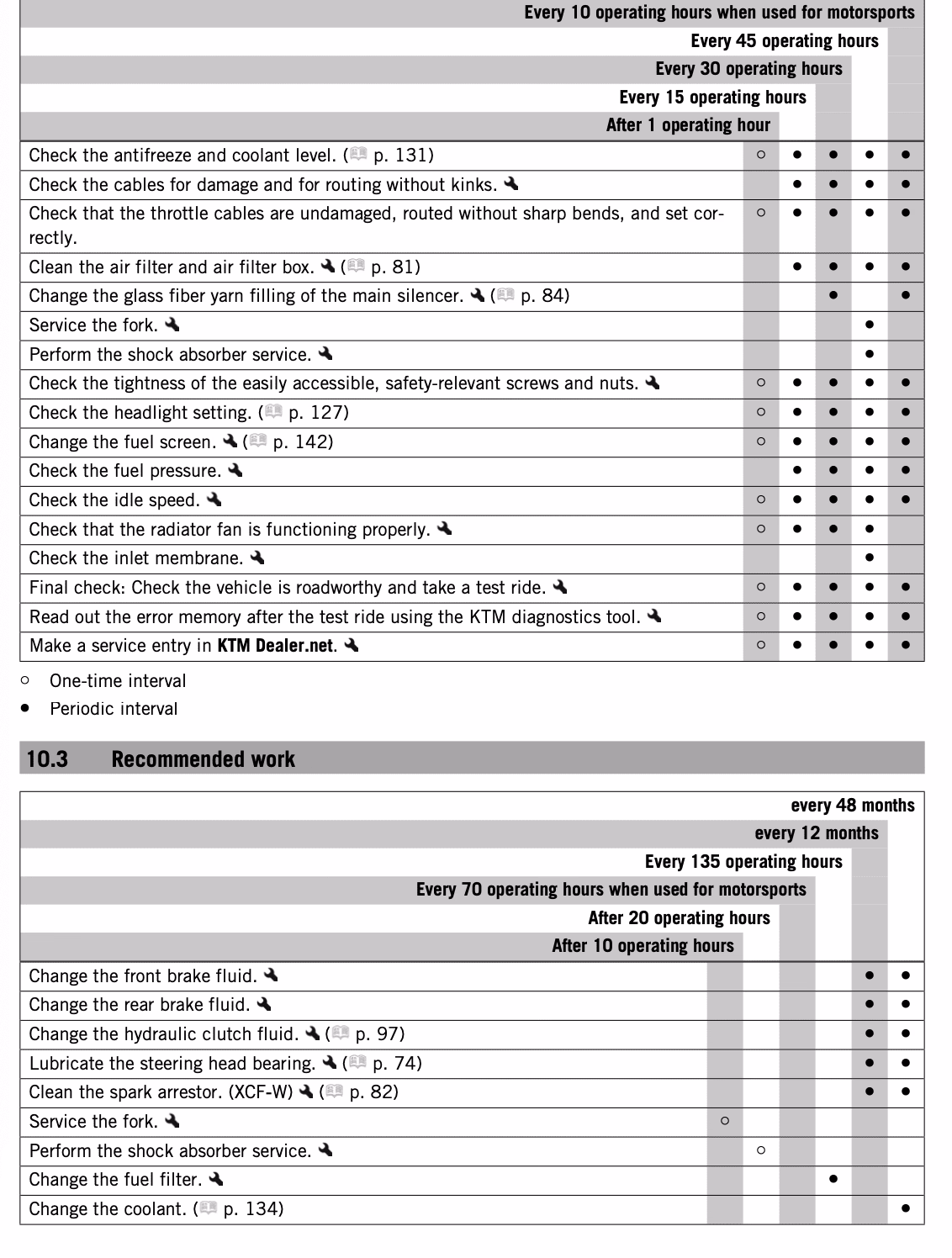

- Service your suspension: Regular fork oil changes and shock servicing are crucial for maintaining optimal performance. Consult your manual or a suspension specialist for recommended service intervals.
- Consult the manual: Always refer to your KTM 500 EXC-F (2024) owner's manual for specific recommendations and detailed instructions.
Frequently Asked Questions (FAQ)
Q: How often should I check my suspension sag?
It's a good practice to check your sag at the beginning of each riding season and after making any significant changes to your bike or riding style. Regular checks will help maintain optimal handling.
Q: What is "free sag"?
Free sag is the amount the suspension compresses purely from the weight of the bike itself, without the rider. It's a less critical measurement for most riders but can indicate issues with the springs themselves if it's excessive.
Q: My forks feel harsh on small bumps, what should I do?
Try softening the compression damping on the front forks. Make small, incremental changes (1-2 clicks at a time) and test the results.
Q: The rear of my bike feels like it's kicking up on landings, what's wrong?
This often indicates that the rebound damping is too fast. Try increasing the rebound damping on the rear shock absorber.
Q: Can I change my suspension springs myself?
While it's possible, changing suspension springs is a more involved process that requires specialized tools and knowledge. If you're not comfortable with this, it's best to have a qualified suspension technician perform the service.
By taking the time to understand and adjust the suspension on your KTM 500 EXC-F (2024), you'll unlock a new level of control and confidence on the trails. Experiment with the settings, pay attention to how the bike responds, and most importantly, enjoy the ride!
