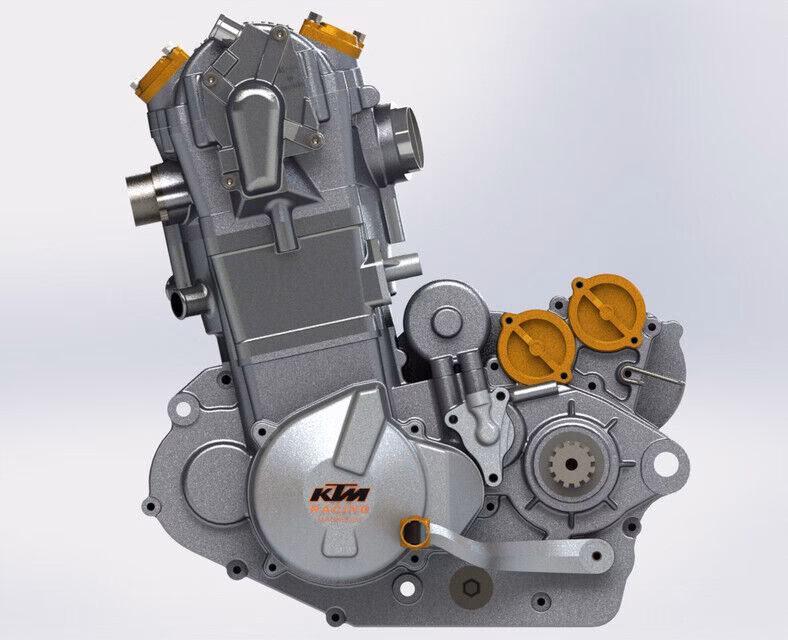

KTM 450 Engine Rebuild: A Labour of Love

The life of an off-road motorcycle, particularly one used for racing, is a demanding one. High hours, harsh conditions, and the constant pursuit of victory take their toll on even the most robust machines. For this particular KTM 450, having accumulated close to 500 hours, many of them under racing stress, the inevitable day of significant overhaul had arrived. What began as a simple plan to spruce up an aging 2005 'battle wagon' quickly escalated into a full-blown engine rebuild, a testament to the owner's dedication and a dive deep into the mechanical heart of the beast.

The Initial Assessment and Parts List

The first step was to pull the bike apart for a thorough clean, spurred on by the sight of newer, shinier machines. As the KTM was stripped down, a comprehensive list of worn and damaged components emerged. This wasn't just a cosmetic tidy-up; it was a mission to address the underlying issues that come with extensive use:

• New shock mount bearing set, which had become gummed up.
• Exhaust can rubber mounting spacers, worn and causing the can to be loose.
• An aluminium spacer for the petrol tank’s rubber mounting bungs, which had cracked.
• A new seat cover, as the old one had suffered tears during a recent race.
• A full set of new Acerbis plastics for a fresh look.
• New airbox cover and graphics.
• New radiator scoop graphics.
• Frame guards to protect the paintwork.

This initial list was just the beginning. As the strip-down progressed, more critical items were identified, such as the chain and sprocket set. A trip to 'Abingdon Off Road' yielded not only a new chain and sprocket kit but also new grips and an unexpectedly acquired bling gear lever.

Unearthing the Knocking Sound

A persistent knocking sound from the rear end demanded attention. Despite having fitted new swingarm bearings less than a year prior, the noise persisted. After removing the rear shock and bouncing it, the issue remained elusive. Further investigation led to the swingarm. With the rear wheel removed, the source of the play became apparent: worn swingarm bearings. This was a setback, requiring another order from The KTM Centre.

The Engine's Mechanical Quandary

While awaiting parts, work commenced on the engine, specifically adjusting the valves. A problem arose with the offside inlet valve; there wasn't enough adjustment available. Closer inspection revealed the valve spring was making contact with the rocker arm. This mechanical anomaly pointed towards worn valves. The quick spruce-up had officially transformed into an engine rebuild.

Adding to the challenges, a new chain splitter broke on its first use, a victim of incompatible pin sizes with the KTM's timing chain. A fortunate encounter on a KTM forum led to the acquisition of a high-compression piston at a reduced price, with the seller also assisting with other necessary parts.

Engine Strip-Down and Component Wear

The engine strip-down revealed a piston crown in decent condition, with minimal carbon build-up. However, the piston skirts showed significant scoring on both sides, and the barrel also bore marks. While a light rub with wet and dry paper would suffice for the barrel, the piston required replacement. The small end appeared satisfactory, and the decision was made not to dismantle the bottom end, given the engine had been running well.

Valve Extraction Woes

Removing the valves proved to be a considerable challenge. The standard valve lifter was ineffective against the stubborn springs. A 'special tool' fashioned from a large G-clamp was employed. With a loud crack, the spring gave way, but the collets were jammed in the retainers. Once the seal was broken, the valve lifter could be used to compress the spring sufficiently for extraction. The inlet valves were found to be extremely worn, with edges sharp enough to cut skin.

Swingarm Woes and a Deepening Pouch

With the engine in pieces, attention returned to the swingarm. The shock mount bearings were replaced, and the swingarm bearings were inspected. No wear was visible on the inner bearing race. However, fitting the swingarm bolt revealed significant play. The shaft itself appeared to have worn, necessitating another order for a replacement part. The cost of this "quick tart-up" was rapidly escalating.

Bodywork and Fitment Follies

While waiting for engine spares, new bodywork arrived. The rear sub-frame was found to be slightly bent, causing the tailpiece to sit askew. A new front mudguard, a 2010 model swapped for the original '05 part, looked good, but the headlight alignment was off. Trimming the headlight bottom offered little improvement, leading to an order for a new MX front number board.

Stuck with no swingarm bolt and no engine parts, the temptation to send the frame for powder coating was strong, but the looming event calendar made this impractical. The missed XC round at Canada Heights was a particular blow.

Swingarm Bearing Replacement: A Test of Ingenuity

The swingarm was further addressed by replacing the mini rollers and cleaning them meticulously before greasing, ready for the new bolt. The inner bearing race of the swingarm was examined again, and the shaft was found to be worn. A new shaft was ordered. Fitting new bearings required a custom-made press. A long M12 bolt, two nylock nuts, and washers were used to press the bearings home. However, a small nick on the edge of a swingarm hole caused the inner race to tighten excessively. Pressing the bearings back out was a delicate operation, but successful. After trimming the swingarm with a Dremel, the bearings slid in smoothly.

Chain, Sprockets, and Frame Guards

With the swingarm and rear shock reinstalled, the bike could be manoeuvred to fit the new chain and sprocket kit. The front sprocket was fitted, then removed again to accommodate the new swingarm chain wear guide. This guide was a recurring replacement item, and new shiny washers were used for its fitting. The front and rear wear guides were also showing signs of wear.

A new frame guard was also fitted, protecting the frame from further damage.

Valve Lapping and a Cracked Shim

The engine parts finally arrived, and the weekend was dedicated to lapping the valves. This laborious task was expedited using a battery drill, much to the author's chagrin, due to RSI in his wrist. A quick clean under the tap removed the grinding paste. A significant issue emerged when the wear shim under the offside exhaust valve was found to be cracked in half. This part was only available as part of the valve spring kit, and a replacement was sourced.

Graphics Application: A Test of Patience

With engine work temporarily stalled, attention shifted to fitting new graphics to the panels. The airbox cover graphic applied easily, aided by a hairdryer. The radiator scoop graphics proved more complex, requiring careful alignment. Despite repeated attempts and hairdryer applications, the edges continued to lift, suggesting the panels might have benefited from cleaning with an electrical cleaner prior to application.

Piston Installation and a Home-Made Tool

Consulting workshop and Haynes manuals, the piston installation commenced. Fitting the piston clip proved challenging, foreshadowing difficulties with the second clip to be fitted with the piston in situ. A home-made piston ring compression tool was constructed from an old one, modified to fit beneath the barrel. Compressing the top ring, described as being made of 'superman like steel', was a significant effort. After two hours, the barrel was slid over the piston, only for the base gasket to be discovered fitted incorrectly. The mistake was rectified, making the second attempt much smoother.

A mishap occurred when the crank moved while pressing down on the barrel, necessitating re-locking the crank at Top Dead Centre (TDC). The piston crown, sporting an extra height for the high compression, was now in place.

Handlebar Upgrades: Grips and Guards

While awaiting the final engine parts, the handlebar grips and brush guards were addressed. Levers were kept slightly loose to rotate in a spill, preventing bending. New grips were fitted, with a recommendation to use a Dremel for a clean finish. Ensuring adequate clearance between the throttle grip and brush guard was crucial to prevent unintended throttle opening. The importance of not cutting down grips was highlighted, to allow for hand movement and prevent rubbing.

Old grips were removed, and the bars cleaned. Contact adhesive was used for fitting, with advice on stretching the grips onto the bars. Lockwire was employed for extra security. Brush guards were straightened, and electrical tape was used to prevent the clutch master cylinder from migrating. A washer was fitted to a worn countersunk cup on the guard mounting, and a stripped thread on a clamp mounting bolt was repaired using a longer bolt.

Finishing the Engine: Head Reassembly and Timing

The cylinder head was reassembled using the valve spring tool to compress the springs and seat the retainers. Care was taken to avoid marking the sealing surface of the head. A lesson was learned about the optimal order for valve tool placement to ensure sufficient manoeuvrability. The crank was locked at TDC, and the head was fitted with a new head gasket. Bolts were torqued in an X pattern. M6 bolts securing the head caused some difficulty due to limited access, requiring a modified ratchet.

The cam was fitted, ensuring timing marks aligned with the engine cases. The water pump seal was positioned at the top. The cam chain rivet link was installed. A cautious manual rotation of the engine revealed the valves were out of sync, despite previous careful alignment. The chain had to be split again to correct the cam timing. After re-adjusting the valves, the engine was rotated again, confirming correct valve-piston clearance.

The engine covers, notorious for peeling on KTMs, were stripped and treated with 'wonder wheels' cleaner for a uniform weathered look. The exhaust was cleaned with a wire brush on an angle grinder.

The Moment of Truth: Firing Up

With the engine reassembled, the moment of truth arrived. The bike was filled with oil, and the radiators were fitted and filled with coolant. The tank was installed, fuel connected, and with a choke engaged, the engine fired on the first press. After idling to circulate coolant, it was switched off for bodywork fitting.

Fitting the new radiator scoops presented issues, with a jubilee clip and electrical components hindering proper fitment. The RHS scoop required trimming. The seat was fitted, and the bike stood complete.

Tidying Up: The Final Touches

The following day was dedicated to final tidying. 'E' clips were fitted to the radiator scoop bolts and the seat bolt to prevent them from falling out. The rear sub-frame was adjusted for alignment. The remaining swingarm chain wear guides were replaced, requiring the chain to be split and rejoined with a rivet link.

The worn front guide was replaced, followed by the new bling gear lever. The stripped thread on the fork guard was repaired by drilling, tapping to M8, and fitting a thread insert. The bike was now essentially finished.

Running In and Minor Adjustments

A short ride was taken on an old race wheel with a tube and trail tyre to bed in the engine gently. Further rides with a front wheel fitted with a tube were planned for quicker running-in.

The number board installation involved modifying the speedo bracket to accommodate the central bolt arrangement. A broken wire was traced and repaired, restoring the horn. A small copper pipe was used as a spacer to position the number board correctly.

This extensive rebuild, fraught with challenges and unexpected issues, ultimately brought the KTM 450 back to life, a testament to perseverance and a deep understanding of motorcycle mechanics. The journey was as much about the process as the final result, a true labour of love for a dedicated rider.
