KTM Engine Bottom End Rebuild Kits Explained

For any dedicated rider of a KTM motorcycle, whether it's a nimble 125 SX or a powerful 250 EXC-F, understanding the intricacies of your engine is paramount to maintaining its exhilarating performance. The engine's 'bottom end' is its very foundation, a complex assembly of components that withstand immense forces. Over time, and with the relentless demands of off-road riding or track use, these parts inevitably experience wear. This is where a comprehensive bottom end engine rebuild kit becomes an indispensable asset, allowing you to restore your KTM to its former glory and ensure countless hours of trouble-free riding.

While the specific query might initially point towards a KTM 125 SX bottom end engine rebuild kit, the principles and components are largely similar across many KTM models, including the robust 250 EXC-F from 2007-2023, for which specific kits are readily available. This article delves deep into what these kits offer, why they are essential, and what you need to consider when embarking on such a vital engine overhaul.

What Exactly Is a Bottom End Engine Rebuild Kit?

At its core, a bottom end engine rebuild kit is a curated collection of parts designed to replace worn or damaged components within the lower section of your motorcycle engine. This critical section primarily encompasses the crankshaft, connecting rod, and the associated bearings and seals that allow these parts to rotate smoothly and efficiently. Unlike a 'top end' rebuild, which typically involves the piston, rings, cylinder, and cylinder head, the bottom end overhaul addresses the very heart of the engine's rotating assembly.

As the provided information states, a 'CON ROD BOTTOM END PARTS REBUILD KIT KTM 250 EXC-F FROM 2007-2023' includes everything necessary to rebuild your crankshaft and bottom end. This typically means you'll receive a new connecting rod, the big end bearing, small end bearing, crankshaft pin, thrust washers, and often the main bearings and all necessary engine seals and gaskets for the bottom end. A crucial detail often highlighted by reputable suppliers is the origin of these components: they are typically Japanese or European made, ensuring the highest standards of precision and durability, which is vital for the high-performance nature of KTM engines.

Why Your KTM's Bottom End Needs Attention

The bottom end of your KTM engine is subjected to incredible stresses. The connecting rod, for instance, translates the linear motion of the piston into the rotational motion of the crankshaft, enduring constant changes in direction and immense pressure from combustion. Over thousands of revolutions, components like the crankshaft bearings and connecting rod bearings will inevitably wear. Ignoring these signs can lead to catastrophic engine failure, which is far more costly than a timely rebuild.

Common symptoms indicating your KTM's bottom end might need a rebuild include:

• Excessive Noise: A knocking, clunking, or rattling sound, particularly from the lower engine cases, can be a tell-tale sign of worn crankshaft or connecting rod bearings. This noise often becomes more pronounced under load or at specific RPMs.
• Vibration: Increased vibration felt through the handlebars, footpegs, or seat, especially at higher engine speeds, can indicate an imbalance or excessive play within the crankshaft assembly.
• Loss of Performance: While often associated with top end wear, a compromised bottom end can also lead to a noticeable drop in power, poor throttle response, and difficulty holding revs. This is because excessive play can affect engine timing and overall efficiency.
• Oil Leaks: Worn crankshaft seals or case gaskets included in the bottom end can lead to oil leaks, indicating a loss of sealing integrity.
• Excessive Play: If you can detect noticeable up-and-down or side-to-side play in the connecting rod when the cylinder is removed (after the piston is detached), it's a clear indicator that the big end bearing is worn beyond specification.

Proactive maintenance and addressing these symptoms early can save you significant expense and prevent irreparable damage to your engine. For a KTM, known for its unbridled 2-stroke performance, a healthy bottom end is the cornerstone of its power delivery and reliability.

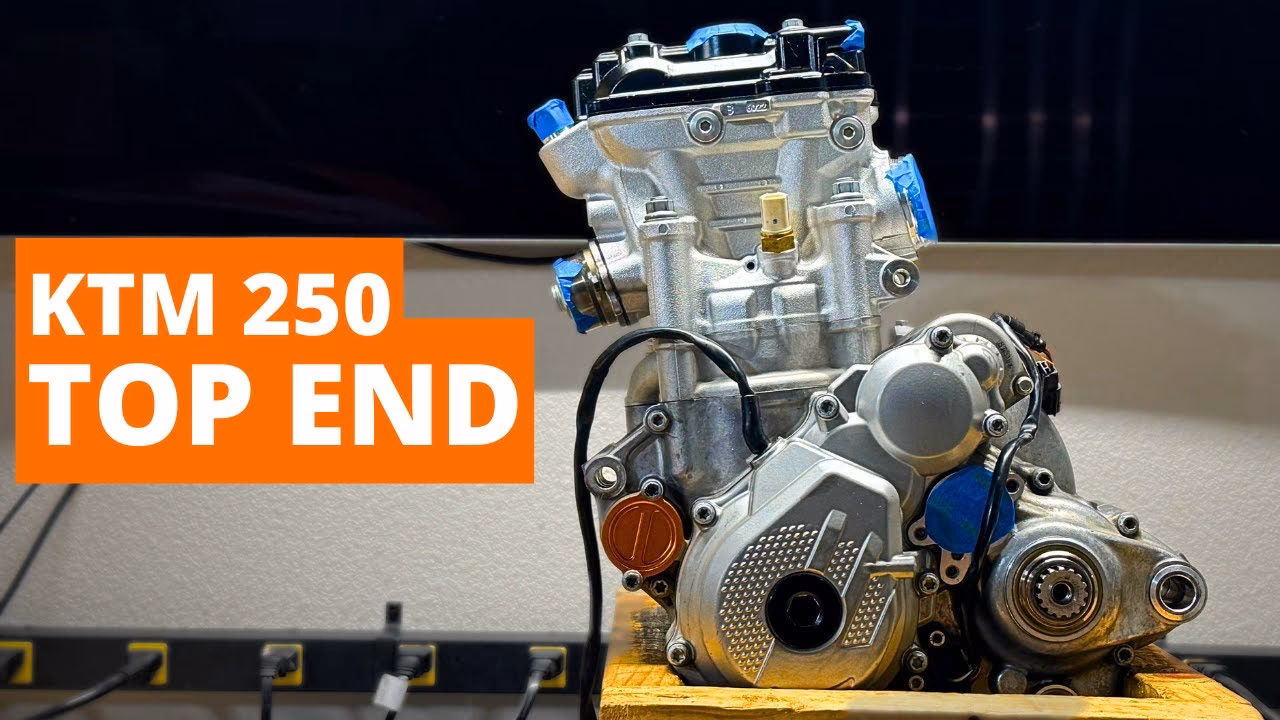

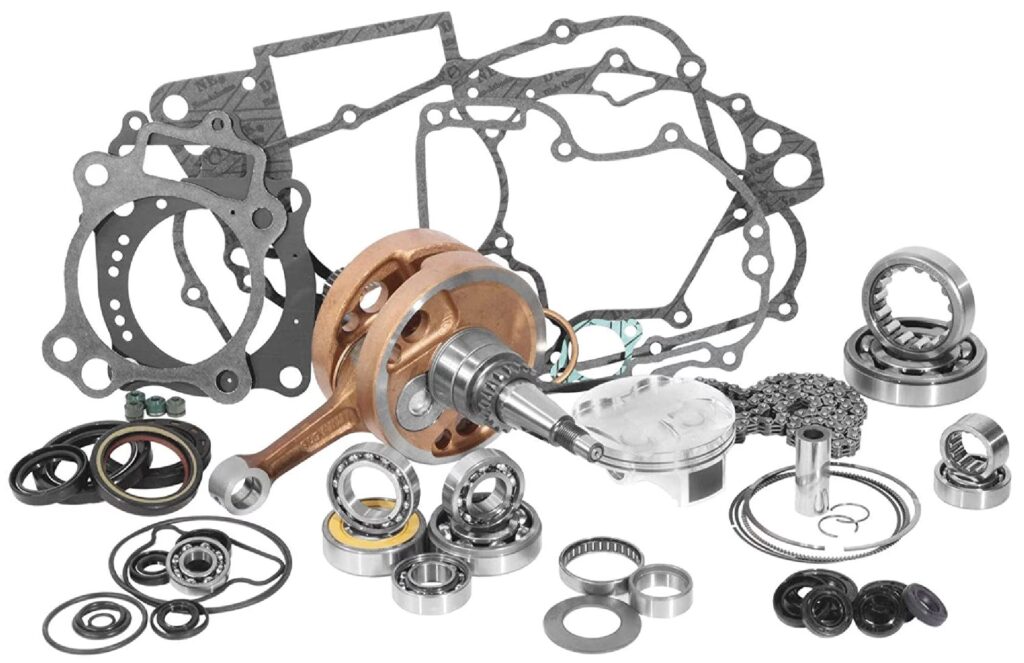

Components Typically Included in a Bottom End Kit

While kits can vary slightly, a comprehensive bottom end rebuild kit for models like the KTM 250 EXC-F (2007-2023) or similar bikes generally includes the following critical parts:

• Connecting Rod (Con Rod): The central component, connecting the piston to the crankshaft. It's designed to withstand extreme forces.
• Crankshaft Pin: The pin that connects the connecting rod to the crankshaft.
• Big End Bearing: The bearing located at the crankshaft end of the connecting rod. This is a high-stress component.
• Small End Bearing (Piston Pin Bearing): The bearing at the piston end of the connecting rod, where it connects to the piston pin.
• Thrust Washers: These control the side-to-side play of the connecting rod on the crankshaft.
• Main Bearings: These support the crankshaft within the engine cases. They are crucial for smooth rotation and proper alignment.
• Complete Engine Gasket Set (Bottom End): All necessary gaskets for reassembling the lower engine cases, clutch cover, ignition cover, and other associated components.
• Complete Engine Seal Set: All oil seals for the crankshaft, countershaft (sprocket shaft), water pump, and kickstarter shaft (if applicable).
• Circlips: Small retaining clips used in various assemblies, such as securing the piston pin or bearings.

The quality of these components, particularly being Japanese or European made, is paramount. These manufacturers are renowned for their metallurgical expertise and precision engineering, ensuring that the replacement parts meet or exceed OEM specifications for fitment, durability, and performance. Using inferior parts can lead to premature failure and additional costs down the line.

The Bottom End Rebuild Process: A General Overview

Rebuilding a motorcycle engine's bottom end is a complex and precise task that requires specialised tools, technical knowledge, and a clean working environment. It is not a job for the faint of heart or an inexperienced mechanic, though it is certainly achievable for a competent DIY enthusiast with the right resources.

1. Engine Removal and Disassembly: The engine must be removed from the frame. Then, the top end (cylinder, piston, head) is removed, followed by splitting the engine cases to access the crankshaft and transmission.
2. Inspection and Cleaning: All components are thoroughly cleaned. Each part, especially the engine cases, transmission gears, and clutch components, must be meticulously inspected for wear, cracks, or damage. Any worn transmission bearings should also be replaced at this stage.
3. Crankshaft Disassembly and Reassembly: The old connecting rod, big end bearing, and crankshaft pin are pressed out. The new components from the kit are then precisely pressed onto the crankshaft using a hydraulic press and specialised fixtures to ensure perfect alignment and concentricity. This step is critical; improper pressing can lead to a 'wobbly' crankshaft.
4. Bearing and Seal Replacement: New main bearings are installed into the engine cases, often requiring heating the cases and chilling the bearings for proper fitment. All new oil seals are carefully installed.
5. Reassembly: The engine cases are meticulously cleaned, and a thin, even bead of case sealant is applied before they are carefully joined. All bolts are torqued to factory specifications in the correct sequence. The transmission, clutch, and other internal components are reinstalled.
6. Top End Reassembly: Once the bottom end is complete, the new piston, rings, and cylinder are installed, followed by the cylinder head.
7. Engine Installation and Break-In: The rebuilt engine is reinstalled in the frame, fluids are topped up, and a careful break-in procedure is followed to allow all new components to seat properly.

Due to the precision required, many riders opt to send their crankshafts to a specialist workshop for the pressing and truing process, even if they perform the rest of the engine assembly themselves. This ensures the crankshaft is perfectly balanced and true, which is essential for vibration-free operation and long-term durability.

Choosing the Right Bottom End Kit

When selecting a bottom end rebuild kit for your KTM, several factors come into play:

• Model and Year Specificity: As highlighted by the 'KTM 250 EXC-F FROM 2007-2023' detail, kits are often year-range specific. Ensure the kit you choose is precisely matched to your motorcycle's make, model, and year. While a KTM 125 SX bottom end engine rebuild kit will share many similarities, specific dimensions and components will differ.
• Kit Inclusions: Some kits are 'con rod only' kits, meaning they only provide the parts for the connecting rod assembly. Others are more comprehensive, including main bearings, seals, and gaskets. Decide based on the extent of wear and your budget. A complete kit offering all bottom end parts is generally recommended for a thorough rebuild.
• Component Quality: Always prioritise kits with high-quality components, ideally from Japanese or European manufacturers. These parts are designed to meet the rigorous demands of a KTM engine.
• Reputation of the Supplier: Purchase from reputable suppliers who specialise in motorcycle parts. They are more likely to offer genuine, high-quality kits and provide good customer support.

Consider the long-term value. Investing in a high-quality kit and a professional rebuild, if necessary, will pay dividends in engine longevity and performance, especially given the high-performance nature of KTMs.

Comparative Look: Kit Types

Understanding the different types of bottom end kits can help you make an informed decision:

Maintenance Tips to Extend Bottom End Life

Once you've invested in a bottom end rebuild, you'll want to ensure its longevity. Here are some key maintenance tips:

• Regular Oil Changes: Fresh, high-quality engine oil is the lifeblood of your engine. It lubricates crucial components and helps dissipate heat. Follow KTM's recommended oil change intervals diligently.
• Proper Air Filter Maintenance: A clean air filter prevents dirt and debris from entering the engine, which can cause premature wear on all internal components.
• Coolant System Health: Ensure your cooling system is in top condition. Overheating can severely stress engine components, including the bottom end.
• Avoid Excessive Lugging or Over-revving: While KTMs are designed for performance, continually riding at very low RPMs in too high a gear ('lugging') or constantly bouncing off the rev limiter can put undue stress on the crankshaft and connecting rod.
• Correct Fuel and Jetting/Mapping: Using the correct fuel octane and ensuring your carburettor jetting or EFI mapping is spot on prevents detonation and ensures optimal combustion, reducing stress on the bottom end.

Frequently Asked Questions (FAQs)

Here are some common questions riders have about KTM bottom end rebuilds:

How often should I rebuild my KTM's bottom end?

This largely depends on your riding style, maintenance routine, and the specific model. For competitive motocross or enduro racing, intervals can be as low as 50-100 hours. For casual trail riding, it might be significantly longer, perhaps 150-300+ hours. Listen to your engine for the symptoms mentioned earlier, and consult your owner's manual for recommended service intervals.

Can I perform a bottom end rebuild myself?

A bottom end rebuild is a significant undertaking requiring specialised tools (e.g., case splitter, crankshaft truing stand, press), a clean workspace, and considerable mechanical aptitude. While many skilled DIY mechanics successfully perform them, if you're unsure, it's always best to consult a professional motorcycle mechanic. Incorrect assembly can lead to immediate and costly failure.

What's the difference between a top end and bottom end rebuild?

A top end rebuild focuses on the piston, piston rings, cylinder, and cylinder head components. It addresses wear related to compression and combustion. A bottom end rebuild, conversely, focuses on the crankshaft, connecting rod, main bearings, and associated seals/gaskets, addressing the engine's rotating assembly and power transfer.

Is it worth rebuilding my bottom end, or should I just buy a new engine?

For most recreational riders, rebuilding the bottom end is significantly more cost-effective than purchasing a new engine. A quality rebuild kit provides new, high-wear components, restoring the engine's performance for a fraction of the cost of a complete replacement. A new engine might be considered if the original engine cases or transmission components are severely damaged beyond repair.

Does this kit fit my KTM 125 SX / 250 EXC-F?

While the general concept of a bottom end rebuild kit applies to many KTM models, specific kits are designed for specific models and year ranges. The information provided highlights a kit for the 'KTM 250 EXC-F FROM 2007-2023'. Always verify the kit's compatibility with your exact model, engine size, and year before purchasing. A KTM 125 SX will require a kit specifically designed for its smaller displacement engine.

Conclusion

A bottom end engine rebuild kit is a critical investment for any KTM owner looking to maintain or restore their motorcycle's peak performance and reliability. Understanding what these kits include – from the robust connecting rod to precision-engineered Japanese or European made bearings and seals – empowers you to make informed decisions about your bike's maintenance. While the process is intricate, a properly executed bottom end rebuild breathes new life into your KTM, ensuring it continues to deliver that thrilling, uncompromised ride it was designed for, whether you're tackling challenging trails or dominating the track.
