Shimano Brake Pad Guide for Road Disc Brakes

Choosing the right brake pads is crucial for ensuring optimal performance, safety, and longevity from your Shimano road bike disc brake system. With a variety of options available, understanding the differences between them can seem daunting. This guide aims to demystify the selection process, focusing on common Shimano road disc brake pad types and their characteristics, particularly addressing the needs of riders seeking replacements for BR-RS805 and RS505 models, though the information extends to many other Shimano disc brake calipers.

Understanding Shimano Brake Pad Compounds

Shimano offers brake pads in different compound materials, each with its own set of advantages and disadvantages. The primary distinctions lie between resin (organic) and metal (sintered) compounds. Understanding these differences is key to selecting pads that match your riding style, environmental conditions, and performance expectations.

Resin (Organic) Brake Pads

Resin pads are typically made from a composite material that includes organic fibres, fillers, and a binding agent. They are often favoured for their:

• Quieter Operation: Resin pads generally produce less noise than their metal counterparts, offering a smoother and more pleasant braking experience, especially in dry conditions.
• Better Initial Bite: They tend to offer a sharper, more immediate response when you first apply the brakes, which some riders prefer for quick stops.
• Softer Feel: The braking feel can be more modulated and progressive, allowing for finer control.

However, resin pads also have limitations:

• Lower Heat Resistance: Under prolonged heavy braking, such as on long descents, resin pads can overheat. This can lead to 'brake fade,' where braking power significantly diminishes.
• Faster Wear Rate: Compared to metal pads, resin compounds tend to wear out more quickly, especially in wet or abrasive conditions.

Metal (Sintered) Brake Pads

Metal pads, such as the Shimano K04S Metal, are manufactured using a sintering process. This involves fusing metallic particles together under high heat and pressure. This results in a much harder and more durable compound, offering:

• Superior Heat Resistance: Metal pads excel in high-temperature conditions. They are less prone to brake fade, making them ideal for long descents, touring, or racing where sustained braking is required.
• Increased Durability and Wear Resistance: The sintered material is significantly harder and lasts much longer than resin pads, offering better value over time, especially in harsh environments.
• Consistent Performance in Wet Conditions: While all disc brakes perform better when clean and dry, metal pads generally maintain their performance more reliably in wet and muddy conditions compared to resin pads.

The trade-offs for these benefits include:

• More Noise: Metal pads are inherently noisier than resin pads, often producing a characteristic grinding or squealing sound, particularly when cold or in certain conditions.
• Less Responsive Initial Bite: They might feel slightly less sharp or immediate on the initial application of the brake lever compared to softer resin pads.
• Increased Rotor Wear: Due to their hardness, metal pads can accelerate the wear on your brake rotors over time.

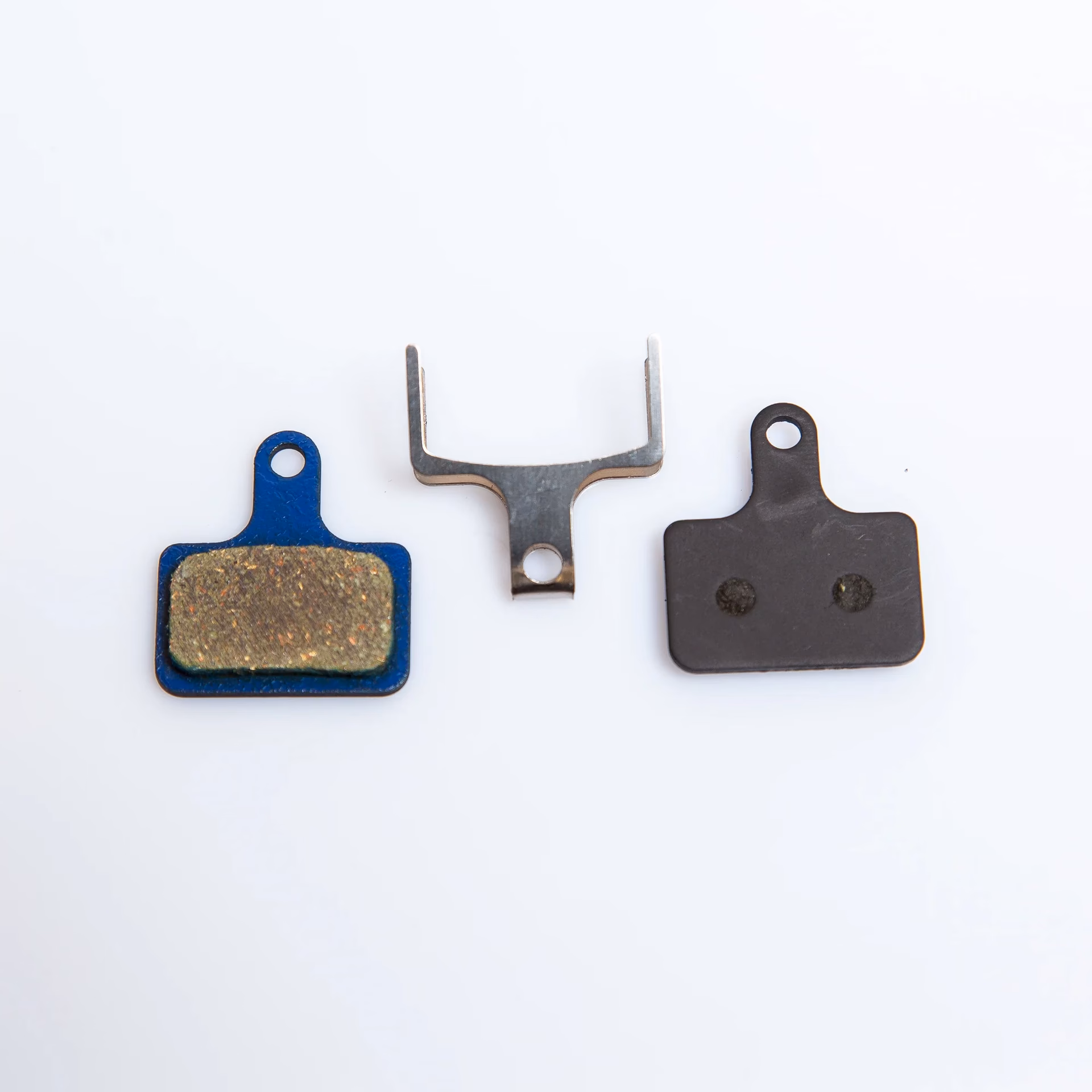

Shimano BR-RS805 & RS505 Compatibility

The Shimano BR-RS805 (Ultegra 6800 series) and BR-RS505 (Shimano's 105 5800 series equivalent for hydraulic disc brakes) are popular hydraulic disc brake calipers used on many modern road bikes. When seeking replacement brake pads for these calipers, you'll primarily be looking for pads that fit Shimano's standard hydraulic disc brake mounting system. The most common and widely available pad types for these calipers are:

• K02S Resin: This is Shimano's standard resin pad for many of their hydraulic road disc calipers. It offers good all-around performance with quiet operation and a good initial bite.

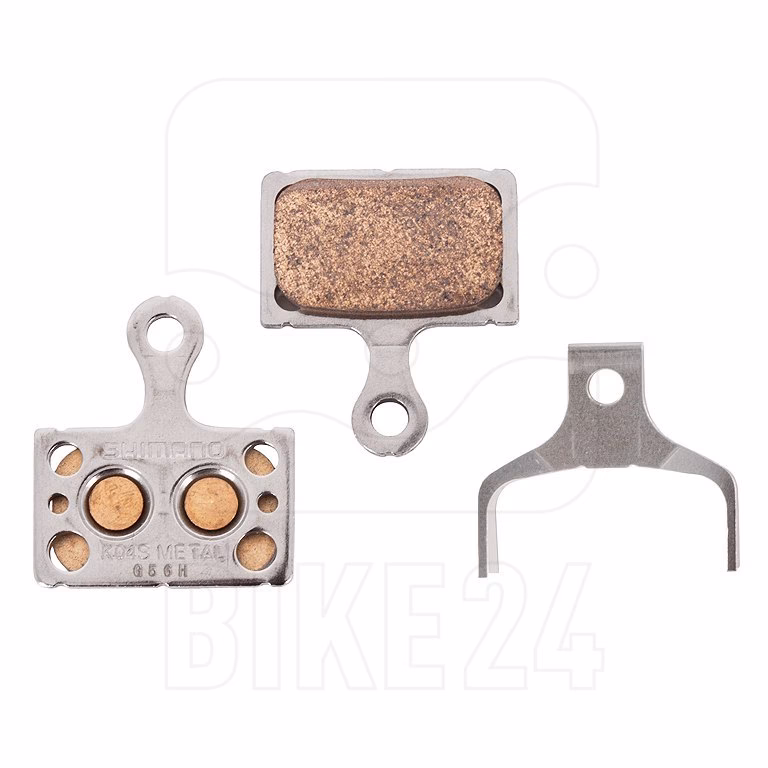

• K04S Metal: As mentioned, this is the sintered metal compound. It provides excellent durability and heat resistance, making it a strong choice for demanding conditions or riders who prioritise longevity and fade resistance.
• K03Ti (Titanium Backing): While less common than resin or standard metal, some Shimano pads feature a titanium backing plate. This can offer slight weight savings and potentially better heat dissipation compared to steel backing plates, though the primary compound dictates performance.

For the BR-RS805 and RS505 calipers specifically, both K02S Resin and K04S Metal pads are generally compatible and recommended. The choice between them depends on your priorities:

• Choose K02S Resin if: You prioritise quiet braking, a sharp initial feel, and primarily ride in temperate, dry conditions where extreme heat buildup is less of a concern.
• Choose K04S Metal if: You need superior heat resistance for long descents, want maximum durability and wear resistance, or frequently ride in wet, muddy, or abrasive conditions. Be prepared for potentially more noise.

Other Shimano Road Disc Brake Pads

Shimano uses a consistent mounting system across many of its road disc brake calipers, meaning pads designed for one series often fit others. Common pad types you might encounter include:

Ice Technologies

Shimano's 'Ice Technologies' are designed to improve heat dissipation and reduce brake fade. This often involves a multi-layer construction for the pad, including a steel backing plate, an aluminium or ceramic friction material, and sometimes a heat-radiating fin. While the specific pad codes might vary (e.g., L02A, L04A), the underlying principle is enhanced thermal management.

Pads with Ice Technologies fins (like the L02A Resin or L04A Metal) are generally a good upgrade for any Shimano hydraulic disc brake system, especially if you experience brake fade or consistent overheating. The fins help to radiate heat away from the pad and rotor more effectively.

Pad Naming Conventions

Shimano's naming convention can be a bit confusing, but generally:

• The first letter often indicates the caliper series (e.g., 'L' for Dura-Ace/Ultegra, 'K' for 105/Tiagra, though this isn't always strictly followed).
• The second number indicates the compound type (e.g., '2' for Resin, '4' for Metal).
• The suffix (e.g., 'A', 'S') might indicate minor revisions or specific backing plate materials.

Important Note: Always double-check compatibility with your specific brake caliper model. While many pads are cross-compatible, it's best to confirm. Look for the pad shape that matches your existing worn pads.

Brake Pad Maintenance and Best Practices

To get the most out of your brake pads and ensure consistent braking performance, follow these maintenance tips:

Bedding In New Pads

New brake pads, especially metal ones, require a 'bedding-in' or 'burnishing' process to achieve optimal performance. This involves a series of moderate to firm brake applications from a moderate speed, followed by cooling. The goal is to transfer a thin, even layer of pad material onto the rotor surface. A common method is:

1. Accelerate to about 20-25 mph.
2. Apply the brakes firmly (but without locking the wheels) until you slow down to about 5-10 mph.
3. Release the brakes and accelerate again.
4. Repeat this process 10-20 times for each brake.
5. Allow the brakes to cool completely without prolonged braking.

Proper bedding-in ensures better stopping power and reduces noise and glazing.

Cleaning and Inspection

Regularly inspect your brake pads for wear. Look for the wear indicator line (if present) or check the thickness of the pad material. If the material is worn down to less than 1mm, it's time for replacement. Clean rotors and pads with isopropyl alcohol to remove contaminants like oil or grease, which can severely degrade braking performance.

Dealing with Noise

Brake noise can be caused by several factors, including contamination, glazing, or improper pad/rotor bedding. If your brakes are noisy:

• Check for contamination: Clean rotors and pads with isopropyl alcohol. Avoid touching the rotor surface with your fingers.
• Re-bed the pads: Perform the bedding-in procedure again.
• Consider pad compound: If noise persists with metal pads, you might consider switching to resin pads if your riding conditions allow.
• Inspect for damage: Ensure the pads and rotors are not warped or damaged.

Comparative Table: Resin vs. Metal Pads

Frequently Asked Questions (FAQs)

Q1: Can I use metal brake pads if my bike came with resin pads?

A1: Generally, yes. If your calipers are compatible with both resin and metal pads (like the BR-RS805 and RS505), you can switch between them. Be aware that metal pads may be noisier and might wear your rotors slightly faster.

Q2: How often should I replace my brake pads?

A2: This depends heavily on your riding style, conditions, and the pad compound. Resin pads might last 1,000-3,000 miles, while metal pads could last 5,000-10,000 miles or more. Always check the pad thickness visually; replace them when the friction material is worn down to about 1mm or less.

Q3: My new brake pads are making a lot of noise. What should I do?

A3: Ensure the pads were bedded in correctly. Check for any contamination on the rotor or pads and clean them with isopropyl alcohol. If the noise persists, especially with metal pads, it might be characteristic of the compound. Re-bedding the pads or considering a different compound (like resin, if suitable for your riding) might help.

Q4: Do the fins on some Shimano pads make a big difference?

A4: Yes, the cooling fins on pads like the L02A or L04A are designed to improve heat dissipation. They can significantly reduce brake fade on long descents or during demanding braking situations, making them a worthwhile upgrade if overheating is an issue.

Conclusion

Selecting the correct brake pads for your Shimano road bike disc brakes is a balance between performance, durability, and your personal preferences. For the BR-RS805 and RS505 calipers, both resin (like K02S) and metal (like K04S) compounds are viable options. Resin pads offer quieter, more responsive braking in fair conditions, while metal pads provide superior heat resistance and longevity, albeit with potentially more noise. By understanding the characteristics of each compound and following best practices for maintenance and installation, you can ensure your Shimano disc brakes deliver reliable and powerful stopping performance on every ride.
