Kia Rio Mk2 1.5 CRDi Gearbox Oil Change Guide

Ensuring your Kia Rio Mk2 1.5 CRDi's gearbox is well-maintained is paramount for its longevity and your driving comfort. Just like engine oil, gearbox oil, often referred to as transmission fluid, plays a crucial role in lubricating the intricate components within your manual gearbox, preventing wear and tear, and ensuring smooth gear changes. Ignoring this vital fluid can lead to significant mechanical issues and costly repairs down the line. This comprehensive guide will walk you through the process of changing the gearbox oil on your specific Kia Rio model, drawing on practical insights to help you tackle this essential maintenance task with confidence.

While some might consider gearbox oil a 'sealed for life' component, especially for manual transmissions, the reality is that the oil degrades over time and with mileage. It accumulates metallic particles from normal wear, loses its lubricating properties, and its viscosity can change, all of which compromise its effectiveness. Regular maintenance of your gearbox oil is a small investment that pays dividends in preventing premature wear of gears, bearings, and synchronisers, ultimately extending the life of your gearbox and ensuring your Rio continues to perform optimally.

Understanding Your Gearbox Oil's Critical Role

Even in a manual transmission, the oil performs several vital functions that are critical for the gearbox's health and efficient operation. Unlike automatic transmission fluid (ATF), manual gearbox oil isn't typically involved in hydraulic pressure for shifting, but its other roles are equally important:

• Lubrication: The primary function. Gearbox oil creates a protective film between moving parts, such as gears, shafts, and bearings. This significantly reduces friction, prevents metal-on-metal contact, and minimises heat generation. Without adequate lubrication, components would rapidly wear down, leading to grinding noises and eventually gearbox failure.
• Cooling: As gears mesh and move at high speeds, they generate considerable heat. The gearbox oil absorbs and dissipates this heat, helping to maintain optimal operating temperatures within the unit. Overheating can break down the oil's properties and cause damage to internal components.
• Cleaning: Gearbox oil contains additives that help to suspend and carry away microscopic metallic particles and contaminants generated through normal wear. These particles are then ideally trapped by a magnet (if fitted) or settle in the bottom of the gearbox, preventing them from circulating and causing further abrasive wear.
• Corrosion Protection: The oil also protects internal metal surfaces from rust and corrosion, which can occur due to moisture ingress or chemical reactions over time.

Signs Your Kia Rio's Gearbox Oil Needs Attention

Just like any fluid in your vehicle, gearbox oil can degrade or become low, leading to noticeable symptoms. Being aware of these signs can help you identify a problem early and prevent more severe damage:

• Difficulty Shifting Gears: One of the most common indicators. If you find it harder to engage gears, or if shifts feel notchy, stiff, or require excessive force, it could be a sign of worn-out or low gearbox oil. The oil isn't lubricating the synchronisers effectively, leading to rough engagement.
• Grinding Noises: A distinct grinding sound, particularly when changing gears, suggests that gears are not meshing smoothly. This is often due to a lack of proper lubrication, causing metal-on-metal contact.
• Whining or Humming Sounds: If you hear a continuous whining or humming noise coming from the transmission area, especially when driving, it could indicate worn bearings or gears that are not adequately lubricated. The sound might change with vehicle speed or gear selection.
• Slipping Gears: While more common in automatics, in a manual gearbox, this could manifest as the gear lever popping out of gear unexpectedly, especially under load or deceleration. This can be a sign of internal wear exacerbated by poor lubrication.
• Leaking Fluid: Any visible red or brown fluid (though manual gearbox oil can often be clear or yellowish when fresh, turning dark with age) under your car, particularly near the transmission housing, is a clear sign of a leak. Leaks can occur from damaged seals, gaskets, or a cracked casing. A persistent leak will lead to low fluid levels and subsequent problems.
• Burnt Odour: If you detect a strong, burnt smell emanating from the gearbox, it indicates that the oil has overheated and broken down. This significantly reduces its lubricating properties and is a strong warning sign of potential damage.

If you experience any of these symptoms, it's crucial to address the issue promptly. Checking and changing your gearbox oil is an excellent first step.

Tools and Supplies You'll Need

Before you begin, gather all the necessary tools and supplies. Having everything at hand will make the process smoother and safer:

• Vehicle jack and axle stands (never work under a car supported only by a jack!)
• Wheel chocks
• 17mm spanner or socket (for both drain and fill plugs)
• 10mm spanner or socket (for plastic guard bolts)
• Drain pan (large enough to hold at least 2 litres of fluid)
• Funnel
• Flexible hose/pipe extension (approximately 1 metre, narrow enough to fit into the fill plug opening and long enough to reach from the engine bay)
• Gloves (nitrile or similar)
• Rag or shop towels
• New gearbox oil (2 litres, ensure it's the correct specification for your Kia Rio Mk2 1.5 CRDi – consult your owner's manual or a reputable parts supplier if unsure about the exact type, e.g., GL-4 or GL-5, and viscosity)
• Torque wrench (recommended for tightening plugs to specification)

Step-by-Step Guide: Changing Your Kia Rio Mk2 1.5 CRDi Gearbox Oil

This procedure is specifically tailored for the Kia Rio Mk2 1.5 CRDi manual gearbox. Always prioritise safety when working under a vehicle.

Step 1: Preparation and Vehicle Levelling

Begin by parking your Kia Rio on a level ground. This is absolutely crucial for accurately checking the fluid level during refilling. Engage the handbrake and place wheel chocks behind the rear wheels for added safety. Using your vehicle jack, carefully raise the front of the car. Once lifted, immediately place sturdy axle stands under the vehicle's designated jacking points. Never rely solely on the jack. Ensure the vehicle is stable and secure on the stands before proceeding.

Step 2: Remove the Left-Hand Wheel

With the car safely on axle stands, loosen the wheel nuts on the front left-hand wheel. Once loose, fully remove the wheel. This will give you clear access to the gearbox area within the wheel arch.

Step 3: Access the Gearbox Area

Located on the left side of the gearbox, you'll find a plastic guard cover. This cover protects part of the gearbox. Identify the two 10mm bolts securing this guard. Using your 10mm spanner or socket, carefully remove these bolts and then remove the plastic guard. This will expose more of the gearbox casing, making it easier to locate the drain and fill plugs.

Step 4: Locate and Drain the Gearbox Oil

Position your drain pan directly underneath the gearbox. Look at the very bottom of the gearbox, at its lowest point. You should see three bolts in close proximity. The drain plug is the 17mm bolt located in the middle of these three. Using your 17mm spanner or socket, carefully loosen and remove this bolt. Be prepared for the oil to start flowing out immediately. The oil might be dark and thick, indicating it's time for a change. Allow the oil to drain completely; this can take several minutes. Once the flow has reduced to a slow drip, clean the drain plug and its surrounding area. Reinsert the drain plug and tighten it securely. While specific torque values are not provided in the source, a snug tighten is usually sufficient, but consulting a service manual for the exact torque specification is always recommended to prevent over-tightening or loosening over time.

Step 5: Locate the Fill Plug

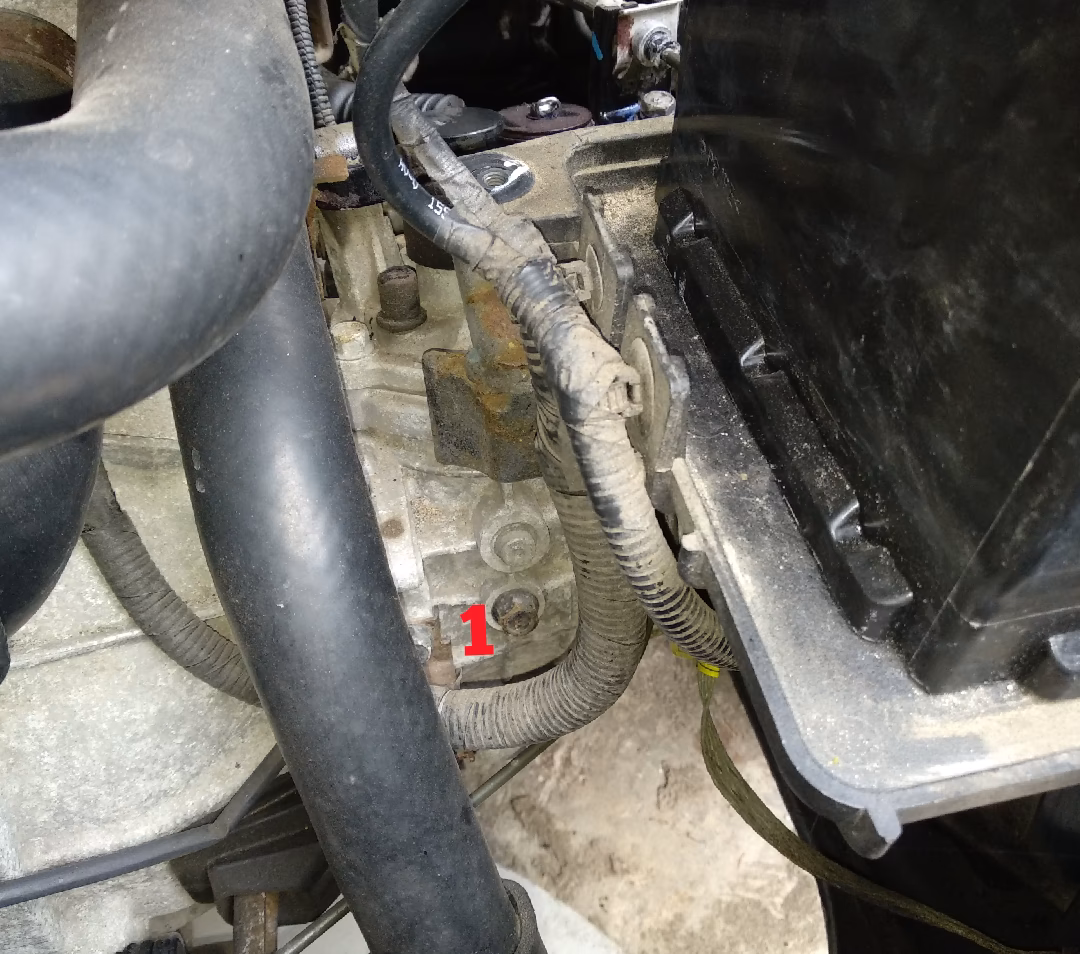

Now, focusing on refilling, look at the gearbox from within the left wheel arch. There's a 17mm bolt facing you, positioned near the front of the gearbox, on the radiator side. This bolt looks identical to the drain bolt you just removed. This is your fill plug. Do not remove it yet, but make sure you have it clearly identified.

Step 6: Refill the Gearbox Oil

This step requires a bit of ingenuity due to the fill plug's location. It's highly recommended to use a flexible pipe extension attached to your funnel. Feed this pipe from the top of the engine bay down into the fill plug opening. This creates a clear path for the new oil to enter the gearbox. Ensure the pipe is securely inserted into the fill plug opening to prevent spills.

Now, slowly pour the new gearbox oil into the funnel. The Kia Rio Mk2 1.5 CRDi gearbox takes exactly 2 litres of oil. Pour the oil until it begins to drip out of the fill plug opening. This indicates that the gearbox is filled to the correct level. The car must remain on a level surface during this entire filling process for an accurate level reading.

Step 7: Final Assembly

Once oil starts to drip from the fill plug, indicating a full level, quickly remove your pipe extension and reinsert the 17mm fill plug. Tighten it securely, again, ideally to the manufacturer's specified torque. Clean up any spilled oil from the gearbox and surrounding areas. Reattach the plastic guard cover using the two 10mm bolts you removed earlier. Finally, refit the left-hand wheel, tighten the wheel nuts hand-tight, lower the car off the axle stands, and then torque the wheel nuts to the manufacturer's specification using a torque wrench.

Important Considerations and Best Practices

• Safety First: Always use axle stands. Never rely on just a jack.
• Correct Fluid Type: Although not specified in the source, always use the exact type and viscosity of gearbox oil recommended by Kia for your Rio Mk2 1.5 CRDi. Using the wrong fluid can lead to poor performance, increased wear, and even damage. Consult your owner's manual.
• Environmental Disposal: Never dispose of old gearbox oil down drains or in regular rubbish. It is a hazardous waste. Collect it in a sealed container and take it to an authorised recycling centre or garage that accepts used oil.
• Check for Leaks: After completing the job, take your car for a short drive, then park it and check underneath for any signs of leaks around the drain and fill plugs. Re-tighten if necessary.

Troubleshooting Common Gearbox Issues After an Oil Change

While a fresh oil change often resolves many minor shifting issues, sometimes problems persist or new ones arise. Here are a few points:

• Still Hard to Shift: If shifting remains stiff, ensure you used the correct oil type and filled to the exact level. Sometimes, internal wear might be too significant for just an oil change to fix.
• New Noises: A new noise after an oil change is unusual. Double-check that all plugs are tightened, and no tools or debris were left in the area. If noises persist, it could indicate a more serious underlying issue.
• Leaking Plugs: If you notice leaks, the plugs might not be tight enough, or the crush washers (if fitted) might need replacement. Always inspect these when removing plugs.

Frequently Asked Questions (FAQs)

Q1: What are the common symptoms of low or bad gearbox oil in a Kia Rio Mk2 1.5 CRDi?

The most common symptoms include difficulty engaging gears (stiffness, notchiness), grinding noises when shifting, whining or humming sounds from the transmission, and in some cases, gears unexpectedly popping out. A visible leak under the car or a burnt smell from the gearbox are also clear indicators.

Q2: How often should I change the gearbox oil on my Kia Rio Mk2 1.5 CRDi?

Kia's recommended service intervals vary, but for manual gearboxes, a common recommendation is every 60,000 to 100,000 miles, or every 5-7 years, whichever comes first. However, if you drive in demanding conditions (e.g., heavy towing, frequent stop-and-go traffic, very hot or cold climates), or if you notice any of the symptoms mentioned above, it's advisable to change it sooner.

Q3: Can I check the gearbox oil level without a dipstick on my Kia Rio?

Yes, manual gearboxes like the one in your Kia Rio Mk2 1.5 CRDi typically do not have a dipstick. The fluid level is checked by removing the fill plug (the 17mm bolt in the wheel arch). The oil level is correct when it is flush with the bottom of the fill plug opening or just begins to drip out when the car is on a level surface. This method is used both for checking and filling.

Q4: What are the consequences of driving with low or bad gearbox oil?

Driving with insufficient or degraded gearbox oil can lead to severe and costly damage. Consequences include accelerated wear of gears, bearings, and synchronisers, leading to rough shifting, grinding, increased internal friction, and overheating. Ultimately, this can result in catastrophic gearbox failure, requiring a complete rebuild or replacement, which is a very expensive repair.

Q5: Are there any dashboard warning lights specifically for low manual gearbox oil in the Kia Rio?

Unlike engine oil or automatic transmission fluid, there are generally no specific dashboard warning lights dedicated solely to low manual gearbox oil levels in the Kia Rio. However, severe issues caused by low oil, such as excessive heat or mechanical failure, might trigger a general 'Check Engine' light or a generic transmission warning light. It's crucial not to rely on warning lights for this type of maintenance but to regularly check for symptoms and adhere to service intervals.

Q6: Is it possible to use automatic transmission fluid (ATF) in a manual gearbox?

Absolutely not. Manual gearbox oil and automatic transmission fluid (ATF) have different viscosities and additive packages designed for very different operating conditions and component materials. Using ATF in a manual gearbox not designed for it can lead to inadequate lubrication, premature wear, and severe damage to the manual transmission components. Always use the specific type and grade of manual gearbox oil recommended by Kia for your vehicle.

Changing the gearbox oil on your Kia Rio Mk2 1.5 CRDi might seem daunting at first, but with the right tools, information, and a methodical approach, it's a manageable task for the DIY enthusiast. This crucial maintenance step ensures the longevity and smooth operation of your transmission, saving you from potentially expensive repairs down the line. By understanding the signs of wear, following the correct procedure, and using the right fluid, you'll ensure your Rio continues to deliver reliable performance for many more miles. Regular attention to your vehicle's fluids is the cornerstone of preventative car care.
