The braking system is arguably the most critical safety feature of any vehicle, and your Kia is no exception. Ensuring its impeccable condition isn't just about smooth driving; it's fundamentally about your safety and the safety of everyone around you. From routine checks to more complex component replacements, having the right information is paramount. This guide will walk you through finding the essential resources for your Kia's brake system and provide a detailed overview of replacing a brake caliper, a common yet crucial maintenance task.
Understanding your vehicle's specific needs through a dedicated service manual is the first step towards competent maintenance. These manuals, often compiled by professional car mechanics, are invaluable resources designed to guide you through virtually any issue you might encounter, particularly when dealing with intricate components like brake pads or calipers.

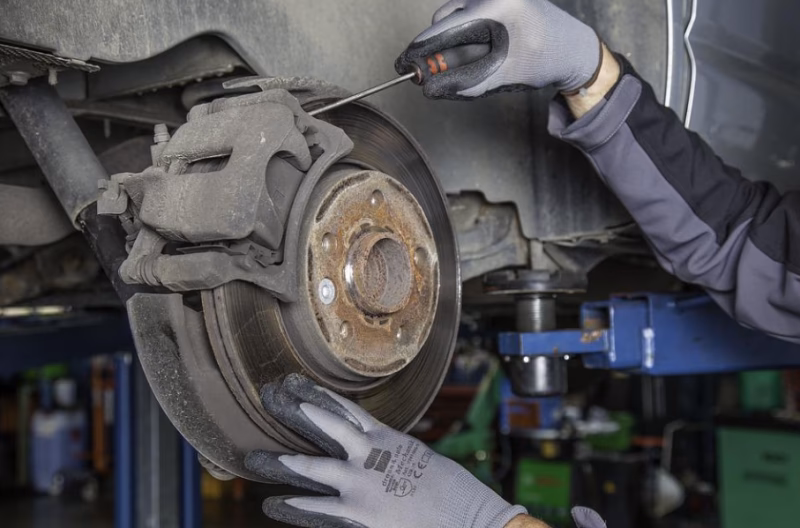

Locating Your Kia's Brake System Manual
Finding the precise brake system guide for your Kia model is made significantly easier with the right tools. These professional-grade manuals are specifically engineered to help you navigate every aspect of brake maintenance and repair, ensuring you have the accurate, model-specific information required. Whether you're tackling a simple brake pad change or a more involved caliper replacement, these resources provide step-by-step instructions, torque specifications, and diagnostic insights.
To quickly pinpoint the exact brake system guide you need, the most efficient method is often through dedicated automotive service applications or platforms. For instance, services like the AUTODOC CLUB app are designed to streamline this process. You simply select your specific Kia car model, and the application will present you with the relevant, professionally curated guides. These digital manuals often include detailed diagrams, troubleshooting sections, and part specifications, making them indispensable for both DIY enthusiasts and seasoned mechanics.
Understanding the Brake Caliper
The brake caliper is a vital component of your vehicle's disc brake system. Its primary function is to house the brake pads and, when hydraulic pressure is applied from the master cylinder, to press these pads against the brake rotor (disc) to create friction, thereby slowing or stopping the wheel's rotation. Calipers come in two main types: floating (or sliding) calipers and fixed calipers. Floating calipers move relative to the rotor, while fixed calipers remain stationary and use pistons on both sides of the rotor.
Signs of a Failing Brake Caliper
Recognising the symptoms of a faulty brake caliper is crucial for preventing more severe issues and maintaining safety. Common indicators include:
- Pulling to One Side: If your vehicle consistently pulls to one side when braking, it could indicate a caliper is sticking or seizing on one wheel.
- Unusual Noises: A grinding, squealing, or clunking sound when braking might suggest caliper issues, especially if accompanied by other symptoms.
- Reduced Braking Performance: A spongy brake pedal or a noticeable decrease in stopping power can point to hydraulic problems within the caliper or air in the system.
- Uneven Brake Pad Wear: If one brake pad wears out significantly faster than the others, it often signals that the caliper isn't releasing properly or is applying uneven pressure.
- Brake Fluid Leaks: Any visible fluid leaking around the caliper area is a serious sign of a seal failure.
- Burning Smell: A burning odour, especially after braking, can indicate excessive friction caused by a stuck caliper.
Step-by-Step: Replacing a Brake Caliper
Replacing a brake caliper is a task that requires precision and adherence to specific procedures to ensure proper functioning and safety. While specific steps may vary slightly depending on your Kia model, the general process remains consistent. Always refer to your specific Kia service manual for exact specifications and detailed instructions.
Preparatory Steps and Safety First
- Gather Tools and Supplies: You'll need a jack, jack stands, wheel chocks, lug wrench, socket set (for caliper bolts and bracket bolts), brake line wrench, brake fluid, a drain pan, a C-clamp or caliper compression tool, wire brush, brake cleaner, potentially new brake pads and rotors, and the Special Service Tool (SST) 09581-11000 if specified for your model. Safety glasses and gloves are also essential.
- Vehicle Preparation: Park your Kia on a level, hard surface. Engage the parking brake and place wheel chocks behind the wheels that will remain on the ground.
- Loosen Lug Nuts: Slightly loosen the lug nuts on the wheel you'll be working on while the vehicle is still on the ground.
- Raise and Secure Vehicle: Jack up the vehicle and secure it properly on jack stands. Never work under a vehicle supported only by a jack.
- Remove Wheel: Fully remove the lug nuts and the wheel.
Inspection and Removal
- Check Pad Wear: Visually inspect the brake pads. Measure their thickness. If the pad material is less than the specified minimum value (typically around 3mm-4mm, but check your manual), they must be replaced. Uneven wear across the pad or between pads on the same axle can indicate caliper issues.
- Check Grease and Damage: Inspect the sliding contact points of the caliper (guide pins) for proper lubrication. Ensure there's adequate grease. Check the brake pads and their backing metal for any signs of damage, cracks, or excessive corrosion.
- Disconnect Brake Line: Place your drain pan beneath the caliper to catch any dripping brake fluid. Using a brake line wrench, carefully loosen and disconnect the brake hose from the caliper. Be prepared for fluid to leak out. Immediately cap the open brake line to minimise fluid loss and air entry into the system.
- Remove Caliper Mounting Bolts: Locate and remove the bolts that secure the caliper to the caliper bracket. These are typically two bolts on the back of the caliper.
- Remove Caliper Bracket (if necessary): In many cases, it's easier to replace the caliper if you also remove the caliper bracket. This involves removing the two larger bolts that secure the bracket to the steering knuckle. This also allows for easier cleaning and inspection of the brake rotor.
- Remove Old Caliper: Once all bolts are removed and the brake line is disconnected, carefully slide the old caliper off the rotor.
Installation of New Caliper
The installation process is essentially the reverse of removal, but with critical steps to ensure proper function and safety.
- Clean and Inspect: Use a wire brush and brake cleaner to thoroughly clean the caliper mounting points on the steering knuckle and the rotor surface. Inspect the brake rotor for wear, scoring, or warping. If the rotor is below specification or significantly damaged, it should be replaced.
- Install Caliper Bracket (if removed): If you removed the caliper bracket, re-install it now, ensuring the bolts are tightened to the manufacturer's specified torque.
- Install New Brake Pads: If replacing pads, install the new brake pads into the caliper bracket, ensuring they slide freely on the guide pins. Apply a thin layer of high-temperature brake grease to the contact points where the pads slide in the bracket, but keep it off the pad friction material.
- Mount New Caliper: Carefully position the new caliper over the brake pads and rotor. Ensure the caliper guide pins align with their respective holes. Install the caliper mounting bolts and tighten them to the manufacturer's specified torque.
- Reconnect Brake Line: Carefully reconnect the brake hose to the new caliper. Ensure the banjo bolt and new crush washers (always use new crush washers!) are correctly seated. Tighten the banjo bolt to the specified torque.
- Use SST (09581-11000): As your manual may specify, use a Special Service Tool (SST) like 09581-11000 when installing the brake caliper assembly. This tool is often used to ensure proper alignment, prevent damage to seals or boots during installation, or to facilitate the seating of pistons or pads. Always follow the specific instructions for using any SST.
- Bleed the Brake System: This is a critical step after replacing a caliper or disconnecting a brake line. Air will have entered the system, and it must be removed. Brake bleeding involves forcing old fluid and air out of the system until only clear, bubble-free brake fluid flows. This typically requires a helper to pump the brake pedal while you open and close the bleeder screw on the caliper. Start with the caliper furthest from the master cylinder and work your way closer.
- Top Up Brake Fluid: Continuously monitor and top up the brake fluid reservoir during the bleeding process to prevent air from re-entering the system. Use only the brake fluid type specified in your Kia's owner's manual.
- Final Checks: Once bleeding is complete, double-check all connections for leaks. Ensure all bolts are torqued correctly.
- Re-install Wheel: Mount the wheel back onto the hub, hand-tighten the lug nuts, lower the vehicle, and then fully tighten the lug nuts in a star pattern to the specified torque.
Post-Installation
After replacing a caliper, perform a few light stops at low speed in a safe area to ensure the brakes are functioning correctly. The pedal may feel a bit soft initially as the pads seat against the rotor. Avoid hard braking for the first 100-200 miles to allow the new pads and rotor (if replaced) to properly bed in. This 'bedding-in' process helps achieve optimal braking performance and longevity.
Comparative Table: DIY vs. Professional Brake Service
| Feature | DIY Brake Service | Professional Brake Service |
|---|---|---|
| Cost | Lower (parts only) | Higher (parts + labour) |
| Tools Required | Personal investment in tools | Professional-grade equipment |
| Expertise Level | Requires knowledge & experience | Certified mechanics, specialised training |
| Time Commitment | Significant, especially for first-timers | Efficient, completed by experts |
| Warranty/Guarantee | None on labour | Often comes with labour and parts warranty |
| Risk of Error | Higher if inexperienced | Lower, due to expertise |
| Access to Manuals/SSTs | May require separate acquisition | Standard equipment for workshops |
Frequently Asked Questions (FAQs)
How often should brake pads be checked and replaced?
Brake pads should typically be inspected every 6,000 to 10,000 miles or during every oil change. Replacement frequency varies greatly depending on driving habits, vehicle type, and brake pad material, but generally ranges from 25,000 to 70,000 miles. Always refer to your Kia's maintenance schedule.
What are the signs of a failing brake caliper?
Common signs include the vehicle pulling to one side when braking, unusual noises (grinding, squealing, clunking), a spongy or low brake pedal, uneven brake pad wear, visible brake fluid leaks, or a burning smell after braking.
Do I need to bleed the brakes after replacing a caliper?
Yes, absolutely. Whenever a brake line is disconnected or a caliper is replaced, air will enter the hydraulic system. This air must be removed through a process called bleeding the brakes to restore proper brake pedal feel and braking effectiveness.
Can I replace just one brake caliper?
While technically possible, it is highly recommended to replace brake calipers in pairs (both front or both rear) to ensure even braking performance. Replacing only one can lead to uneven braking, premature wear on other components, and a potential loss of vehicle control.
What is brake fluid and why is it important?
Brake fluid is a hydraulic fluid that transmits force from the brake pedal to the calipers and wheel cylinders, causing the brakes to engage. It's crucial because it operates under high pressure and temperature. Old or contaminated brake fluid can lead to a spongy pedal, reduced braking efficiency, and corrosion within the brake system. It should be flushed and replaced according to your Kia's maintenance schedule, typically every two to three years.
What is the SST 09581-11000 tool for?
The SST (Special Service Tool) 09581-11000 is a specific tool recommended by Kia for certain procedures, particularly during the installation of a brake caliper assembly. Its exact function can vary, but such tools are generally designed to aid in the precise and safe installation of components, ensuring proper alignment, preventing damage to sensitive parts like seals or boots, or assisting in the compression or seating of pistons. Always consult your Kia service manual for the precise application and instructions for any SST.
Maintaining your Kia's braking system is not merely about keeping your car running; it's about safeguarding lives. By leveraging the comprehensive information found in professional service manuals and understanding the intricacies of components like the brake caliper, you empower yourself to perform effective maintenance and make informed decisions. Always prioritise safety, use the correct tools, and when in doubt, consult with a qualified mechanic.
