BMW KDS Wheel Alignment Explained

Ensuring your BMW is tracking straight and true is paramount for a safe and enjoyable driving experience. Uneven tyre wear, poor handling, and increased fuel consumption can all be symptoms of misaligned wheels. When it comes to precision alignment, BMW's own KDS (König-System) system is often mentioned. But what exactly is BMW KDS, how much does it cost, and is it a worthwhile investment for your beloved Beemer? Let's delve into the details.

What is BMW KDS Wheel Alignment?

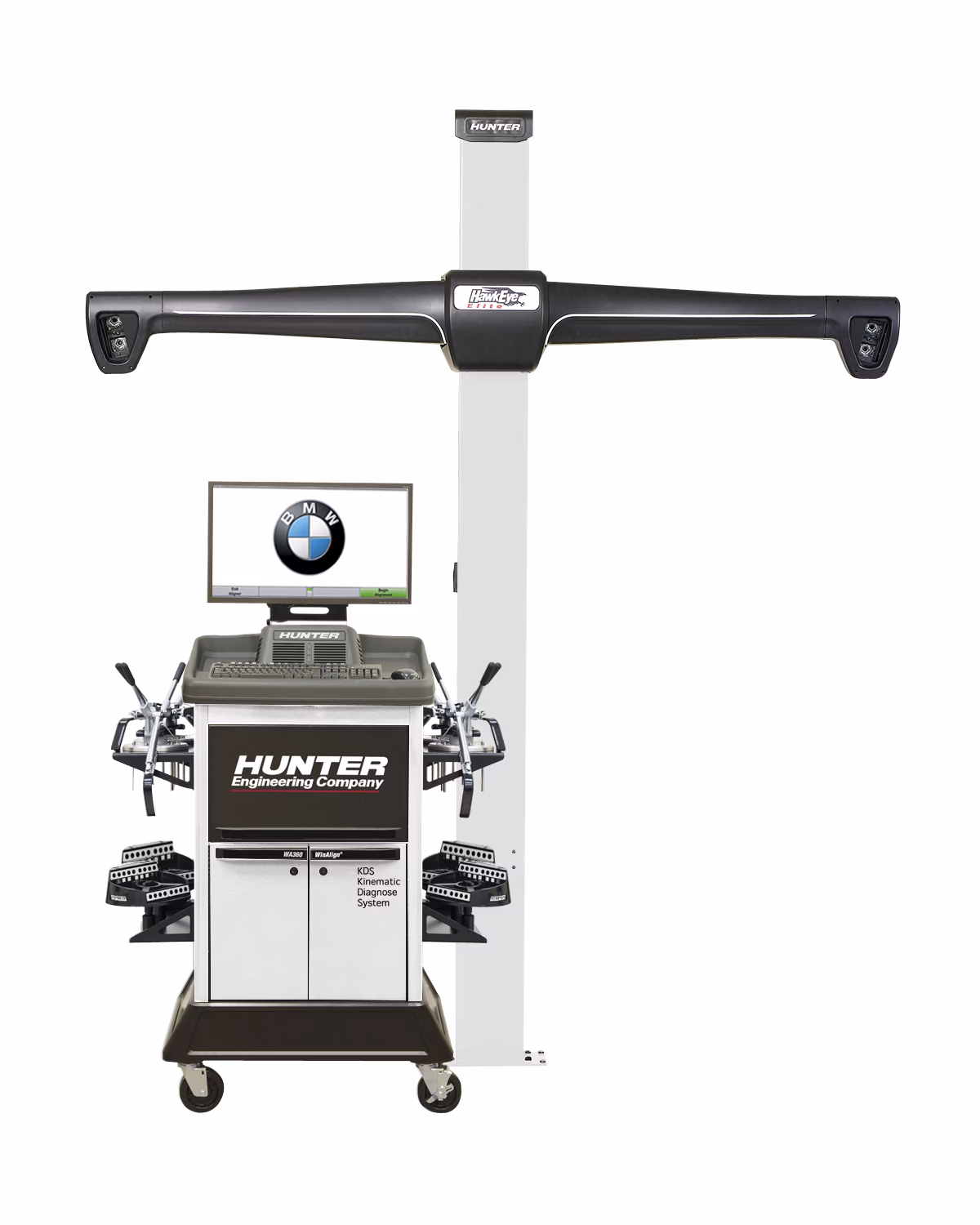

The BMW KDS system, also known as the König-System, is a state-of-the-art wheel alignment equipment specifically designed and utilised by BMW dealerships and authorised service centres. It's not just a generic alignment machine; it's calibrated to BMW's precise specifications for each individual model. This ensures that the complex suspension geometry of your BMW is adjusted to the manufacturer's exact tolerances.

Unlike older or less sophisticated alignment systems, the KDS system uses advanced optical sensors and targets that are mounted onto each wheel. These sensors communicate wirelessly with a central computer that houses BMW's extensive database of vehicle alignment specifications. The system measures various angles, including:

• Camber: The inward or outward tilt of the tyre when viewed from the front.
• Caster: The angle of the steering axis when viewed from the side.
• Toe: The angle of the wheels relative to each other when viewed from above.
• Toe-out-on-turn: How much the front wheels toe out when the steering wheel is turned.
• Thrust angle: The direction the rear axle is pointing relative to the car's centreline.

The KDS system allows technicians to make incredibly fine adjustments, ensuring that all these parameters are within BMW's stringent requirements. This level of precision is crucial for optimising tyre wear, steering feel, and overall vehicle dynamics, especially on performance-oriented BMW models.

How Much Does a BMW KDS Tyre Alignment Cost?

The cost of a BMW KDS wheel alignment can vary significantly depending on your location, the specific dealership, and the model of your BMW. However, based on user feedback and industry averages, you can expect to pay anywhere from £150 to £250 for a full alignment using the KDS system at a BMW main dealer.

As one forum user mentioned, they were quoted around £170 for their 330Ci. This aligns with the general price range. While this might seem steep compared to independent garages that offer alignments for £30-£40, it's important to understand what you're paying for.

Factors Influencing Cost:

• Dealership Overhead: Main dealerships have higher operating costs than independent garages, which are reflected in their pricing.
• Specialist Equipment: The KDS system itself is a significant investment for the dealership, and this cost is factored into the service price.
• Technician Training: BMW technicians are specifically trained on using the KDS system and understanding BMW's precise alignment specifications.
• Additional Adjustments: If significant adjustments are needed due to worn or damaged suspension components, this can sometimes incur additional labour costs. However, a standard alignment should include adjustments to all adjustable suspension points.
• Location: Costs can be higher in major cities compared to rural areas.

While independent garages might offer a cheaper alignment, they may not have access to the KDS system or the same level of BMW-specific data. This can lead to less precise adjustments, even if the wheels appear to be pointing straight.

Is the BMW KDS System Worth the Investment?

This is a question that many BMW owners ponder. Given the higher cost, is the precision and expertise offered by BMW's KDS system truly beneficial? For many, the answer is a resounding yes, especially under certain circumstances.

When is KDS Alignment Most Beneficial?

• New Tyres: If you've just invested in a new set of premium tyres, ensuring they wear evenly is crucial to maximise their lifespan and performance. A KDS alignment can help prevent premature wear caused by misalignment.
• Suspension Work: Following any significant suspension work, such as replacing wishbones, ball joints, or shock absorbers, a KDS alignment is highly recommended to restore the vehicle to its optimal settings.
• Noticeable Handling Issues: If you're experiencing pulling to one side, steering wheel vibration, or general instability, a KDS alignment can diagnose and rectify these problems.
• Performance Models: BMW's M cars and other performance-oriented models have highly tuned suspension systems. Maintaining their precise alignment with the KDS system is vital for optimal handling and track performance.
• Peace of Mind: For owners who value the meticulous engineering of their BMW and want the assurance that the alignment is performed to the exact manufacturer standards, the KDS system offers unparalleled peace of mind.

What You Get with a BMW KDS Alignment:

One of the key benefits of a KDS alignment at a BMW dealer is the KDS printout. This detailed report shows:

• The 'before' alignment readings for all relevant angles (camber, caster, toe, etc.).
• The manufacturer's specified tolerances for each angle.
• The 'after' alignment readings, demonstrating that the adjustments have brought the vehicle within the specified tolerances.

This documentation provides tangible proof that the alignment has been carried out correctly and to BMW's exacting standards. It's a valuable record to have, especially when selling the car in the future.

Potential Downsides of Cheaper Alternatives:

While tempting, cheaper alignments from non-specialist garages can sometimes lead to:

• Inaccurate Measurements: Less advanced equipment may not be as precise.
• Limited Adjustment Capabilities: Some garages may not have the correct tools or knowledge to adjust all of a BMW's suspension components.
• Generic Data: They may not have access to BMW's specific alignment data for your model.
• Tyre Wear Issues: Even if the car feels better initially, subtle misalignments can still lead to uneven tyre wear over time.

The Alignment Process: What to Expect

When you book your BMW in for a KDS alignment, the process typically involves the following steps:

1. Initial Inspection: The technician will first inspect the tyres for wear patterns and check the suspension components for any obvious damage or wear.
2. Vehicle Setup: The BMW is driven onto a level platform, and the KDS sensor targets are securely attached to each wheel.
3. Data Input: The vehicle's specific model, year, and any relevant options are entered into the KDS computer system.
4. Measurement: The system measures the current alignment angles of all wheels.
5. Comparison: The measured angles are compared against BMW's database for your vehicle.
6. Adjustment: If the alignment is out of specification, the technician will make the necessary adjustments to the suspension components (e.g., tie rods, camber bolts). This is where the technician's skill and the KDS system's precision are crucial.
7. Re-measurement: After adjustments, the system re-measures the angles to confirm they are within tolerance.
8. Printout: A detailed report showing the 'before' and 'after' readings is provided to the customer.

Frequently Asked Questions (FAQs)

Q1: How often should I get my BMW's wheel alignment checked?

A: It's recommended to have your wheel alignment checked annually, or if you notice any signs of uneven tyre wear, the car pulling to one side, or after hitting a significant pothole or curb.

Q2: Can an independent garage perform a KDS alignment?

A: While some high-end independent specialists may invest in similar advanced alignment equipment and BMW data, the term 'KDS' specifically refers to BMW's proprietary system. Most independent garages will use a different brand of alignment equipment.

Q3: My car pulls slightly to the left, is it definitely the alignment?

A: While misalignment is a common cause, other factors can also cause a car to pull, such as uneven tyre pressures, uneven tyre wear, or issues with the braking system or suspension components. A thorough inspection is always recommended.

Q4: What is the difference between a 2-wheel and a 4-wheel alignment?

A: A 2-wheel alignment typically only adjusts the front wheels. A 4-wheel alignment (which is what the KDS system performs) adjusts both the front and rear wheels, considering the relationship between the front and rear axles, which is crucial for modern vehicle dynamics.

Q5: My BMW has M Sport suspension, does that require a different alignment?

A: Yes, BMW's M Sport models often have unique suspension geometry and tighter alignment tolerances. Using the KDS system, which has specific data for these models, is highly recommended to maintain their performance characteristics.

Conclusion

While the cost of a BMW KDS wheel alignment is higher than at many independent garages, the investment can be justified by the superior precision, BMW-specific data, and the detailed printout that guarantees the work has been done to the manufacturer's exacting standards. For owners who prioritise optimal handling, maximum tyre life, and the peace of mind that comes with using manufacturer-approved systems and expertise, a KDS alignment is often considered a worthwhile expense, particularly after new tyre purchases or suspension work.
