Kawasaki ZX-10R Oil Change: A UK Rider's Guide

Keeping your Kawasaki ZX-10R in peak condition is paramount for both performance on the track and reliability on the road. One of the most fundamental and crucial aspects of motorcycle maintenance is the regular changing of your engine oil. This isn't just a simple chore; it's a vital procedure that directly impacts your engine's longevity, efficiency, and overall power delivery. Neglecting this task can lead to premature wear, reduced fuel economy, and potentially costly damage. Fortunately, changing the oil on your ZX-10R is a straightforward process that any capable home mechanic can tackle with the right tools and a little patience. This comprehensive guide will walk you through every step, ensuring your superbike continues to perform at its best.

Why Regular Oil Changes are Non-Negotiable

Engine oil acts as the lifeblood of your motorcycle's engine. It performs several critical functions: lubrication, cooling, cleaning, and corrosion prevention. Over time, engine oil degrades due to heat, friction, and contamination from combustion by-products. This degradation reduces its ability to protect moving parts, leading to increased friction, heat build-up, and the accumulation of harmful deposits. A fresh supply of high-quality oil ensures that all internal components, from crankshaft bearings to cam lobes, are adequately lubricated and protected, preserving your engine's health and performance. Adhering to the recommended oil change intervals, typically between 3,000 and 7,000 miles for the ZX-10R depending on riding conditions, is key to sustained optimal operation.

Gathering Your Essential Tools and Materials

Before you begin, ensure you have all the necessary items to hand. Being prepared will make the process smoother and prevent any frustrating delays. Here's what you'll need:

• New Engine Oil: Specifically SAE 10W-40. Always use motorcycle-specific oil, preferably a good quality synthetic blend, as car oils often lack the necessary friction modifiers for wet clutches found in motorcycles. Refer to the service information section below for precise capacity.
• New Oil Filter: A fresh filter is just as important as fresh oil. It traps contaminants, preventing them from circulating through the engine. Ensure you have the correct part number for your model year.
• New Drain Bolt Washer (Crush Washer): This small, but crucial, component ensures a leak-free seal for your drain plug. It's designed to be crushed once, so always replace it.
• 17mm Wrench or Socket and Ratchet: For removing and tightening the engine oil drain plug.
• 4mm Allen Wrench: Likely needed to remove the left lower fairing on some models to access the oil filter.
• Drain Pan: A container large enough to hold the full volume of old engine oil (up to 4.7 quarts or 4.4 litres).
• 65mm Oil Filter Wrench (Kawasaki Part No. 57001-1249 or equivalent): Essential for safely removing and tightening the oil filter without damaging it or the engine casing.
• Clean Rags or Shop Towels: For wiping up spills and cleaning surfaces.
• Funnel: To ensure clean and accurate pouring of new oil into the engine.
• High-Flash Solvent (e.g., Brake Cleaner, Acetone, or Paint Thinner): For cleaning up any oil residue around the drain plug or filter area. Use sparingly and ensure good ventilation.
• Torque Wrench: Highly recommended for accurately tightening the drain plug and oil filter to specification, preventing over-tightening or under-tightening.

Step-by-Step Guide: Changing Your ZX-10R's Engine Oil

Follow these steps carefully to perform a successful oil change on your Kawasaki ZX-10R:

Step 1: Warm Up the Engine

Start your motorcycle and allow it to run for a few minutes, or even better, take it for a quick five to ten-minute ride. This brings the oil up to operating temperature, making it thinner and allowing it to drain more completely, carrying away more contaminants. Ensure the bike is on a level surface when you return.

Step 2: Prepare for Drainage

Once the engine is warm, turn it off. Position your drain pan directly underneath the engine's oil drain plug. The drain plug is typically located on the bottom of the engine casing. For the ZX-10R, you might need to lean the bike slightly or use a paddock stand to ensure good access and that the bike is vertical for optimal drainage.

Step 3: Drain the Old Oil

Using your 17mm wrench or socket, carefully loosen and remove the engine oil drain plug. Be prepared for the hot oil to come out quickly. Allow ample time for all the old oil to drain completely. This can take 10-15 minutes. While the oil is draining, inspect the drain plug for any metal shavings or debris, which could indicate internal engine issues. Also, remove the old crush washer from the drain plug.

Step 4: Replace Drain Bolt and Washer

Once the oil has finished draining, clean the drain plug thoroughly. Place a brand new crush washer onto the drain plug. This washer is crucial for a proper seal and should never be reused. Reinstall the drain plug into the engine casing and tighten it. If you have a torque wrench, consult your owner's manual for the specific torque specification (usually around 29-30 Nm or 21-22 ft-lbs for the drain plug). Do not overtighten, as this can strip the threads in the engine casing, leading to a much larger and more expensive problem.

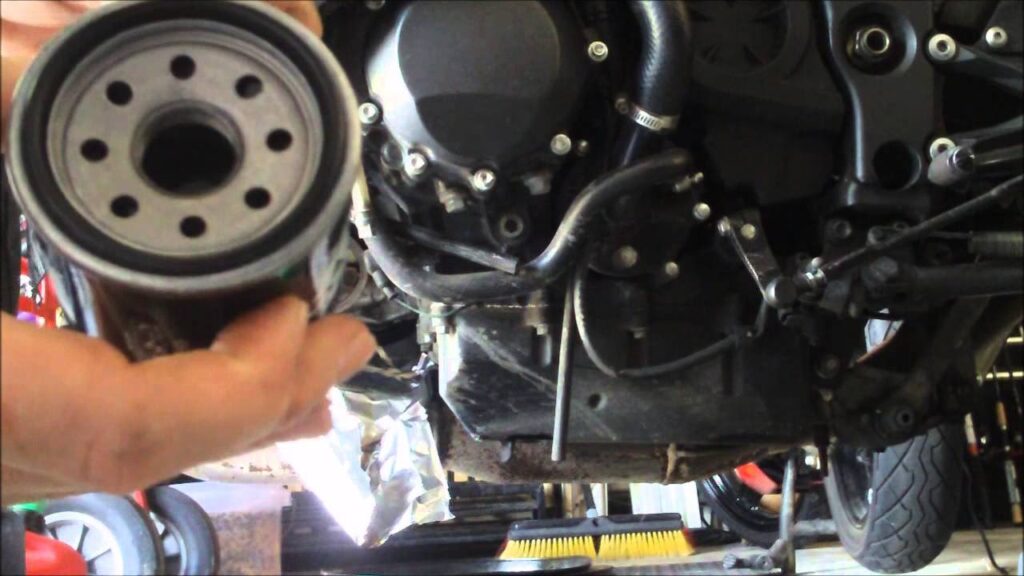

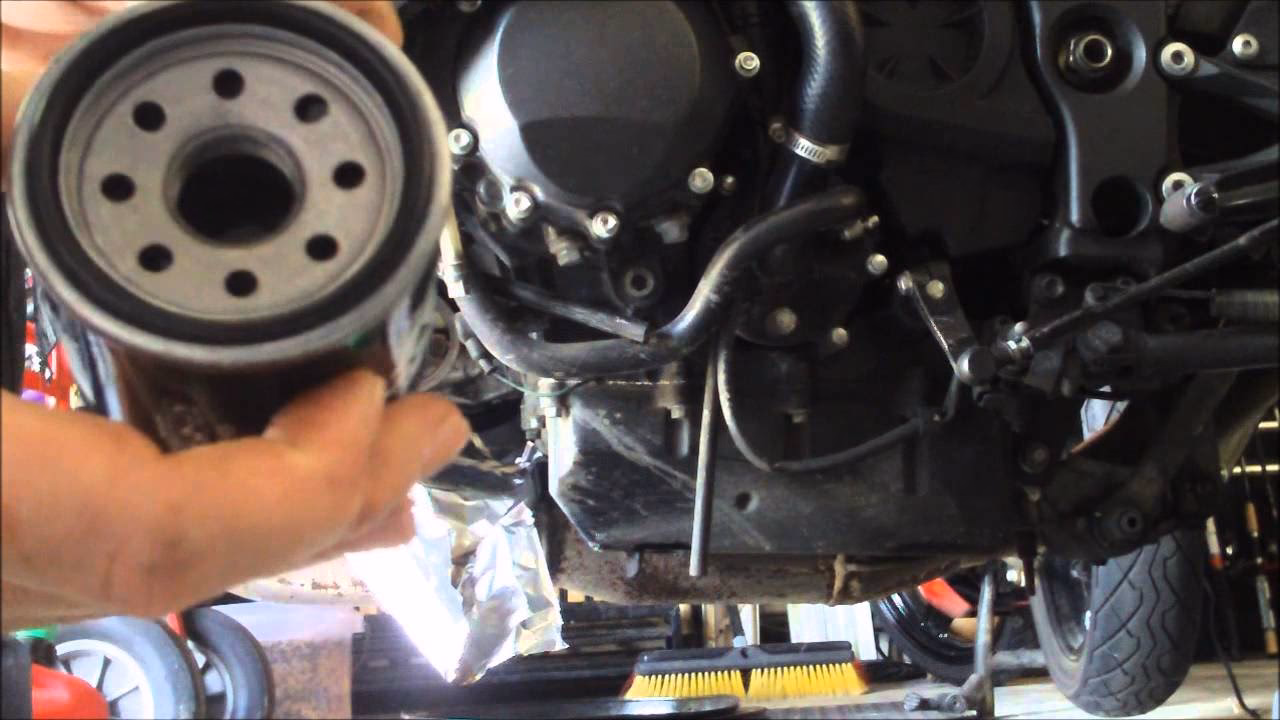

Step 5: Access and Remove the Old Oil Filter

On the Kawasaki ZX-10R, the oil filter is often located behind the left lower fairing. You may need to remove a few bolts (often 4mm Allen bolts) to carefully detach or move this fairing out of the way to gain access. Once exposed, place some rags underneath the oil filter to catch any drips. Use your 65mm oil filter wrench to loosen the old filter. Once loose, unscrew it by hand. Be aware that more oil will spill out as you remove the filter. Allow it to drain into your pan.

Step 6: Prepare and Install the New Oil Filter

Before installing the new filter, take a small amount of fresh engine oil and apply a thin coat to the rubber O-ring gasket on the new oil filter. This helps create a good seal and prevents the O-ring from binding or tearing during installation. Screw the new filter on by hand until the O-ring makes contact with the engine casing. Then, use your oil filter wrench to tighten it an additional 1/2 to 3/4 of a turn past hand-tight, or to the manufacturer's specified torque (typically around 17-20 Nm or 12-15 ft-lbs). Again, avoid overtightening.

Step 7: Reinstall Fairing and Refill Engine Oil

Once the new filter is securely in place, carefully reattach the left lower fairing, ensuring all bolts are tightened properly. Now, using your funnel, slowly pour the specified amount of new 10W-40 engine oil into the oil fill cap opening. Refer to the service information below for the correct capacity for your model year, especially noting whether the filter was removed. It's always better to start with slightly less than the full capacity and add more as needed.

Step 8: Check Oil Level and Final Inspection

After pouring in the oil, allow a few minutes for it to settle. Most ZX-10Rs have a sight glass or dipstick for checking the oil level. Ensure the motorcycle is level (vertical) when checking. The oil level should be between the upper and lower marks. If it's low, add small amounts gradually until it reaches the correct level. Do not overfill. Once the level is correct, replace the oil fill cap. Start the engine and let it idle for a minute or two. Check for any leaks around the drain plug and oil filter. Turn off the engine, wait a few minutes for the oil to settle again, and recheck the level. Top up if necessary. Finally, clean up any spilled oil with your high-flash solvent and rags.

Kawasaki ZX-10R Service Information by Model Year

Understanding the specific capacities and part numbers for your ZX-10R model year is crucial for correct maintenance. Below is a breakdown of key service information.

Note: While coolant, air filter, and battery information were provided, they are not directly related to an engine oil change and are therefore omitted from this specific guide to maintain focus. Always refer to your motorcycle's official owner's manual for the most accurate and up-to-date specifications and torque values.

Frequently Asked Questions About ZX-10R Oil Changes

Q1: How often should I change the oil on my Kawasaki ZX-10R?

A1: The recommended oil change interval for the Kawasaki ZX-10R is generally between 3,000 to 7,000 miles, or at least once a year, whichever comes first. This range depends heavily on your riding conditions. If you frequently ride aggressively, track day events, or in very dusty environments, you should lean towards the lower end of the interval (e.g., every 3,000 miles). For more casual road riding, 5,000-7,000 miles might be acceptable. Always consult your owner's manual for the precise recommendation for your specific model year and riding style.

Q2: Can I use car oil in my Kawasaki ZX-10R?

A2: No, it is strongly advised not to use car oil in your Kawasaki ZX-10R. Motorcycle engines, especially those with a wet clutch system like the ZX-10R, require specific additives that car oils typically lack. Car oils often contain friction modifiers designed for fuel efficiency in automotive engines, which can cause clutch slippage in a motorcycle, leading to poor performance and premature clutch wear. Always use motorcycle-specific oil that meets or exceeds the JASO MA or MA2 standard (JASO MA2 is preferred for modern sportbikes).

Q3: What type of oil should I use for my ZX-10R?

A3: For all Kawasaki ZX-10R models from 2011 to 2021, the recommended oil viscosity is SAE 10W-40. While mineral oils are available, most enthusiasts and manufacturers recommend using a high-quality synthetic or semi-synthetic motorcycle oil. Synthetic oils offer superior protection against wear, better thermal stability, and longer drain intervals, which is beneficial for a high-performance engine like the ZX-10R's.

Q4: What should I do with the old engine oil?

A4: Never dispose of used engine oil down drains or in the regular rubbish. Used oil is a hazardous waste and must be recycled responsibly. Most local recycling centres, auto parts stores, or workshops will accept used engine oil for proper disposal. Store the old oil in a sealed container (like the empty new oil bottles) until you can take it to a designated recycling facility.

Q5: How do I know if I've put too much or too little oil in?

A5: If you've put in too little oil, the oil level will be below the lower mark on the sight glass or dipstick. Running with insufficient oil can lead to inadequate lubrication, increased friction, and severe engine damage. If you've put in too much oil (level above the upper mark), it can cause excessive pressure in the crankcase, leading to oil foaming, seal leaks, and reduced engine performance due to drag. Always ensure the oil level is between the minimum and maximum marks when the bike is level and the engine is cold or has been off for a few minutes to allow oil to settle.

Q6: Can I change the oil without changing the filter?

A6: While technically possible, it is highly recommended to replace the oil filter every time you change the engine oil. The oil filter traps contaminants and metallic particles that accumulate over time. Reusing an old, dirty filter with fresh oil defeats much of the purpose of the oil change, as these contaminants will immediately begin to circulate in your new oil, reducing its effectiveness and lifespan. The cost of a new filter is minimal compared to the protection it provides.

Conclusion

Performing a regular engine oil and filter change on your Kawasaki ZX-10R is a fundamental aspect of responsible motorcycle ownership. By following this detailed guide, you can ensure your powerful machine continues to deliver exhilarating performance and reliable operation for many miles to come. Remember, patience, the correct tools, and adherence to manufacturer specifications are your best allies in this process. Happy riding!
