Braking Brilliance: Your Kawasaki Z1000 System Guide

When you're piloting a machine as potent and exhilarating as the Kawasaki Z1000, the ability to stop with precision and confidence is just as crucial as its raw power. Far from being an afterthought, the braking system on your Z1000 is a meticulously engineered ensemble of components designed to deliver unparalleled stopping performance, ensuring both your safety and control. This article delves deep into the intricacies of the Z1000's braking system, exploring its core components, essential maintenance practices, common issues, and the exciting world of upgrades and renovations available to keep your bike performing optimally on British roads.

Yes, to unequivocally answer the initial query, the Kawasaki Z1000 absolutely features a robust and highly capable brake system. In fact, it's one of the bike's most critical safety features, comprising a sophisticated network of parts working in harmony to convert kinetic energy into thermal energy, bringing your motorcycle to a controlled halt. Understanding these components and their functions is the first step towards proper maintenance and informed decision-making regarding service and potential upgrades.

The Core Components of Your Z1000's Braking System

The braking system of the Kawasaki Z1000, like most modern motorcycles, is a hydraulic system. It relies on fluid pressure to transmit force from your brake lever or pedal to the calipers, which then grip the brake discs. Let's break down the key players:

Master Cylinders: The Command Centre

At the heart of your braking action are the master cylinders – one for the front brake (operated by the hand lever) and one for the rear brake (operated by the foot pedal). When you apply pressure to the lever or pedal, the master cylinder converts this mechanical force into hydraulic pressure. Inside, a piston moves, forcing brake fluid through the lines. For a high-performance machine like the Z1000, the master cylinder is designed for precise feel and consistent pressure delivery. Over time, internal seals can wear, leading to a spongy feel or loss of pressure, necessitating service or replacement.

Brake Lines: The Lifelines of Pressure

Connecting the master cylinders to the calipers are the brake lines. Traditionally, these were rubber hoses. However, many Z1000 models, or riders performing upgrades, opt for braided stainless steel lines. Rubber lines can expand slightly under extreme pressure and heat, leading to a less direct feel and a slight delay in brake response, often referred to as 'brake fade' under prolonged hard braking. Braided lines, on the other hand, offer superior rigidity, ensuring that almost all the pressure generated at the master cylinder reaches the calipers, providing a firmer, more consistent lever feel and improved braking efficiency, especially during aggressive riding.

Brake Calipers: The Gripping Force

The calipers are arguably the most visually prominent part of the brake system on your wheels. These are the components that house the brake pads and apply them to the discs. The Z1000 typically features powerful multi-piston calipers (e.g., four-piston radial-mount calipers on the front) designed to provide immense clamping force. Each piston in the caliper pushes a brake pad against the disc. The number of pistons and their design directly influences braking power and modulation. Calipers require periodic cleaning and lubrication of their pistons to ensure smooth operation and prevent sticking, which can lead to uneven pad wear or even brake drag.

Brake Discs (Rotors): The Friction Surface

Attached to your wheels, the brake discs (or rotors) are the large metal plates that the calipers clamp onto. The Z1000 typically uses dual discs at the front for maximum stopping power and a single disc at the rear. These discs are designed to dissipate heat efficiently, preventing brake fade. They come in various forms, including drilled or wave-patterned, to aid in heat dissipation and reduce weight. Over time, discs wear down, become grooved, or can warp due to excessive heat, leading to pulsation through the lever or pedal. Regular inspection for minimum thickness and signs of warping is crucial.

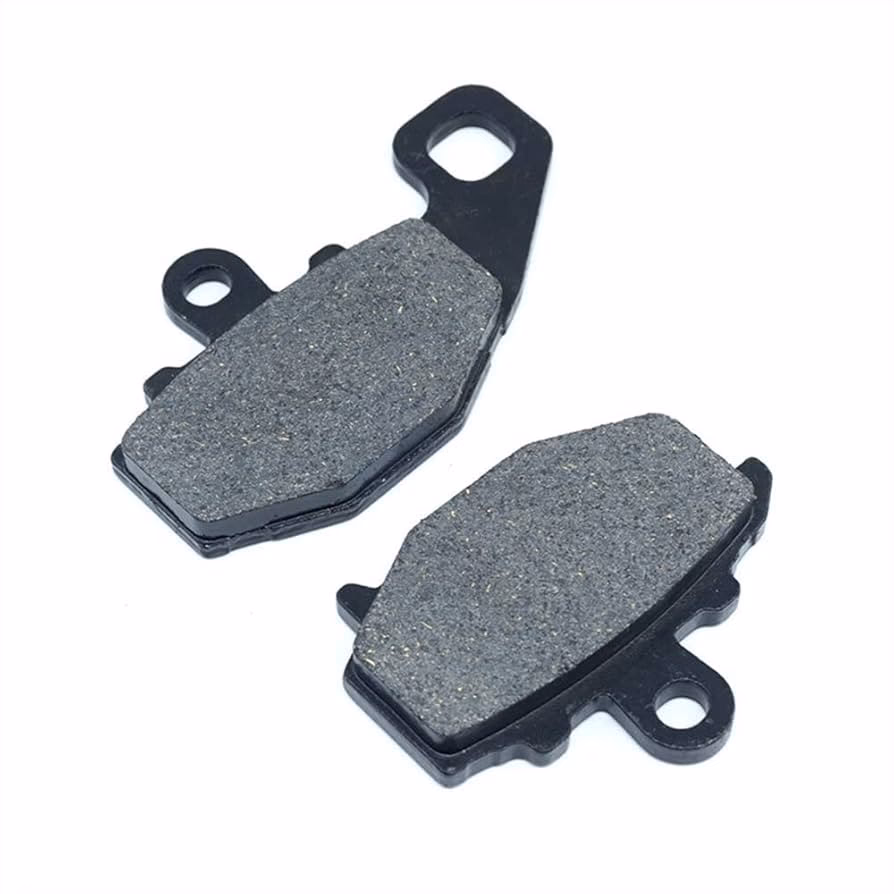

Brake Pads: The Consumable Friction Material

The brake pads are the consumable friction material housed within the calipers. They are designed to wear down as they convert kinetic energy into heat through friction with the brake discs. Different compounds are available, including organic, semi-metallic, and sintered (metallic) pads, each offering different characteristics in terms of initial bite, fade resistance, noise, and longevity. For the Z1000, high-performance sintered pads are often preferred for their excellent stopping power and fade resistance, especially for spirited riding.

Routine Maintenance: Keeping Your Z1000's Brakes Sharp

Regular maintenance is paramount to the longevity and effectiveness of your Z1000's braking system. Neglecting these essential checks can lead to compromised safety and costly repairs.

• Brake Fluid Changes: Brake fluid is hygroscopic, meaning it absorbs moisture from the air over time. This moisture reduces the fluid's boiling point, leading to 'brake fade' when the fluid boils under intense braking, creating compressible vapour bubbles. It also causes internal corrosion within the brake system. Most manufacturers recommend changing brake fluid every one to two years, regardless of mileage.
• Brake Pad Inspection: Visually inspect your brake pads regularly for wear. Most pads have wear indicators, but generally, if the friction material is less than 2mm thick, it's time for replacement. Uneven wear can indicate a sticking caliper piston or a warped disc.
• Brake Disc Inspection: Check discs for signs of warping (often felt as a pulsation) and measure their thickness. Each disc has a minimum thickness stamped on it, and exceeding this limit means replacement is necessary. Look for deep grooves or scoring.
• Bal Caliper Cleaning and Lubrication: Periodically, remove the calipers, clean accumulated brake dust and grime, and lightly lubricate the caliper slide pins (if applicable) and piston seals with appropriate brake grease. This ensures smooth movement and even pad wear.
• Brake Line Inspection: Check rubber lines for cracks, bulges, or chafing. For braided lines, inspect fittings for leaks and ensure they aren't rubbing against other components.

Common Brake Issues and Troubleshooting

Even with diligent maintenance, issues can arise. Here are some common problems and their potential causes:

• Spongy Brake Lever/Pedal: This usually indicates air in the brake lines, requiring bleeding the system. It can also be a sign of worn master cylinder seals or boiling brake fluid.
• Squealing or Grinding Noise: Squealing often points to worn brake pads (the metal backing plate rubbing the disc) or contamination (e.g., oil or grease on the pads/discs). Grinding is a serious sign that your pads are completely worn, and metal is rubbing on metal, which will rapidly damage your discs.
• Brake Fade: A reduction in braking power during prolonged or hard braking. This is typically caused by overheating of the pads, discs, or boiling brake fluid. It's a critical safety concern.
• Pulsation Through Lever/Pedal: A strong indication of a warped brake disc, which will need replacing.
• Brake Drag: When the brakes don't fully release, causing the wheel to feel restricted and potentially overheat. This can be due to sticking caliper pistons, a seized master cylinder, or an improperly adjusted pedal/lever.

Upgrades and Complete Brake System Renovation

For the discerning Z1000 owner, or simply for those looking to refresh an ageing system, a complete brake system renovation or upgrade can dramatically enhance performance and safety.

A renovation might involve replacing all worn components with OEM-spec parts, ensuring the system functions as new. An upgrade, however, takes it a step further, utilising aftermarket components designed for superior performance.

Popular Upgrade Options:

• Braided Stainless Steel Brake Lines: As mentioned, these are one of the most cost-effective and impactful upgrades, eliminating line expansion for a firmer, more consistent lever feel.
• Performance Brake Pads: Aftermarket pads from brands like EBC, Brembo, or Galfer offer different friction compounds tuned for more aggressive bite, better fade resistance, or improved wet weather performance.
• Aftermarket Brake Discs: Lighter, more aggressively designed discs can improve heat dissipation and reduce unsprung weight, enhancing handling. Floating discs, where the friction surface is separate from the hub, can offer better heat management and reduce the chance of warping.
• Radial Master Cylinders: Upgrading to a high-quality radial master cylinder (e.g., Brembo RCS) can provide superior feel, modulation, and power, allowing for more precise control over braking force.
• Aftermarket Calipers: For the ultimate upgrade, replacing the stock calipers with high-performance units from brands like Brembo or Beringer can offer significant improvements in braking power, feel, and consistency, though this is a more substantial investment.

Comparative Table: OEM vs. Aftermarket Brake Components

A complete brake renovation or upgrade can transform the feel and safety of your Z1000. It's an investment that pays dividends in confidence and control, especially when pushing the bike's capabilities.

Frequently Asked Questions About Z1000 Brakes

Q: How often should I change the brake fluid on my Kawasaki Z1000?

A: It's generally recommended to change your brake fluid every one to two years, regardless of mileage. Brake fluid is hygroscopic and absorbs moisture over time, which degrades its performance and can lead to internal corrosion.

Q: What are the benefits of upgrading to braided brake lines?

A: Braided stainless steel brake lines offer a firmer, more consistent lever feel because they do not expand under pressure like traditional rubber lines. This results in more direct braking response and improved modulation, especially under hard braking.

Q: How do I know if my brake pads need replacing?

A: Look for the wear indicator groove on your pads. If the friction material is worn down to approximately 2mm or less, or if you hear a squealing noise (from the wear indicator scraping the disc), it's time for replacement. A grinding noise indicates the pads are completely gone and metal is rubbing on metal.

Q: Can I upgrade my Z1000's brakes myself?

A: Basic tasks like inspecting pads and fluid levels can be done by most competent DIYers. However, bleeding the system, replacing lines, or working on calipers requires specific tools and knowledge to ensure safety. If unsure, it's always best to have a qualified mechanic perform these tasks. Incorrectly bled brakes are extremely dangerous.

Q: Does the Kawasaki Z1000 have ABS?

A: Many later models of the Kawasaki Z1000 feature an Anti-lock Braking System (ABS) as standard or as an option. ABS prevents the wheels from locking up during hard braking, allowing the rider to maintain steering control. Check your specific model year's specifications to confirm if it's equipped with ABS.

Q: What's the difference between sintered and organic brake pads?

A: Sintered (metallic) pads offer excellent stopping power and fade resistance, especially in wet conditions, making them ideal for high-performance bikes like the Z1000 and aggressive riding. They can, however, be harder on discs and sometimes noisier. Organic pads are generally quieter, easier on discs, and offer a good initial bite, but may have less fade resistance at high temperatures.

Conclusion

The braking system on your Kawasaki Z1000 is a sophisticated and crucial part of its performance and, more importantly, your safety. Understanding its components, performing diligent routine maintenance, and being aware of potential issues are all vital responsibilities of a Z1000 owner. Whether you're simply maintaining the OEM setup or looking to unleash even greater stopping potential with a comprehensive renovation or upgrade, investing in your brakes is an investment in exhilarating, confident, and safe riding. Always ensure that any work on your braking system is carried out with precision, using quality parts, and if in doubt, by a qualified motorcycle technician.
