Kawasaki KDX200: The Ultimate Off-Road Companion

The Enduring Appeal of the Kawasaki KDX200

The Kawasaki KDX200 is more than just a motorcycle; it's an institution in the off-road riding community. For over two decades, this 2-stroke marvel has carved a reputation for its potent performance, surprising versatility, and sheer fun factor. Whether tackling challenging enduro courses, navigating tight woodland trails, or simply enjoying a weekend blast, the KDX200 has consistently delivered. This article delves into what makes this bike a legend, examining its technical specifications, the importance of its service manual, its place in Kawasaki's history, and why it continues to captivate riders today.

A Legacy Forged in Dirt: The KDX200's Evolution

Launched in the early 1980s, the KDX200 quickly established itself as a go-to machine for serious off-road riders. Its lineage can be traced back to Kawasaki's championship-winning motocross bikes, inheriting a spirit of performance and agility. Over the years, the KDX200 underwent several key developments, each iteration refining its capabilities and appeal.

Key Generational Upgrades:

The KDX200 wasn't a static design. Kawasaki continuously improved the platform, responding to rider feedback and technological advancements. Some of the most significant changes include:

• Early Models (1983-1985): Saw an increase in piston displacement to 198cc, updated 6-speed gear ratios, and improved suspension with adjustable damping.
• The KIPS Era (1986-1988): Introduced the revolutionary KIPS (Kawasaki Integrated Power Valve System), a game-changer that broadened the powerband and improved tractability. Suspension was further enhanced with 43mm conventional forks and a new rear shock. Front disc brakes became standard, a significant upgrade.
• Liquid Cooling and Refinements (1989-1994): The introduction of liquid cooling marked a major leap, improving engine performance and reliability. Carburetion was upgraded to a Keihin PWK-35, and the KIPS system received further modifications. The chassis saw a redesign with a modern Uni-Trak linkage. Later models in this era even featured inverted forks.
• Modernisation and Longevity (1995-2006): This generation brought a more modern aesthetic, a redesigned KIPS system with larger valves, and a perimeter frame inspired by KX motocross models. While forks reverted to conventional cartridge types, the overall package remained potent. This era saw the KDX200 solidify its status as a benchmark dirt bike.

What's Inside a Kawasaki KDX200 Service Manual?

For any KDX200 owner, a service manual is an indispensable tool. It's the rider's bible, providing the knowledge to keep the machine running optimally. A comprehensive manual will typically cover:

Core Sections of a Service Manual:

A good manual will often feature step-by-step instructions accompanied by clear photographs, making even complex tasks manageable for the home mechanic.

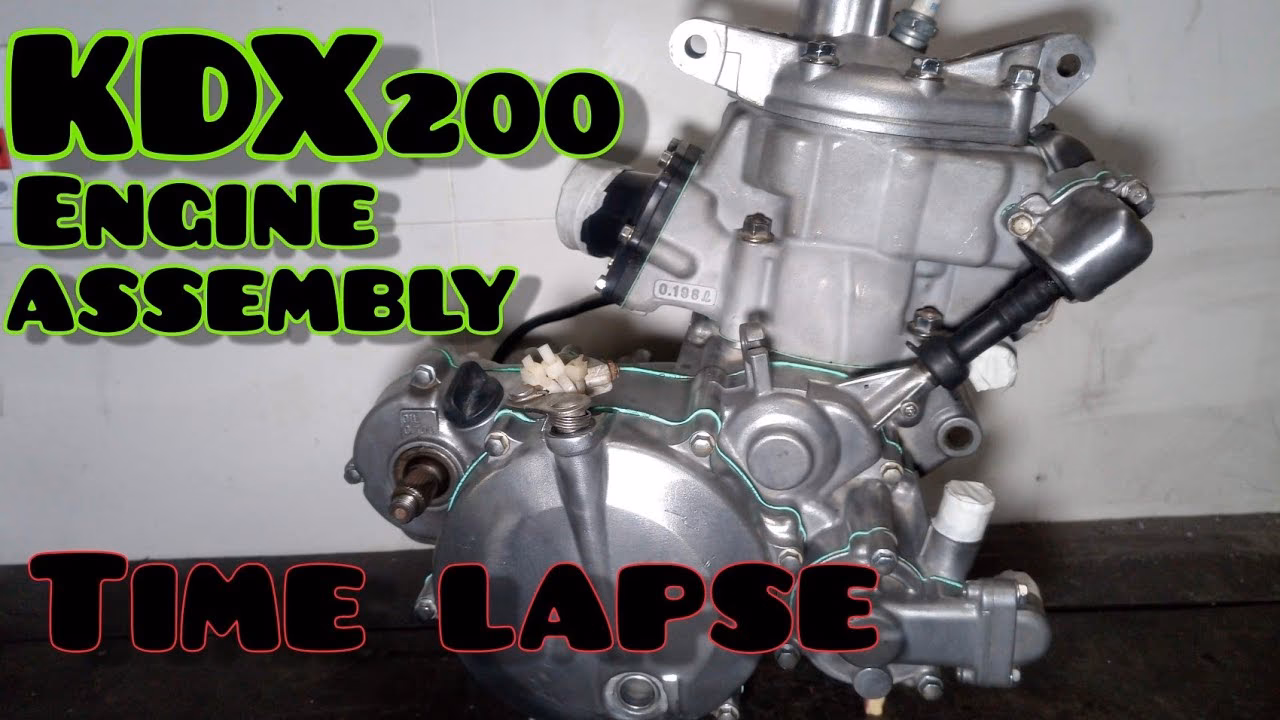

The KDX200 Engine: A Two-Stroke Powerhouse

At the heart of the KDX200 lies its 198cc, liquid-cooled, two-stroke, single-cylinder engine. This powerplant is renowned for its broad and tractable powerband, a direct result of Kawasaki's innovative KIPS technology. KIPS works by altering the exhaust port timing and geometry as engine speed increases, effectively giving the bike two powerbands in one – strong low-end torque for technical sections and a lively top-end rush for open trails.

Engine Specifications Overview (typical for later models):

• Engine Type: 2-stroke, single-cylinder, reed valve, liquid-cooled
• Displacement: 198cc
• Bore x Stroke: 66.0 x 58.0 mm
• KIPS: Kawasaki Integrated Power Valve System
• Carburetion: Keihin PWK35
• Ignition: Electronic CDI
• Starting: Kick start
• Transmission: 6-speed constant mesh
• Final Drive: Chain

The engine's design prioritised usability and performance, making it approachable for less experienced riders while still offering ample power for seasoned competitors. The inclusion of liquid cooling was a significant advancement, providing more consistent engine temperatures and allowing for higher states of tune.

Chassis and Suspension: Built for the Trail

Kawasaki understood that raw engine power is only part of the equation. The KDX200 featured a robust chassis, often a high-tensile steel perimeter frame derived from their KX motocross models. This provided a strong and responsive platform for off-road abuse.

Suspension Highlights:

• Front Suspension: Typically featured 43mm conventional Kayaba forks, offering significant travel (around 11.4 inches) and adjustable damping for compression and rebound.
• Rear Suspension: Utilised Kawasaki's Uni-Trak® linkage system with a single shock absorber, providing ample travel (around 11.8 inches) and a wide range of adjustability for preload, compression, and rebound damping.

This suspension setup was designed to soak up bumps, ruts, and landings, maintaining traction and control across varied terrain. The chassis geometry contributed to its nimble handling, allowing riders to change direction quickly and confidently.

What Happened to the Kawasaki KDX200?

While the KDX200 was a beloved model, Kawasaki eventually shifted its focus and product line. In the late 1990s and early 2000s, the market trend leaned towards four-stroke engines, and Kawasaki introduced the KLX series, which offered a different riding experience. The KDX200's production eventually ceased in 2006, making way for newer technologies. However, its legacy is undeniable, and it directly influenced the development of the KLX line, with many KDX design elements carrying over.

Is the Kawasaki KDX200 a Good Dirt Bike?

Absolutely. The KDX200 is widely regarded as one of the best dual-sport and trail bikes ever produced. Its combination of a user-friendly yet potent 2-stroke engine, capable suspension, and agile handling made it incredibly versatile. It excelled in its primary role as a trail bike but was also competitive in enduro racing. Even today, well-maintained KDX200s are highly sought after in the used market, a testament to their enduring quality and performance.

Common KDX200 Issues and Maintenance Tips

While the KDX200 is known for its durability, like any machine, it has common wear points and requires diligent maintenance:

• Stock Chain: The original chain was often criticised for stretching quickly. Upgrading to a quality O-ring chain is a common and recommended modification.
• Water Pump Seals: A potential failure point can be the water pump seals, which can allow coolant into the gearbox. This is usually indicated by a milky emulsion in the gearbox oil. Replacement is a relatively straightforward repair.
• Rear Brake Pads: Some owners report a higher-than-average wear rate for rear brake pads.
• Uni-Trak Linkage: The exposed pivots on the Uni-Trak rear suspension can be susceptible to wear if not properly maintained and lubricated. Regular cleaning and greasing are essential.
• Vibrations: Earlier models could exhibit noticeable vibrations, which could be exacerbated by loose engine mount bolts. Ensuring these are torqued correctly is important.

Regularly consulting the service manual for clutch and engine oil changes, chain adjustments, and suspension servicing will ensure the KDX200 continues to perform reliably for years to come.

Where to Sell Your KDX200

If you're looking to sell your Kawasaki KDX200, several avenues exist:

• Online Marketplaces: Websites like eBay, Gumtree, and dedicated motorcycleForums are excellent places to list your bike.
• Specialist Dealers: Off-road or enduro-focused dealerships may be interested in buying used KDX models.
• Local Classifieds: Traditional local classifieds can also reach potential buyers in your area.

When selling, having detailed maintenance records and the service manual readily available can significantly increase buyer confidence and the bike's value.

Conclusion: A True Off-Road Icon

The Kawasaki KDX200 stands as a testament to excellent engineering and a deep understanding of what off-road riders truly want. Its blend of accessible power, robust chassis, capable suspension, and the sheer joy it brings to the rider ensures its place in motorcycling history. Whether you're a seasoned enduro racer or a weekend trail explorer, the KDX200 offers an unparalleled experience, a true off-road legend that continues to inspire.

Key Takeaways:

• The KDX200 is a highly capable 2-stroke enduro/trail bike.
• The KIPS system is crucial for its broad power delivery.
• A service manual is essential for proper maintenance.
• Common issues include chain stretch and potential water pump seal leaks.
• It remains a sought-after and respected machine in the used market.
